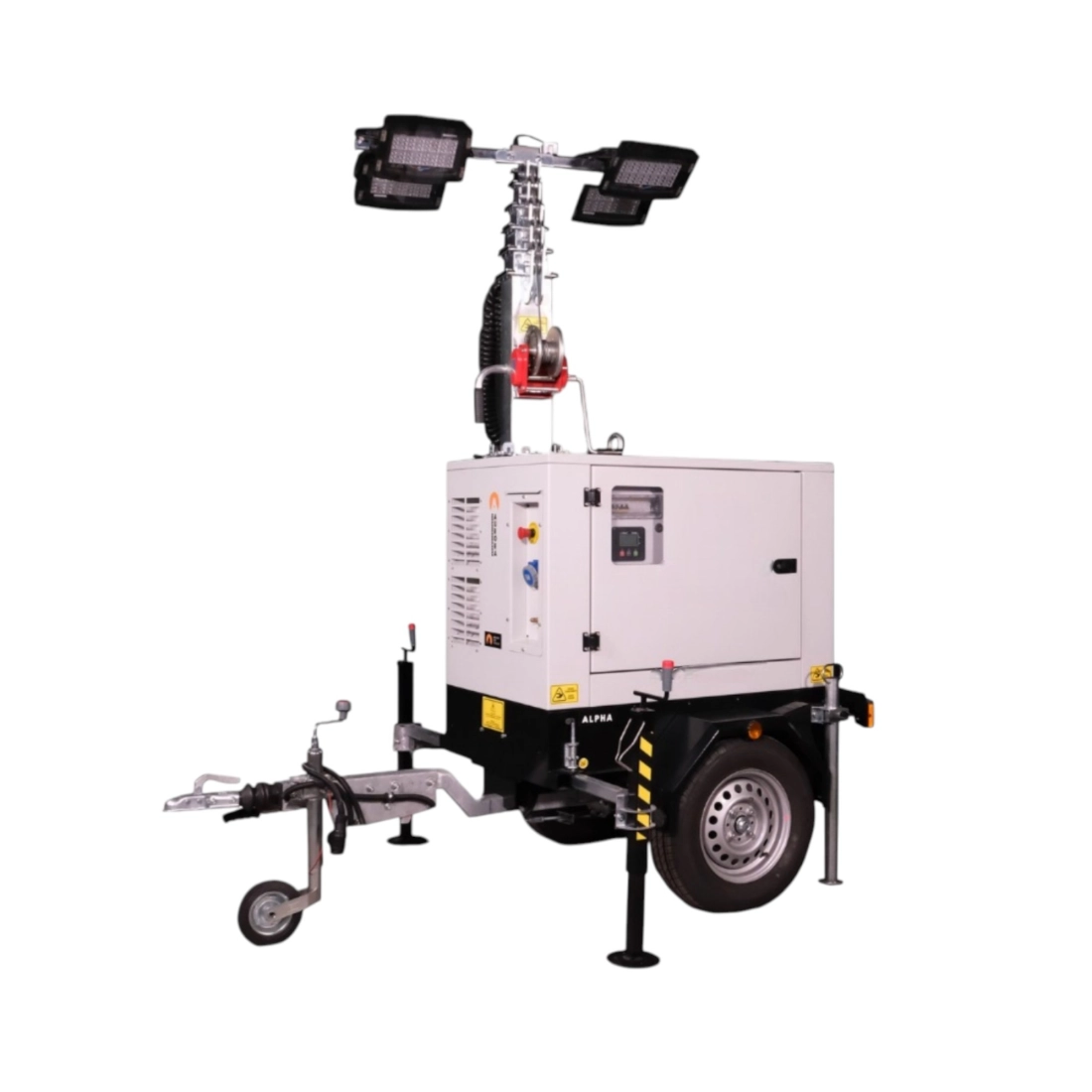

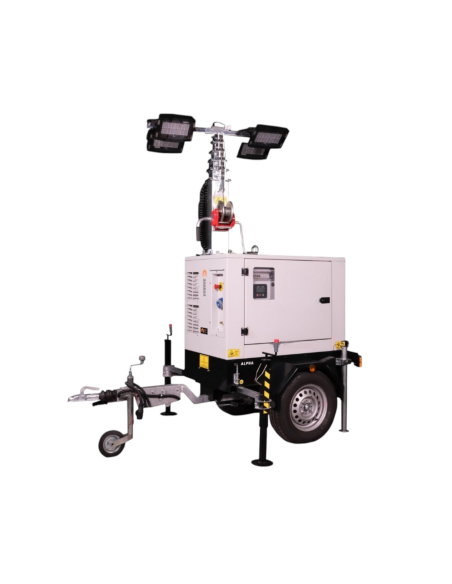

LIGHTING TOWER 4x320W STAGE V

STAGE V 4x320W LIGHT TOWER

STAGE V 4x320W LIGHT TOWER is a compact and powerful light tower, designed to provide efficient and reliable lighting. Equipped with a Yanmar 2TNV70 engine running at 1500 rpm, compliant with Stage 5 emissions regulations, this unit runs on diesel and guarantees an exceptional autonomy of 145 hours thanks to an 80-liter tank. It has an electric start and a water cooling system, ensuring stable and long-lasting operation.

The lighting system consists of 4 320W MULTILED lamps that produce a total luminous flux of 255,000 lumens, illuminating an area of 8,800 m². The pole, with a maximum height of 7.6 meters, can be lifted manually and has a 350° rotation to direct the light precisely. The unit is compact both when open (2026x1804x7600 mm) and closed (2026x1140x2390 mm).

With a dry weight of 550 kg, the TORRE FAR 4x320W STAGE V is easily transportable thanks to a slow trailer and an EU-approved road trailer. Its structure is robust, with wind stability up to 100 km/h, and the Linz Electric – Alumen alternator with protection class IP21 and insulation class H guarantees the safety and efficiency of the entire system.

Technical characteristics:

Fuel: Diesel

Frequency: 50 Hz

Voltage: 230 V

Engine speed: 1500 rpm

Starting: Electric

Type of lamps: MULTILED

Lamps: 4 x 320W Multiled

Total lumens: 255,000 Lm

Illuminated area: 8,800 m²

Lifting: Manual lifting system

Maximum height: 7.6 m

Open dimensions: 2026x1804x7600 mm

Closed dimensions: 2026x1140x2390 mm

Wind stability: 100 Km/h

Dry weight: 550 kg

Mast rotation: 350°

Transportability: Slow trailer and EU approved road trailer - variable rudder

Engine brand: Yanmar 2TNV70

With/without generator: With generator

Emissions standard: Stage 5

Cooling: Water

Displacement: 570

Tank capacity: 80 L

Autonomy: 145 h

Alternator: Linz Electric – Alumen

Protection class: IP21

Insulation class: H
