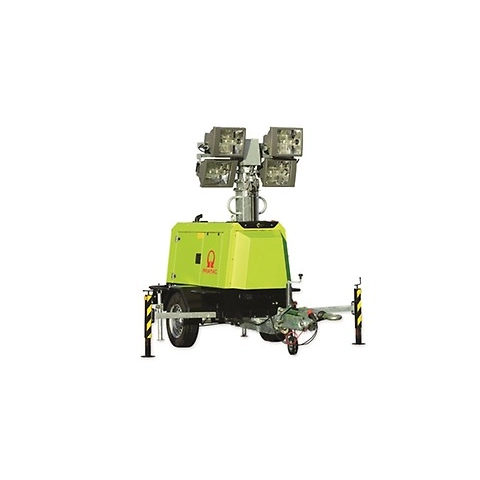

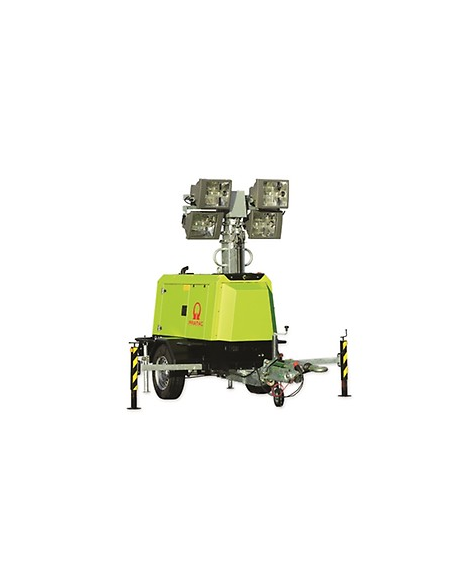

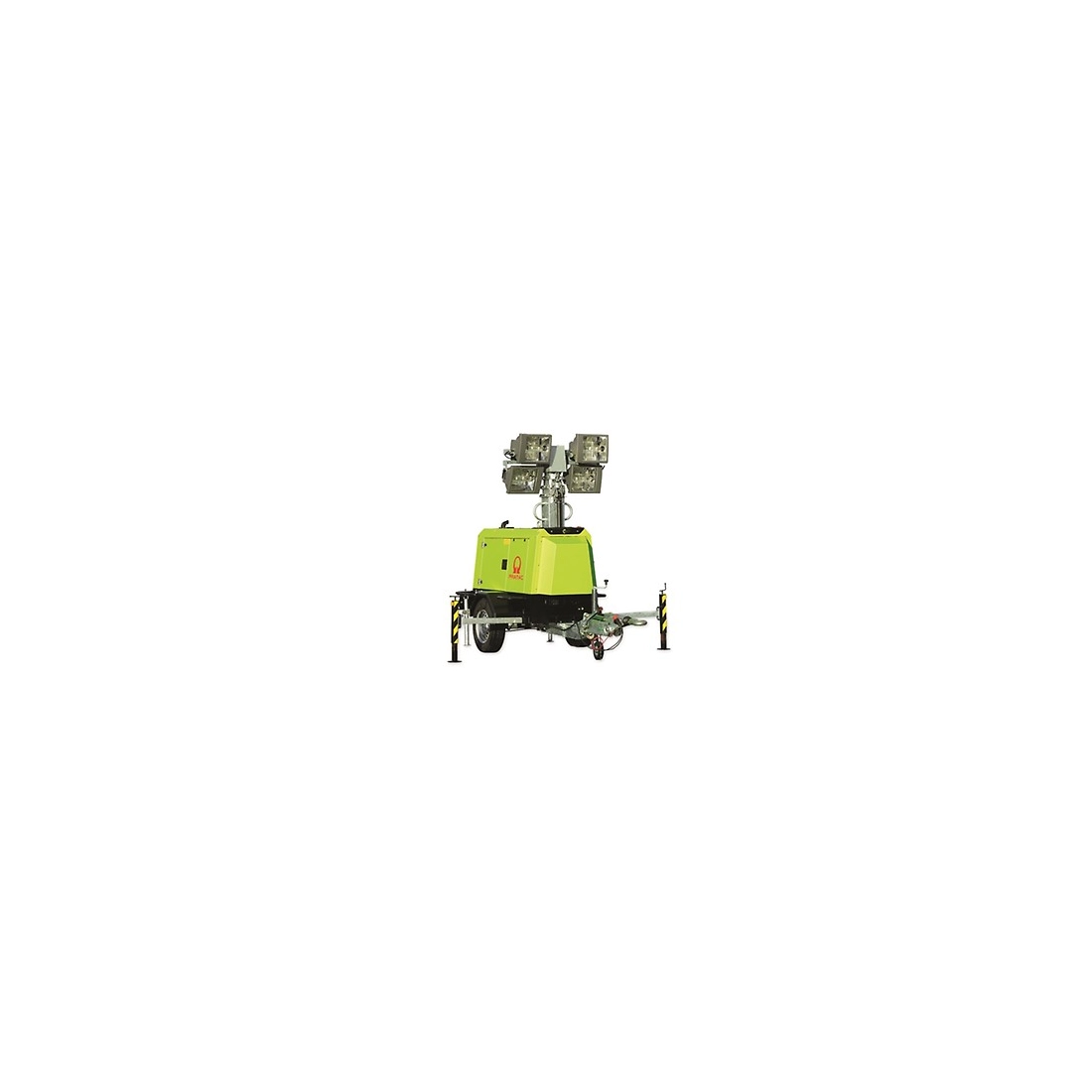

PRAMAC LSW9Y Metal Halides 4 x 1000W with Genset

Name: PRAMAC LSW9Y Metal Halides 4 x 1000W with Genset
Brand: PRAMAC
SKU: SW902YYA001 /

Reference SW902YYA001 /

OUT OF PRODUCTION

Maximum Height (mt.): 5
Lifting System: Manual
Illuminated Area (m²): 3000
Maximum lumens (Lm): 80000
Floodlihts: Metal Halide
Projectors: 1 x 1000 W
Transportability: Manual
Wind Stability (Km/h): 100
Balloon diameter (mm): 1100
Maximum Height (mt.): 9
Lifting System: Hydraulic
Illuminated Area (m²): 4500
Maximum lumens (Lm): 360000
Floodlihts: Metal halides
Projectors: 4 x 1000 W
Transportability: Slow or fast trailer (optional)
Wind Stability (Km/h): -----sw902yya001
Stabilizers: 4
Mast rotation: 360°
Single Phase Max. Output (kVA): 7.16
Voltage: 230 V
Engine: YANMAR 3TNV76-GPGE
Fuel: Diesel
Tank Capacity (l): 120
Consumption (l/h): 1.6
Operating Time (h): 76
Min. Dimensions (mm): 3011 x 1342 x 2468
Dry Weight (Kg): 970

Download Scheda tecnica LSW9Y Download Technical data LSW9Y Download Disegno installazione LSW9Y Download Disegno installazione LSW9Y

Product Details
Description

Phase: Single phase
Maximum power single phase (KVA): 7.16
Continuous power single phase (KVA): 6.52
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A 2P+T CEE
Engine: Yanmar 3TNV76-GPGE, naturally aspirated
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 1116
Number cylinders: 3
Cylinders' position: In line
Oil capacity (L): 3.5
Cooling: Water
Alternator: Linz E1C13SD
Poles: 4
Type of lamps: Metal halide
Lamps: 4 x 1000 W
Telescopic pole: Galvanized steel
Illuminated area (m²): 4500
Total lumens (Lm): 360000
Lifting System: Hydraulic lifting system
Maximum height (m): 9
Mast rotation: 360°
Open size (mm): 3011 x 2742 x 8838
Lenght closed (mm): 3011
Width closed (mm): 1342
Height closed (mm): 2468
Transportability: Slow or road trailer
Fuel tank capacity (L): 120
Consumption (L/h): 2.03 at 75% of the load / 2.70 at 100% of the load
Running time (h): 59.11 at 75% of the load / 44.44 at 100% of the load
Acoustic power: 87 dB(A)
Acoustic pressure: 58 dB(A) at 7 m
Dry weight (Kg): 970
Inverter: No
AVR: No
Compound: No
Silenced: Yes
Super silenced: Yes

Brand

These integrated, towable light towers are equipped with slow towing or road towing. Ideal for quick and easy deployment.
Thanks to their 4X1000W metal halide lamps these light towers illuminate more than 4,000 square meters, representing a professional solution for outdoor use, such as road and bridge construction, emergency management, oil and gas.

Non-binding images and technical data.
