Remote control start/stop
Timer
Automatic wash
Intensive wash
Periodic wash
Hour counter
Automatic start
Blood pressure gauge
Dimensions: 100x76mm

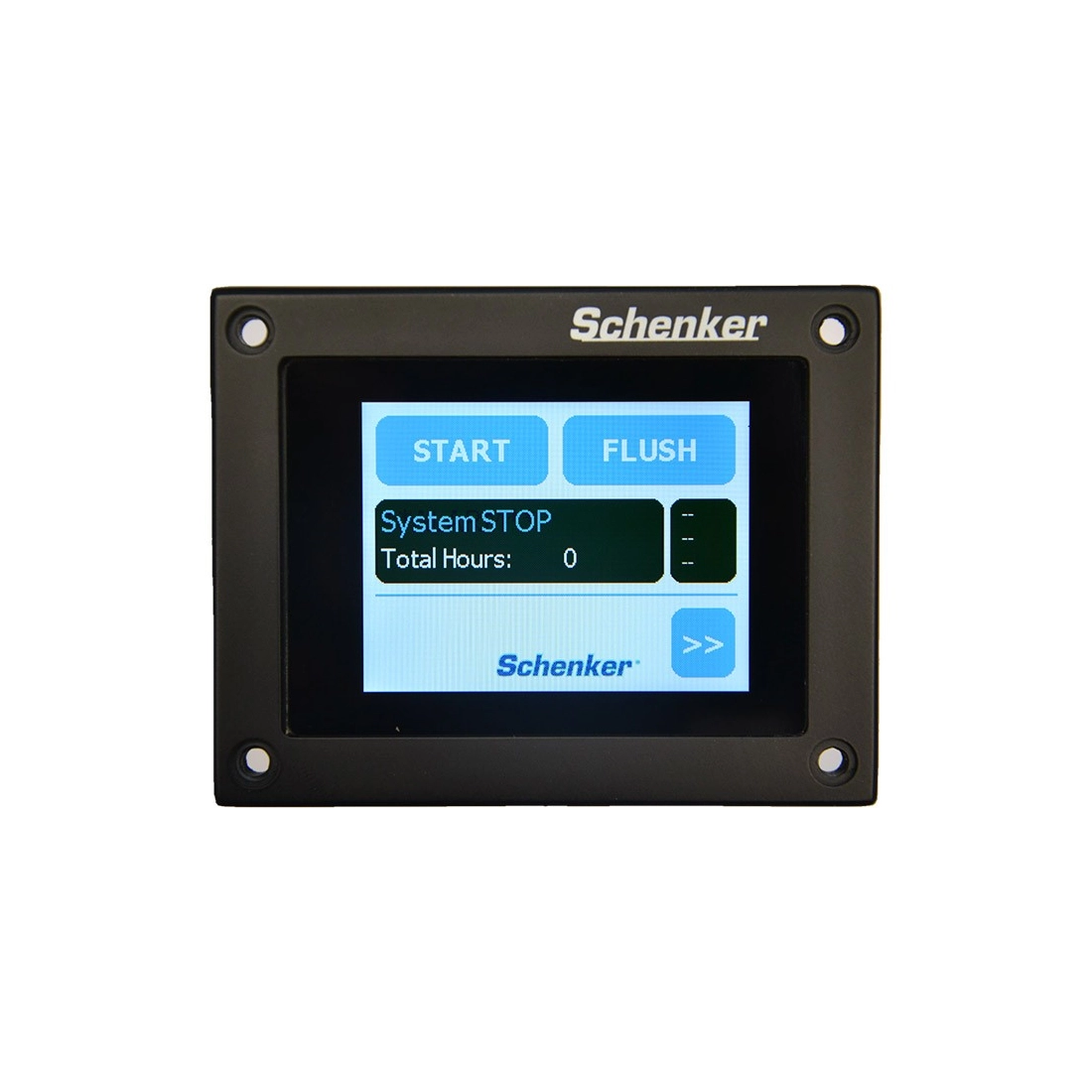

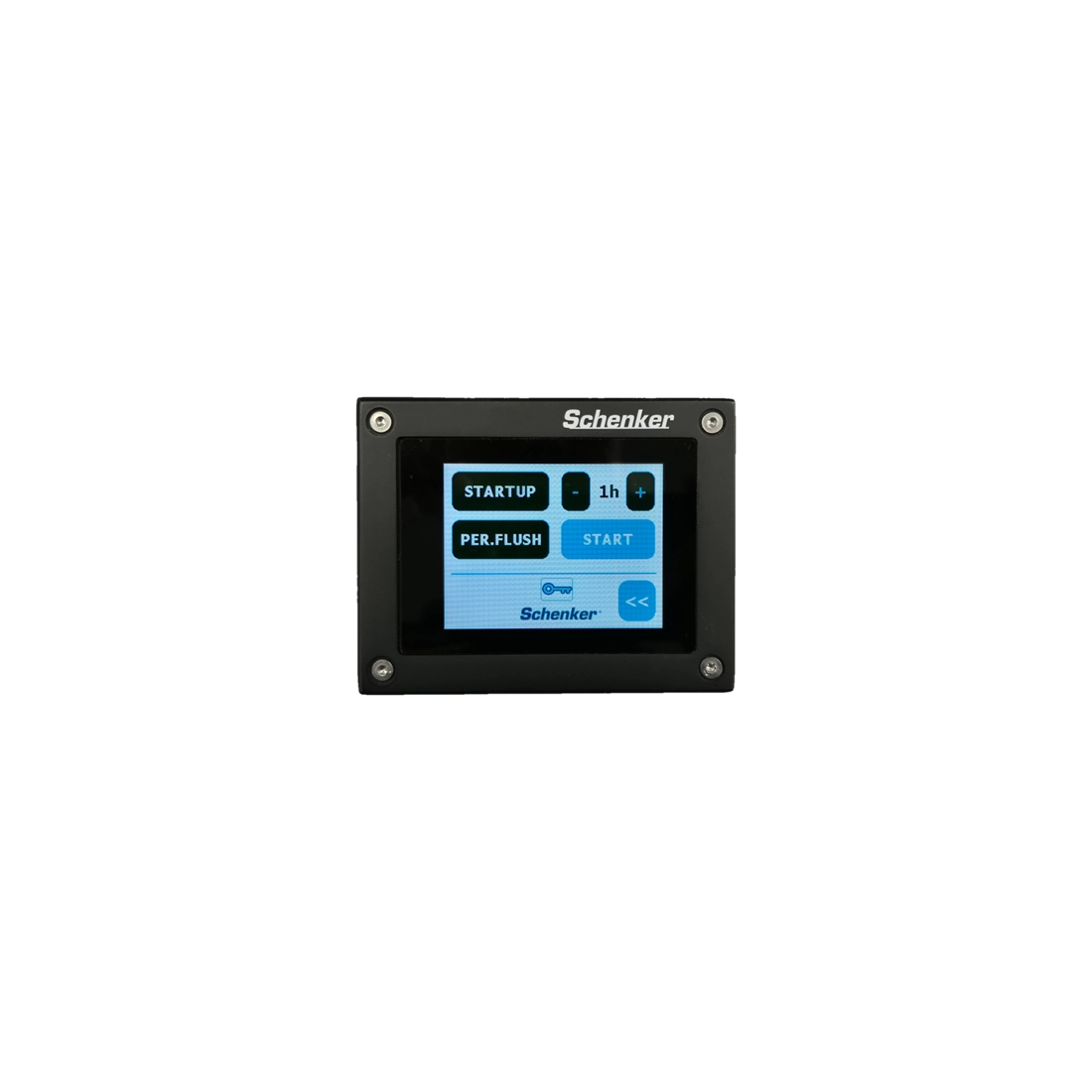

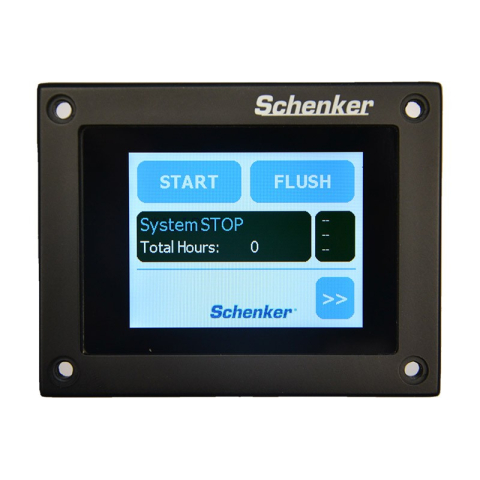

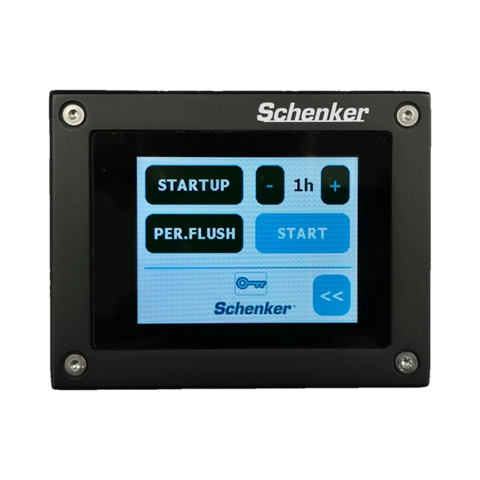

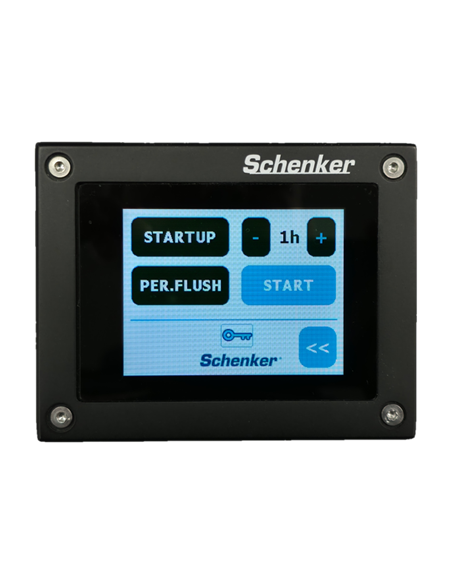

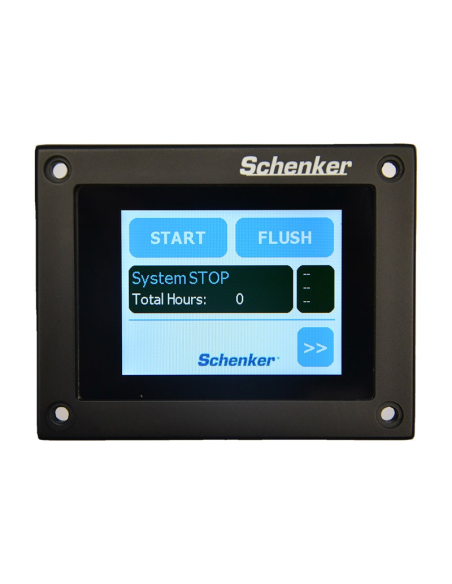

The Schenker Mini Touch Panel is a compact remote control panel designed for marine watermakers, ideal for installations on boats and yachts. It offers an intuitive touch interface to manage advanced fresh water production, maintenance, and monitoring functions.
Main Features
Remote control: Remote start/stop, automatic start, and timer to program production.
Flushing functions: Automatic, intensive, and periodic to keep the system clean and prevent scale.
Monitoring: Hour meter to track operating hours and pressure gauge to monitor performance.
Dimensions: Compact, measuring 100x76 mm, easy to install in tight spaces.
These features make it more advanced than the Basic panel, with touch options for more user-friendly use.
miniTOUCH control panel
New control panel with touch screen, based on the BASIC electronic board (it is not possible to add the monitoring kit), touch user interface, the ability to view alarms via Messages, simpler and more intuitive access to BASIC functions at a competitive price.
It will work exclusively with the BASIC board. All systems equipped with a Basic panel (two buttons) produced after January 1, 2026 are ready for installation of the miniTOUCH; units produced before that date require a software/hardware update to use the miniTOUCH.
Remote control start/stop
Timer
Automatic washing
Intensive washing
Periodic washing
Hour meter
Automatic start
Pressure gauge
Dimensions: 100x76mm
Looking for a marine watermaker with different technical features? HERE You can find the entire range of SCHENKER watermakers or other specialized brands.
