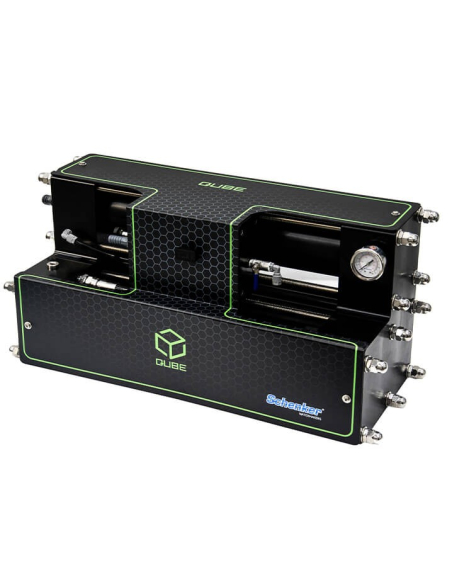

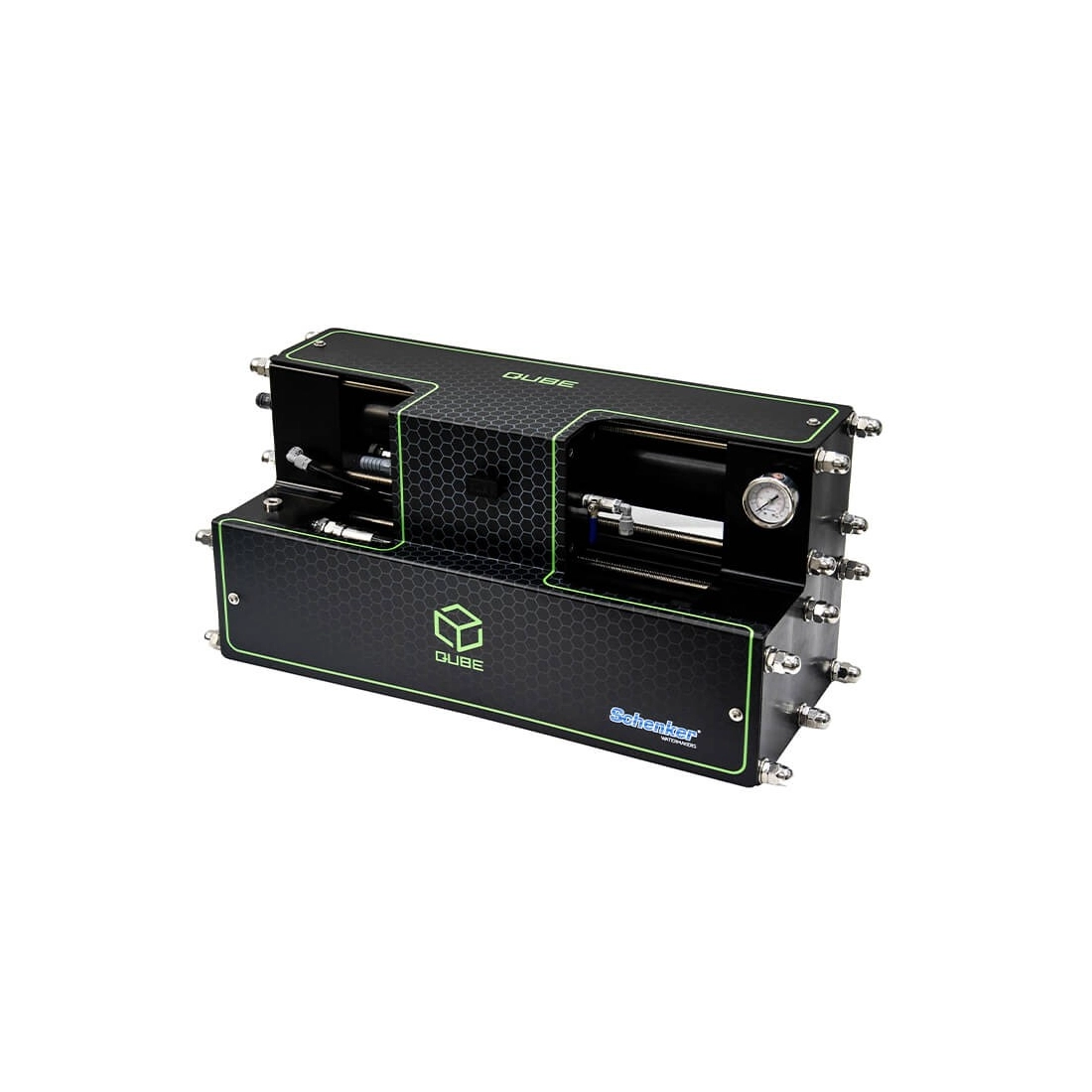

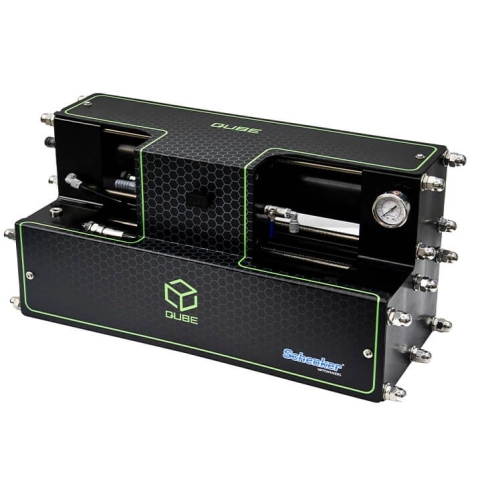

SCHENKER Qube 65 Dissalatore a osmosi inversa 100LT

Name: SCHENKER Qube 65 Dissalatore a osmosi inversa 100LT
Brand: SCHENKER
SKU: 19271
Price: 9540 EUR
Availability: OutOfStock

Reference Qube100 - 12V

Includes:

Watermaker equipped with Energy Recovery System
Feed pump with filter
Activated carbon filter with solenoid valve
Mesh filter
Filter wrench
Non-return valve
Fresh water hose (5 m)
Remote panel
Installation kit (fittings and screws)
Manual

Length (mm): 754

Width (mm): 336

Height (mm): 278

Weight (Kg): 42.2

Power supply: 12 V ±15% DC - 24 V ±15% DC - 230 V ±15% AC - 50/60 Hz

Product type: Watermaker

Membranes: 2x - SW-4021

Total capacity liters: 100

Power requirement: 36 A ±15% - 400 W ±15% (12 V) 16 A ±15% - 400 W ±15% (24 V) 2.5 A ±15% - 600 W ±15% (230 V)

Max pressure (bar): 7-8 bar

Flow rate (L/h): 15.6 – 16.6 l/min

Activated carbon pre-filter: 1x 5micron filter 10”x2-1/2” 1x Activated carbon filter 2-7/8" x 9-3/4"

Pump type: rotary pump

Download Scheda Tecnica Qube100

Product Details
Description

Pump type: rotary pump
Length (mm): 754
Width (mm): 336
Height (mm): 278
Feed Type: 12 V ±15% DC - 24 V ±15% DC - 230 V ±15% AC - 50/60 Hz
Capacity (Lt/h): 15,6 – 16,6 l/min
Membranes: 2x - SW-4021
Product type: Watermaker
Weight (Kg): 42.2
Total capacity liters: 100
Power supply: 36 A ±15% - 400 W ±15% (12 V) 16 A ±15% - 400 W ±15% (24 V) 2,5 A ±15% - 600 W ±15% (230 V)
Max pressure (bar): 7-8 bar
Activated carbon pre-filter: 1x 5-micron filter 10" x 2-1/2" 1x Activated carbon filter 2-7/8" x 9-3/4"

Brand

SCHENKER Qube 100 Reverse Osmosis Desalinator 100LT

TheSCHENKER Qube 100 Reverse Osmosis Desalinator 100LT is a compact and high-performance desalinator,
with dimensions of 754 mm in length, 336 mm in width and 278 mm in height, for a total weight of 42.2 kg.
Equipped with 2 SW-4021 membranes, it offers a total capacity of 100 litres and a flow rate of 15.6 – 16.6 l/min,
with a maximum pressure of 7-8 bar generated by a rotary pump.
It supports versatile power supplies: 12 V ±15% DC (36 A ±15% - 400 W ±15%), 24 V ±15% DC
(16 A ±15% - 400 W ±15%) and 230 V ±15% AC - 50/60 Hz (2.5 A ±15% - 600 W ±15%), and includes activated carbon pre-filters:
1x 5micron filter 10”x2-1/2” and 1x activated carbon filter 2-7/8" x 9-3/4".

Technical features:
