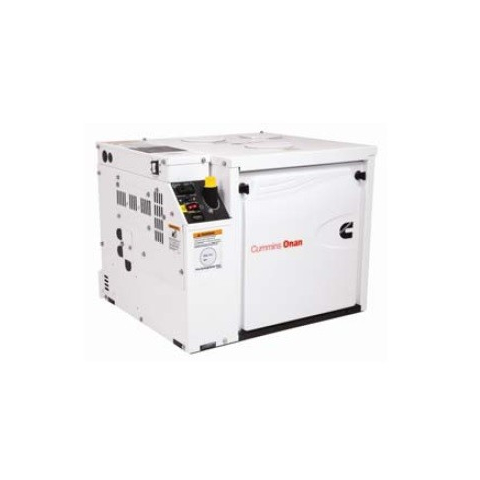

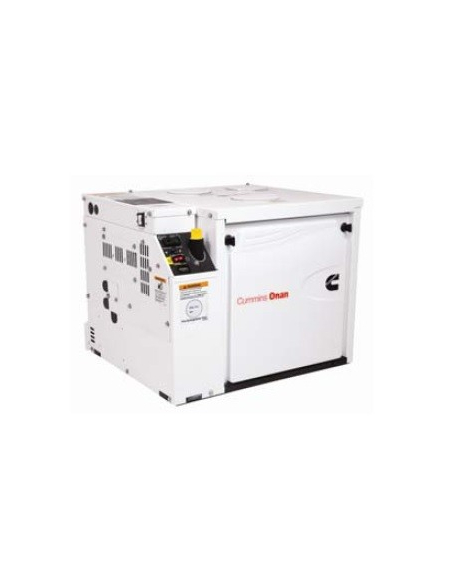

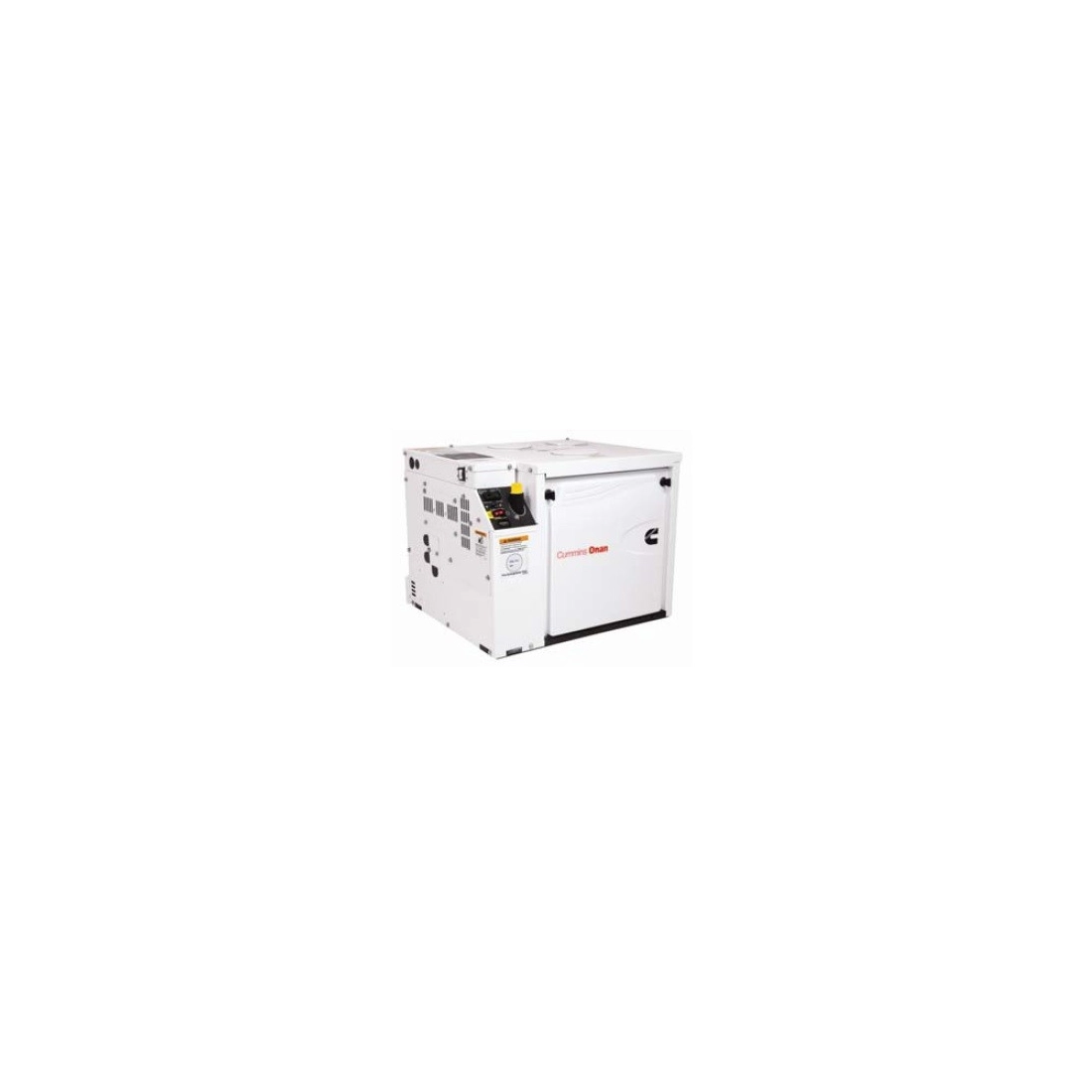

CUMMINS ONAN MDKBJ QUIET DIESEL MARINE GENERATOR SET 6 KW AVR

Name: CUMMINS ONAN MDKBJ QUIET DIESEL MARINE GENERATOR SET 6 KW AVR
Brand: CUMMINS ONAN
SKU: A061N064

Reference A061N064

Phase Type: Single Phase
Power supply: Diesel
Single phase power: 6 KW
Single phase power: 6 KVA
Voltage: 115V/230V
Ampere: 26.1A at 230V, 52.2A at 115V
Frequency: 50 Hz
Rpm: 2400 rpm
Cooling: Liquid
Cylinders: 3
Bore x Stroke: 67x68 mm
Displacement: 719 c.c.
Compression ratio: 23.5:1
Starter: Electric 12V
Fuel Consumption: 1.84 Lt/h at 75% load
Voltage regulator: digital AVR
Insulation class: H
Length: 664 mm
Width: 583 mm
Height: 535 mm
Weight: 195 Kg
Supersilenced
69 dB(A) at 1 meter
Includes soundproof cabin, 12V electrical system, negative ground.

Download Technical Data MDKBJ

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 6
Maximum power single phase (KVA): 6
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 110 / 220
Engine: Cummins, 4 tempi
Engine rpm (rpm): 2400
Starting system: Elettrico
Engine capacity (cm³): 719
Number cylinders: 3
Oil capacity (L): 3
Cooling: Water
Poles: 2
Bore x stroke (mm): 67 x 68
Net power (kW): 10.5
Motor insulation class: H
Consumption (L/h): 1.83 at 75% of the load
Acoustic pressure: 69 dB(A) @ 1 meter
Length (mm): 664
Width (mm): 583
Height (mm): 535
Dry weight (Kg): 195
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Cummins

Brand

Super-silenced CUMMINS ONAN MDKBJ marine generator 6 KW AVR

CUMMINS ONAN MDKBJ single phase 6 KW marine generator with 2400 rpm motor. The CUMMINS ONAN MDKBJ marine generator is designed with a soundproof enclosure that makes it supersilenced. The CUMMINS ONAN MDKBJ is built with a Cummins 4-stroke diesel powered engine. The alternator of the CUMMINS ONAN MDKBJ is 2-pole with insulation class H and AVR voltage regulator. Due to its compactness and small size and weight, it can also be installed on board small boats.

Technical features of the nautical CUMMINS ONAN MDKBJ:
Phase type: Single phase
Power supply: Diesel
Single phase power: 6 KW
Single phase power: 6 KVA
Voltage: 115V/230V
Amps: 26. 1A at 230V, 52.2A at 115V
Frequency: 50 Hz
Rpm: 2400 rpm.
Cooling: Liquid
Cylinders: 3
Bore x Stroke: 67x68 mm
Displacement: 719 c.c
Compression Ratio: 23.5:1
Power: Electric 12V
Fuel Consumption: 1. 84 Lt/h at 75% load
Voltage controller: digital AVR
Insulation class: H
Length: 664 mm
Width: 583 mm
Height: 535 mm
Weight: 195 Kg
Supersilenced
69 dB(A) at 1 meter
Included are soundproofing booth, 12V electrical system, negative ground.

- Reliability, high quality and innovation make Cummins Onan the leader in the design and development of such as the CUMMINS ONAN MDKBJ, providing performance you can rely on.
- The QD (Quiet Diesel) series digital models are the first marine generators with self-monitoring and network communication capabilities.
- The ONAN MDKBJ's optional digital display offers user-friendly diagnostics including detailed engine and alternator information, self-diagnostic functions and text displays.
- CUMMINS marine generators like the ONAN MDKBJ with advanced design and development processes use technology to reduce noise and vibration. Acoustic shields minimize noise and provide better sound quality output. Optimized mounting system greatly reduces vibration.
- Certified by the U.S. Environmental Protection Agency. (EPA) (60 Hz models only).

If you're looking for a boat product like the MDKBJ marine generator, but with different technical specifications, then we recommend you view the entire catalog of marine generators.

Pictures and technical data are not binding.
