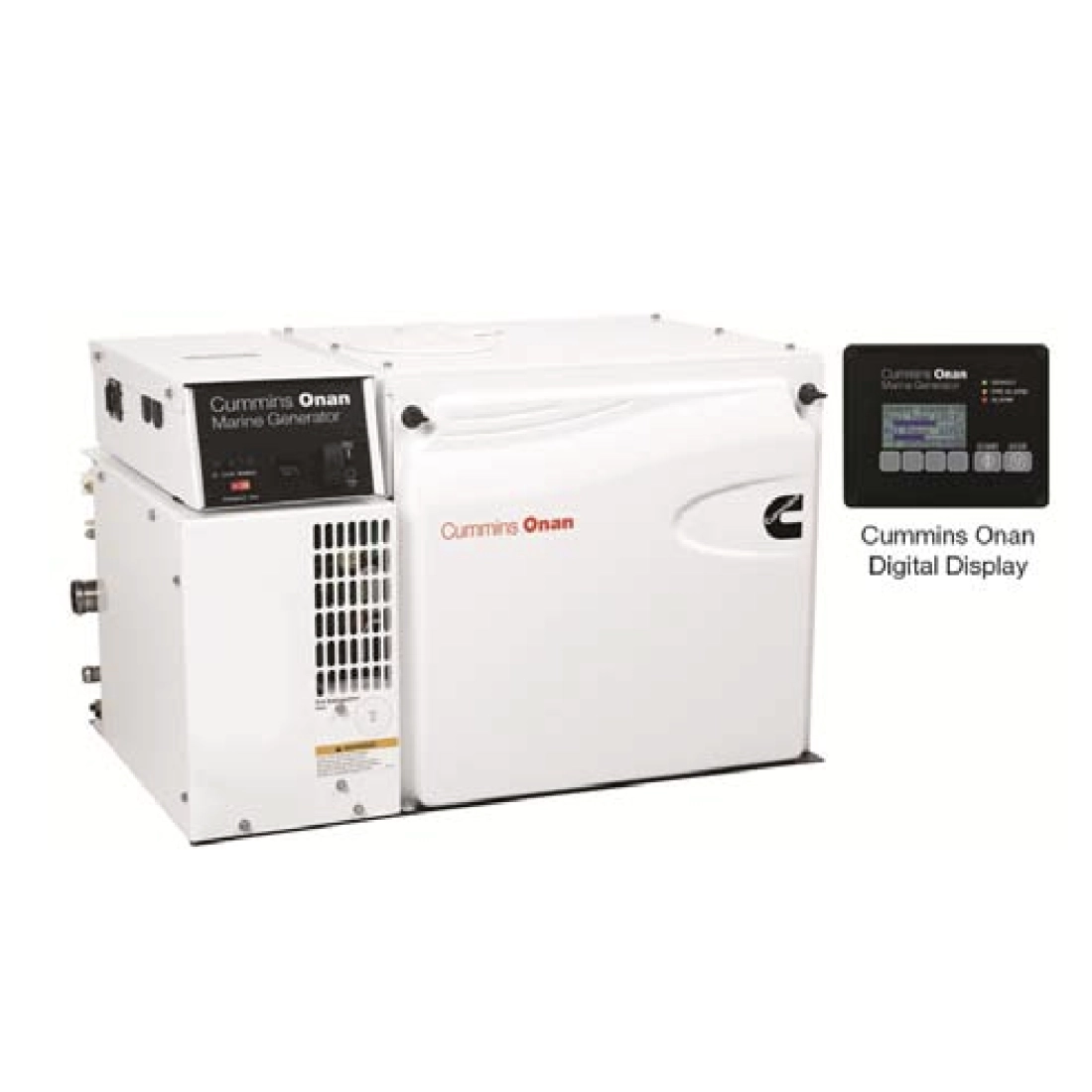

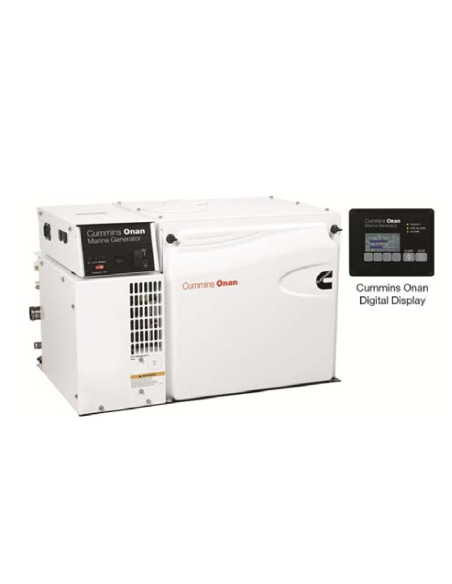

CUMMINS ONAN MDKDL MARINE GENERATOR SUPER-SILENT 7KW 50Hz

Name: CUMMINS ONAN MDKDL MARINE GENERATOR SUPER-SILENT 7KW 50Hz
Brand: CUMMINS ONAN
SKU: MDKDL7KVA

Reference MDKDL7KVA

Phase type: Single phase
Power supply: Diesel
Single phase power: 7 KW
Single phase power: 7 KVA
Voltage: 110/220 V
Frequency: 50 Hz
Rpm: 1500 rpm
Cooling: water
Cylinders: 3
Bore x Stroke: 78x78.4 mm
Displacement: 1123 c.c
Compression ratio: 24:1
Fuel consumption: 2 Lt/h at 75% load
Insulation class: H
Length: 911 mm
Width: 566 mm
Height: 593 mm
Weight: 272 Kg
Supersilent
65 dB(A) at 1 meter

Download Scheda Tecnica MDKDL

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 7
Maximum power single phase (KVA): 7
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 110 / 220
Engine: Cummins, 4 tempi
Engine rpm (rpm): 1500
Starting system: Elettrico
Engine capacity (cm³): 1123
Number cylinders: 3
Oil capacity (L): 3
Cooling: Water
Poles: 4
Motor insulation class: H
Acoustic pressure: 65 dB(A)
Width (mm): 566
Dry weight (Kg): 272
Silenced: Yes
Super silenced: Yes
Product type: Generator
Engine manufacturer: Cummins

Brand

CUMMINS ONAN MDKDL Marine Generator Super-silenced 7 KW 50Hz

CUMMINS ONAN MDKDL Super-silenced single-phase marine generator, 7 kW, with a 1500 rpm engine. The CUMMINS ONAN MDKDL marine generator is designed with a soundproof enclosure, making it super-silenced. The CUMMINS ONAN MDKDL marine generator is powered by a Cummins 4-stroke diesel engine. The CUMMINS ONAN MDKDL alternator is a 4-pole unit with insulation class H.
Thanks to its compact size, reduced weight, and compact design, it can be installed even on small boats.
Thanks to its compact size, it can be mounted on boats with limited space.

Technical characteristics of the CUMMINS ONAN MDKDL generator:

Phase type: Single-phase
Power supply: Diesel
Single-phase power: 7 kW
Single-phase power: 7 kVA
Voltage: 110/220 V
Frequency: 50 Hz
RPM: 1500 rpm.
Cooling: Water
Cylinders: 3
Bore x Stroke: 78x78.4 mm
Displacement: 1123 cc
Compression ratio: 24:1
Fuel consumption: 2 L/h at 75% load
Insulation class: H
Length: 911 mm
Width: 566 mm
Height: 593 mm
Weight: 272 kg
Super-silenced
65 dB(A) at 1 metre

If you are looking for a product for boats like the MDKDL marine generator, but with different technical features, then you can browse the entire catalogue of marine generators.
