DYNAMICA MINI 40E Marine Generator Single-phase Supersilenced 3KW

Name: DYNAMICA MINI 40E Marine Generator Single-phase Supersilenced 3KW
Brand: DYNAMICA
SKU: 010MINI003120

Reference 010MINI003120

Maximum power single-phase: 3 KW
Single-phase continuous use power: 2.7 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar L70N
Length: 593.4 mm
Width: 407 mm
Height: 515 mm
Weight: 96 Kg

Download Scheda tecnica MINI 40E Download Data sheet MINI 40E

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 3
Continuous power single phase (KW): 2.7
Maximum power single phase (KVA): 3
Continuous power single phase (KVA): 2.7
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Yanmar L70N, 4 stroke
Engine rpm (rpm): 3000
Speed governor: Centrifugal, mechanical
Engine capacity (cm³): 220
Number cylinders: 1
Cooling: Heat exchanger air/water
Inyección: Direct
Alternator: Sincrono, autoeccitato, autoregolato, senza spazzole
Poles: 2
Bore x stroke (mm): 78 x 67
Lubrication: Forced
Consumption (L/h): 1.3
Acoustic pressure: 54 dB(A) at 7 m
Length (mm): 593.4
Width (mm): 407
Height (mm): 515
Dry weight (Kg): 96
Compression ratio: 20 : 1
Product type: Generator
Engine manufacturer: Yanmar

Brand

DYNAMICA MINI40E SINGLE-PHASE MARINE GENERATOR SUPER SILENCED 3KW

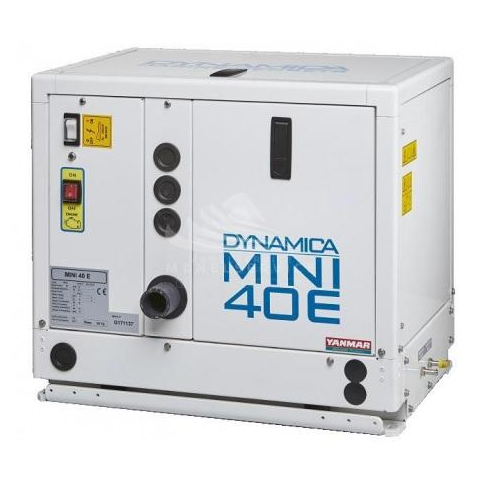

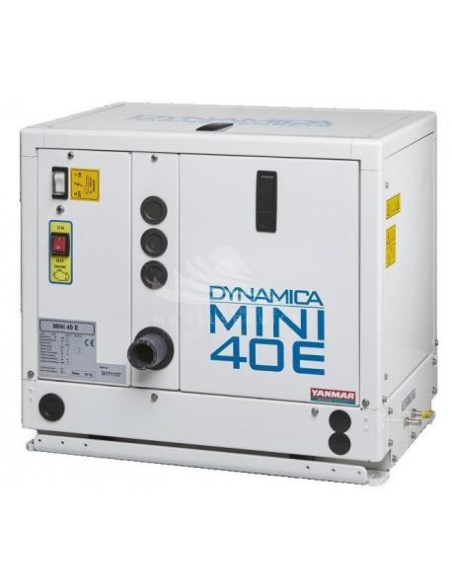

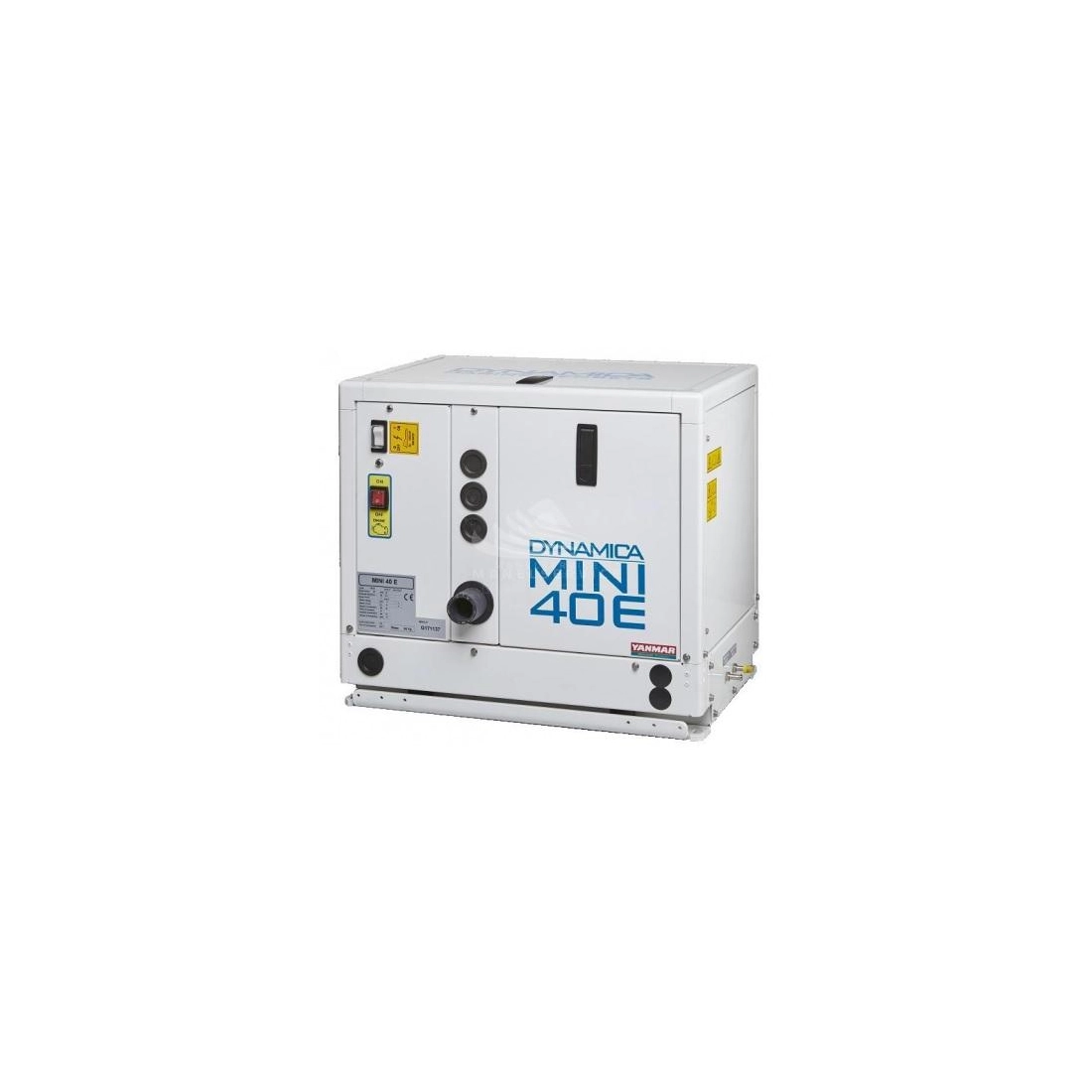

The DYNAMICA MINI40E is a single-phase 3 KW marine generator with a 3000 rpm engine. Designed with a soundproof cabin, it is extremely silent. It is built with a Yanmar 4-stroke diesel engine and equipped with a synchronous, self-excited, brushless alternator. Thanks to its compact size and reduced weight, the Dynamica MINI40E marine generator is also ideal for installation on small boats.

Technical Features of the DYNAMICA MINI40E Marine Generator:

Single-phase maximum power: 3 KW
Single-phase continuous power: 2.7 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar L70N
Length: 593.4 mm
Width: 407 mm
Height: 515 mm
Weight: 96 Kg

Engine

Yanmar L70N, diesel, 4-stroke
Easy access to fuel line, lubrication system, seawater pump, and air filter
Emergency shutdown in case of low oil pressure, high engine or exhaust temperature
Double anti-vibration system
Equipped with oil extraction pump

Alternator

Synchronous, 2 poles, self-regulated, brushless, self-excited
Rotor and stator coated with epoxy resin for protection against external agents
Dynamically balanced rotor
Insulation class: H
Automatic shutdown for high temperature

Engine and Alternator Cooling

Water/air heat exchanger

Soundproof Cabin

Main structure in aluminum with 5754 alloy panels

Control Unit

IP54 protection
Soft-touch ON/OFF/START/STOP/MENU buttons
Digital display with hour counter, AC output voltage, DC battery voltage, frequency, and memory of the last 10 alarms
13 alarm icons
Mod-Bus 485 connector for monitoring from the main control panel
GSM communication for remote start/stop and alarm message reception

The Dynamica range includes the compact yet powerful MINI40E, delivering 3 KW of maximum power at 50 Hz, followed by the MINI60E, MINI70E, and MINI90E, with maximum power outputs of 5, 6.1, and 8.6 KW respectively.

Compact dimensions, robustness, and reliability are the key features of this new range of marine generators.

If you are looking for a marine generator like the MINI40E but with different technical specifications, browse the full catalog of marine generators.
