Phase type: Three phase
Three phase continuous power: 20.5 KW
Three Phase Continuous Power: 25.6 KVA
Fuel: Diesel
Frequency: 50 Hz
Voltage: 110/190 V, 115/230 V, 120/208 V, 230/400 V, 240/416 V, 110/380 V
Motor: Kohler
Engine speed: 1500 rpm
Length: 1197 mm
Width: 652.5 mm
Height: 711 mm
Dry weight: 471 Kg

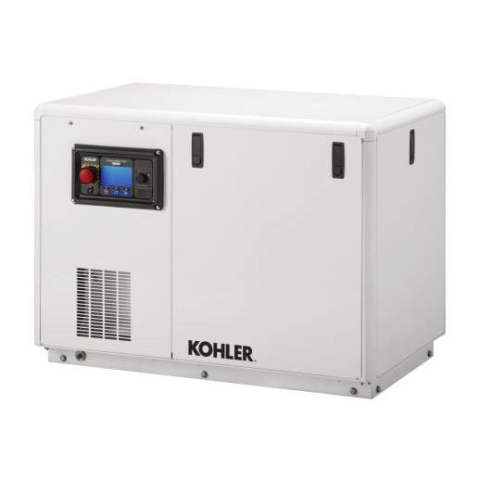

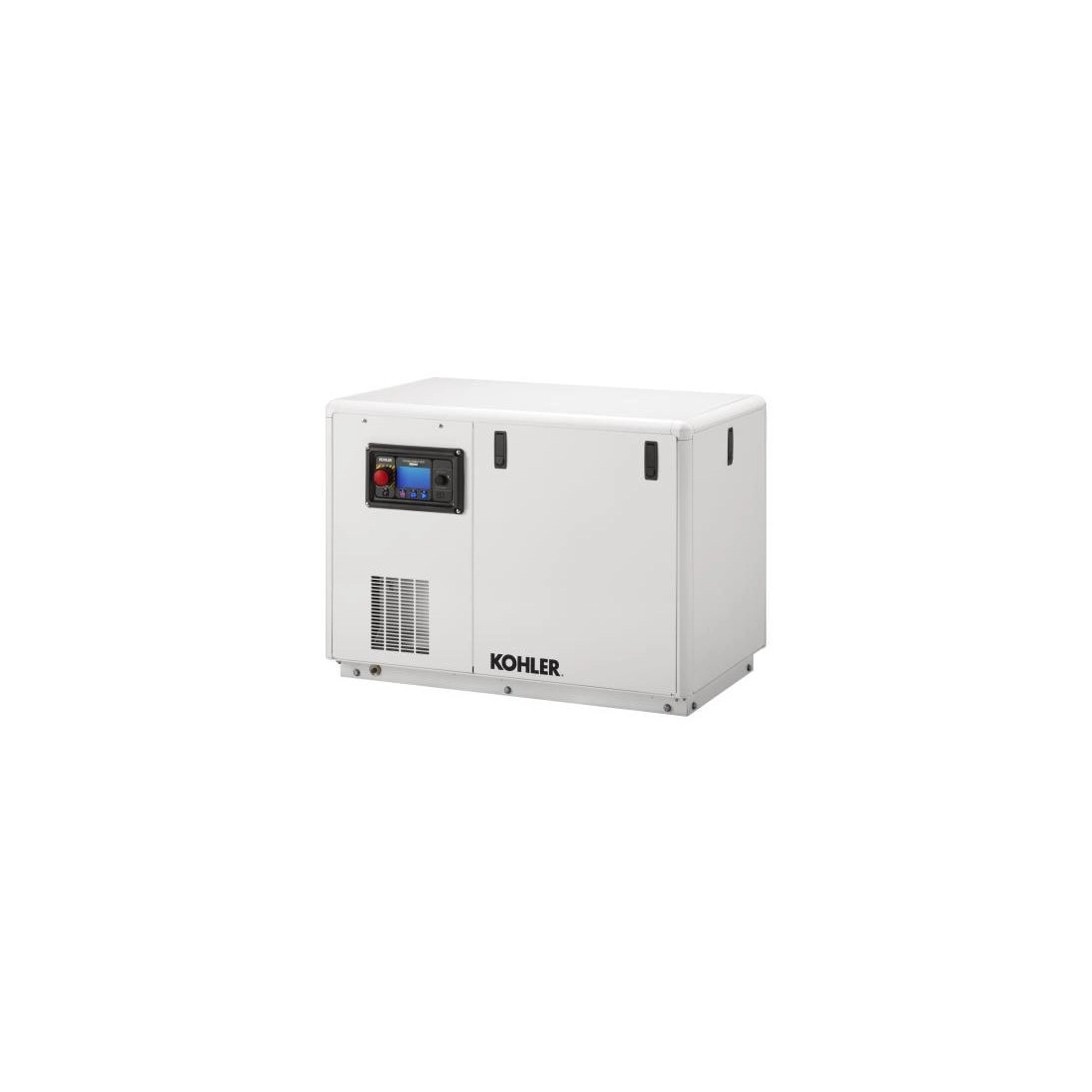

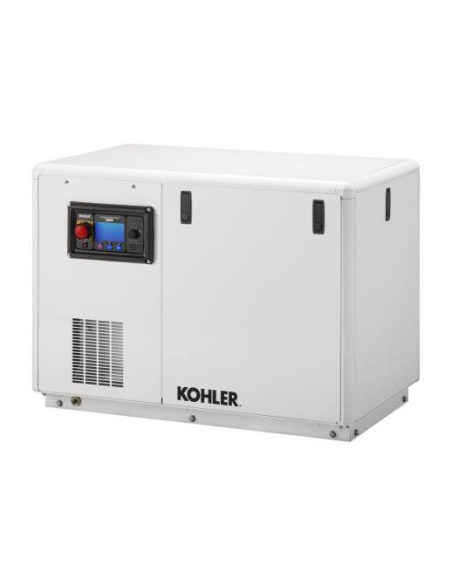

Kohler 20,5EFKOZD three-phase 25,6 KVA marine generator with 1500 rpm motor. The KOHLER 20,5EFKOZD three-phase marine generator is built with a soundproof enclosure that makes it supersilenced. The KOHLER 20,5EFKOZD three-phase marine generator is built with a 4-cylinder, 4-cycle Kohler diesel-powered engine, closed cooling system with heat exchanger. The alternator of the KOHLER 20,5EFKOZD three-phase marine generator is brushless with AVR voltage regulator and water-cooled. Its compact size makes the 20,5EFKOZD marine generator suitable for mounting on boats of various sizes.
- Class H insulation
- Multi-voltage adjustability
- Voltage adjustment of 1.0%.
- Radio suppression
- Diesel
- Environmental Protection Agency (EPA) certified for compliance with Tier III marine auxiliary standards (60 Hz model only)
- Four cylinders
- Four cycles
- Closed cooling system
- Heat exchanger
- Electric fuel lift pump
- Lifting eyelet
- Low oil pressure shutdown
- High temperature engine shutdown
- Low seawater pressure shutdown
- Vibromount
- Belt guard
- Disposable oil filter
- Oil drain valve
- Disposable fuel filter
- Brushless rotating field design allows power to be obtained from stationary conductors.
- Windings are vacuum-impregnated with epoxy paint for reliability and long life.
- Rotors are dynamically balanced to minimize vibration.
- Copper windings ensure minimal heat buildup. Insulation meets NEMA standards for Class H insulation.
- Connected directly to the motor, the generator features sealed precision ball bearings with a precision machined steel sleeve in the end bracket to prevent shaft misalignment and extend bearing life.
- Mounted on a drip-proof tray.
- Equipped with a twelve-conductor reconnectable stator.
- Capable of withstanding a line-to-neutral short-circuit current of up to 300% of rated current for up to 2 seconds. (Short-circuit performance IEC 60092-301).
Other marine generators such as the KOHLER 20,5EFKOZD can be found by browsing the entire catalog of marine generators.
Pictures and technical data are not binding.
