ULTIMATE80 XENON EXTENDED UNDERWATER SPOTLIGHT

ULTIMATE80 XENON EXTENDED UNDERWATER LIGHT

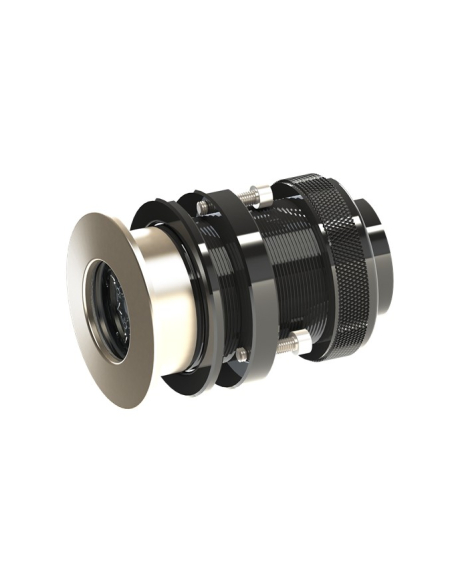

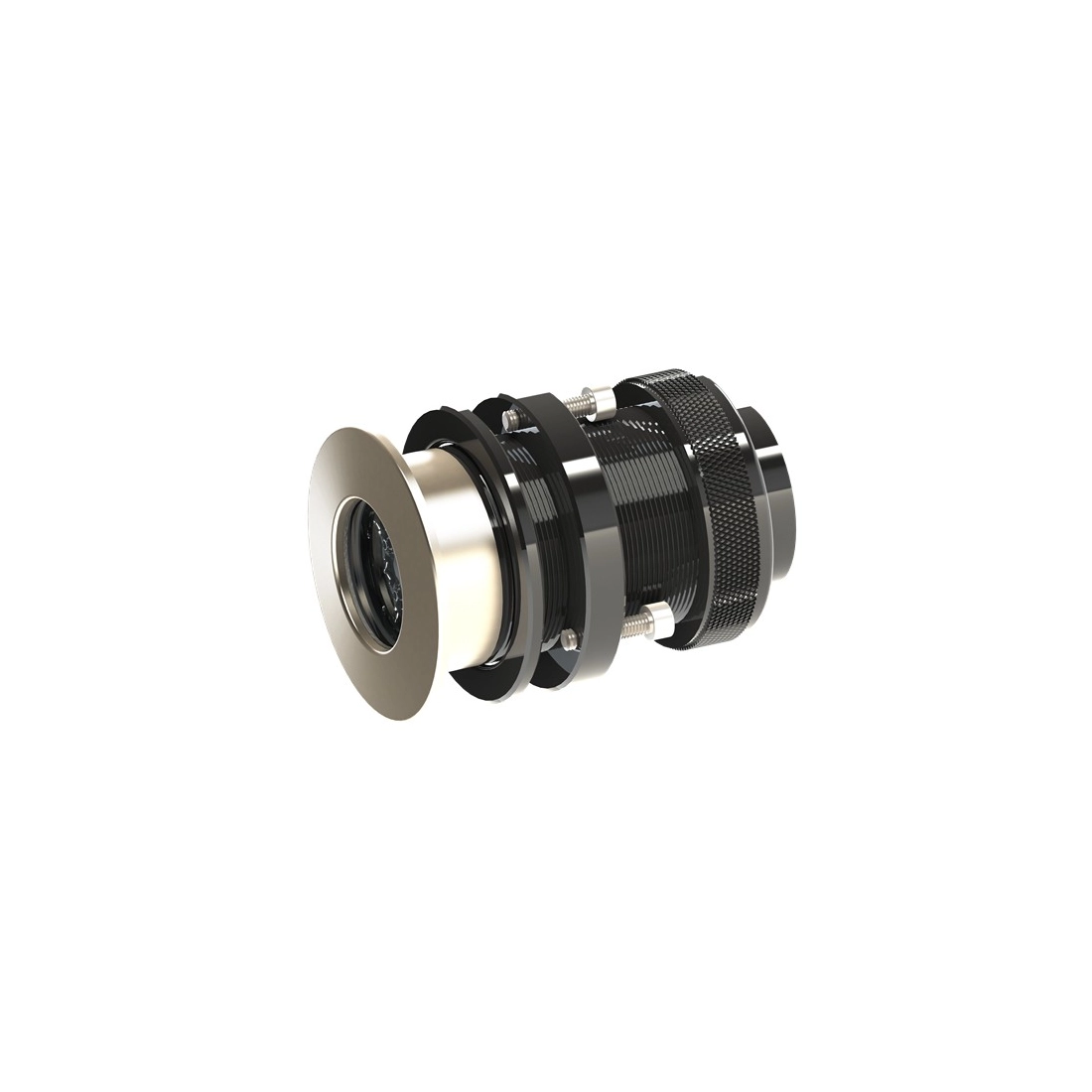

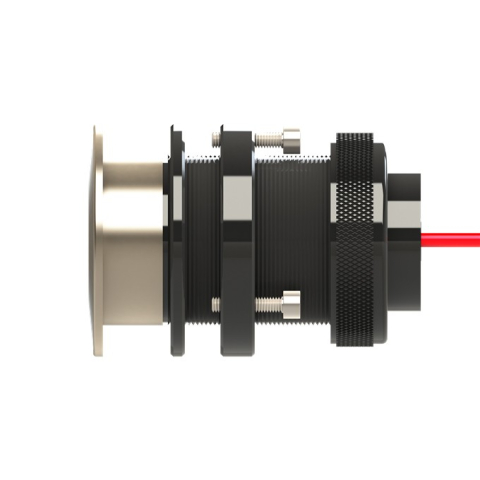

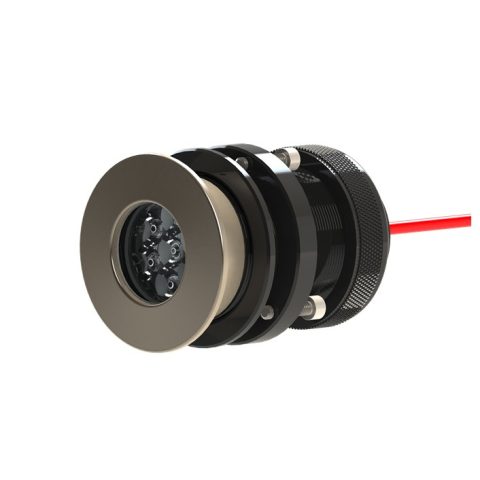

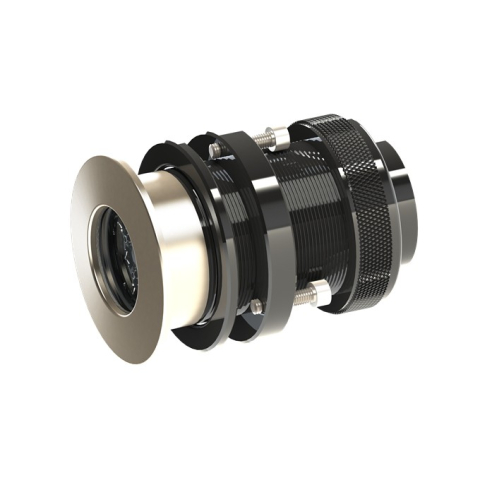

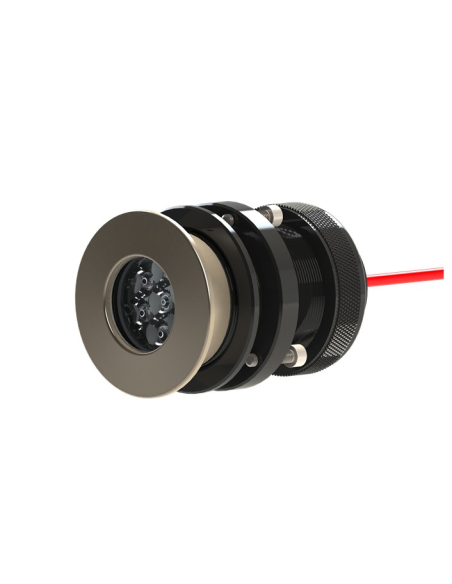

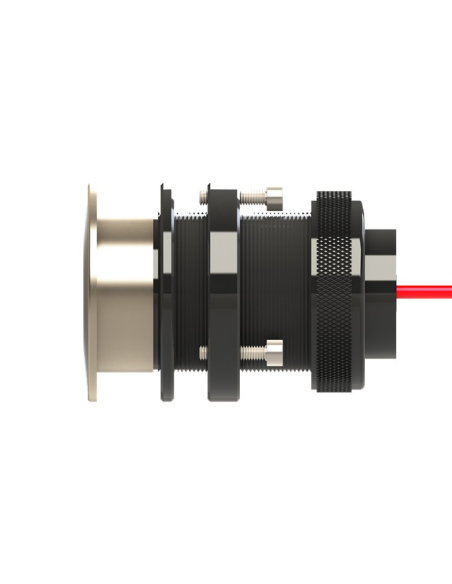

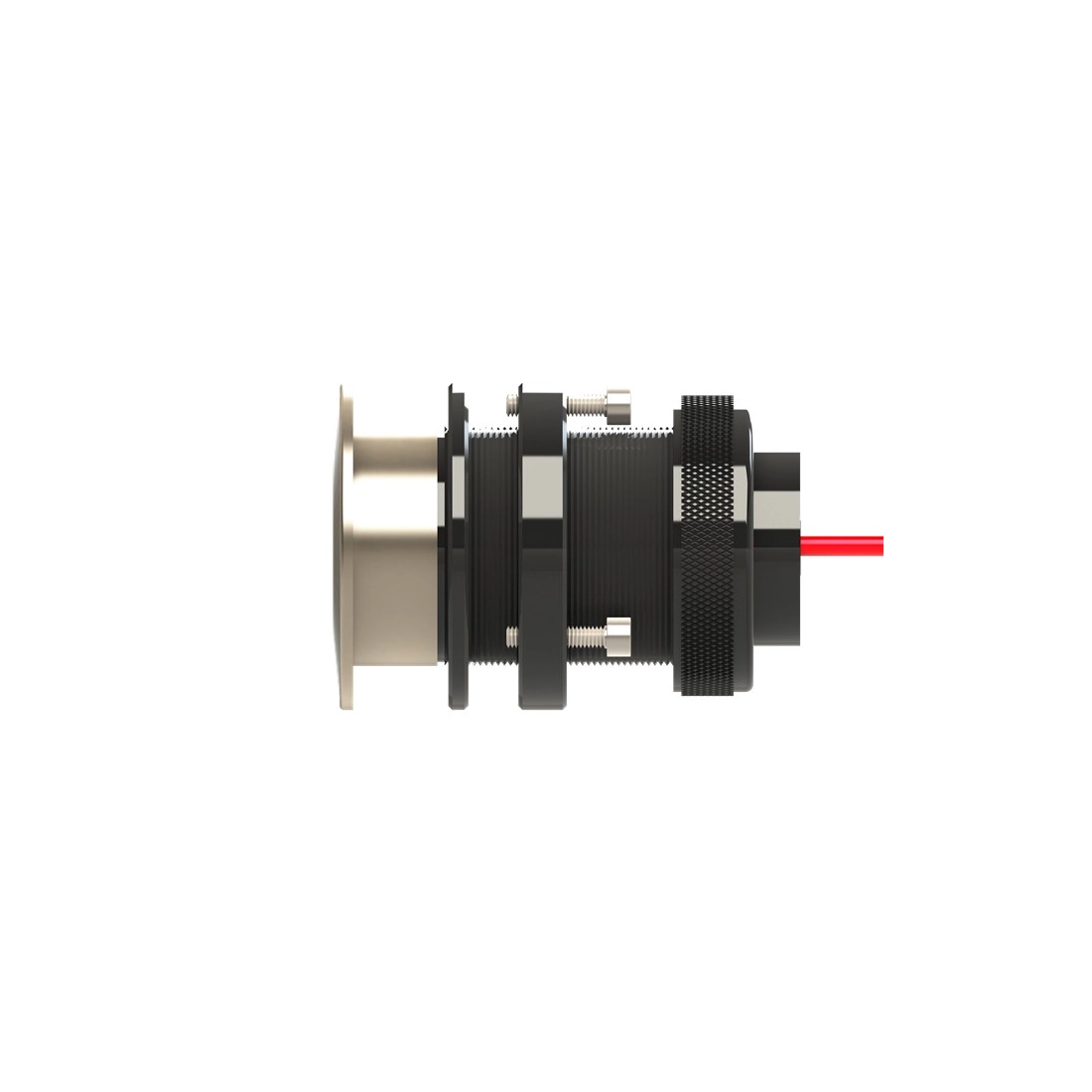

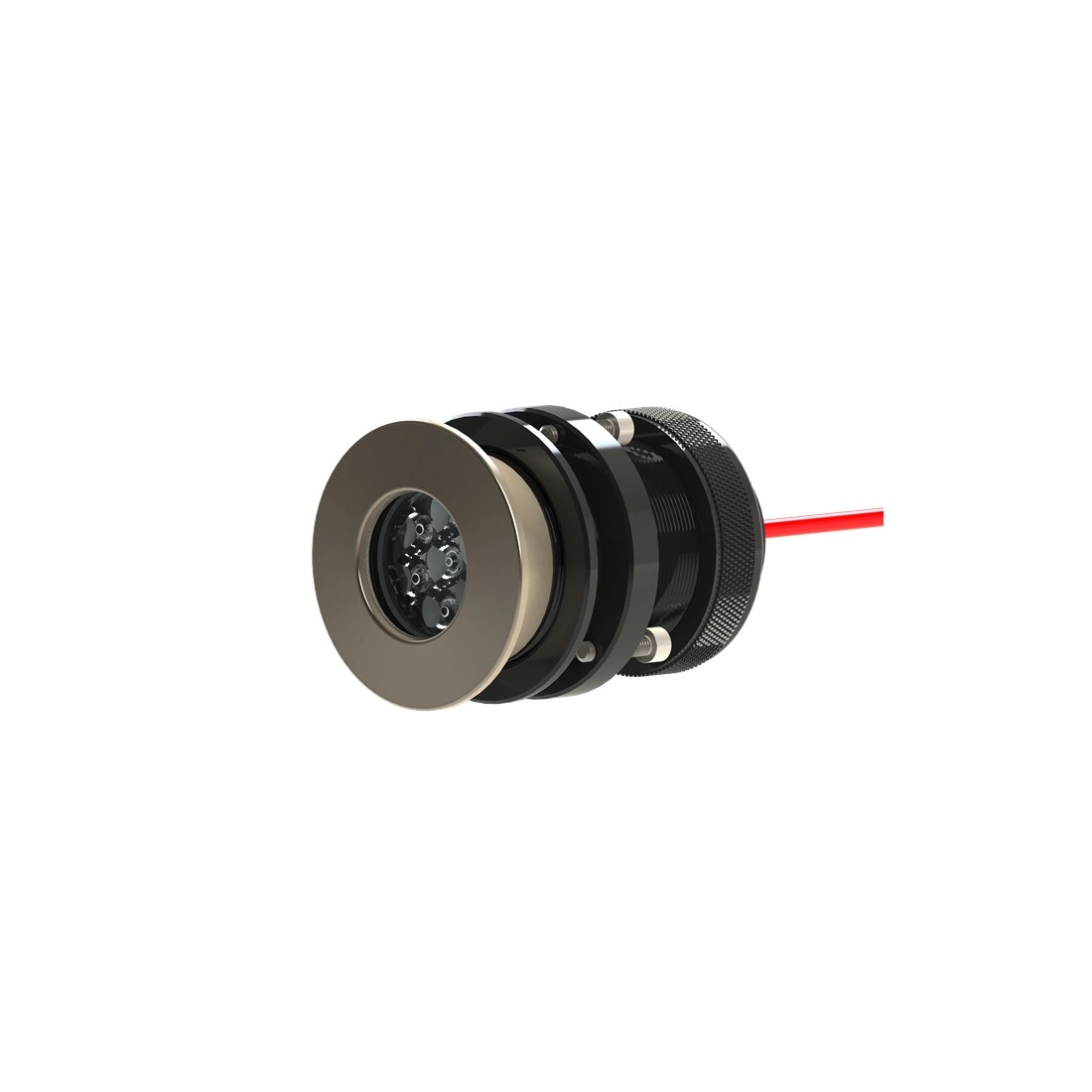

ULTIMATE80 XENON EXTENDED is an underwater LED boat spotlight capable of generating 4800 lumens of light output with remote On/Off control.

The ULTIMATE80 EXTENDED's internal heat sink can be easily removed for maintenance and upgrades without the hassle of running your boat aground.

With 4800 lumens of light output and a 60 degree beam angle, the ULTIMATE80 XENON EXTENDED led is recommended for fiberglass and wood hulled boats up to 20 feet.

ULTIMATE80 is recommended for boats over 20m, installing each fixture 1-3m apart for the best illumination. This flush mount underwater spotlight uses a ULTIMATE80 XENON EXTENDED screw-in body for installation in GRP, fiberglass and wood hulls.

ULTIMATE80 can be equipped with a wide beam lens, constructed of anodized aluminum and AB2 bronze coated armor. The ULTIMATE80 XENON EXTENDED underwater spotlight can be supplied in a choice of two configurations: S02652-XT-12V and S02652-XT-24V

TECHNICAL FEATURES ULTIMATE80 XENON EXTENDED

Hull Material: GRP / Fiberglass
Boat Size: Up to 25m
Spacing: 1m up to 3m
Beam Angle: 60°
Installation Angles: Flush

Lumen: 4800
Kelvin: 7000
Typical LED Life Expectancy: 3000 h
Minimum and Maximum Operating Voltage: 12-24V AC
Current/Amplifier: 6.4 - 2.5 amp
Driver Type: External
Output Drivers: N/A
Control Options: On & Off Switch

Device length: 184 mm
Device diameter: 80 mm
Device profile (height). 5 mm
Required removal space: 160 mm
Total weight: 1 kg
Cable length: Custom
Cutout hole: 61 mm
Material: Aluminum / Nickel coated / Bronze
Growth resistant lens: Borosilicate glass
Maximum hull thickness: 65 mm

Looking for an Underwater spotlight with different features? Here you can find the section dedicated to nautical lighting systems with brands specializing in the field.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
