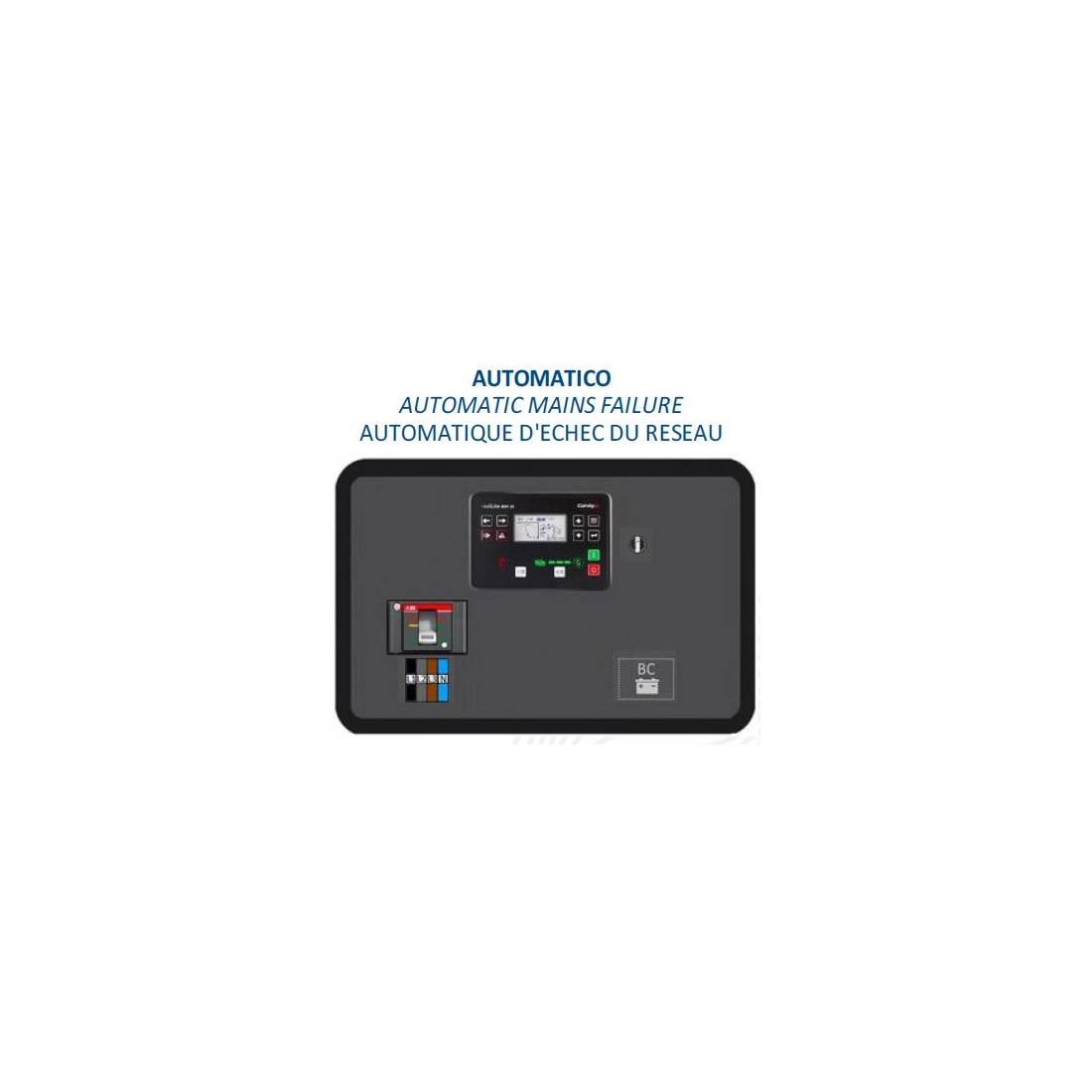

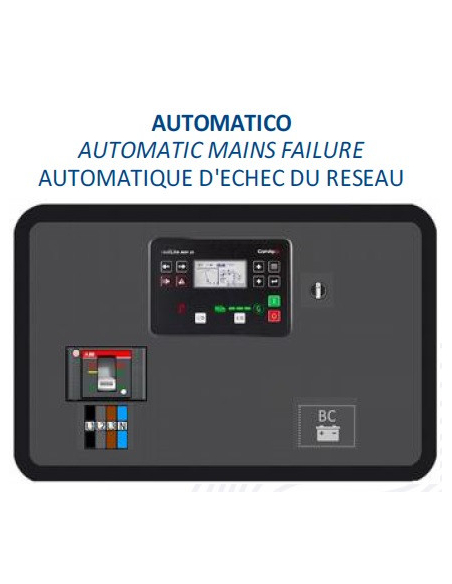

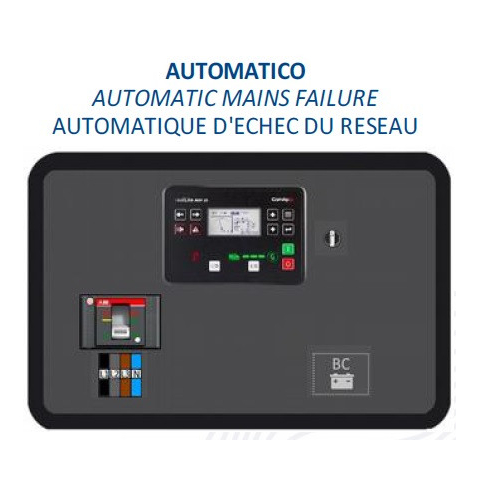

GENERATING SET 100KVA WITH AUTOMATIC CONTROL PANEL STAGE 2A

Reference 100KVA Automatico FPT

Phase type: Single phase / Three phase
Maximum three phase power: 88 KW / 110 KVA
Continuous three phase power: 80 KW / 100 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: FPT NEF N45TM2A
Engine speed: 1500 rpm
Starting: Electric
Consumption: 15.5 Lt/h at 75% load
Length: 2300 mm
Width: 1050 mm
Height: 1590 mm
Weight: 1410 Kg
Super silent
AVR
Emissions standards: stage 2

Product Details
Description

Phase: Single phase / Three phase
Maximum power three phase (KW): 88
Continuous power three phase (KW): 80
Maximum power three phase (KVA): 110
Continuous power three phase (KVA): 100
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Morsettiera
Engine: FPT (IVECO) NEFN45TM2A
Emissions Regulations: Stage 2
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 4500
Number cylinders: 4
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 104 x 132
Fuel tank capacity (L): 120
Consumption (L/h): 15.5
Running time (h): 7.7
Acoustic pressure: 69 dB(A) at 7 m
Length (mm): 2300
Width (mm): 1050
Height (mm)
Dry weight (Kg): 1410
AVR: Yes
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Brand

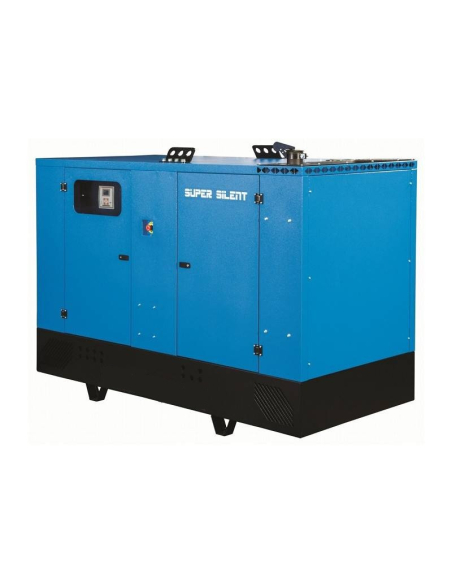

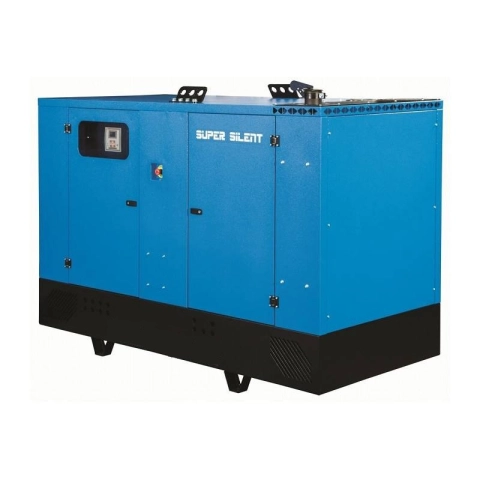

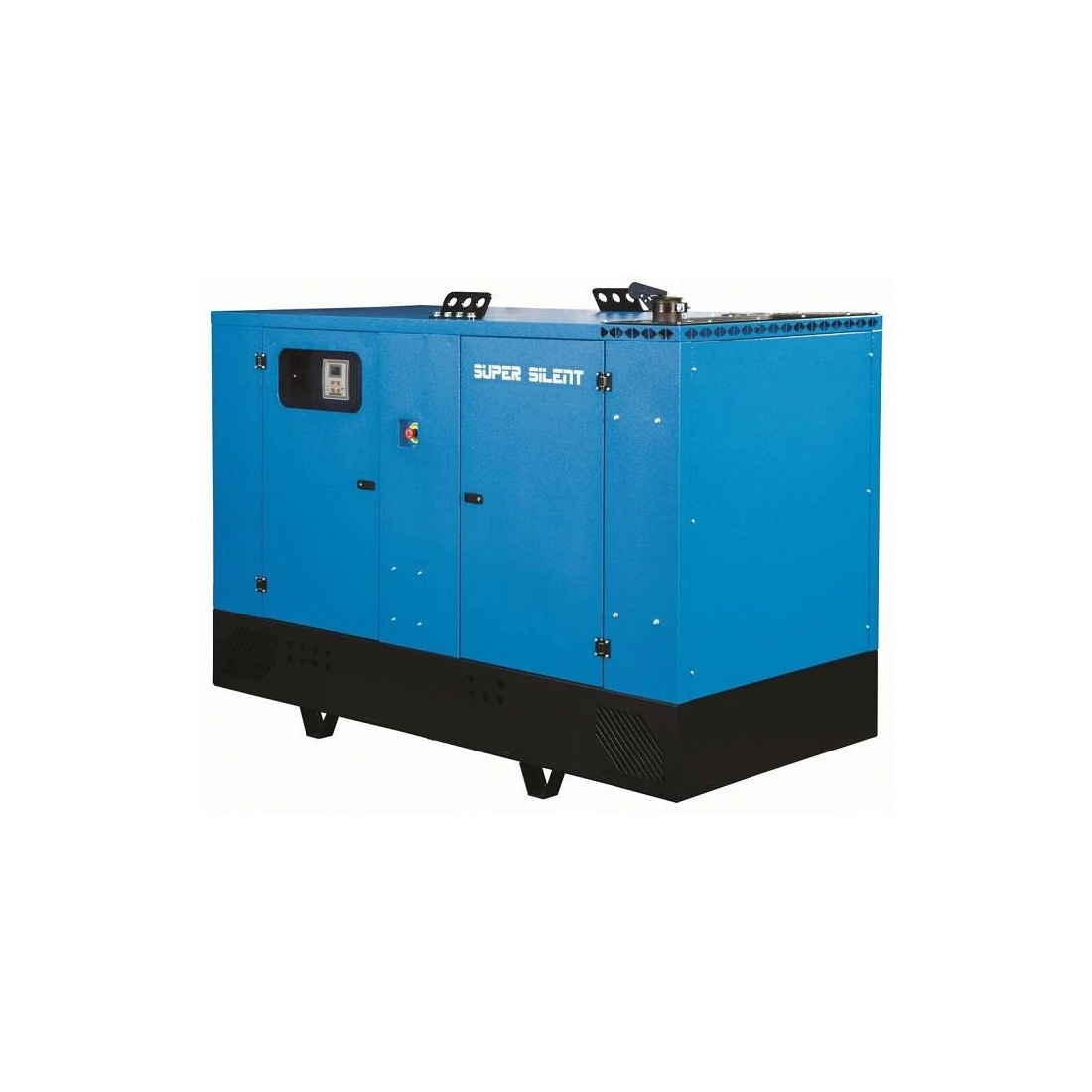

100 kVA Super-silenced Single-phase/Three-phase Generator Set with Stage 2 Automatic Control Panel

This generator set is a powerful and versatile power supply solution, capable of operating in both single-phase and three-phase modes. In three-phase configuration, it offers a maximum power of 88 kW / 110 kVA and a continuous power of 80 kW / 100 kVA, ideal for industrial and professional applications that require constant and reliable power delivery.

The heart of this generator set is the proven FPTNEFN45TM2A engine, a robust and high-performance diesel engine that operates at 1500 rpm. The electric starter ensures quick and easy starting.

Designed for efficiency, fuel consumption is rated at 15.5 l/h at 75% load. Its super silent feature also makes it suitable for noise-sensitive environments here in Turin.

Technical characteristics of the generator with automatic control panel stage 2:
Phase type: Single phase / Three phase
Maximum three phase power: 88 kW / 110 kVA
Continuous three phase power: 80 kW / 100 kVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: FPT NEF N45TM2A
Engine speed: 1500 rpm
Starting: Electric
Consumption: 15.5 lt/h at 75% load
Length: 2300 mm
Width: 1050 mm
Height: 1590 mm
Weight: 1410 Kg
Super silent
AVR
Emissions standard: stage 2
