LARIUS MINIPEGASO - Cementitious materials sprayer Turbo Gun

Name: LARIUS MINIPEGASO - Cementitious materials sprayer Turbo Gun
Brand: LARIUS
SKU: 20871
Price: 2409.69 EUR
Availability: InStock

Reference 20871

Power supply: Compressed air
Maximum water flow: 40 l/m
Tube length: from 0 to 30 mt depending on the material
Supported pipe sizes: Diam 19 x 25 Standard
Supported pipe sizes: Diam 25 x 33 Standard
Maximum fluid pressure: 7 bar
Maximum air pressure: 7 bar
Tank capacity: 50 L
Dimensions: 1000x550x950 mm
Weight: 47 Kg
Load height: 800 mm
Maximum air pressure: 8 bar 116 psi
Maximum fluid pressure (Turbo Gun): 20 bar 290 psi
Maximum fluid pressure (Tex or Hopper Gun): 10 bar 145 psi

Download Scheda Tecnica MiniPegaso Download Technical Data MiniPegaso

Product Details
Description

Pump type: Membrane Pump
Maximum output capacity (Lt/min): 40
Pressure (bars): 7 max
Tank capacity (L): 50
Debris size capacity (mm): 3
Acoustic pressure: 60 dB(A)
Length (mm): 1000
Width (mm): 550
Height (mm): 950
Dry weight (Kg): 47
Feed Type: Aria compressa
Version: Trolley
Type of pumping group: Peristaltic Pump
Compressor: 1.5 kW
Maximum fluid pressures (bar): 7
Tube's lenght (Mt.): da 0 a 30 mt a seconda del materiale
Product type: Pompa

Brand

Sprayer LARIUS MINIPEGASO

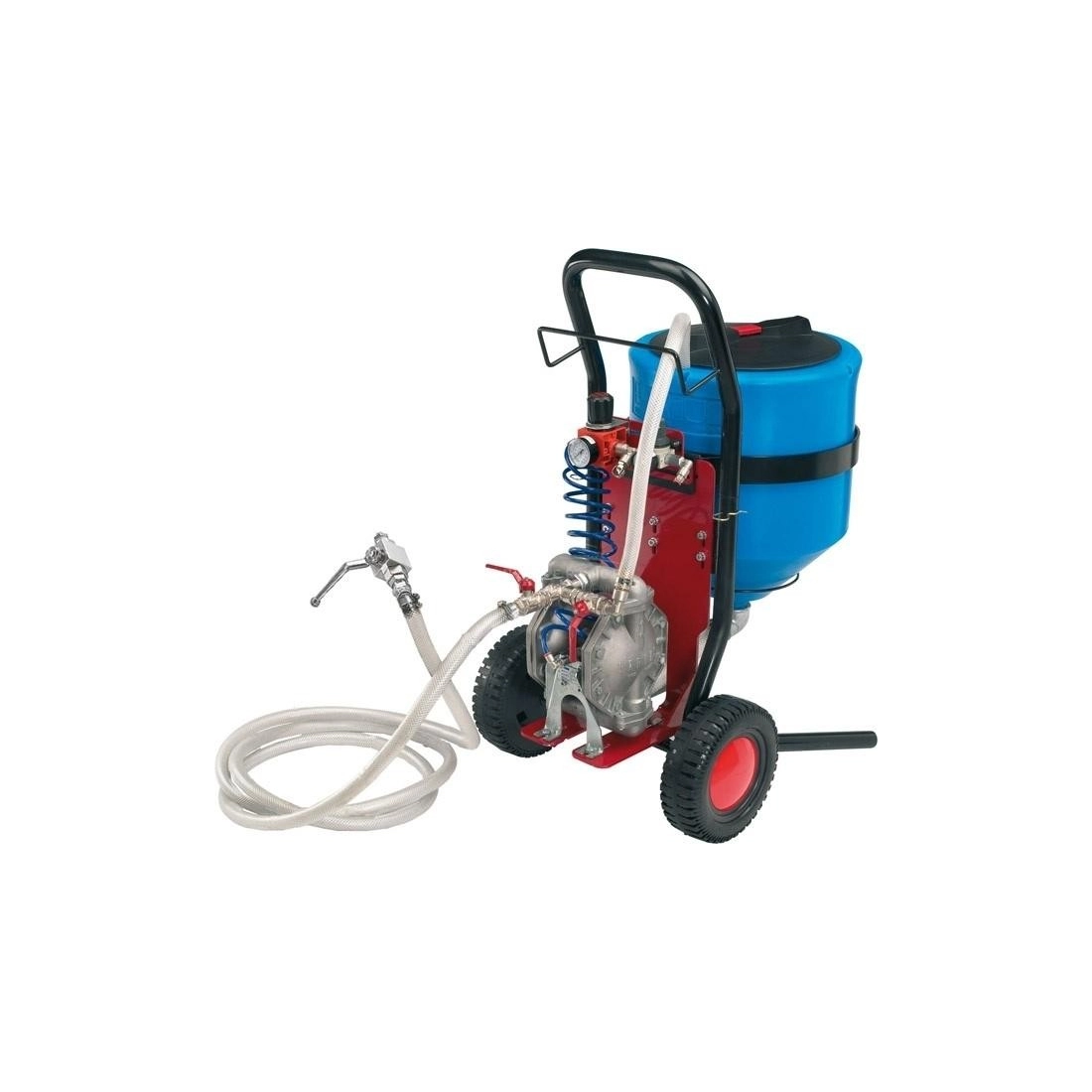

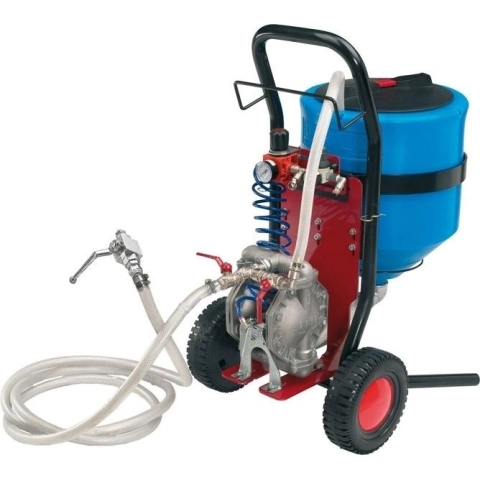

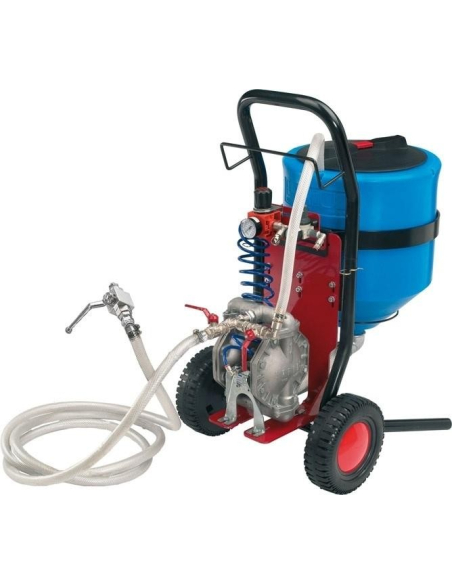

The MINIPEGASO equipment is a pneumatic equipment, used for spraying cement-filler materials for internal and external surfaces. Double membrane pneumatic spray pump.
The equipment requires the use of a compressor for operation.

Complete with:
-Turbo Gun with nozzles 3-4-6-8-10-12 mm
-Low pressure pipe Ø 20x26 mt.10
-Anti-stick tank lt.50
