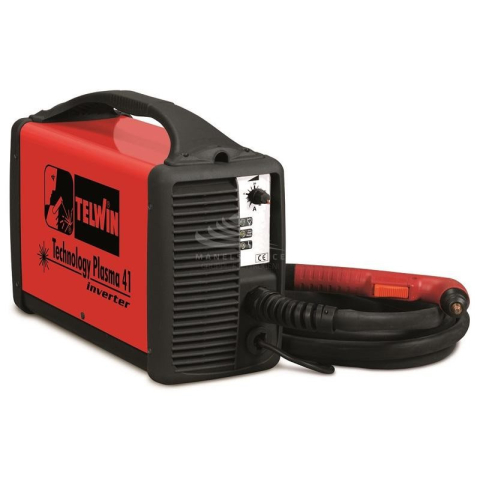

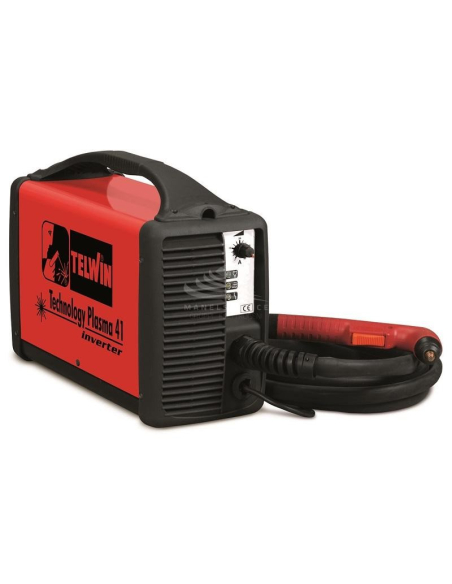

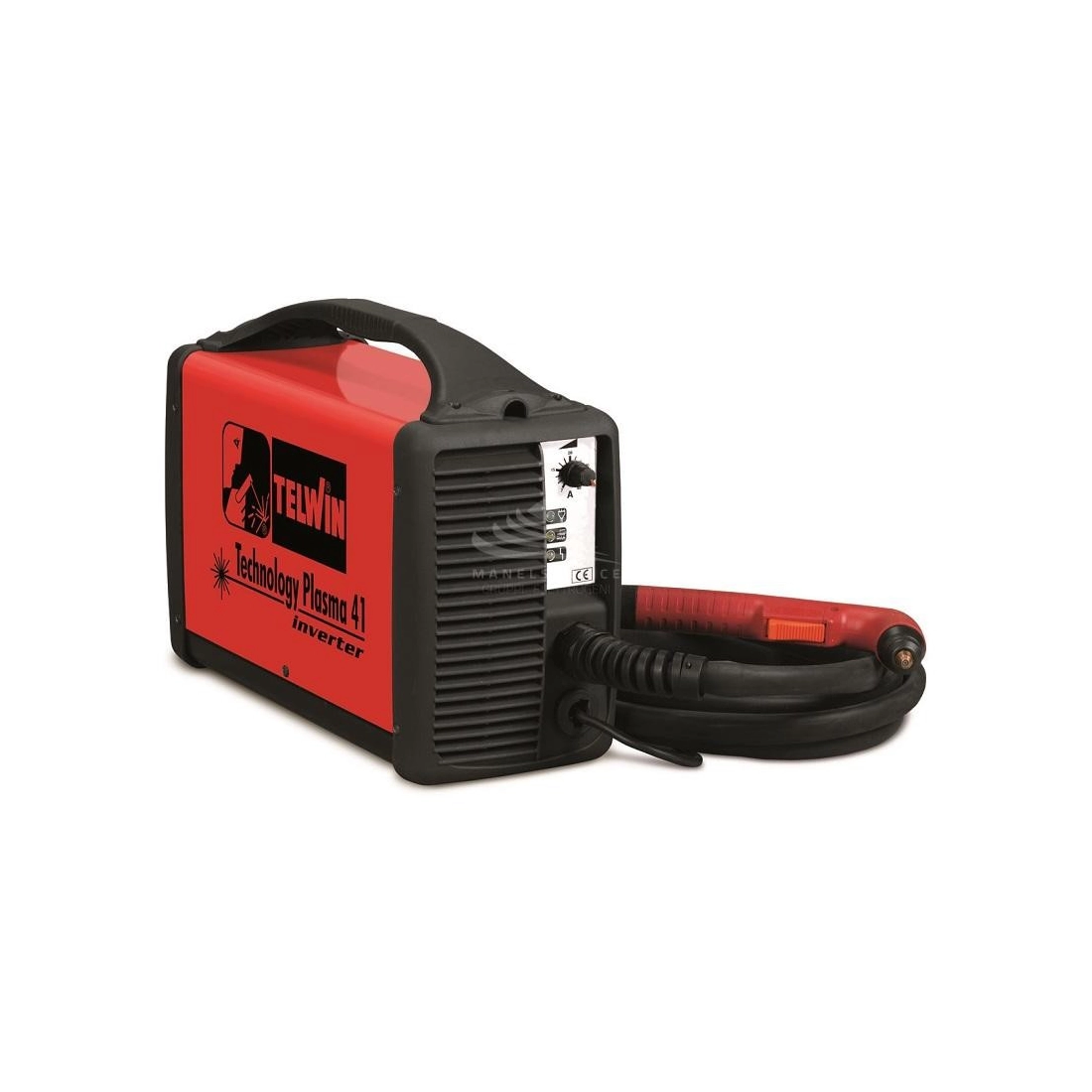

TELWIN TECHNOLOGY PLASMA 41 230V

Name: TELWIN TECHNOLOGY PLASMA 41 230V
Brand: TELWIN
SKU: 816146
Price: 700 EUR
Availability: InStock

TELWIN TECHNOLOGY PLASMA 41 230V Plasma cutting.

Reference 816146

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
No-load voltage: 405 V
Regulation current: 7 - 40 A
Current max: 35 A
Max cutting thickness: 12 mm
Compressed air pressure: 4 - 5 bar
Length: 540 mm
Width: 150 mm
Height: 270 mm
Weight: 7.6 Kg

Download Manual TECNICA PLASMA Download Scheda tecnica TECH PLASMA 41 Download Technical data TECH PLASMA 41 Download Ficha técnica TECH PLASMA 41 Download Fiche technique TECH PLASMA 41

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 85
Protection degree: IP23
Pressure (bars): 4 - 5
No-load voltage (V): 405
Regulation current (A): 7 - 40
Thickest cut (mm): 12
Current max (A): 35
Length (mm): 540
Width (mm): 150
Height (mm): 270
Voltage regulator: Inverter
Weight (Kg)

EAN13: 8004897714561

Brand

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Features:
- reduced weight and dimensions
- warning led for torch under voltage, protections
- torch automatic cooling
- visualization of air pressure
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with torch.

Not binding images and technical data.
