GENSET PTO 20

Name: GENSET PTO 20
Brand: GENSET
SKU: PTO 20

Reference PTO 20

OUT OF PRODUCTION

Maximum three-phase power: 22.4 KVA

Maximum three-phase power: 17.92 KW

Maximum single-phase power: 7.4 KVA

Maximum single-phase power: 5.92 KW

Voltage: 230/400 V

Motor: Linz E1S13MF/4

Length: 1074 mm

Width: 945 mm

Height: 809 mm

Weight: 150 kg

Download Scheda Tecnica PTO 20 Download Technical Data PTO 20

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 2.88
Maximum power single phase (KVA)
Maximum power three phase (KW): 15.28
Continuous power three phase (KW): 13.92
Maximum power three phase (KVA): 19.1
Continuous power three phase (KVA): 20
Voltage (V): 230 / 400
Sockets configuration: Presa di corrente trifase CEE 400 V 16 A+ Presa di corrente monofase CEE 230 V 16 A
Engine: Yanmar L70N
Engine rpm (rpm): 1500
Alternator: Sincrono bipolare con spazzole
PTO speed (round/min): 440
Transmission ratio: 1 : 3.5
Length (mm): 720
Width (mm): 460
Height (mm): 510
Dry weight (Kg): 98
Inverter: No
AVR: No
Compound: Yes
Silenced: No
Super silenced: No

Brand

AC gensets from 1 KVA to 2000 KVA with manual or automatic start.

Thanks to such a wide range, GenSet is able to offer specific solutions in the various fields of application of the generator set, both for continuous use and for emergency use in the event of a mains failure.

All GenSet gensets strictly comply with CE regulations regarding safety of use and control of polluting emissions.

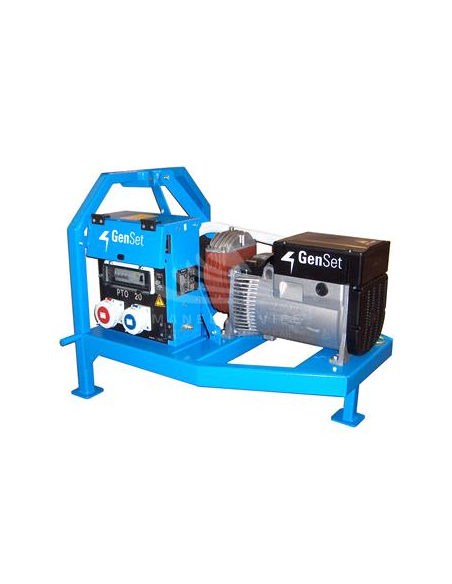

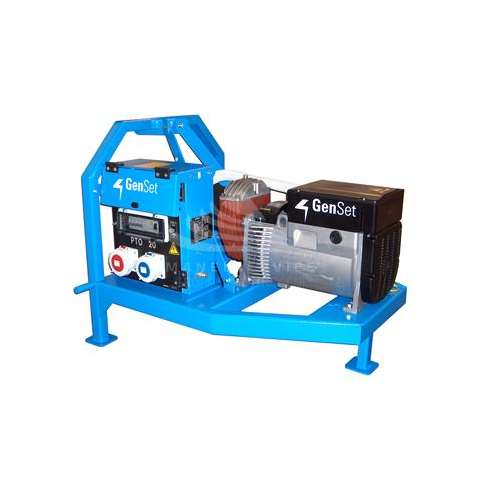

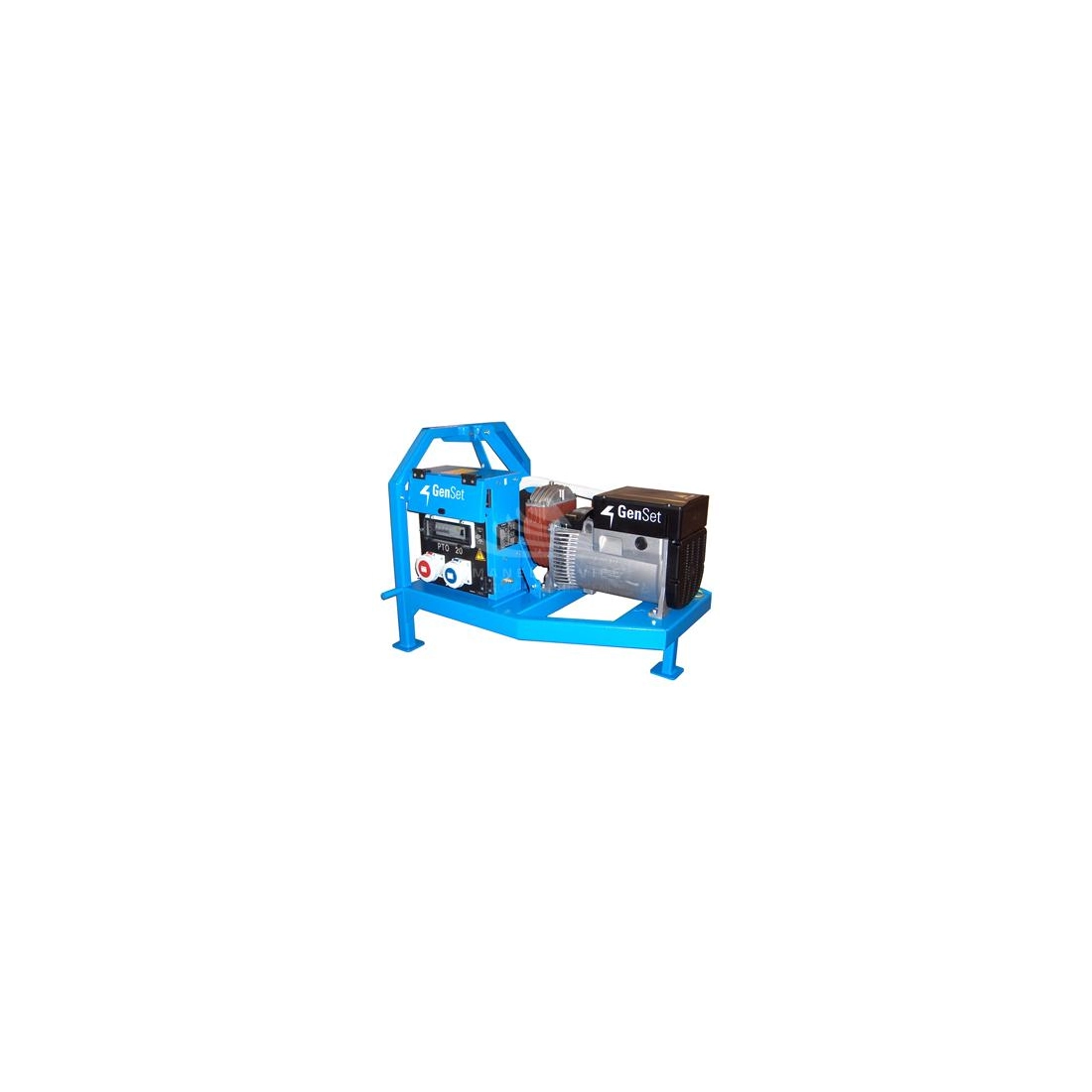

The image is purely indicative
