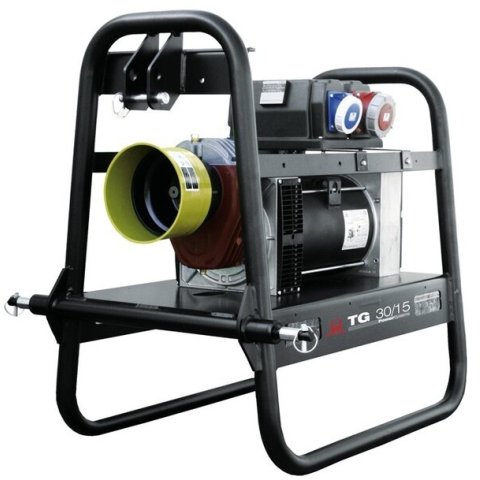

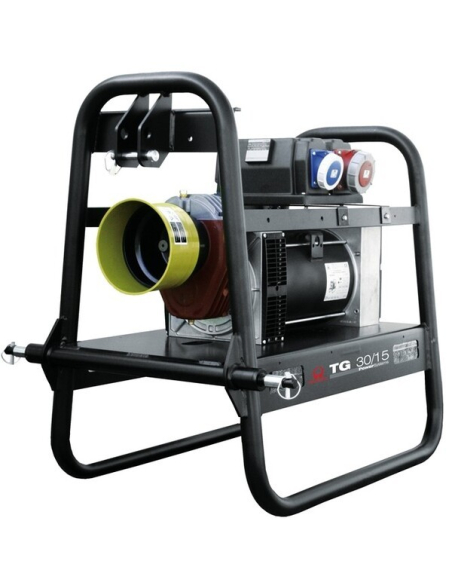

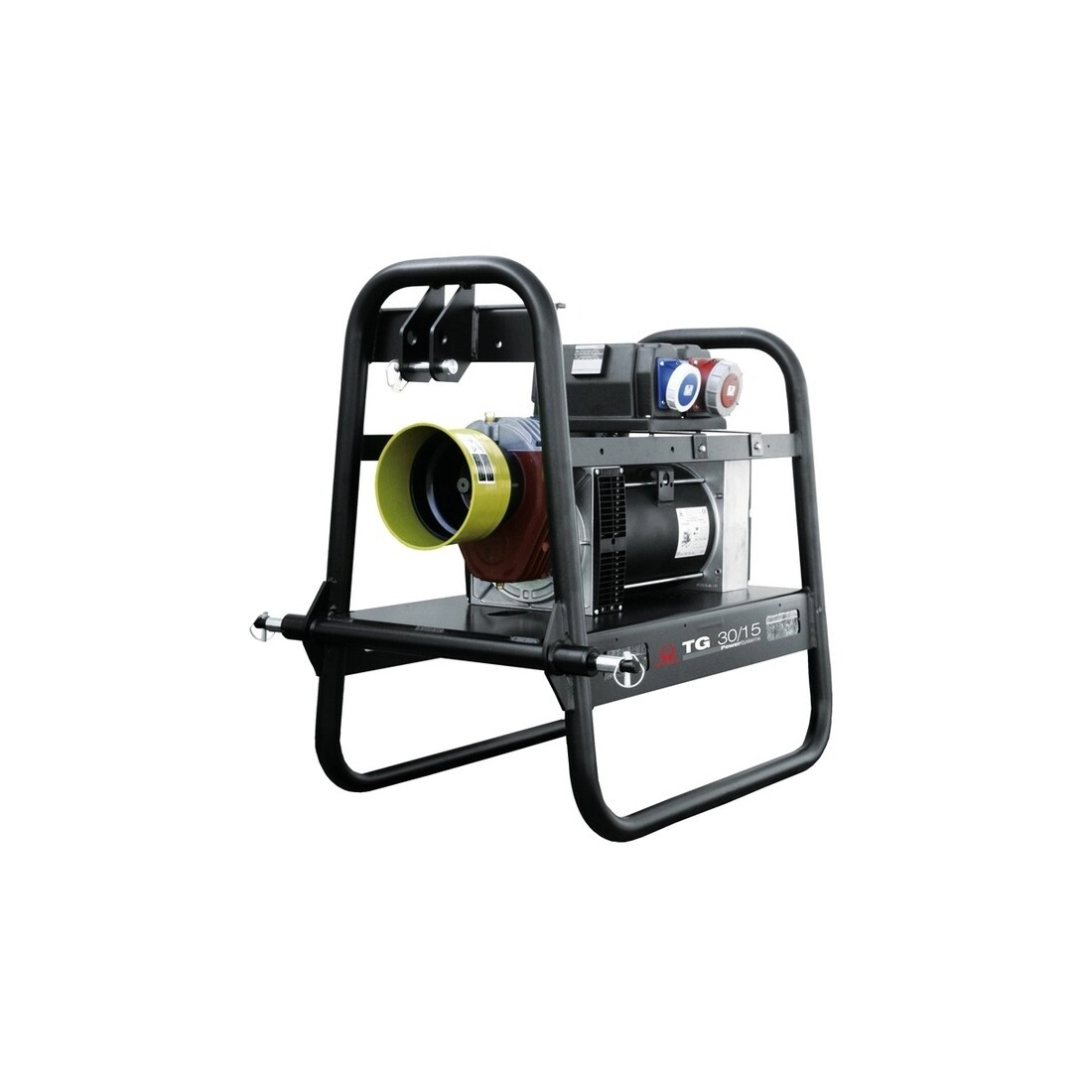

PRAMAC TG42/15 IP23 Cardan generator Single-phase-Three-phase 42kVA AVR

PRAMAC TG42/15 IP23 Cardan Generator Single/Three-Phase 42 kVA AVR

PRAMAC TG42/15 IP23 cardan generator, 14.7 kVA single-phase and 42 kVA three-phase, with tractor connection at 1500 rpm. The PRAMAC TG42/15 IP23 cardan generator has a voltage of 230 V / 400 V and a frequency of 50 Hz. The alternator of the PRAMAC TG42/15 IP23 cardan generator features an AVR voltage regulator. The TG42/15 IP23 AVR cardan generator is highly reliable, as it has been built and designed using high-quality materials.
Easy to transport, install, and position thanks to its compact size, this model is ideal for mounting on a tractor unit. The PRAMAC TG42/15 IP23 cardan generator requires a tractor power of 74 kW / 100 HP and a cardan shaft speed of 395 rpm.

Technical specifications of the PRAMAC TG42/15 IP23 AVR Cardan Generator Single/Three-Phase:
Continuous power single-phase: 14.7 kW
Continuous power three-phase: 33.6 kW
Voltage: 230 V / 400 V
Frequency: 50 Hz
Cardan shaft speed: 395 rpm
Required tractor power: 74 kW / 100 HP
Length: 1110 mm
Width: 720 mm
Height: 1322 mm
Weight: 355 kg
AVR

Sockets:
N.1 SCHUKO 230V 16A IP54
N.1 2P+T CEE 230V 32A IP44
N.1 3P+N+T CEE 400V 63A

The PRAMAC TG42/15 IP23 cardan generator is a professional tractor-driven unit developed by Pramac, making it one of the best choices compared to its competitors. The PRAMAC TG42/15 IP23 cardan generator features a robust structure with a protective tubular frame.
The TG42/15 IP23 cardan generator is equipped with thermal-magnetic protection, residual current protection, voltmeter, and frequency meter.
