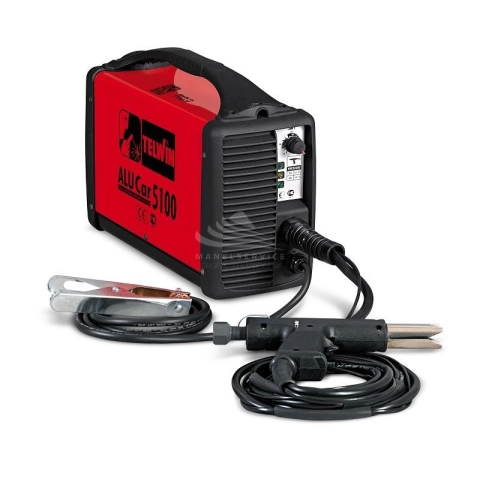

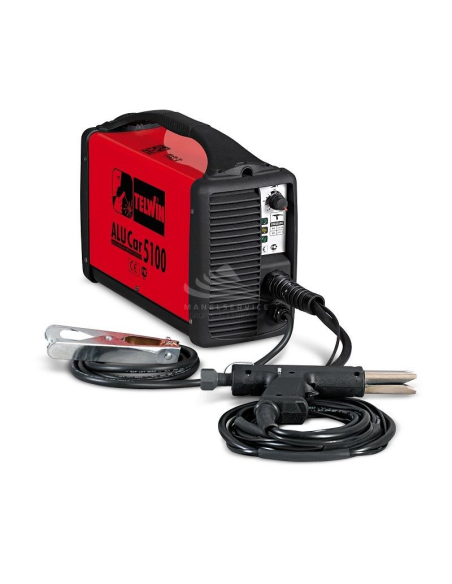

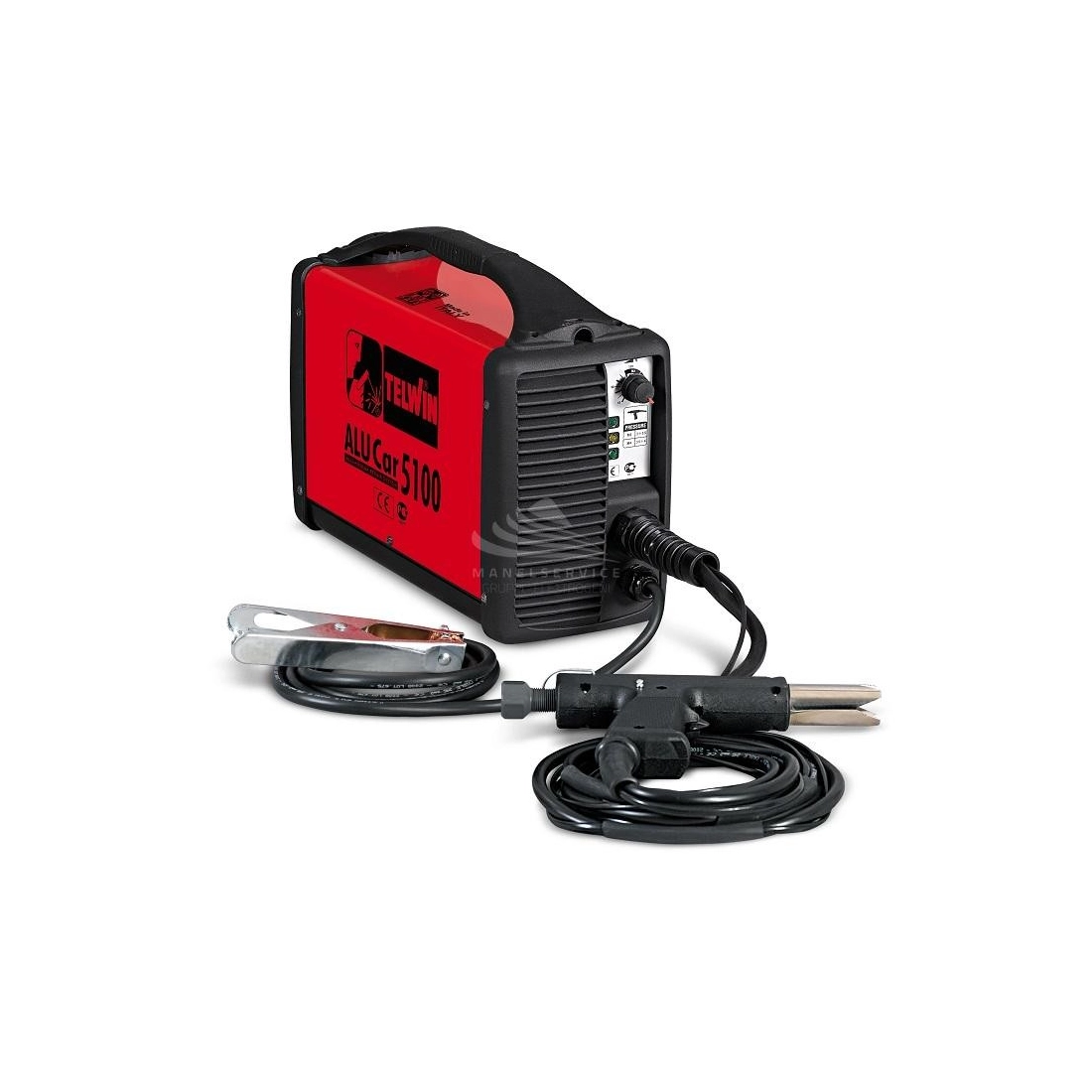

TELWIN ALUCAR 5100 230V

Name: TELWIN ALUCAR 5100 230V
Brand: TELWIN
SKU: 828069

Reference 828069

OUT OF PRODUCTION

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Capacity: 19500 µF
Spot time: 1 - 3 ms
Number spottable studs: 7 studs/min
Spottable stud diameter: 3 - 4 mm
Length: 450 mm
Width: 150 mm
Height: 270 mm
Weight: 11.7 Kg

Download Scheda tecnica ALUCAR 5100 Download Technical data ALUCAR 5100 Download Ficha técnica ALUCAR 5100 Download Fiche technique ALUCAR 5100 Download Manual ALUCAR-ALUSPOTTER

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Protection degree: IP22
No-load voltage (V): 12
Capacity (µF): 19500
Spot time (ms): 1 - 3
Number spottable studs (studs/min): 7
Ø spottable stud (mm): 3 - 4
Length (mm): 450
Width (mm): 150
Height (mm): 270
Weight (Kg): 11.7

EAN13: 8004897793665

Brand

Power source for capacitor discharge welding of studs of 3 and 4 mm diameter and other accessories, with tip strike.
It is suitable for applications in car body shops.
It enables welding of studs on non-treated or non oxidized surfaces in steel, stainless steel, galvanized steel, brass and, in particular, aluminium.
The welding process is so short that it causes no alteration to the opposing surface even if painted, plastic-coated or galvanized.
Complete with gun, earth cable with clamp and accessories.

Not binding images and technical data.
