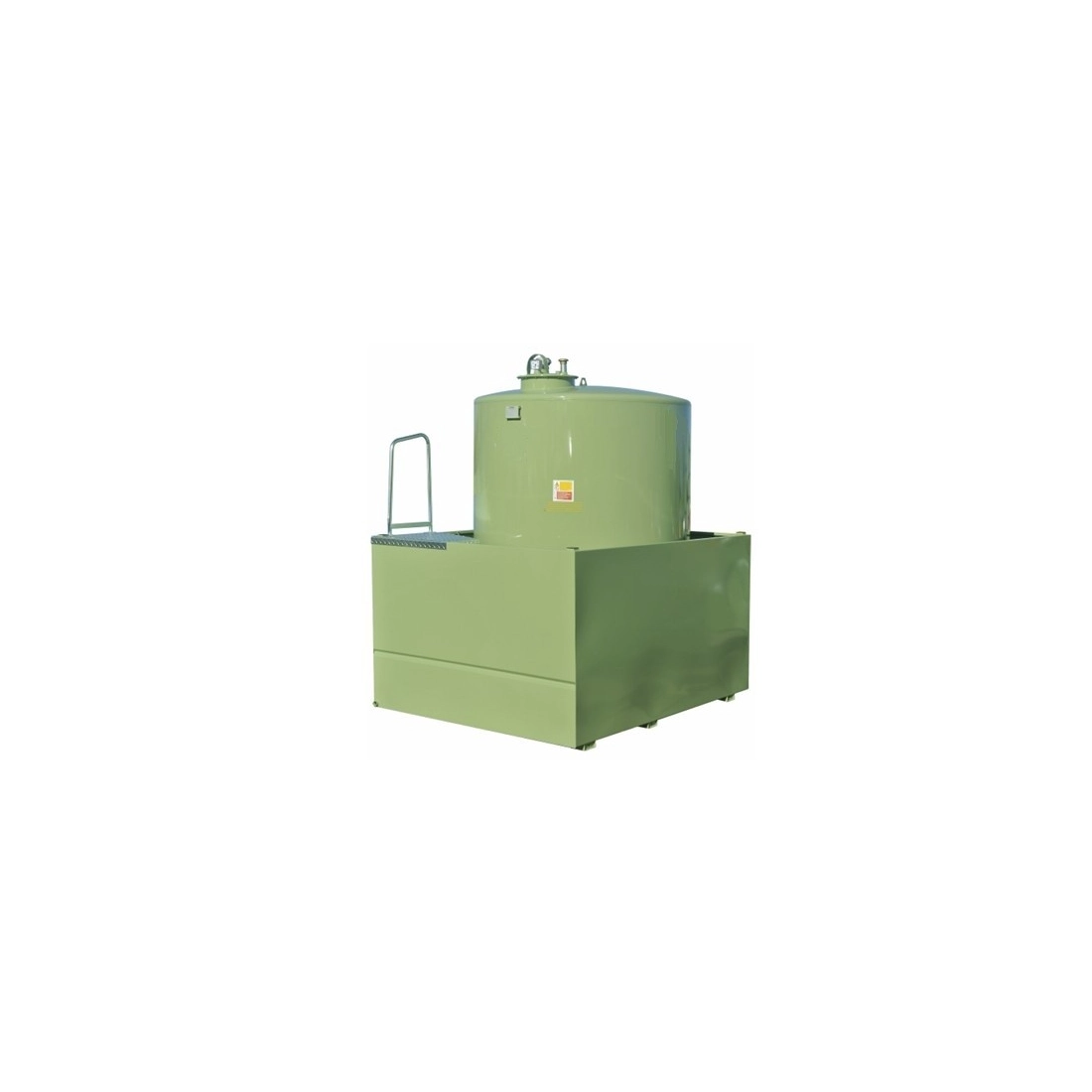

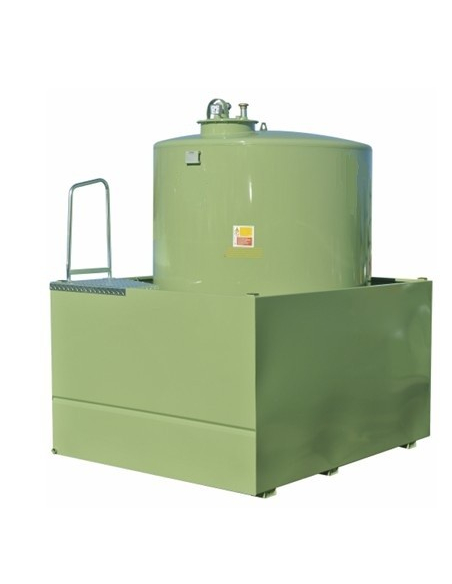

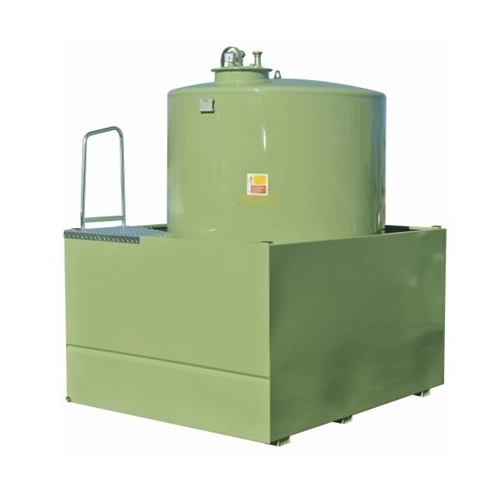

FENZI G5 Tank 500LT

FENZI G5 500LT Tank

FENZI G5 500LT Tank: Complete solution for safe diesel storage

The FENZI G5 500LT Tank is an above-ground diesel tank designed to meet the heating and generator power needs. Built in compliance with Italian regulations (Ministerial Decree 31/07/1934, Ministerial Decree 28/04/2005, Ministerial Decree 13/07/2011, and Ministerial Decree 22/11/2017), it offers a complete and safe solution for diesel fuel storage.
Guaranteed reliability: The quality of the materials and careful construction guarantee years of trouble-free operation.
Minimal maintenance: The robust structure and high-quality components require minimal maintenance.
Value over time: The FENZI 500LT tank maintains its value over time, making it a truly valuable investment.

Fenzi materials:

Tank: painted steel sheet
Containment basin: painted EN10025 S235JR carbon steel
Canopy (optional): non-combustible material, galvanized frame, corrugated sheet metal Galvanized
Components:
Tank
110% containment basin
90% load relief valve
External float level indicator
Manhole Ø 420 mm
Eyebolts for vacuum lifting
Drain hose for cleaning
Earthing and equipotential bonding connection
1" external suction connection with check valve
1" ball valve
1" galvanized steel hose with flexible end

Fenzi Safety:
110% containment basin to contain any leaks
Drain hose for water collection
Breather with flame arrester mesh
Compliance with Italian regulations

Fenzi Technical Features Tanks:

Basin: 110%
Length: 1010 mm
Width: 1010 mm
Height: 540 mm

Tank: Capacity: 498 liters
Diameter: 900 mm
Bottom: 625 mm
Length: 625 mm
Height: 1,250 mm

If you are looking for a product similar to the FENZI G5 500LT Tank but with different features, click HERE.

Images and technical data are purely indicative.
