FENZI G5 Tank 9000LT: Complete solution for the safe storage of fuel

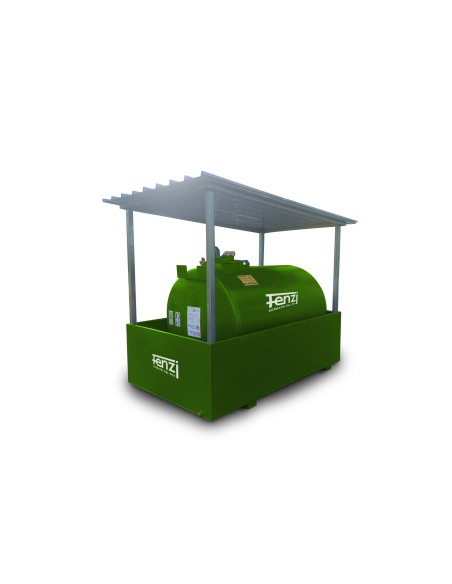

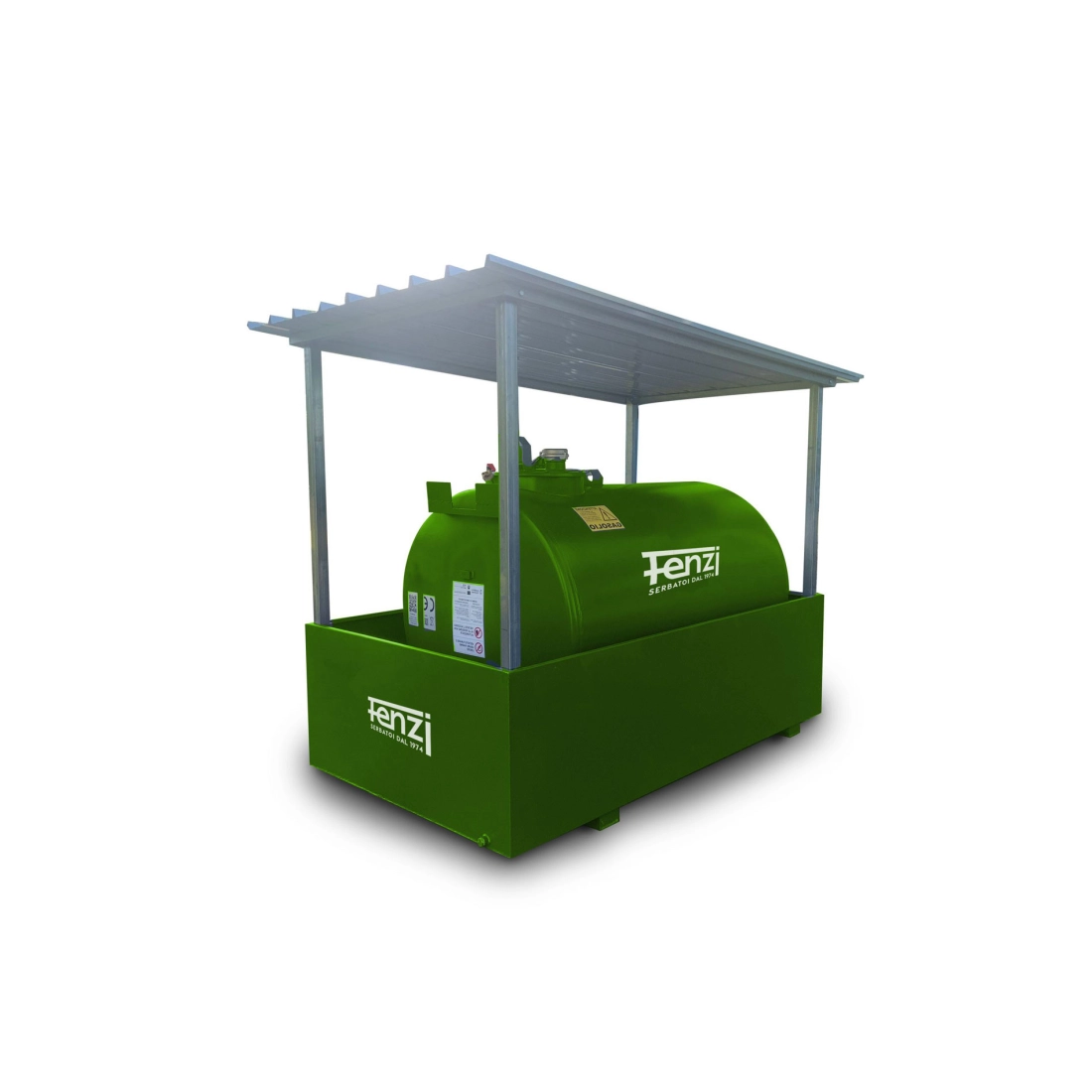

The FENZI G5 Cistern 9000LT is an above-ground cistern for fuel designed to meet the needs of heating and powering generator sets. Made in compliance with Italian regulations (DM 31/07/1934, DM 28/04/2005, DM 13/07/2011 and DM 22/11/2017), it offers a complete and safe solution for storing diesel fuel.

Fenzi materials:

FENZI G5 tank: the heart of the system, where fuel is stored safely and reliably.

110% FENZI G5 containment basin: capable of retaining the entire contents of the tank in the event of a spillage, guaranteeing maximum environmental protection.

90% FENZI G5 load limiting valve: prevents overloading of the tank, preventing accidents and damage.

FENZI G5 external float level indicator: allows the level of residual diesel fuel in the tank to be easily monitored.

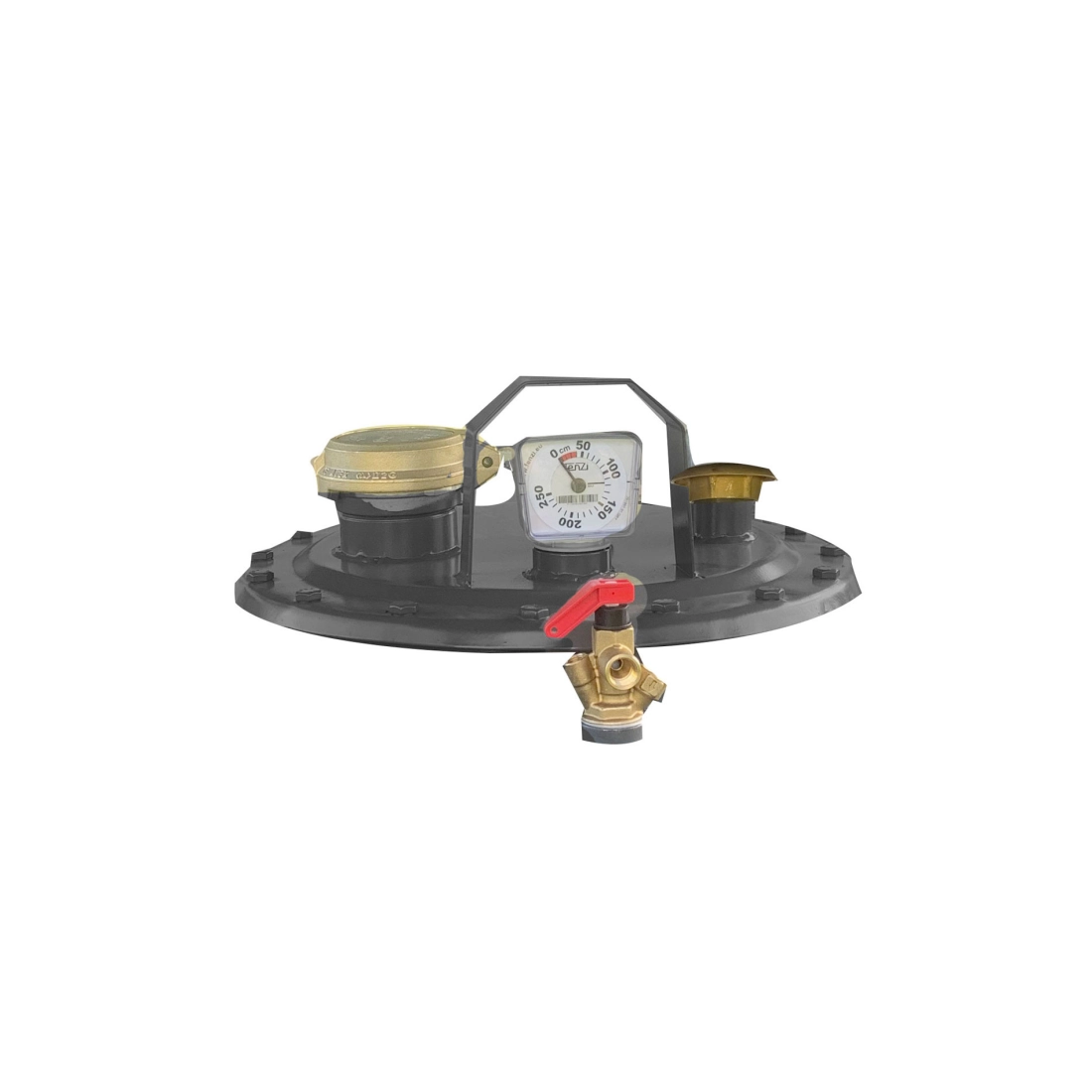

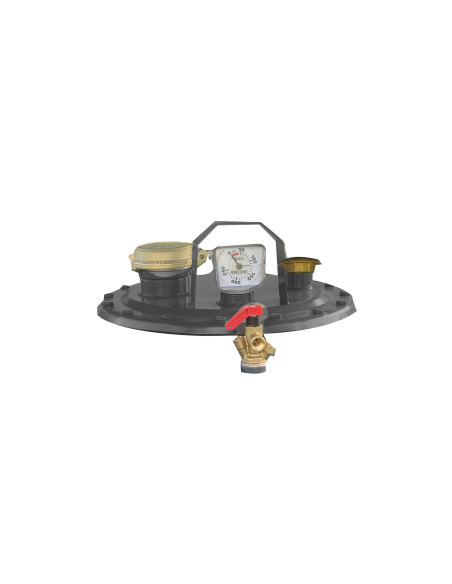

Manhole FENZI G5 Ø 420 mm: easy access for inspection and maintenance inside the tank.

Vacuum lifting eyebolts FENZI G5: facilitate transport and positioning of the tank.

FENZI G5 unloading sleeve for cleaning: allows the tank to be easily emptied for cleaning and maintenance.

FENZI G5 earthing and equipotential bonding socket: guarantees the electrical safety of the installation.

1" external suction connection with FENZI G5 non-return valve: allows quick and safe withdrawal of diesel fuel.

1" FENZI G5 ball valve: regulates the flow of diesel in and out of the tank.

1" galvanised steel pipe with flexible FENZI G5 end piece: connects the cistern to the diesel delivery system.

Fenzi safety:

110% FENZI G5 containment basin: retains any leaks, protecting the environment from contamination.

FENZI G5 water collection drain sleeve: separates the water from the diesel fuel, preventing the formation of condensation inside the tank.

FENZI G5 vent with flame-breaking mesh: prevents sparks and the formation of explosive gases inside the tank.

Compliance with Italian regulations: guarantees maximum product safety and reliability.

Technical characteristics Fenzi Tanks:

Capacity: 9000 litres

Length: 3900 mm

Width: 2100 mm

Height: 2700 mm

Intake Inches: 1"

Safety: the FENZI G5 Cistern 9000LT complies with Italian regulations and has several

safety features to ensure maximum protection against leakage and fire.

Reliability: made of high quality materials and robust components, the FENZI G5 Cistern 9000LT is designed to last.

Efficiency: the large capacity of 9000 litres allows you to store

If you are looking for a product like FENZI G5 9000LT Cistern with different characteristics, check out HERE.

Images and data purely indicative.
