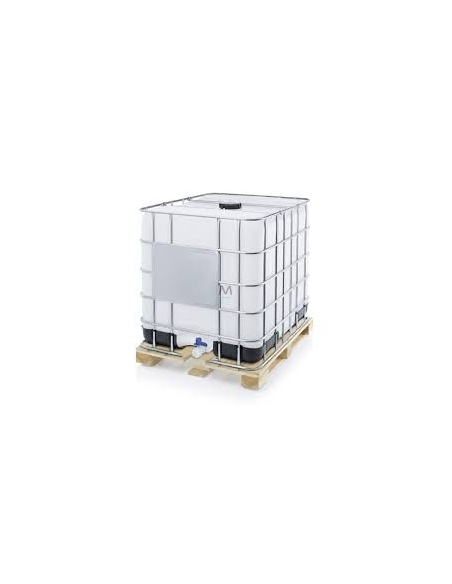

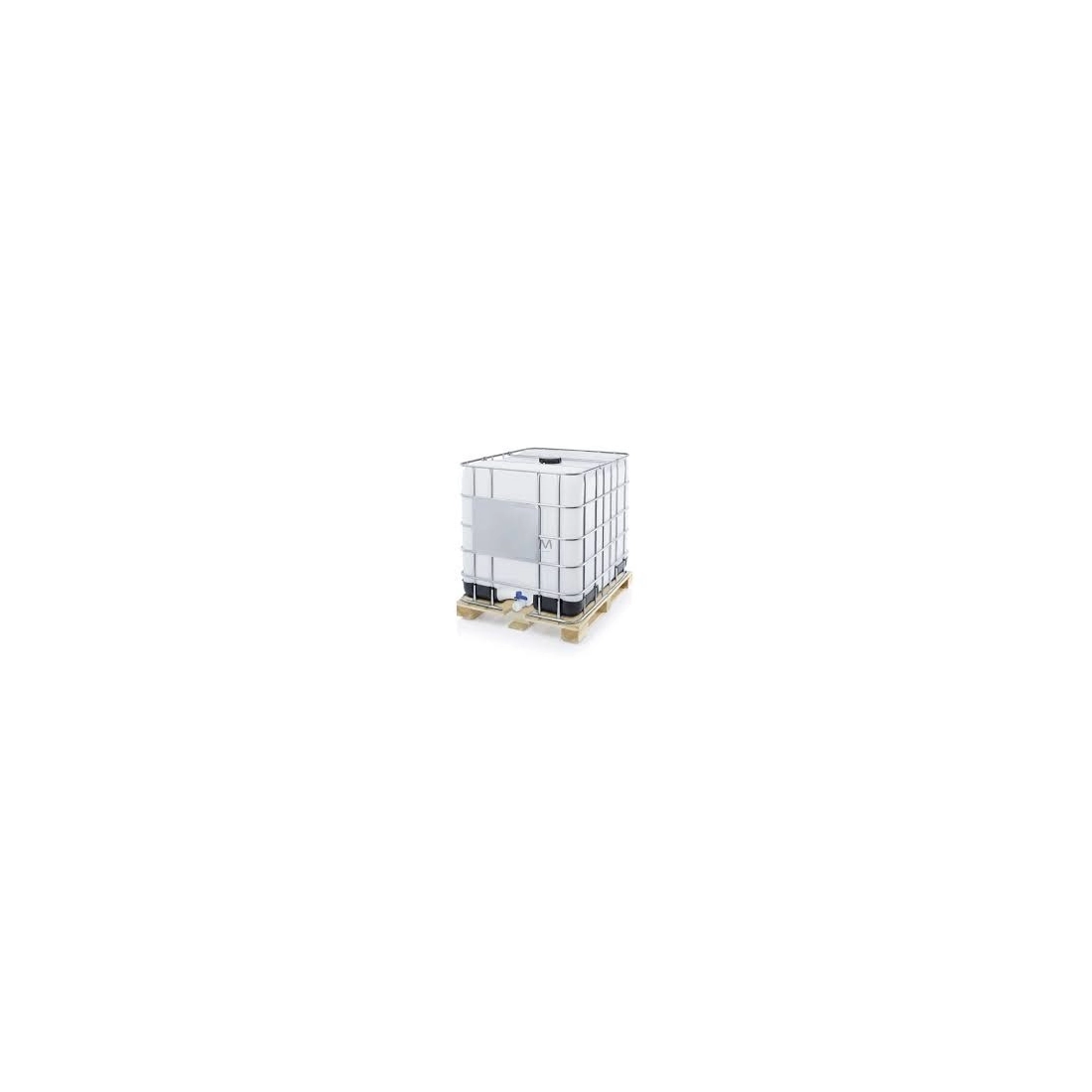

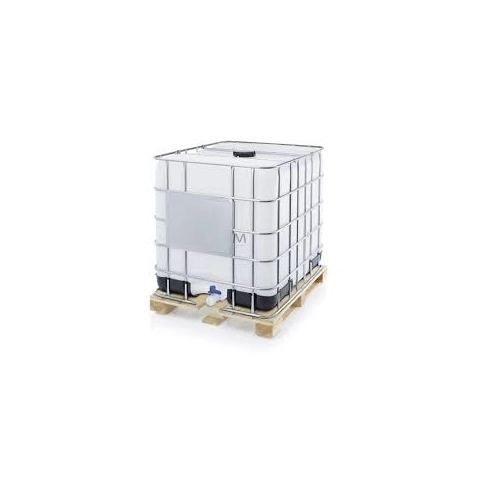

Cistern for the containment of non-food industrial liquids
BOTTLE:
RAW MAERIAL HDPE
WEIGHT 14,5 Kg
VOLUME BRIMFUL 1054 l
COLOUR NATURAL
TOP LID
RAW MATERIAL HDPE
SEAL EPDM/VITON
DIAMETER 150 mm
WEIGHT 0,16 kg
BUTTERFLY VALVE
RAW MATERIAL HDPE
GASKET ETFE
SEAL AL-PE
DIAMETER 2’’
WEIGHT 0,25 kg
CAGE AND PALLET
CAGE GALVANIZED IRON
PALLET WOOD
WEIGHT 47 kg ± 7 kg
ADDITIONAL INFORMATIONS
TOTAL WEIGHT 61 kg ± 3 kg
APPROVAL NO APPROVAL
WIDTH: 1000
LENGTH : 1200
HEIGHT: 1174
Tank for the containment of liquids Reconditioned not homologated placed on wooden pallet, protected by metal structure for the containment of the same.
Technical characteristics:
BOTTLE:
RAW MAERIAL HDPE
WEIGHT 14,5 Kg
VOLUME BRIMFUL 1054 l
COLOUR NATURAL
TOP LID
RAW MATERIAL HDPE
SEAL EPDM/VITON
DIAMETER 150 mm
WEIGHT 0,16 kg
BUTTERFLY VALVE
RAW MATERIAL HDPE
GASKET ETFE
SEAL AL-PE
DIAMETER 2’’
WEIGHT 0,25 kg
CAGE AND PALLET
CAGE GALVANIZED IRON
PALLET WOOD
WEIGHT 47 kg ± 7 kg
ADDITIONAL INFORMATIONS
TOTAL WEIGHT 61 kg ± 3 kg
APPROVAL NO APPROVAL
WIDTH: 1000
LENGTH : 1200
HEIGHT: 1174
