SATEPA UV Steriliser MONO UVC30D3 - Display UV CUBE
UVC30D3
Maximum flow rate: 1.5 m3/Hr - 1500 l/hr - 6.60 GPM @ 30,000 µWsec/cm2 1.2 m3/Hr - 1200 l/hr - 5.28 GPM @ 40,000 µWsec/cm2
Lamps: 1x30W, life hours 9,000

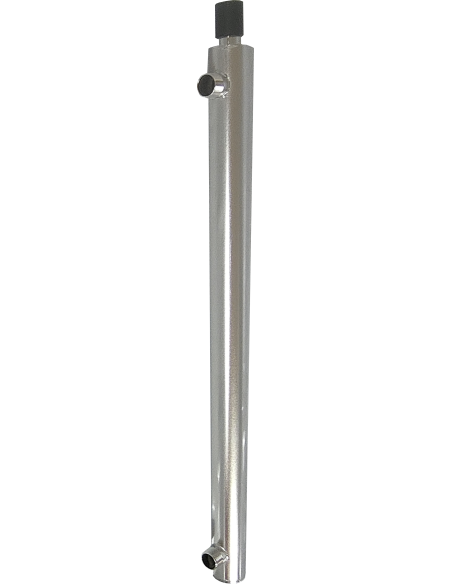

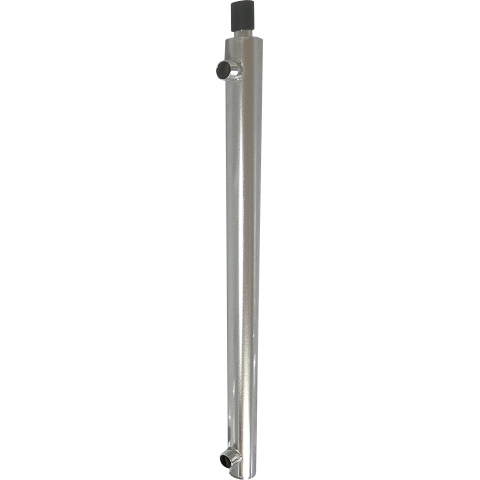

Reactor dimensions: Total H: 450 mm - Ø 60.30 mm
Form Factor: "C"-shaped tube
Working position: Vertical / Horizontal
Hydraulic connections: ¾" male threaded
Maximum pressure: 10 Bar standard
Material: AISI 304 (AISI 316 optional)

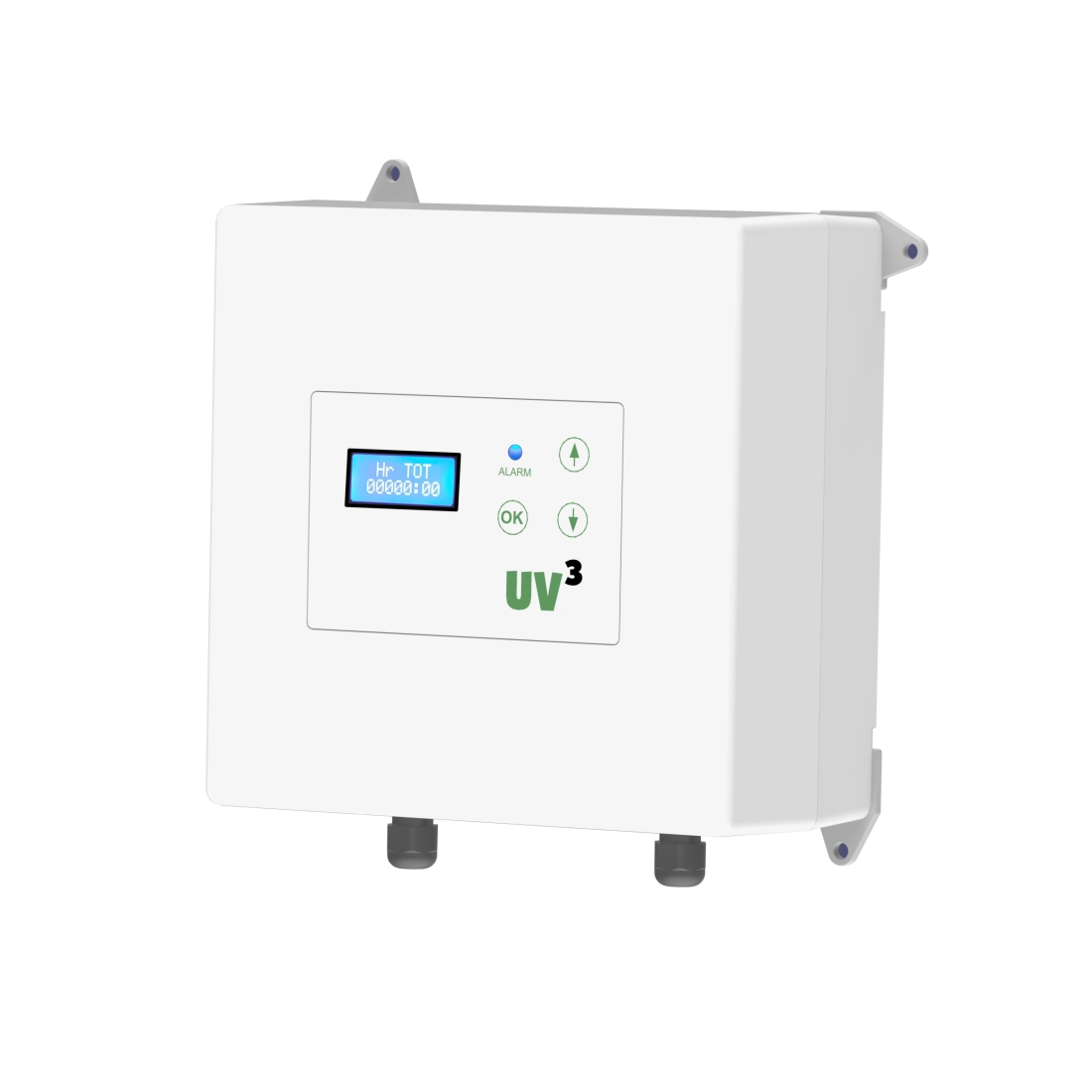

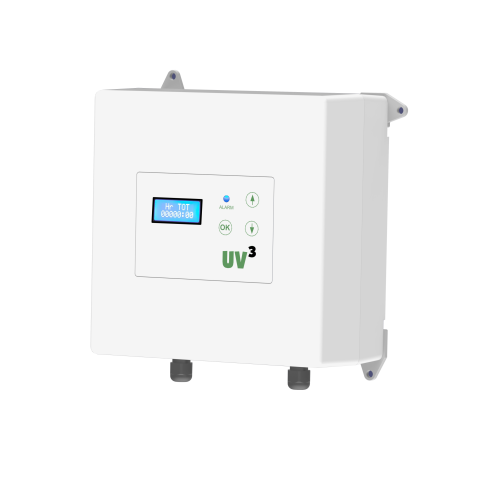

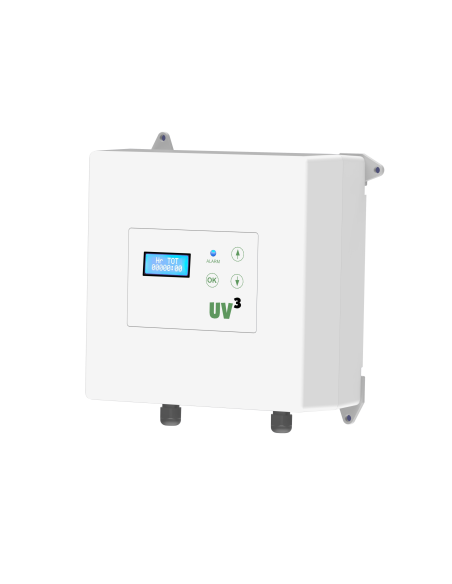

Panel dimensions: 180 x 180 x 90 mm
Display: White/blue backlit LCD display 2x8 characters
consumption: 30 Watts Power supply: 230 Vac ± 10% @ 50/60 Hz
product dimensions: 450 x 60.30 mm
- Frequency (Hz)
- 50 / 60
- Protection degree
- IP54
- Pressure (bars)
- 10
- Product dimensions (mm)
- 450 x 60,30
- Lamps
- 1 x 30W
- Power consumption (W)
- 30
- Capacity (Lt/h)
- 1200 - 1500
- Output voltage (VAC)
- 230
- Reactor Dimensions
- H total: 450 mm - Ø 60,30 mm
- Form
- C-shaped tube
- job position
- Vertical / Horizontal
- lamp control
- Gestione singola lampada con allarme fine vita lampada attraverso led/relè
- Brand
-
SATEPA UV Sterilizer MONO UVC30D3 - Display UV CUBE
SATEPA UV Sterilizer UVC30D3 - Display UV CUBE is a device designed for the disinfection of drinking and industrial water using UV-C radiation. Its effectiveness is based on the emission of UV-C radiation at a wavelength of 254 nm,
capable of inactivating pathogenic microorganisms such as bacteria, viruses and protozoa..
Advantages SATEPA UV Sterilizer UVC30D3:
High disinfection effectiveness: Eliminates pathogenic microorganisms
Safe and environmentally friendly: Does not use chemicals harmful to the environment
Low energy consumption: Reduces operating costs
Low maintenance: Easy to install and operate
Versatility: Suitable for a wide range of applications
Key Features SATEPA UV Sterilizer UVC30D3:
Maximum flow rate: 1.5 m3/Hr - 1500 l/hr - 6.60 GPM @ 30,000 µWsec/cm2 1.2 m3/Hr - 1200 l/hr - 5.28 GPM @ 40,000 µWsec/cm2
Lamps: 1x30W, life hours 9,000f
Reactor dimensions: Total H: 450 mm - Ø 60.30 mm
Form Factor: "C"-shaped tube
Working position: Vertical / Horizontal
Hydraulic connections: ¾" male threaded
Maximum pressure: 10 Bar standard
Material: AISI 304 (AISI 316 optional)
Panel dimensions: 180 x 180 x 90 mm
Display: White/blue backlit LCD display 2x8 characters
Lamp Control: Management with end-of-life lamp alarm through LEDs/relays Counts:
Counts: Total plant life hour count Resettable partial lamp life count.
Controls: Stand By control with "OK" button Remote ON/OFF control Lamp on mode with water flow Solenoid valve closing mode in case of lamp off Customizations: Customizable input signal
Alarms: Dry contact alarm relay 1 A @ 30Vdc; 0.250 A @ 230 Vac Power alarm relay 1A @ 30Vdc; 0.250A @ 230 Vac IP rating: IP 54 (IP 65 optional) Power consumption: 30 Watts Power supply: 230 Vac ± 10% @ 50/60 Hz
Product dimensions: 450 x 60.30 mm
Invest in a safe and healthy future with the UVC30D3 UV Sterilizer - UV CUBE Display from SATEPA
Looking for a SATEPA UV Sterilizer UVC30D3 - Display UV CUBE with different features? Click HERE.
Images and technical data purely indicative.
