GENSET MG4010DM

Name: GENSET MG4010DM
Brand: GENSET
SKU: MG 4010 DM
Price: 5959 EUR
Availability: InStock

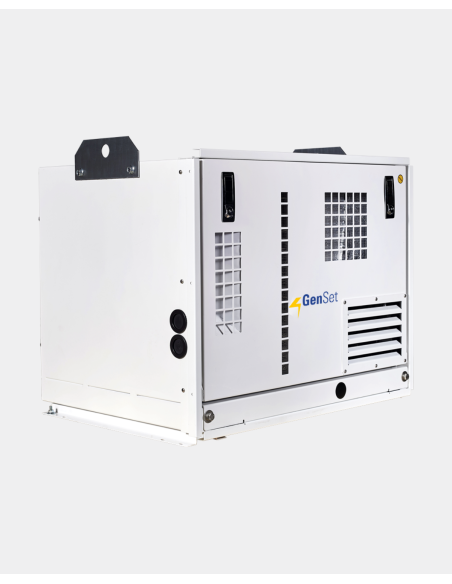

GENSET MG 4010 DM - VEHICULAR GENERATOR 4 KVA

Reference MG 4010 DM

Phase type: Single-phase
Maximum single-phase power: 4 KVA / 3.2 KW
Motor: Yanmar L 70 V
Engine speed: 3000 rpm
Emissions standard: Stage V
No. Cylinders: 1
Cooling: Air
Displacement: 320 cm3
Power: 6 hp (4.5 kWm)
Starter: Electric
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Fuel consumption 75%: 1 Lt/h
Acoustic pressure: 89 (64 dB at 7 m)
Length: 640 mm
Width: 500 mm
Height: 500 mm
Dry weight: 120 kg

Download Technical data MG 4010 DM Download Scheda tecnica MG 4010 DM

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 3.2
Maximum power single phase (KVA): 4
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Yanmar L70V, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 320
Number cylinders: 1
Cooling: Air
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Consumption (L/h): 1
Acoustic power: 89 dB(A)
Acoustic pressure: 64 dB(A) at 7 m
Length (mm): 640
Width (mm): 500
Height (mm): 500
Dry weight (Kg): 120
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: No
Engine manufacturer: Yanmar

Brand

GENSET MG4010DM SINGLE-PHASE VEHICLE GENERATOR 4KVA

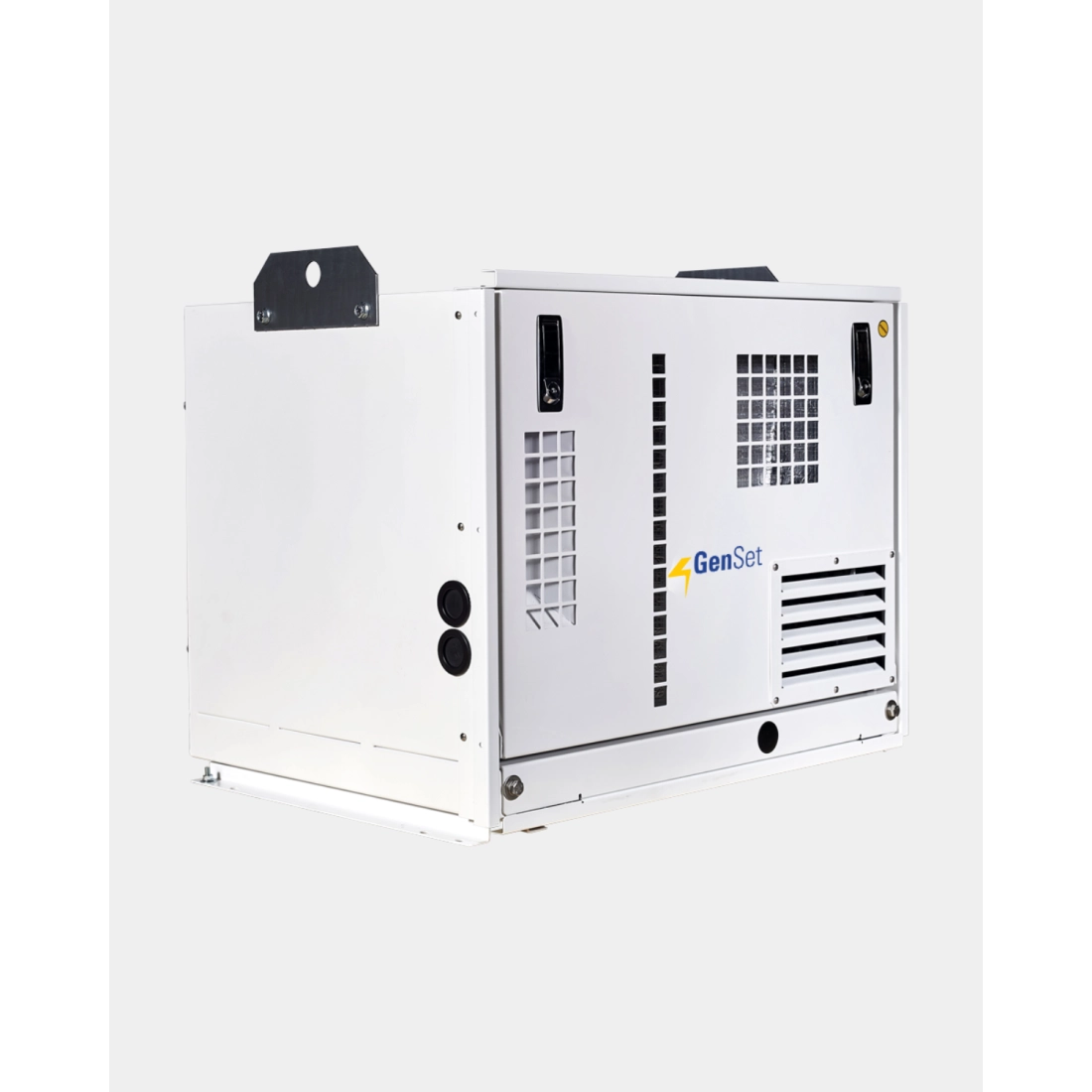

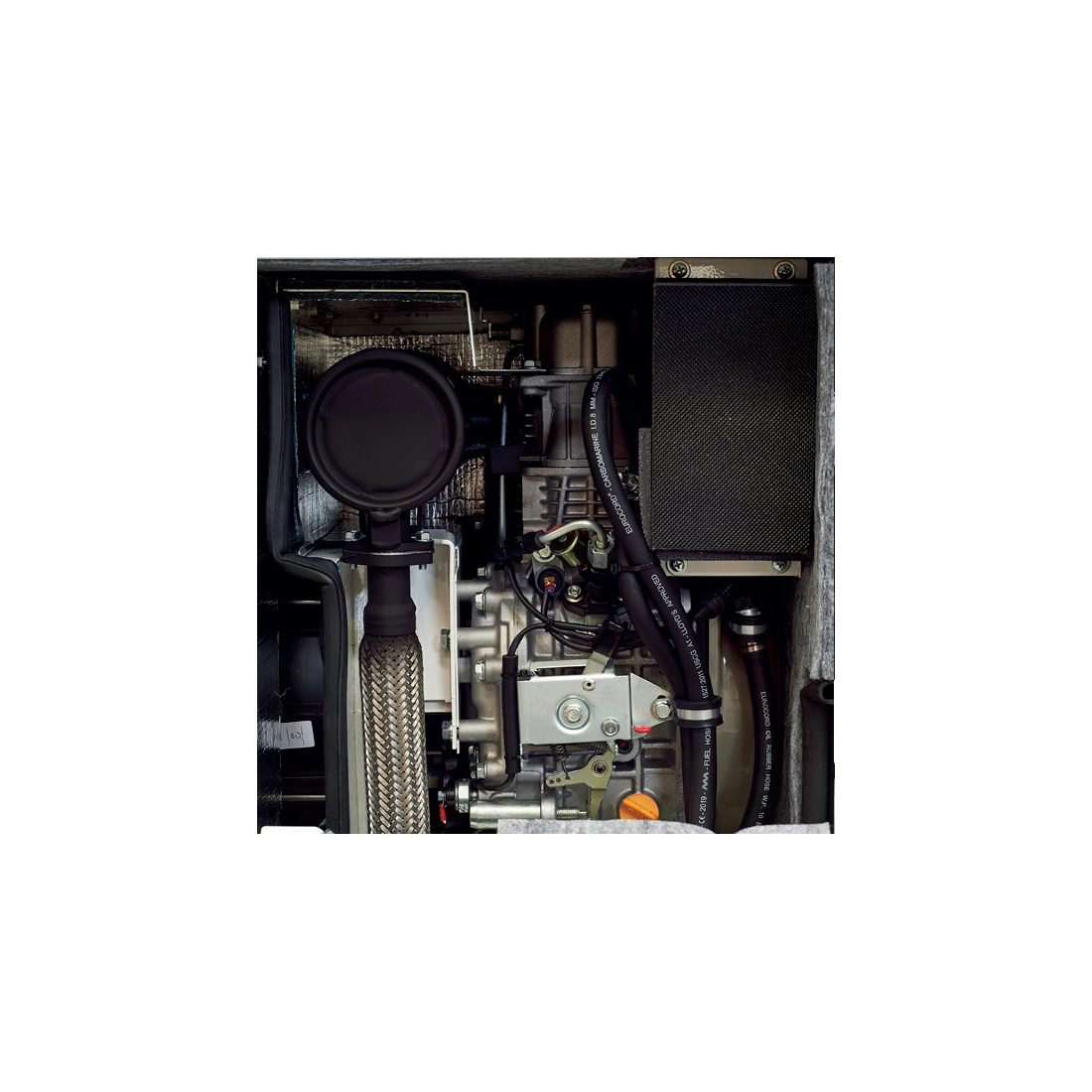

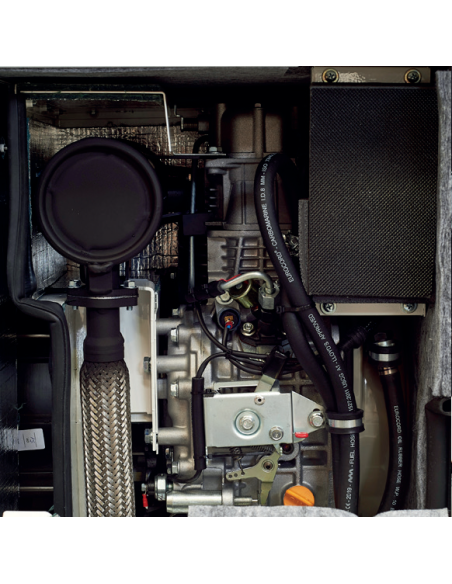

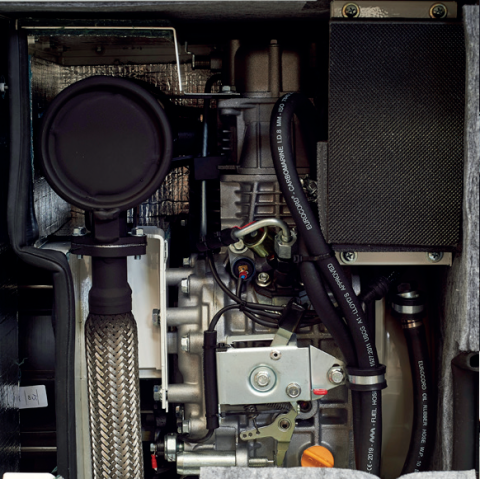

The GENSET MG4010DM is a 4KVA single-phase vehicle generator powered by
a Yanmar diesel engine with electric start. The GENSET MG4010DM
generator is compact and easy to use, and thanks to its compact size and
lightweight, it is a vehicle-mounted generator that is easy to install.

This GENSET MG4010DM generator is perfect for vehicle installation.
The GENSET MG4010DM also has low fuel consumption: only 1 Lt/h at
75% load. The GENSET MG4010DM generator, thanks to the high quality and
efficiency of its components, is ideal for vehicle mounting.

The GENSET MG4010DM 4KVA generator is equipped with a remote control
panel consisting of a multifunction digital display for reading generator
single-phase voltage, battery voltage, frequency, hour meter, and engine RPM.

The GENSET MG4010DM generator is equipped with an air cooling system that
ensures long-lasting and reliable operation even in harsh conditions.

The GENSET MG4010DM 4KVA generator is part of the vehicle range, and
thanks to its soundproof casing, it is super-silent, minimizing noise emissions.

Technical specifications of the GENSET MG4010DM generator:

Phase Type: Single-Phase Maximum
Single-Phase Power: 4 KVA / 3.2 KW
Engine: Yanmar L 70 V
Engine Speed: 3000 rpm
Emission Standard: StageV
No. of Cylinders: 1
Cooling: Air
Displacement: 320 cm³
Power: 6 hp (4.5 kWm)
Starting System: Electric
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Fuel Consumption at 75%: 1 Lt/h
Sound Pressure: 89 (64 dB at 7 m)
Length: 640 mm
Width: 500 mm
Height: 500 mm
Dry Weight: 120 kg

If you are looking for a product like the GENSET MG4010DM then you can browse the full range of GENSET's vehicle generator or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
