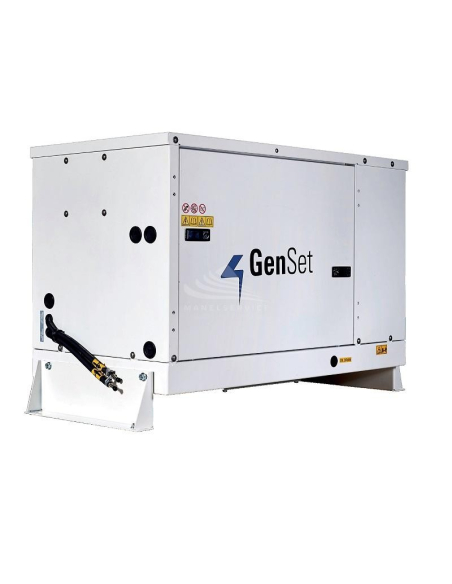

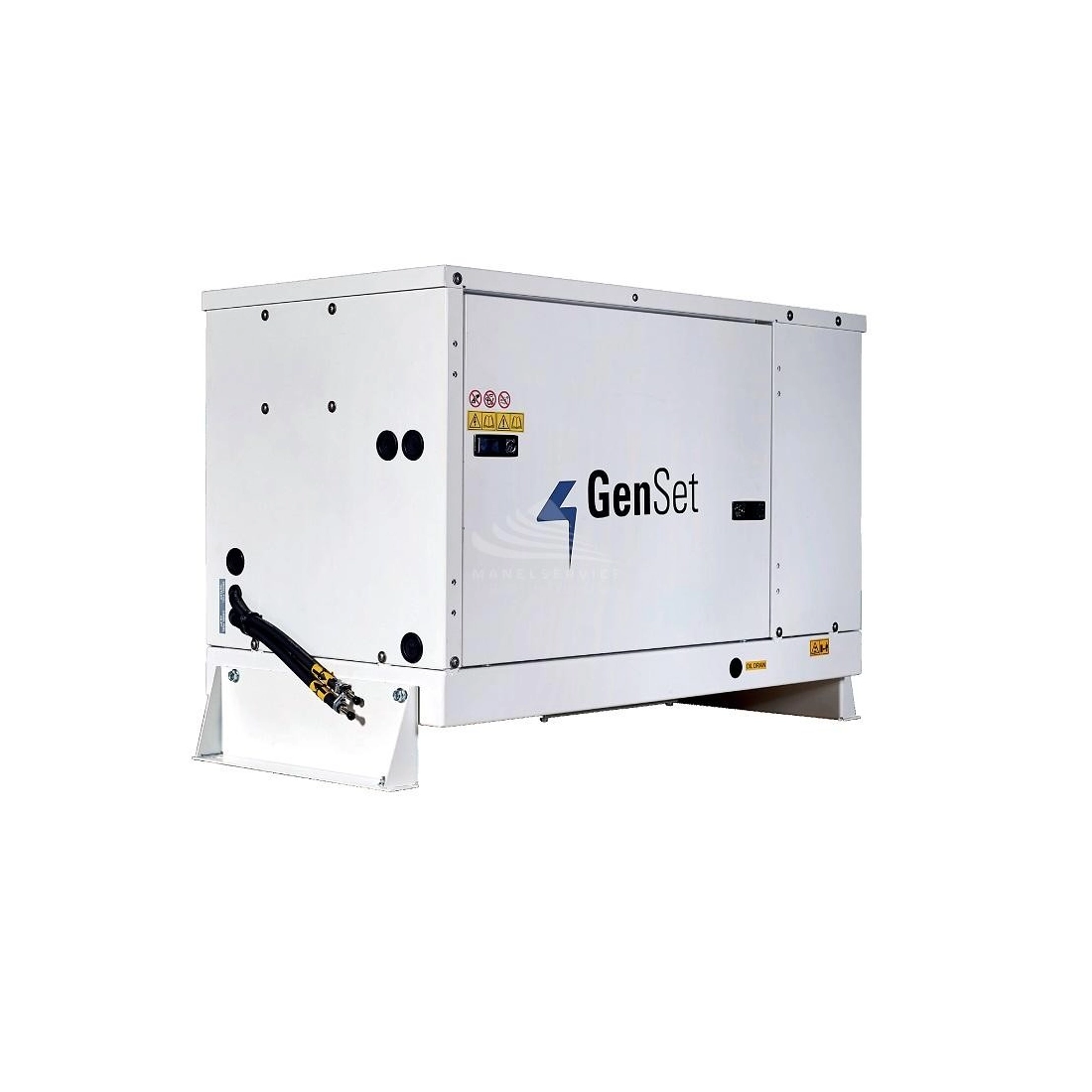

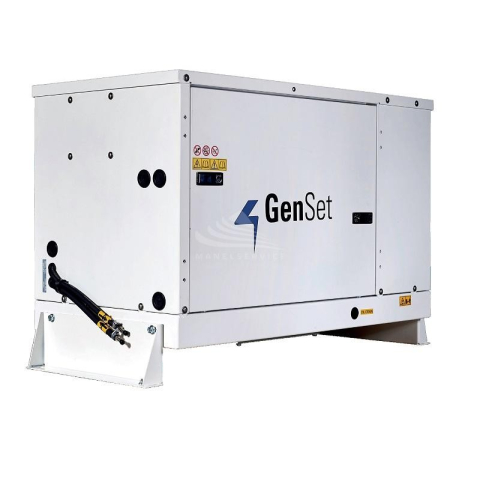

GENSET MG 11.5 DTK - VEHICULAR GENERATOR 10 KVA

Name: GENSET MG 11.5 DTK - VEHICULAR GENERATOR 10 KVA
Brand: GENSET
SKU: MG 11.5 DTK

Sale Generator | GENSET MG 11.5 DKT | ManElService S.r.l.

Reference MG 11.5 DTK

FUORI PRODUZIONE

Maximum power Three-phase: 10 KVA
Maximum power Three-phase: 8 KW
Maximum power Single-phase: 3.3 KVA
Maximum power Single-phase: 2.64 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz

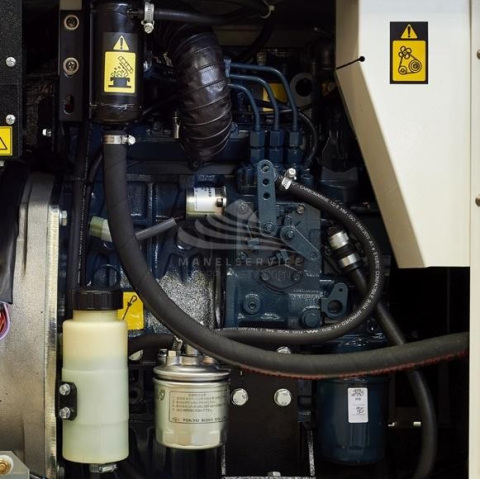

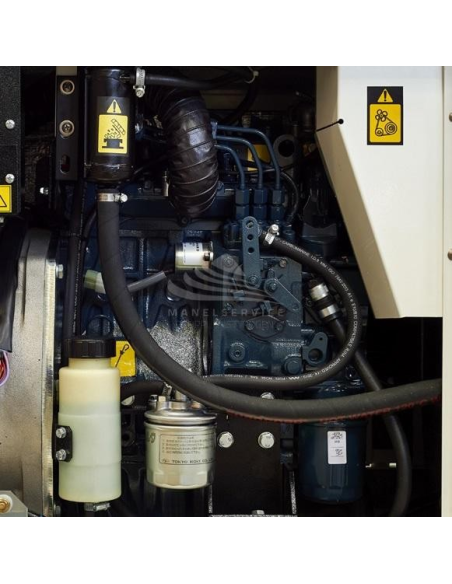

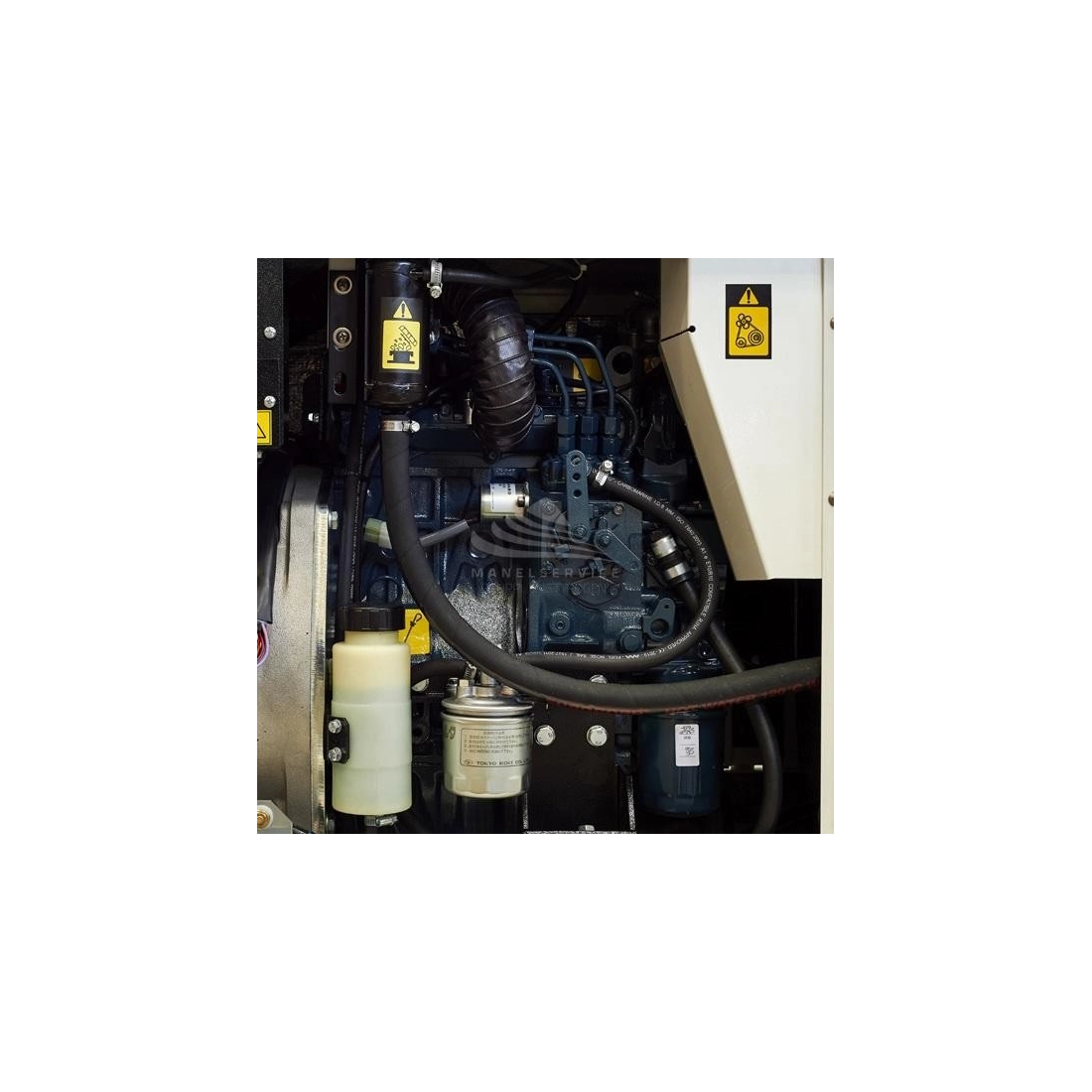

Engine: Kubota D1105 (STAGE V)
Starting: Electric
Consumption: 2 Lt/h
Length: 1070 mm
Width: 560 mm
Height: 660 mm
Weight: 320 Kg

Download Scheda tecnica MG 11.5 DTK Download Technical data MG 11.5 DTK

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 2.64
Maximum power single phase (KVA): 3.3
Maximum power three phase (KW): 8
Maximum power three phase (KVA): 10
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Kubota D1105
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 1123
Number cylinders: 3
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Consumption (L/h): 2
Acoustic power: 83 dB(A)
Acoustic pressure: 58 dB(A) at 7 m
Length (mm): 1070
Width (mm): 560
Height (mm): 660
Dry weight (Kg): 320
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: No
Engine manufacturer: Kubota

Brand

GENSET MG 11.5 DKT

The GENSET MG 11.5 DKT is a 10 KVA single-phase/three-phase diesel vehicular generator set with electric start.
Thanks to its compact size and low weight, the GENSET 11.5 DKT is an easy to install vehicular generator.
The GENSET MG 11.5 DKT also has a low fuel consumption: only 2 Lt/h at 75% of the load.
The GENSET MG 11.5 DKT generator set, thanks to the high quality and efficiency of its components, is ideal to be mounted on a vehicle.

Images and technical data are not binding.
