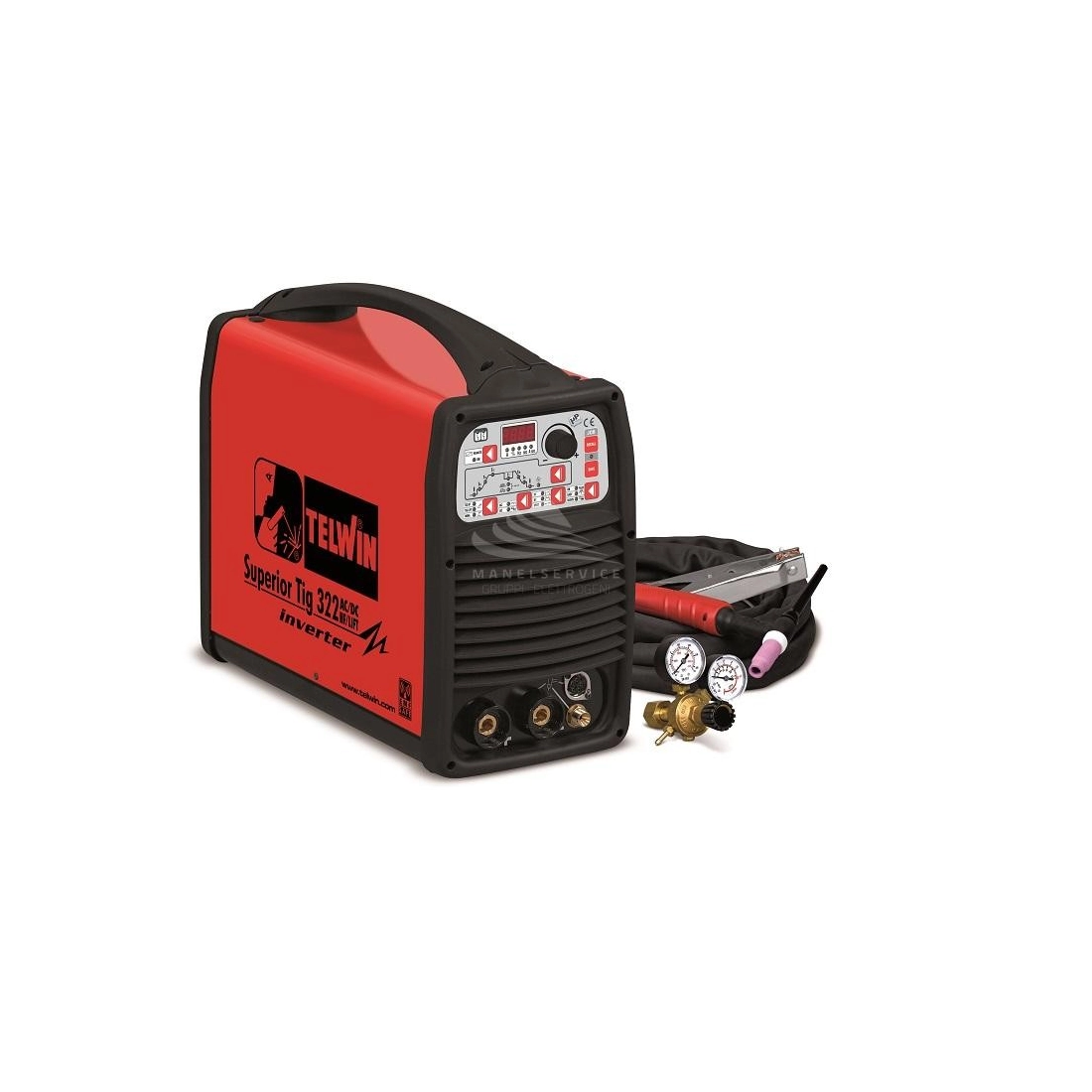

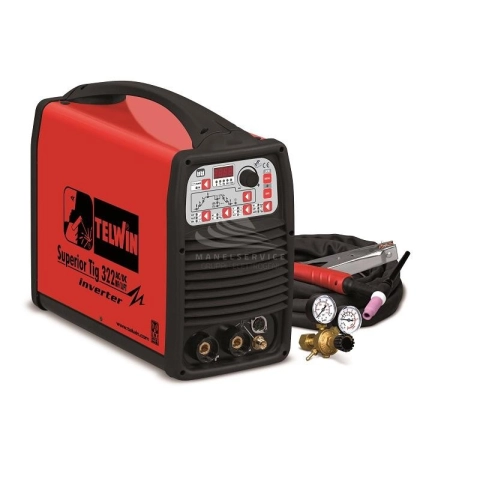

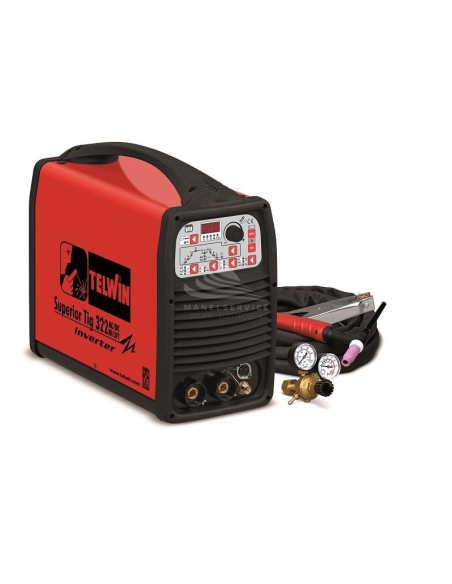

TELWIN SUPERIOR TIG 322 AC/DC-HF/LIFT 400V

Name: TELWIN SUPERIOR TIG 322 AC/DC-HF/LIFT 400V
Brand: TELWIN
SKU: 816130

Reference 816130

DISCONTINUED PRODUCT

Phase: Three phase
Frequency: 50/60 Hz
Voltage: 400 V
Type of welding: TIG/MMA
No-load voltage: 64 V
Regulation current: 5 - 270 A
Current max: 270 A
Diameter electrodes: 1.6 - 5 mm
Length: 530 mm
Width: 240 mm
Height: 450 mm
Weight: 34 Kg

Download Scheda tecnica SUPERIOR TIG 322 Download Technical data SUPERIOR TIG 322 Download Ficha técnica SUPERIOR TIG 322 Download Fiche technique SUPERIOR TIG 322 Download Manual SUPERIOR TIG

Product Details
Description

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 400
Efficiency (%): 85
Protection degree: IP23
No-load voltage (V): 64
Regulation current (A): 5 - 270
Diameter electrodes (mm): 1.6 - 5
Type of welding: MMA / MIG
Current max (A): 270
Length (mm): 530
Width (mm): 240
Height (mm): 450
Voltage regulator: Inverter
Weight (Kg): 34

EAN13: 8004897997681

Brand

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such assteel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Features:
- pulse and EASY pulse operation
- 9 customized welding programmes
- TIG regulations:bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC/AC, square wave frequency
- MMA regulations: arc force and hot start according to the type of electrode in use
- anti-stick device
- remote control and G.R.A. water cooling connector
- storage on on-board E2PROM of the last 10 alarms
- thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories.

Not binding images and technical data.
