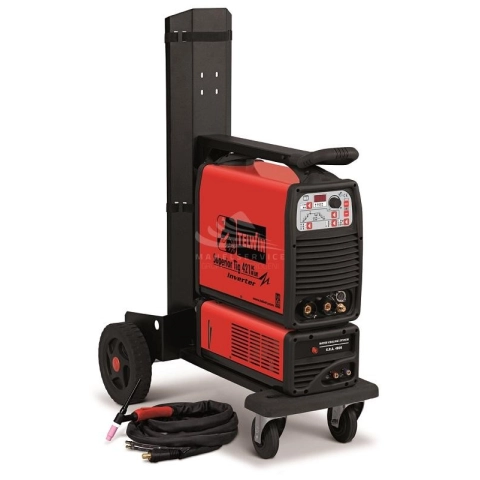

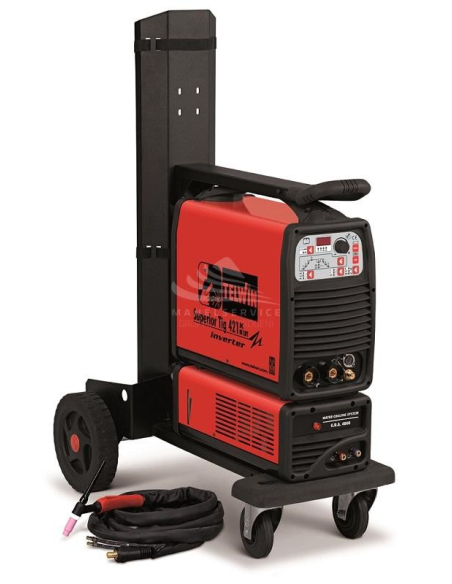

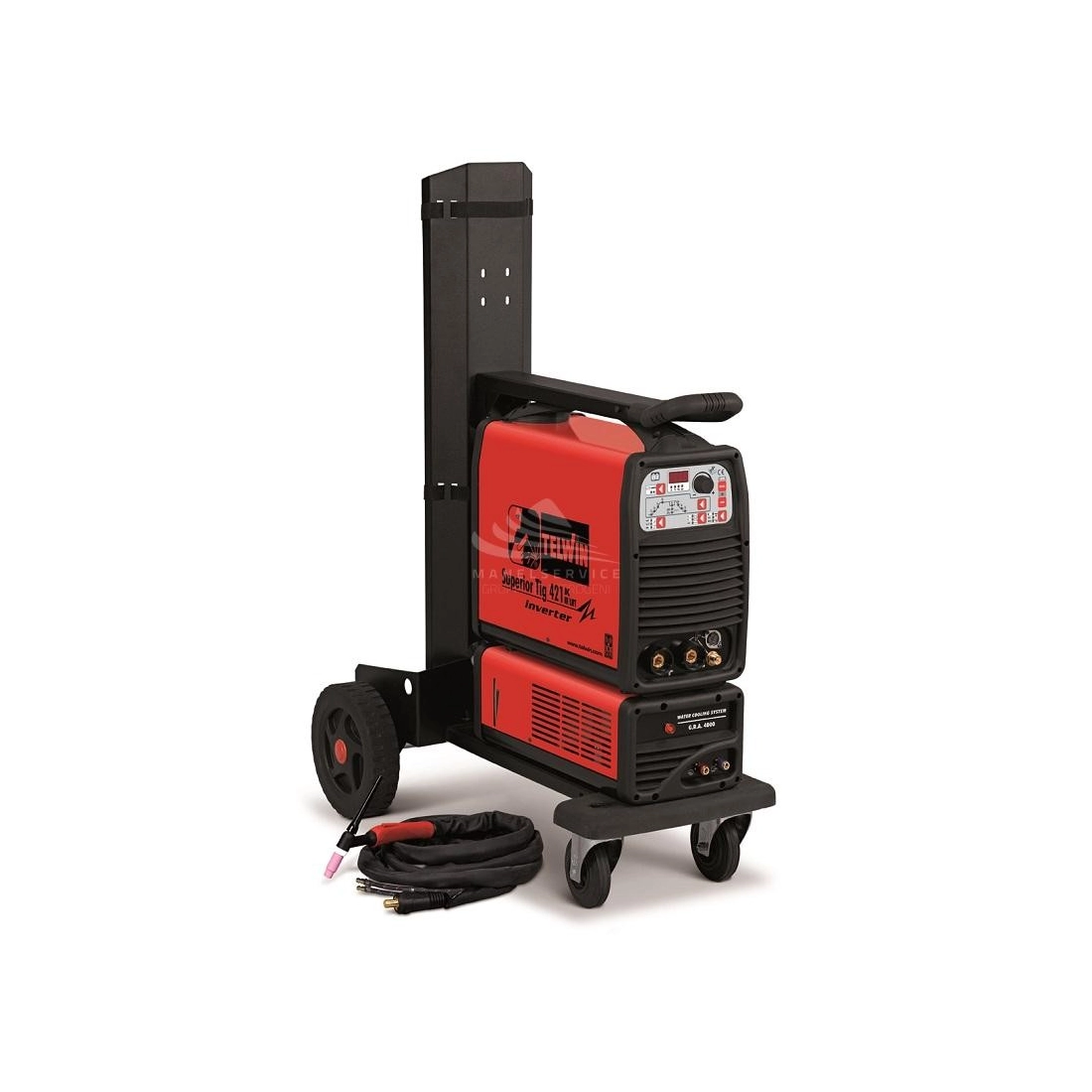

TELWIN SUPERIOR TIG 421 DC-HF/LIFT 400V AQUA

Name: TELWIN SUPERIOR TIG 421 DC-HF/LIFT 400V AQUA
Brand: TELWIN
SKU: 816133

Reference 816133

DISCONTINUED PRODUCT

Phase: Three phase
Frequency: 50/60 Hz
Voltage: 400 V
Type of welding: TIG/MMA
No-load voltage: 64 V
Regulation current: 5 - 350 A
Current max: 350 A
Diameter electrodes: 1.6 - 6 mm
Length: 935 mm
Width: 500 mm
Height: 1195 mm
Weight: 67 Kg

Download Scheda tecnica SUPERIOR TIG 421A Download Technical data SUPERIOR TIG 421A Download Ficha técnica SUPERIOR TIG 421A Download Fiche technique SUPERIOR TIG421A Download Manual SUPERIOR TIG 421 A

Product Details
Description

Phase: Three phase
Frequency (Hz): 50 / 60
Voltage (V): 400
Efficiency (%): 85
Protection degree: IP23
No-load voltage (V): 64
Regulation current (A): 5 - 350
Diameter electrodes (mm): 1.6 - 6
Type of welding: MMA / MIG
Current max (A): 350
Length (mm): 935
Width (mm): 500
Height (mm): 1195
Voltage regulator: Inverter
Weight (Kg): 67

EAN13: 8004897837161

Brand

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
- pulse and EASY pulse operation
- 9 customized welding programmes
- TIG regulations: bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC, square wave frequency
- MMA regulations: arc force and hot start according to the type of electrode in use
- anti-stick device
- remote control and G.R.A. water cooling connector
- storage on on-board E2PROM of the last 10 alarms
- thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories, trolley and water cooling unit G.R.A..

Not binding images and technical data.
