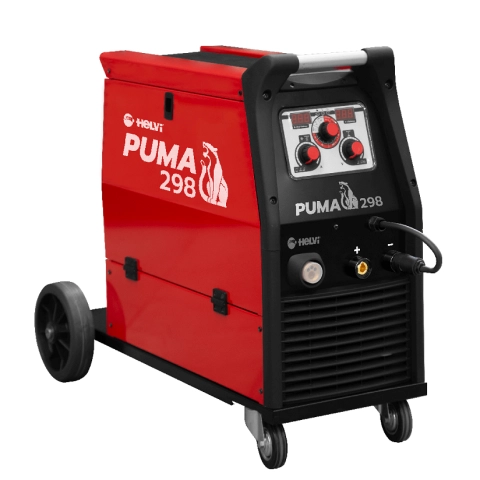

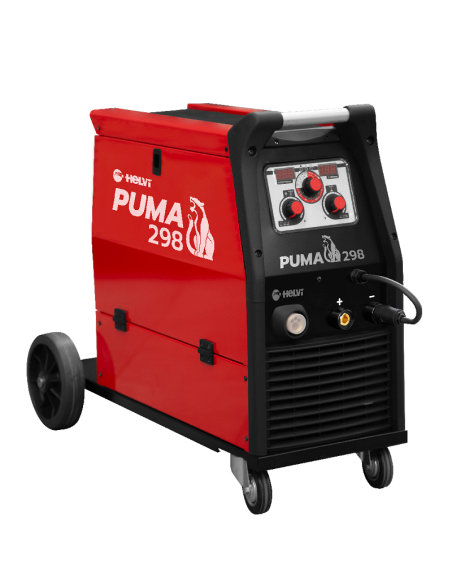

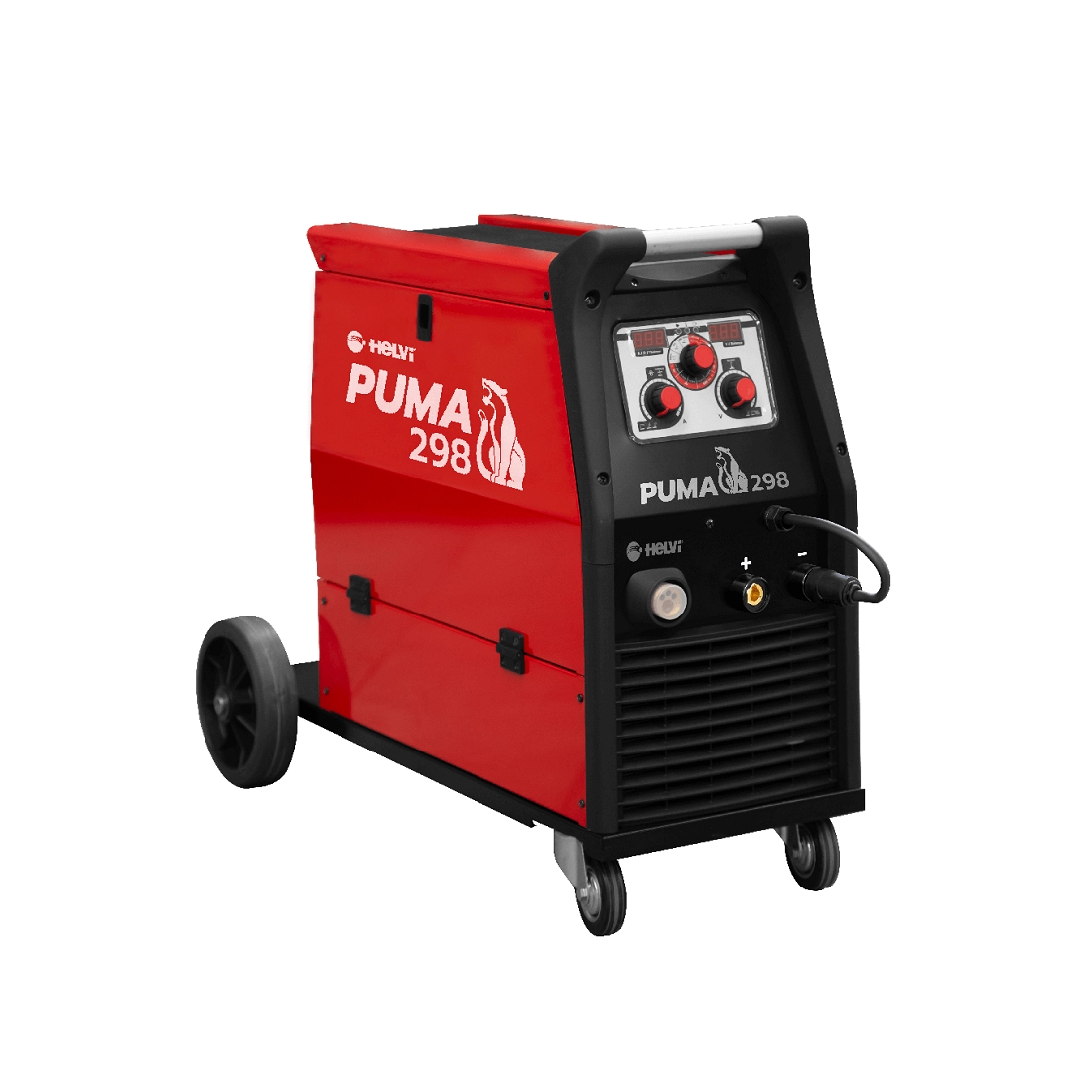

HELVI PUMA 298 MIG-MMA-TIG WELDING MACHINE

Name: HELVI PUMA 298 MIG-MMA-TIG WELDING MACHINE
Brand: HELVI
SKU: 99825016
Price: 1627.2 EUR
Availability: InStock

Reference 99825016

Power supply: (3ph) 400V ± 10% - 50/60Hz
Abs. power 60%: MIG: 6 KW / MMA(rutile only): 6 KW / TIG: 5.8 KW
Open circuit voltage: MIG: 35 V / MMA(rutile only): 54 V / TIG: 54 V
Regulation range: MIG: 30 ÷ 290 A / MMA(rutile only) / TIG: 20 ÷ 250 A 10 ÷ 290 A
Duty cycle 40°C: MIG: 290A @ 35% - 220A @ 60% - 170A @ 100% / MMA(rutile only): 250A @ 35% - 190A @ 60% - 150A @ 100% / TIG: 290A @ 35% - 220A @
60% - 170A @ 100%
Iron: 0.8 ÷ 1.0 Ø mm
Stainless Steel: 0.8 ÷ 1.0 Ø mm
Aluminium: 1,0 ÷ 1,2 Ø mm
Flux-cored wire: 1,0 ÷ 1,2 Ø mm
CuSi?: 0.8 mm Ø
Ø Electrode diameter: 1.6 ÷ 5 Ø mm
Electrode type: 6013 rutile
Insulation: H
Protection class: IP23S
Length: 450 mm
Width: 840 mm
Height: 710 mm
Box size: 365x895x650 mm
Gross/net weight 37 / 35 Kg

Download Datasheet PUMA 298 Download User Manual IT PUMA 298 Download User Manual EN PUMA 298

Product Details
Description

Frequency (Hz): 50 / 60
Voltage (V): 400
Protection degree: IP23S
Motor insulation class: H
No-load voltage (V): MIG: 35 V / MMA(solo rutile): 54 V / TIG: 54 V
Type of welding: MIG / MMA / TIG
Length (mm): 450
Width (mm): 840
Height (mm): 710
Product type: Welding machine
Weight (Kg): 37
Duty Cycle 40°: MIG: 290A @ 35% - 220A @ 60% - 170A @ 100% / MMA(solo rutile): 250A @ 35% - 190A @ 60% - 150A @ 100% / TIG: 290A @ 35% - 220A @ 60% - 170A @ 100%
Power consumption 60%: MIG: 6 KW / MMA(solo rutile): 6 KW / TIG: 5,8 KW
Adjustment range: MIG: 30 ÷ 290A / MMA(solo rutile) / TIG: 20 ÷ 250 A 10 ÷ 290 A
Iron: 0,8 ÷ 1,0 Ø mm
Inox Steel: 0,8 ÷ 1,0 Ø mm
Aluminium: 1,0 ÷ 1,2 Ø mm
Animated wire: 1,0 ÷ 1,2 Ø mm
CuSi?: 0,8 Ø mm
Electrode type: 6013 rutile
Electrode diameter: 1,6 ÷ 5 Ø mm

Brand

WELDING HELVI PUMA 298 MIG-MMA-TIG

The HELVI PUMA 298 welding machine is a microprocessor-controlled, single-phase inverter device for MIG-MAG, TIG and MMA welding, which guarantees exceptional arc stability and projection-free welding.

Main features:

MIG-MAG, TIG and MMA welding
Microprocessor-controlled
Exceptional arc stability
Projection-free welding
Hotstart, Arc Force and antiencolate functions in stick position
Lift arc function in TIG position
Possibility of manual welding and total synergy in MIG mode
Motor lift ramp adjustment
Automatic wire feed with soft arc formation
Simple and versatile
Ideal for bodywork, small carpentry and maintenance work

Technical specifications:

Power supply: 400 V ± 10% - 50/60 Hz
Power consumption: 60%: MIG: 6 KW / MMA(rutile only): 6 KW / TIG: 5.8 KW
Open circuit voltage: MIG: 35 V / MMA(rutile only): 54 V / TIG: 54 V
Regulation range: MIG: 30 ÷ 290 A / MMA(rutile only) / TIG: 20 ÷ 250 A 10 ÷ 290 A
Duty cycle 40°C: MIG: 290A @ 35% - 220A @ 60% - 170A @ 100% / MMA(rutile only): 250A @ 35% - 190A @ 60% - 150A @ 100% / TIG: 290A @ 35% - 220A @ 60% - 170A @ 100%
Applicable materials: iron, stainless steel, aluminium, flux-cored wire, CuSi?.
Electrode diam.: 1.6 ÷ 5 Ø mm
Electrode type: 6013 rutile
Insulation: H
Protection class: IP23S
Dimensions: 450 x 840 x 710 mm
Weight: 37 kg

If, on the other hand, you are looking for another product similar to the HELVI PUMA256 welding inverter then we recommend that you view our entire range of welding machines.

Images and technical data not binding.
