TELWIN FORCE 145 230V ACX PLASTIC CARRY CASE

Name: TELWIN FORCE 145 230V ACX PLASTIC CARRY CASE
Brand: TELWIN
SKU: 815856
Price: 192 EUR
Availability: InStock

Reference 815856

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding current: DC
Type of welding: MMA
No-load voltage: 72 V
Regulation current: 10 - 130 A
Current max: 125 A
Diameter electrodes: 1.6 - 3.2 mm
Length: 420 mm
Width: 170 mm
Height: 380 mm
Weight: 5.2 Kg

Download Manual FORCE Download Scheda tecnica FORCE 145 P Download Technical data FORCE 145 P Download Ficha técnica FORCE 145 P Download Fiche technique FORCE 145 P

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Efficiency (%): 82
Protection degree: IP21
Maximum permissible current (A): 27
No-load voltage (V): 72
Regulation current (A): 10 - 130
Diameter electrodes (mm): 1.6 - 3.2
Type of welding current: DC
Type of welding: MMA
Current max (A): 125
Length (mm): 420
Width (mm)
Height (mm): 380
Voltage regulator: Inverter
Weight (Kg): 3.3

EAN13: 8004897789545

Brand

MMA inverter, electrode welding machine in direct current (DC).
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- Compact and light
- High welding current stability in spite of mains voltage fluctuations
- Arc force, hot start and anti-stick devices
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

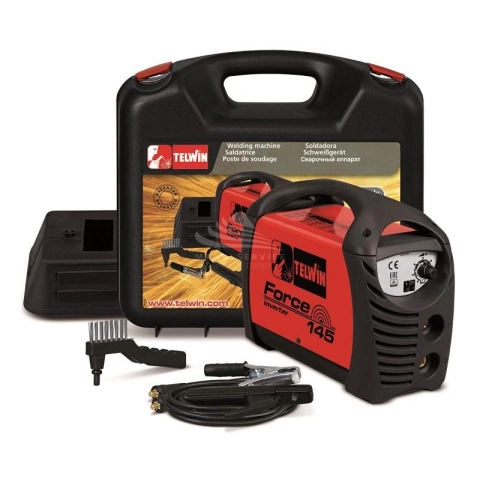

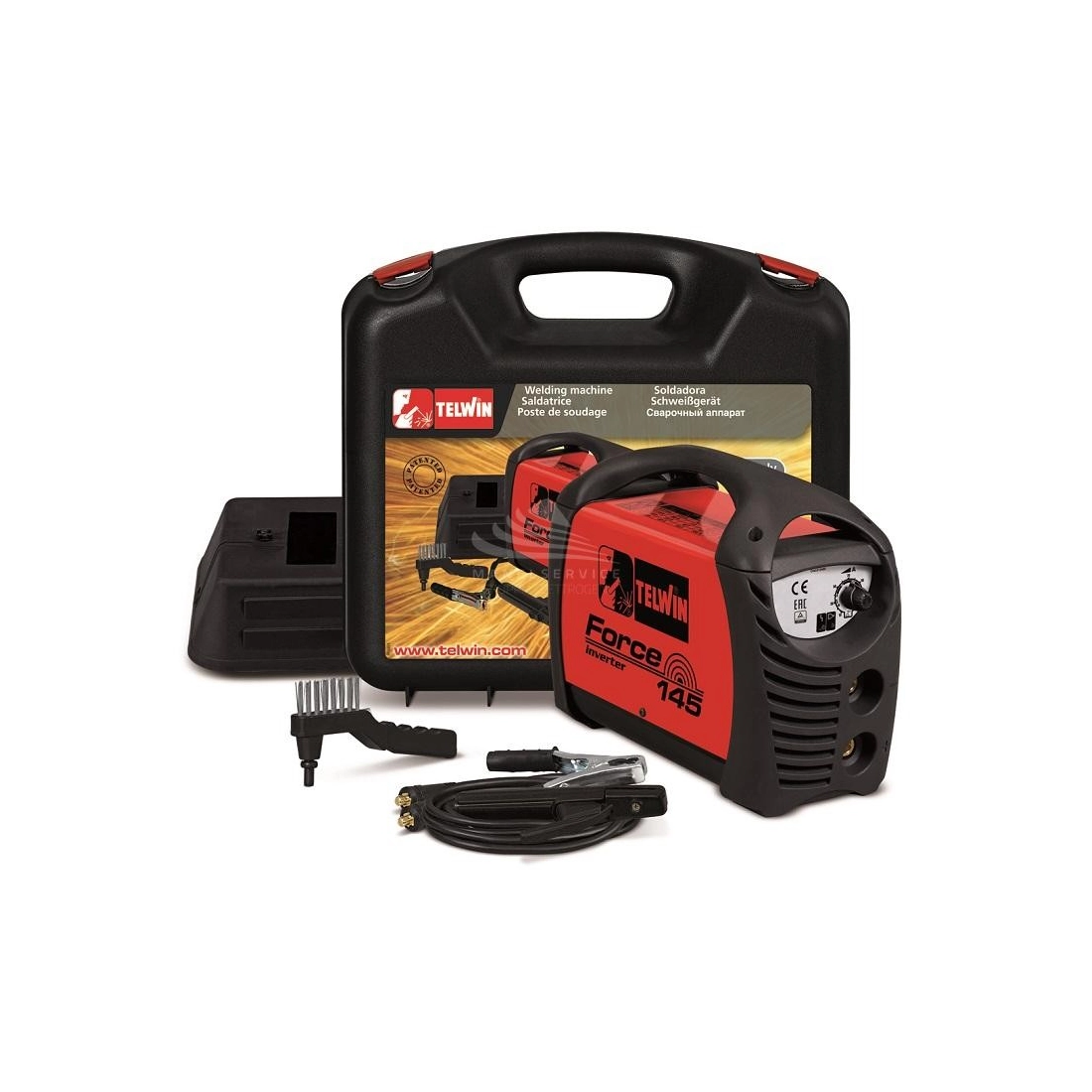

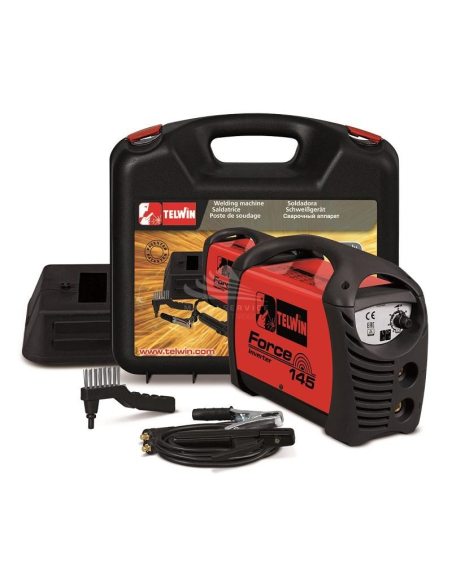

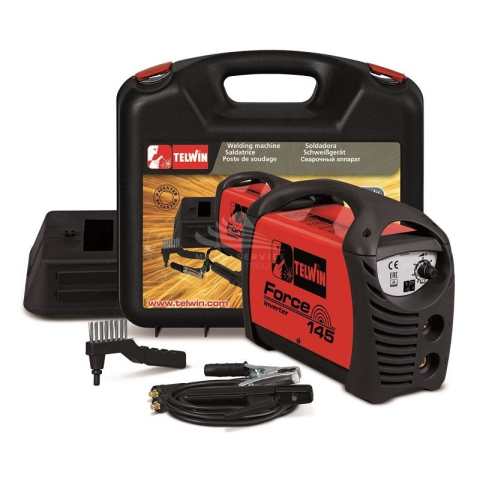

Complete with MMA welding accessories and plastic carry case.

Not binding images and technical data.
