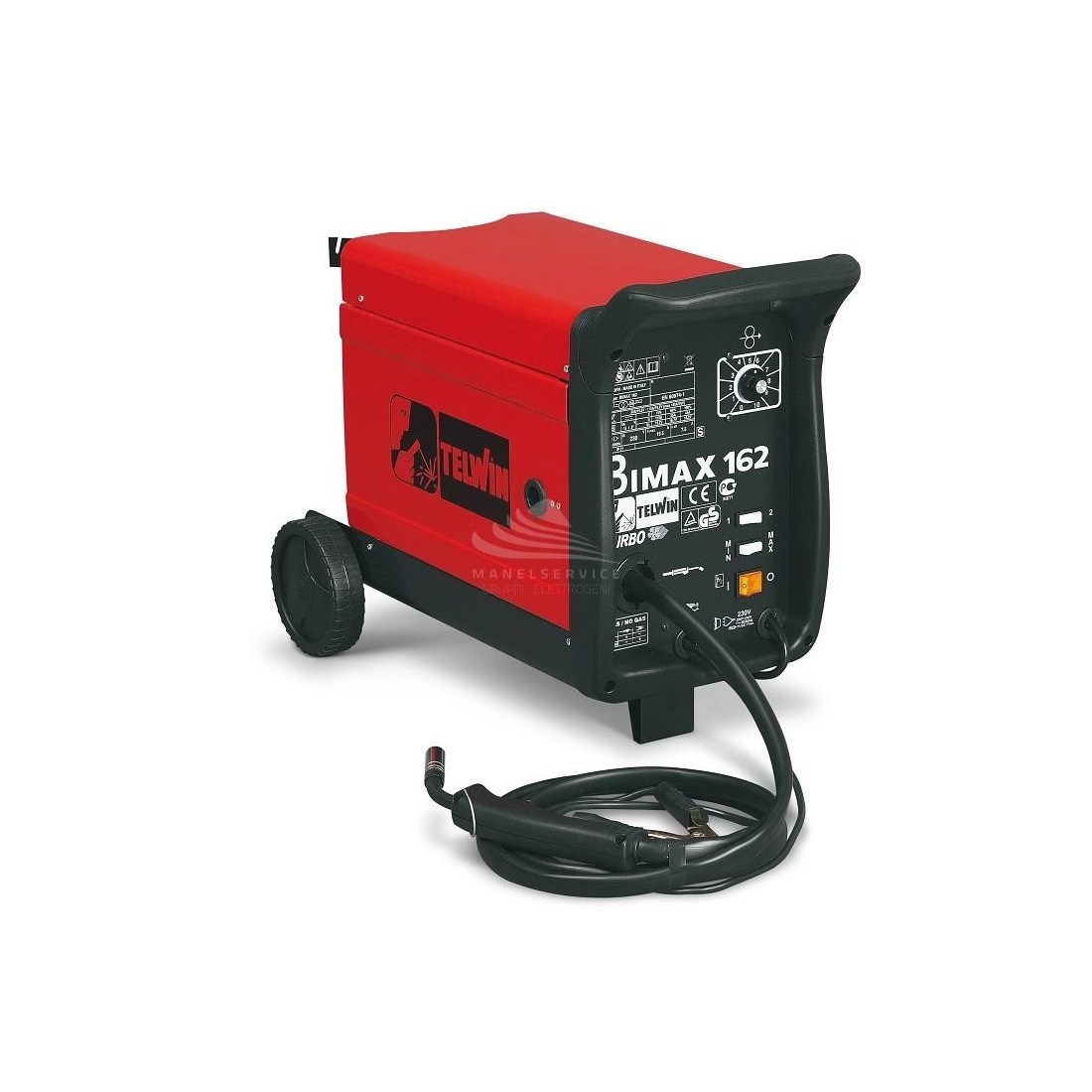

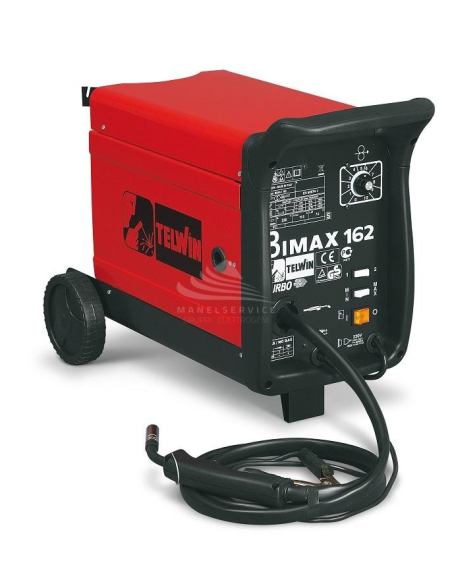

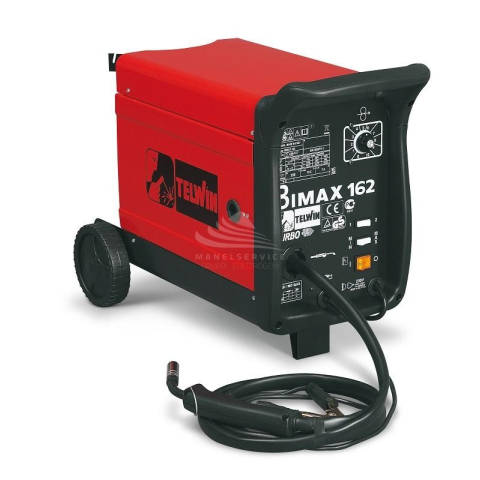

TELWIN BIMAX 162 TURBO 230V

Name: TELWIN BIMAX 162 TURBO 230V
Brand: TELWIN
SKU: 821012

Reference 821012

DISCONTINUED PRODUCT

Phase: Single phase
Frequency: 50/60 Hz
Voltage: 230 V
Type of welding: MIG-MAG/FLUX
No-load voltage: 31 V
Regulation current: 30 - 145 A
Current max: 115 A
Steel welding wire diameter: 0.6 - 0.8 mm
Inox welding wire diameter: 0.8 mm
Aluminium welding wire diameter: 0.8 - 1 mm
Flux cored welding wire diameter: 0.8 - 1.2 mm
Length: 640 mm
Width: 350 mm
Height: 470 mm
Weight: 25 Kg

Download Manual BIMAX / TELMIG Download Scheda tecnica BIMAX 162 Download Technical data BIMAX 162 Download Ficha técnica BIMAX 162 Download Fiche technique BIMAX 162

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Protection degree: IP21
No-load voltage (V): 31
Adjustment positions: 4
Regulation current (A): 30 - 145
Ø steel welding wire (mm): 0.6 - 0.8
Ø inox welding wire (mm): 0.8
Ø aluminium welding wire (mm): 0.8 - 1
Ø flux cored welding wire (mm): 0.8 - 1.2
Type of welding: MIG-MAG
MIG-MAG welding: MIG-MAG/FLUX
Current max (A): 115
Length (mm): 640
Width (mm): 350
Height (mm): 470
Weight (Kg): 25

EAN13: 8004897598352

Brand

FLUX (no gas) and MIG-MAG (gas) welding machine. With thermostatic protection.
Complete with FLUX welding accessories.
On request it is available the kit for welding with gas different types of materials such as steel, stainless steel and aluminium.

Not binding images and technical data.
