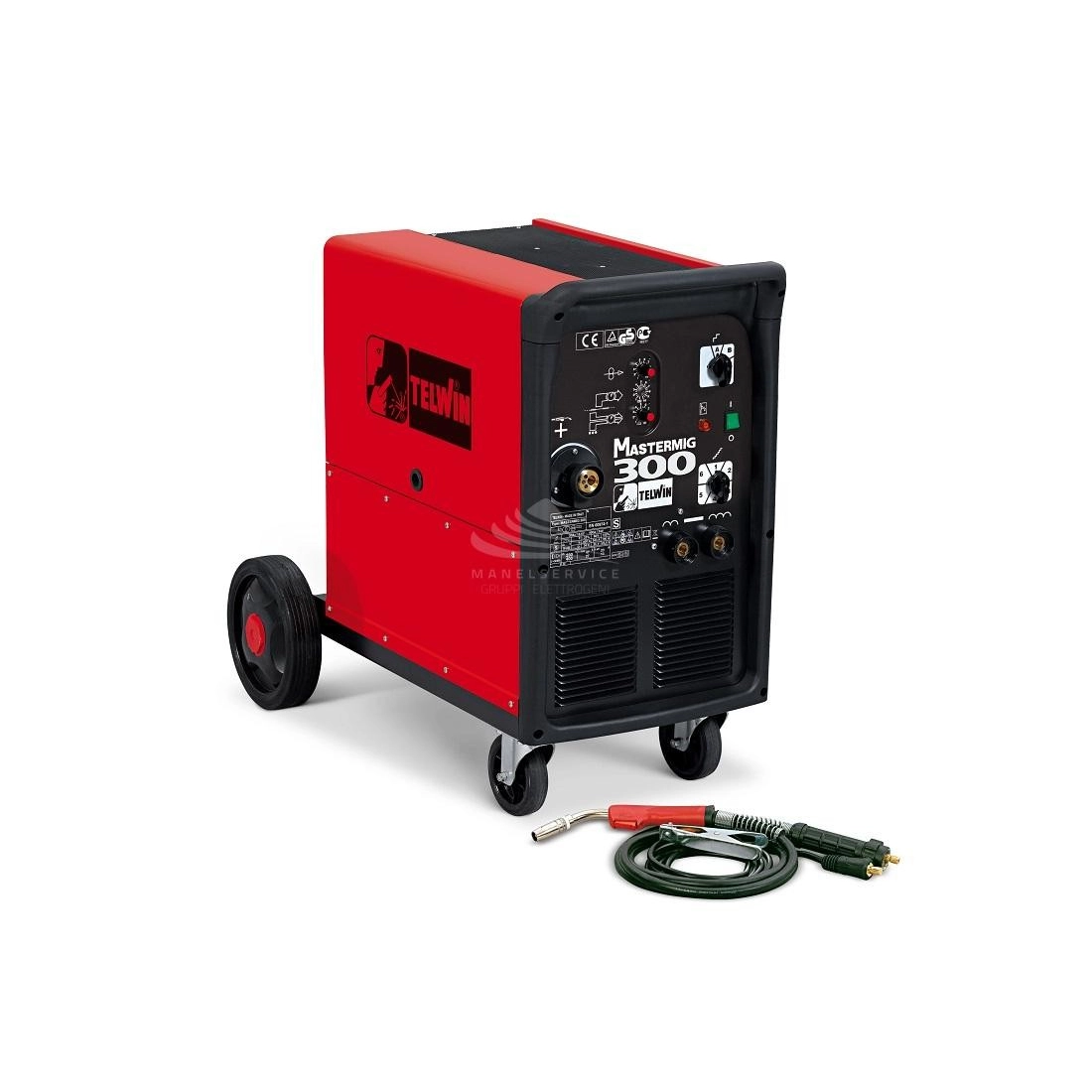

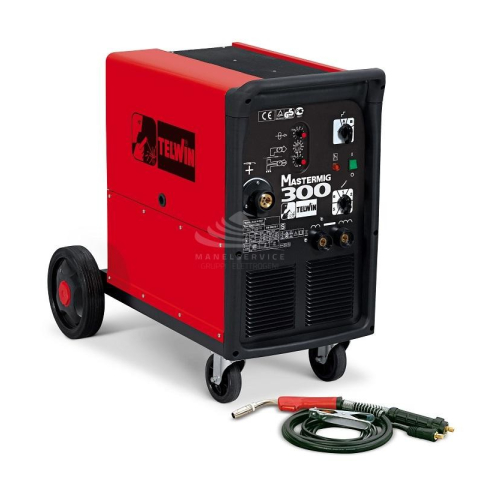

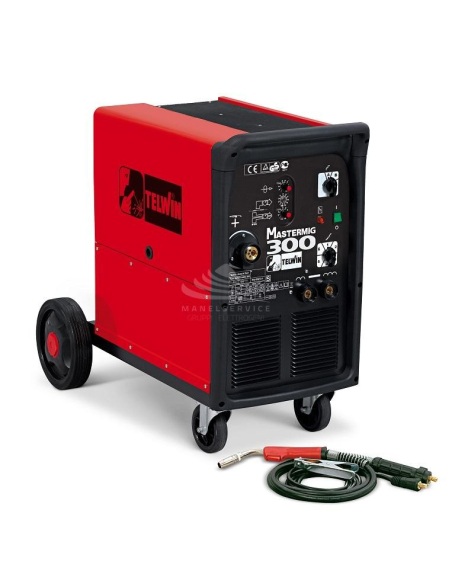

TELWIN MASTERMIG 300 230-400V

Name: TELWIN MASTERMIG 300 230-400V
Brand: TELWIN
SKU: 827003

Reference 827003

DISCONTINUED PRODUCT

Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: MIG-MAG/FLUX/BRAZING
No-load voltage: 41.5 V
Regulation current: 40 - 300 A
Current max: 300 A
Steel welding wire diameter: 0.6 - 1.2 mm
Inox welding wire diameter: 0.6 - 1.2 mm
Aluminium welding wire diameter: 0.8 - 1.2 mm
Flux cored welding wire diameter: 1 - 1.2 mm
Brazing wire diameter: 0.8 - 1.2 mm
Length: 945 mm
Width: 565 mm
Height: 830 mm
Weight: 96 Kg

Download Manual MASTERMIG Download Scheda tecnica MASTERMIG 300 Download Technical data MASTERMIG 300 Download Ficha técnica MASTERMIG 300 Download Fiche technique MASTERMIG 300

Product Details
Description

Phase: Single phase / Three phase
Frequency (Hz): 50 / 60
Voltage (V): 230 / 400
Protection degree: IP22
No-load voltage (V): 41.5
Adjustment positions: 12
Regulation current (A): 40 - 300
Ø steel welding wire (mm): 0.6 - 1.2
Ø inox welding wire (mm): 0.6 - 1.2
Ø aluminium welding wire (mm): 0.8 - 1.2
Ø flux cored welding wire (mm): 1 - 1.2
Ø brazing wire (mm): 0.8 - 1.2
Type of welding: MIG-MAG
MIG-MAG welding: MIG-MAG/FLUX/BRAZING
Current max (A): 300
Length (mm): 945
Width (mm): 565
Height (mm): 830
Weight (Kg): 96

EAN13: 8004897640426

Brand

MIG-MAG/FLUX/BRAZING welding machine with removable wire feeder, fit for use in the industrial field.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Features:
- Very strong
- Numerous steps for regulation of arc voltage
- Regulation of spot welding time
- Two positions for reactance
- Thermostatic protection
Thanks to the extensions (optional) it is possible to increase the working range between wire feeder and power source up to 10 meters.
Complete with MIG-MAG welding accessories.

Not binding images and technical data.
