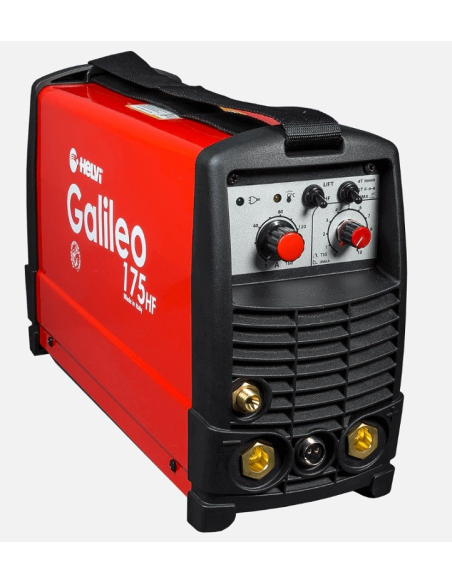

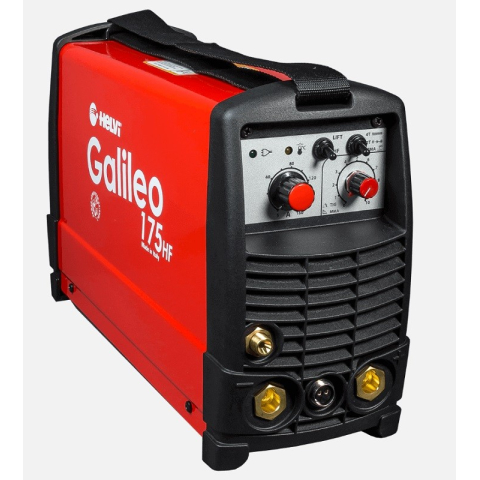

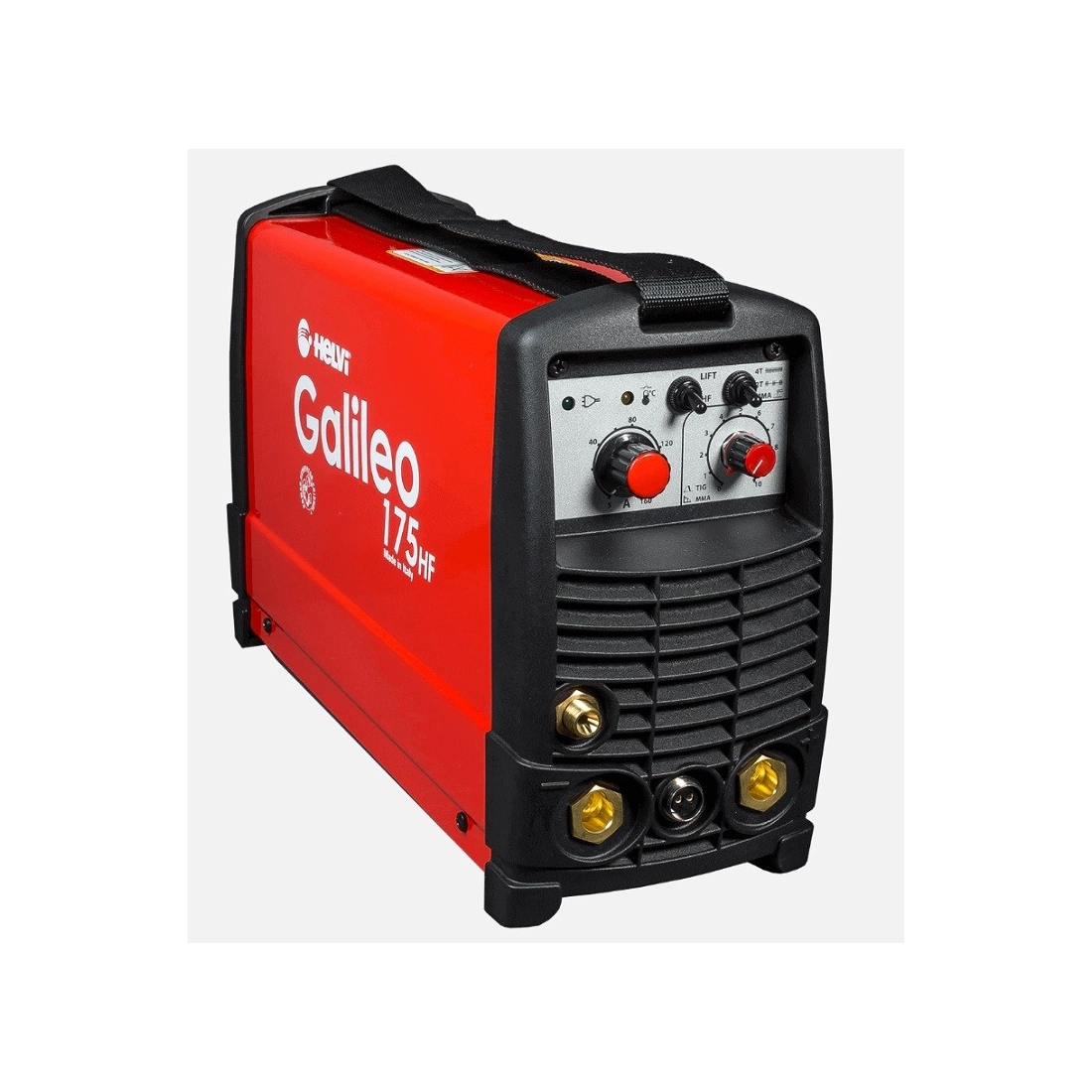

HELVI GALILEO 175 HF MMA TIG Welding Inverter

Name: HELVI GALILEO 175 HF MMA TIG Welding Inverter
Brand: HELVI
SKU: 99805980

Reference 99805980

OUT OF PRODUCTION

Phase type: Single-phase
Frequency: 50/60 Hz
Voltage: 230 V
Power: 3300 W @ 60%
Welding Type: MMA/TIG
No-load voltage: 60 V
Current regulation: 5 - 160 A
Maximum current: 160 A
Amp. 60974-1: 25% 160 A - 60% 100 A
Electrode diameter: 1.6 - 4 mm
Electrode type: 6013 - 7018
Insulation: H
Degree of protection: IP22S
Length: 400 mm
Width: 140 mm
Height: 245 mm
Weight: 8.81 Kg

Download Technical Data GALILEO 175HF Download Manual GALILEO 175HF

Product Details
Description

Phase: Single phase
Frequency (Hz): 50 / 60
Voltage (V): 230
Cooling: Air
Protection degree: IP22S
Motor insulation class: H
No-load voltage (V): 60
Regulation current (A): 5 - 160
Welding current (A): 140
Amp. 60974-1 (40°): 120 A @ 60% - 160 A @ 35%
Diameter electrodes (mm): 1.6 - 4
Maximum diameter electrodes (mm): 4
Type of welding current: DC
Type of welding: MMA / MIG
Current max (A): 160
Power consumption (W): 4000
Length (mm): 400
Width (mm): 140
Height (mm): 245
Voltage regulator: Inverter
Weight (Kg): 6.2

Brand

Inverter power sources designed to meet the needs of the most demanding users.
Easy-to-use both in STICK welding and TIG welding with HF start.
In STICK welding Hot Start and Arc Force are adjustable. Is equipped with an user friendly front panel where you can select 2T/4T, Tig slope down, MMA arc force.

Not binding images and technical data.
