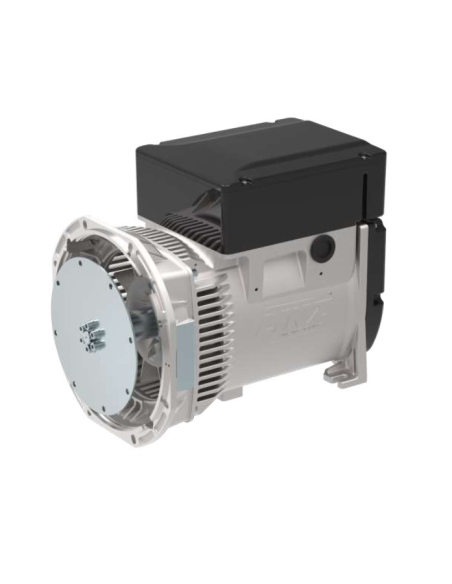

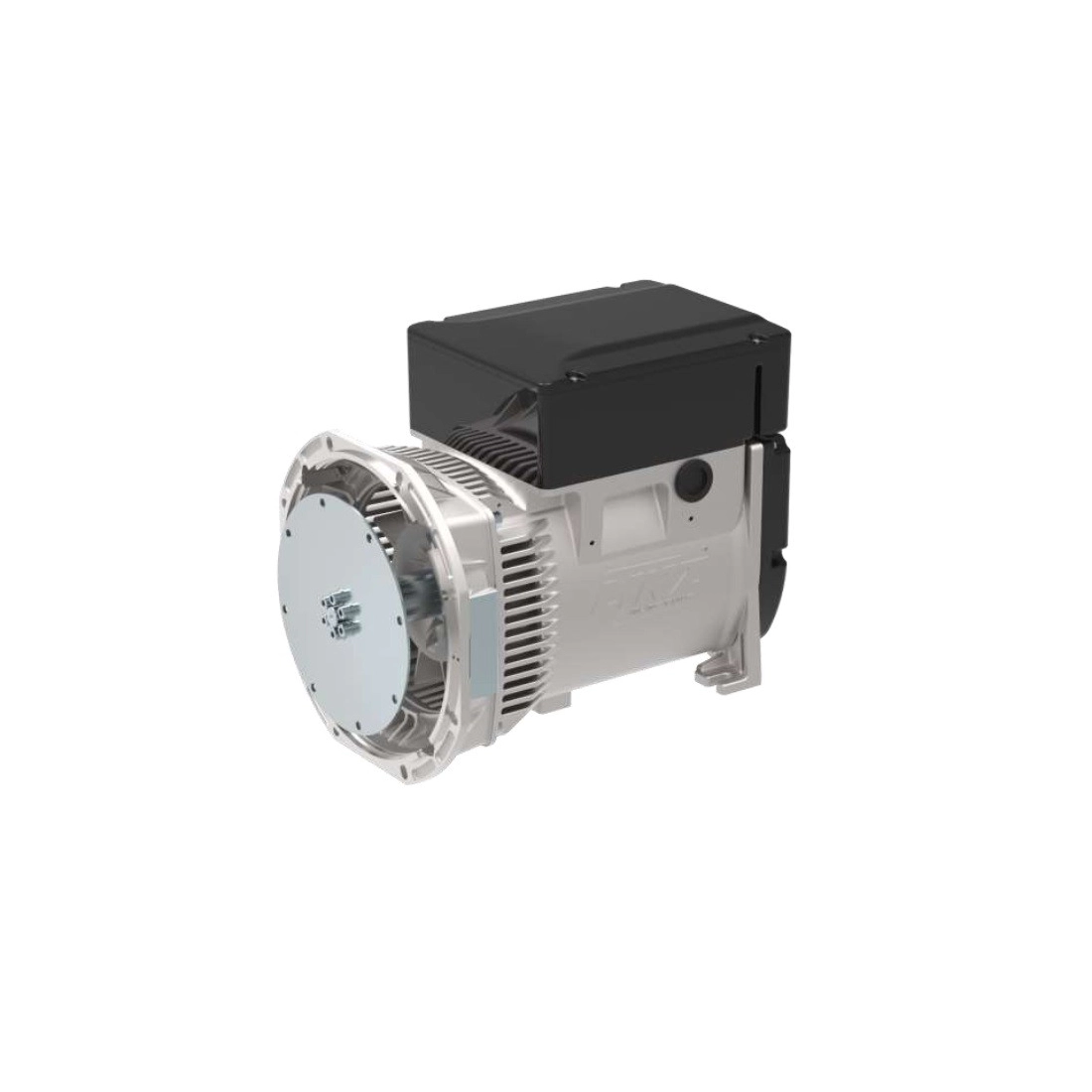

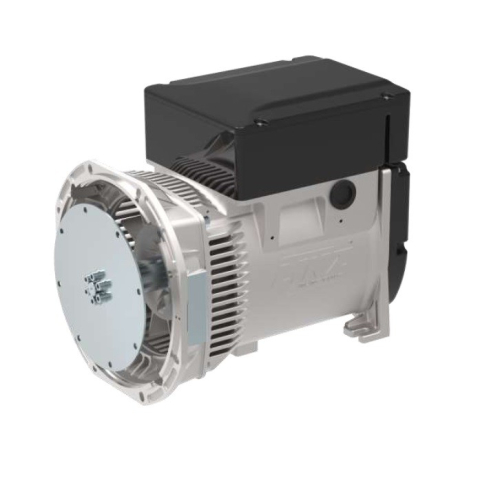

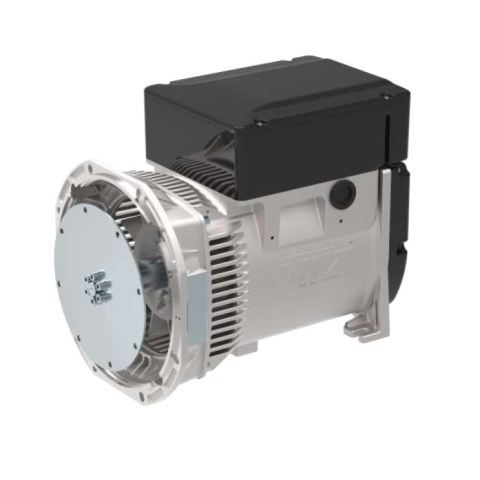

LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound

LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
E1S13S C/2 50 Hz J609 c25.4

Rated power at 50 Hz (kVA): 16
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: compound
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 9.4 at 50 Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1S13S C/2

Phase
Three phase
Continuous power three phase (KW)
12.8
Continuous power three phase (KVA)
16
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Three-phase power (KVA)
16
Protection degree
IP21
Motor insulation class
H
Length (mm)
405
Width (mm)
270
Height (mm)
379
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
61
Brand

E1S/2 series are three-phase 2 poles alternators with brushes and compound regulation..

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE
    product available in 50 Hz and 60 Hz versions

Complete your order with:

Available only upon request
€1,015.59 €1,015.59

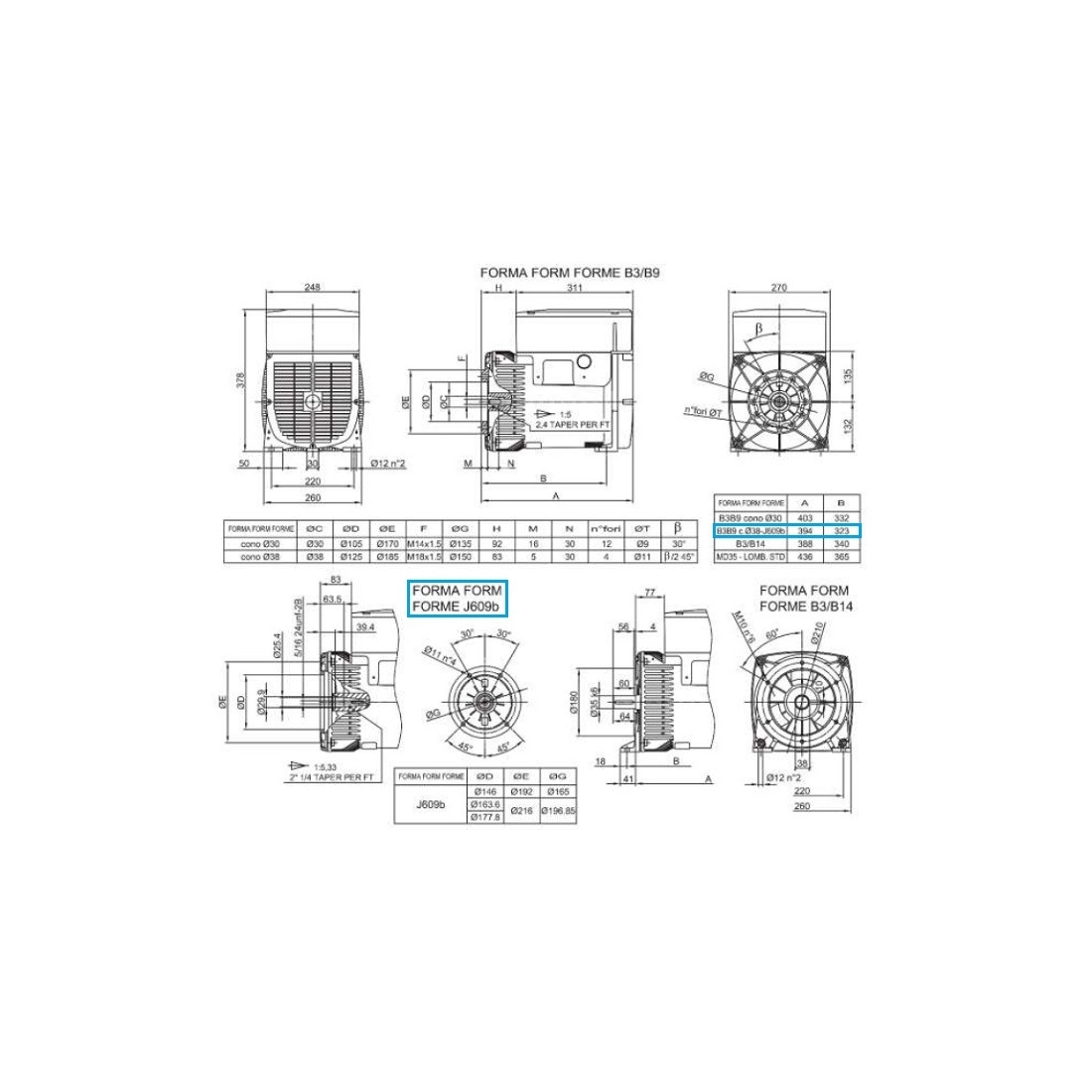

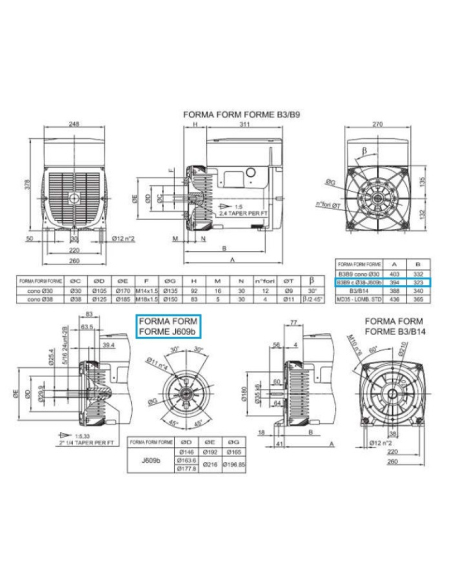

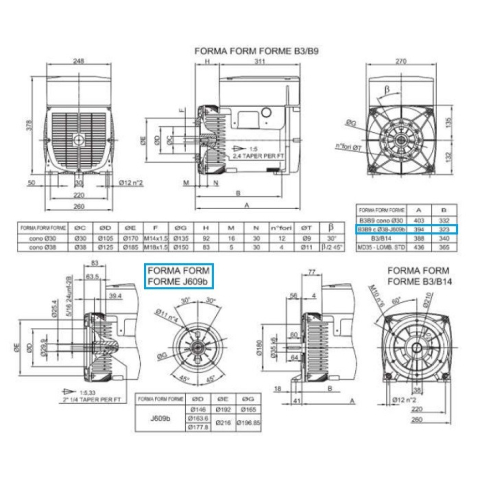

Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.

Download PDF
Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
