SINCRO SK315 SM SINGLE-THREE PHASE ALTERNATOR 400KVA AVR

SINCRO THREE PHASE ALTERNATOR SK315
SINCRO THREE PHASE ALTERNATOR SK315
SINCRO THREE PHASE ALTERNATOR SK315
SINCRO THREE PHASE ALTERNATOR SK315
SK315 SM SAE1 d14

Phase: Three phase
Frequency: 50 Hz
Voltage: 400 V
Protection: IP23
Alternator rpm: 1500 rpm
Poles: 4
Three phase power (KW): 320 KW
Three phase power (KVA): 400 KVA
Efficiency: 93.4%
Weight: 910 Kg
AVR

Download Technical data SK315

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
320
Three-phase power (KVA)
400
Efficiency (%)
93.4
Protection degree
IP23
Dry weight (Kg)
910
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

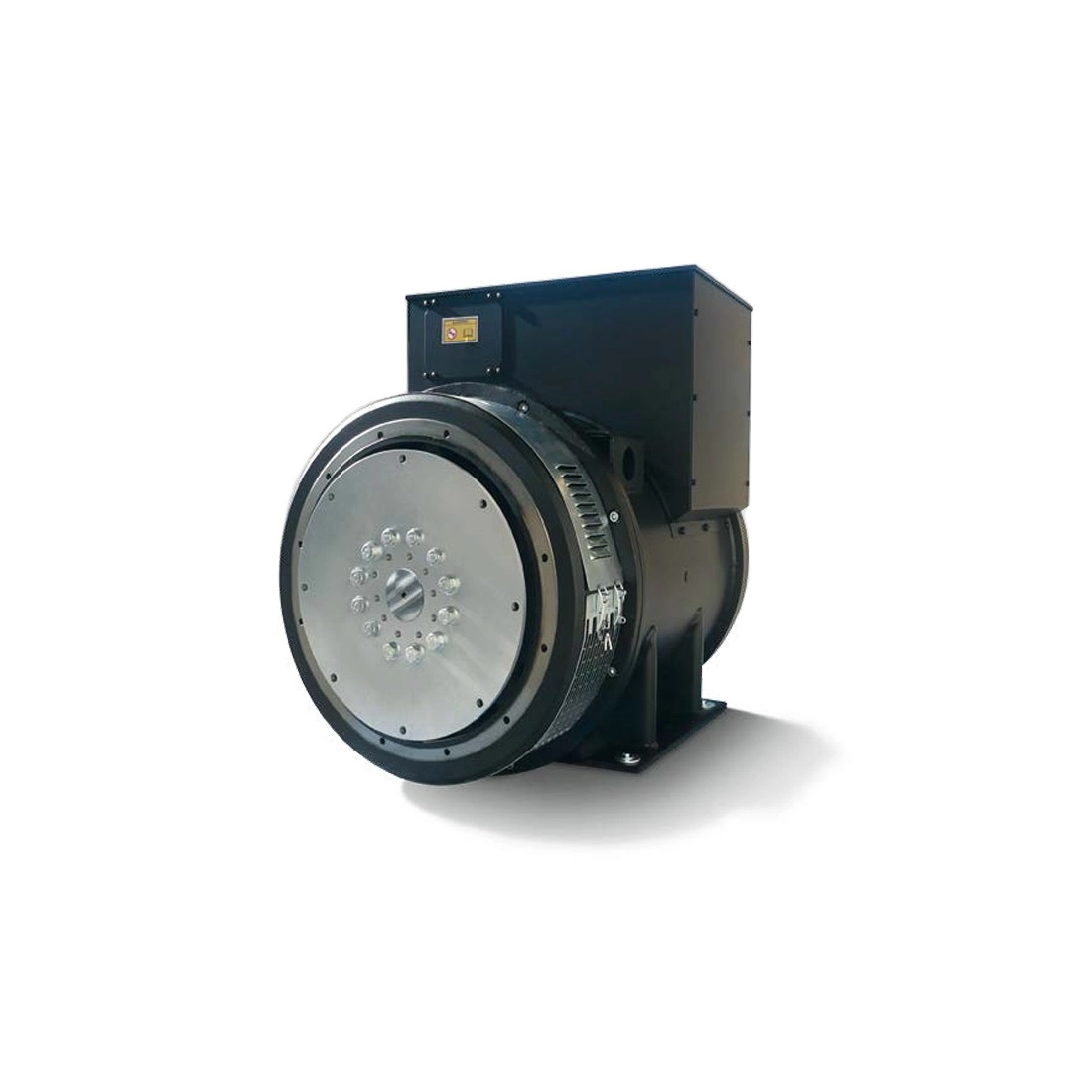

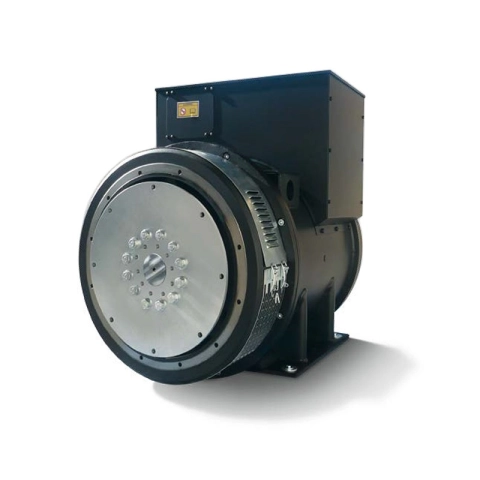

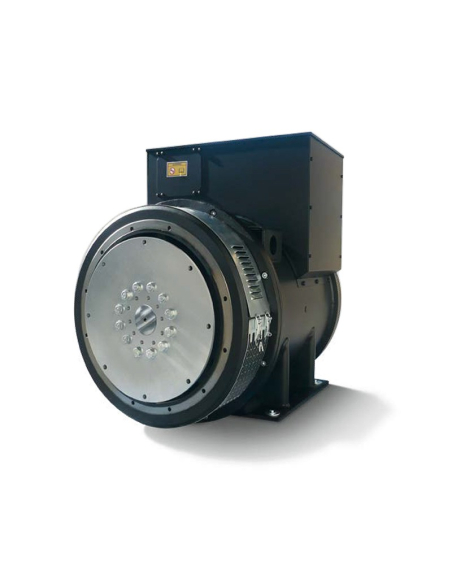

The image is purely indicative.

Complete your order with:

Available only upon request
€9,315.00 €9,315.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE1 disk joint 14
  • SAE1/2 disk joint 14
  • SAE0 disk joint 14
  • SAE0 disk joint 18

To purchase this product, you need to request a personalized quote. Contact us and we will provide you with all the necessary information within 24 hours.

Download PDF
Professional Consulting
Quotes in 24 hours
Manufacturer's Warranty
