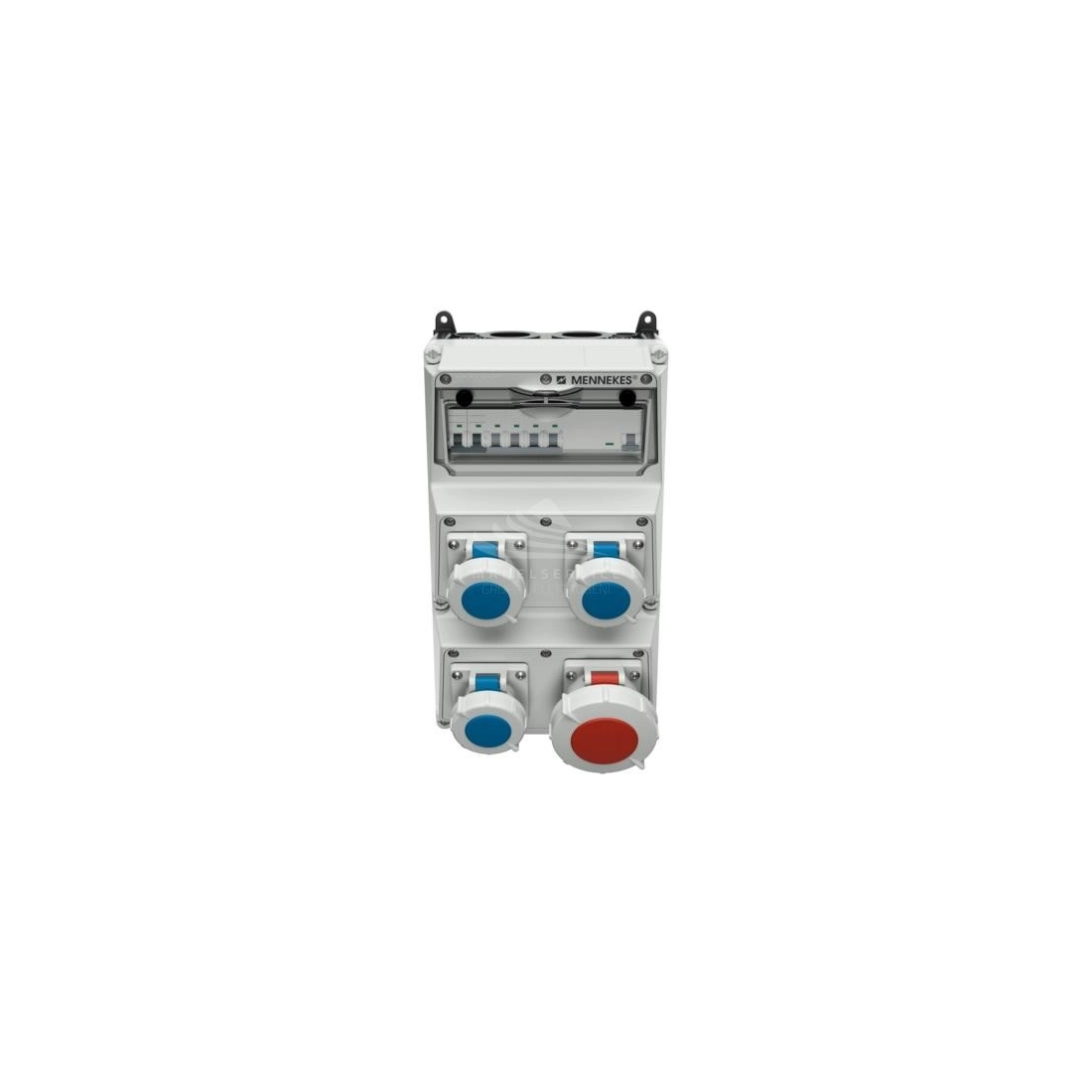

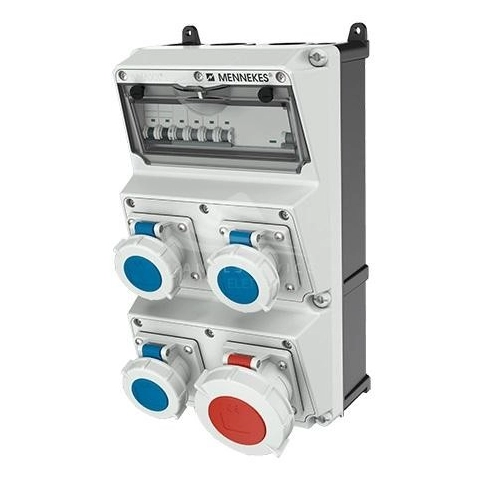

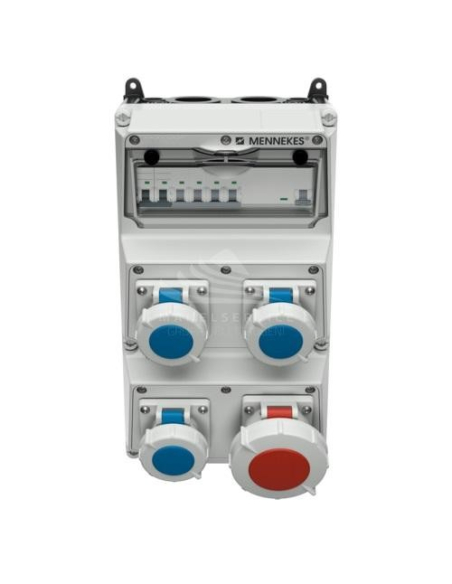

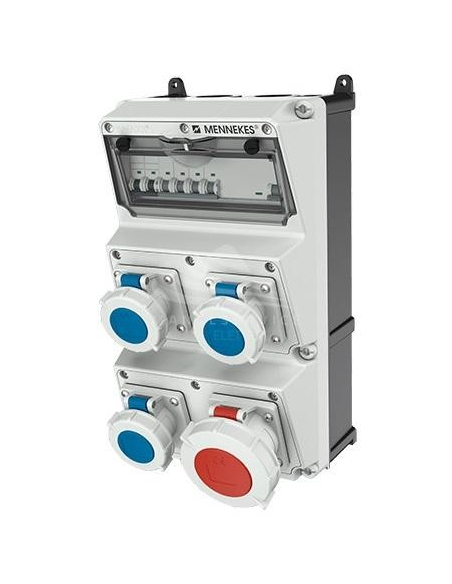

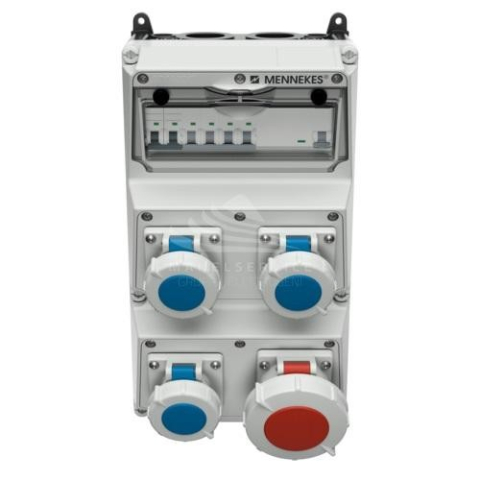

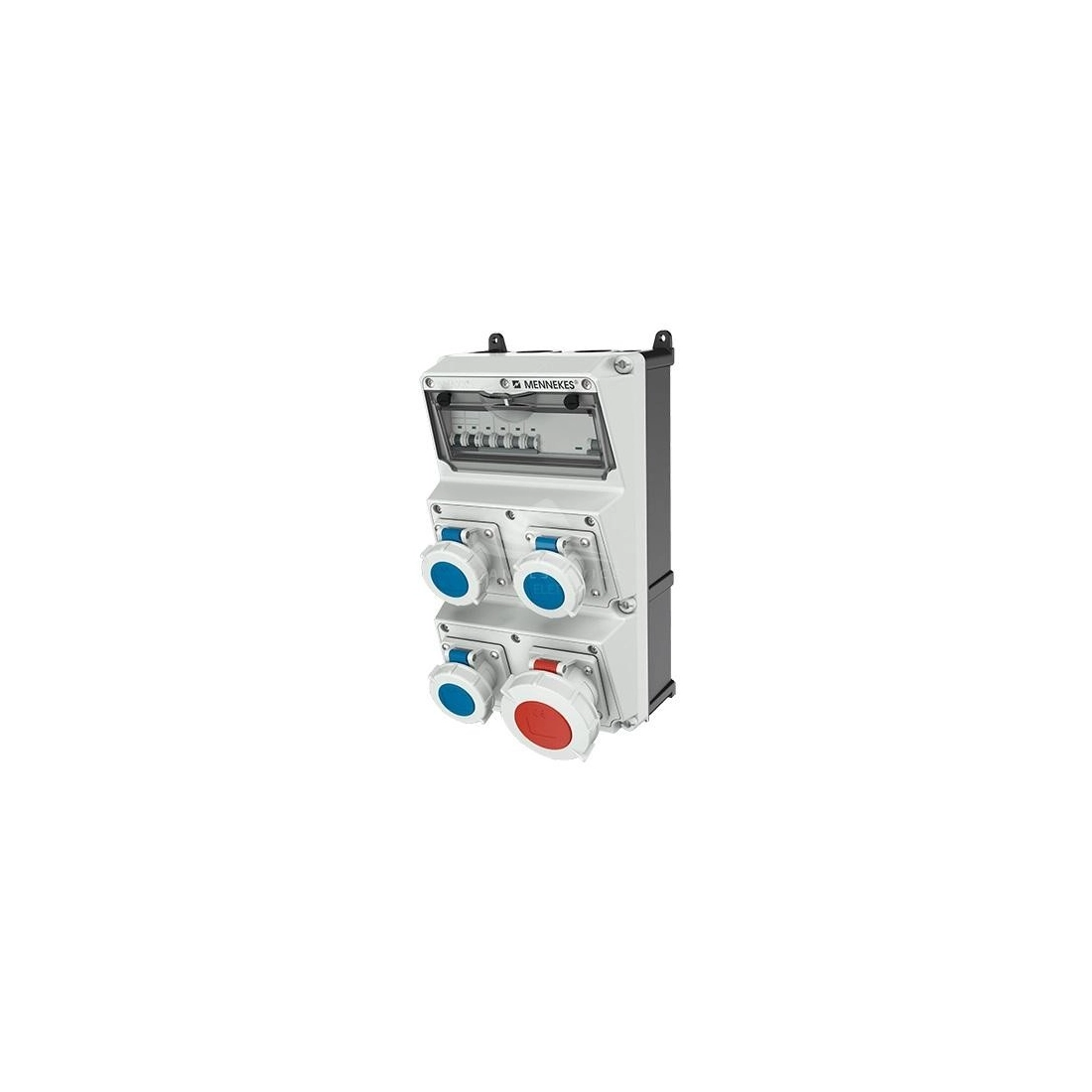

MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212

Name: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 930212
Brand: MENNEKES
SKU: 930212
Price: 417 EUR
Availability: InStock

Reference 930212

N.1 CEE 32 A, 5 P, 400 V
N.3 CEE 16 A, 3 P, 230 V
Fusing: N.1 RCD 40A, 4P, 0.03A / N.1 MCB 32A, 3P+N, C / N.1 MCB 16A, 1P+N, C
Pre-fuse max.: 40 A
InA: 34 A
RDF: 0.55
Connection / Feeder cable: for 1 cable up to 5x16 mm²
Degree of protection: IP 67
Material: plastic

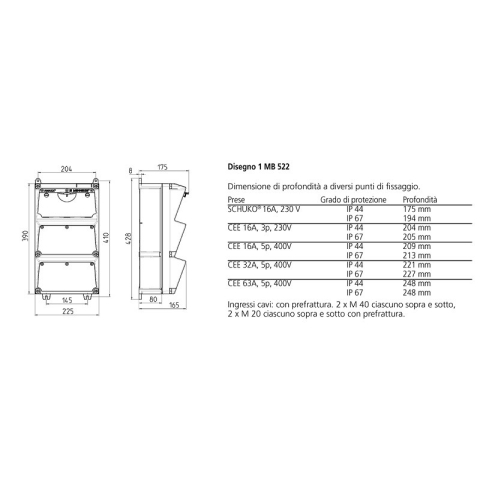

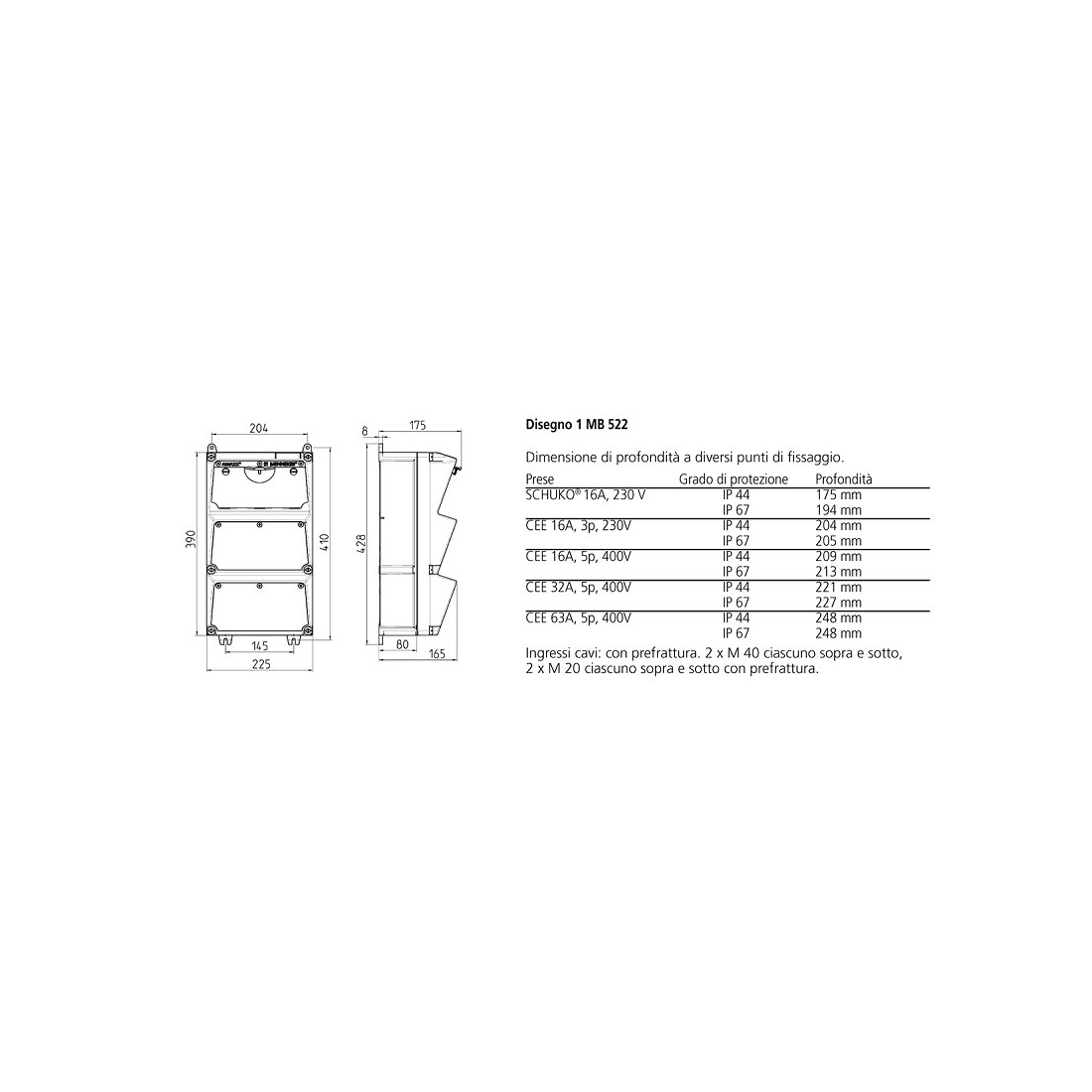

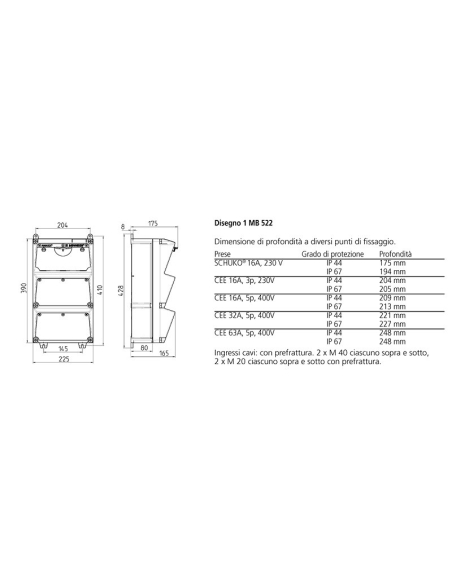

Length: 175 mm
Width: 225 mm
Height: 390 mm
Weight: 5.5 Kg

Download Scheda tecnica AMAXX 930212 Download Manual AMAXX 930212

Product Details
Description

Sockets configuration: 1 x 400V 32A 5P CEE - 3 x 230V 16A 3P CEE
Protection degree: IP67
Material: Plastic
Length (mm): 175
Width (mm): 225
Height (mm): 390
Product type: Socket box
Fusing: 1 x RCD 40A, 4P, 0.03A - 1 x MCB 32A, 3P+N, C - 1 x MCB 16A, 1P+N, C
Pre-fuse max. (A): 40
InA (A): 34
RDF: 0.55
Connection / Feeder cable: For 1 cable up to 5x16 mm²
Weight (Kg): 5.5

EAN13: 4015394226369

Brand

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

Not binding images and technical data.
