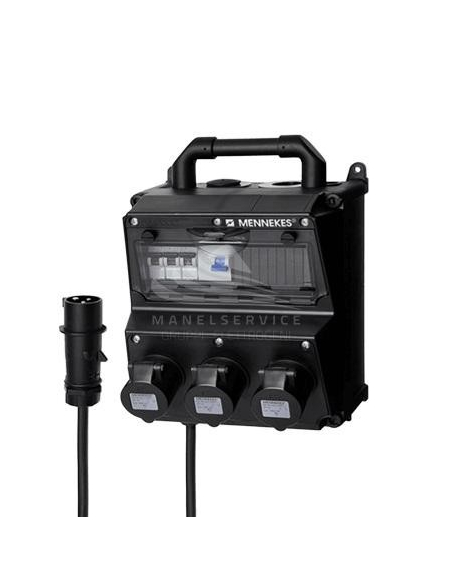

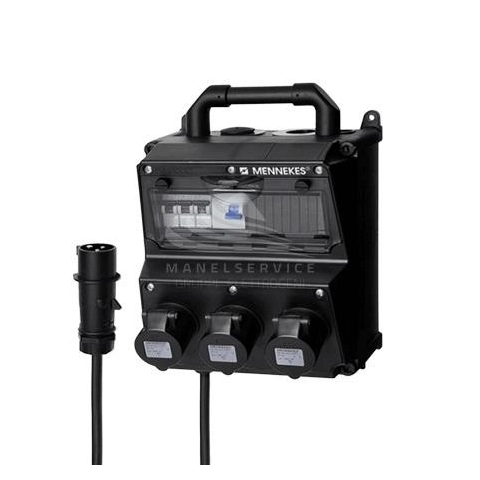

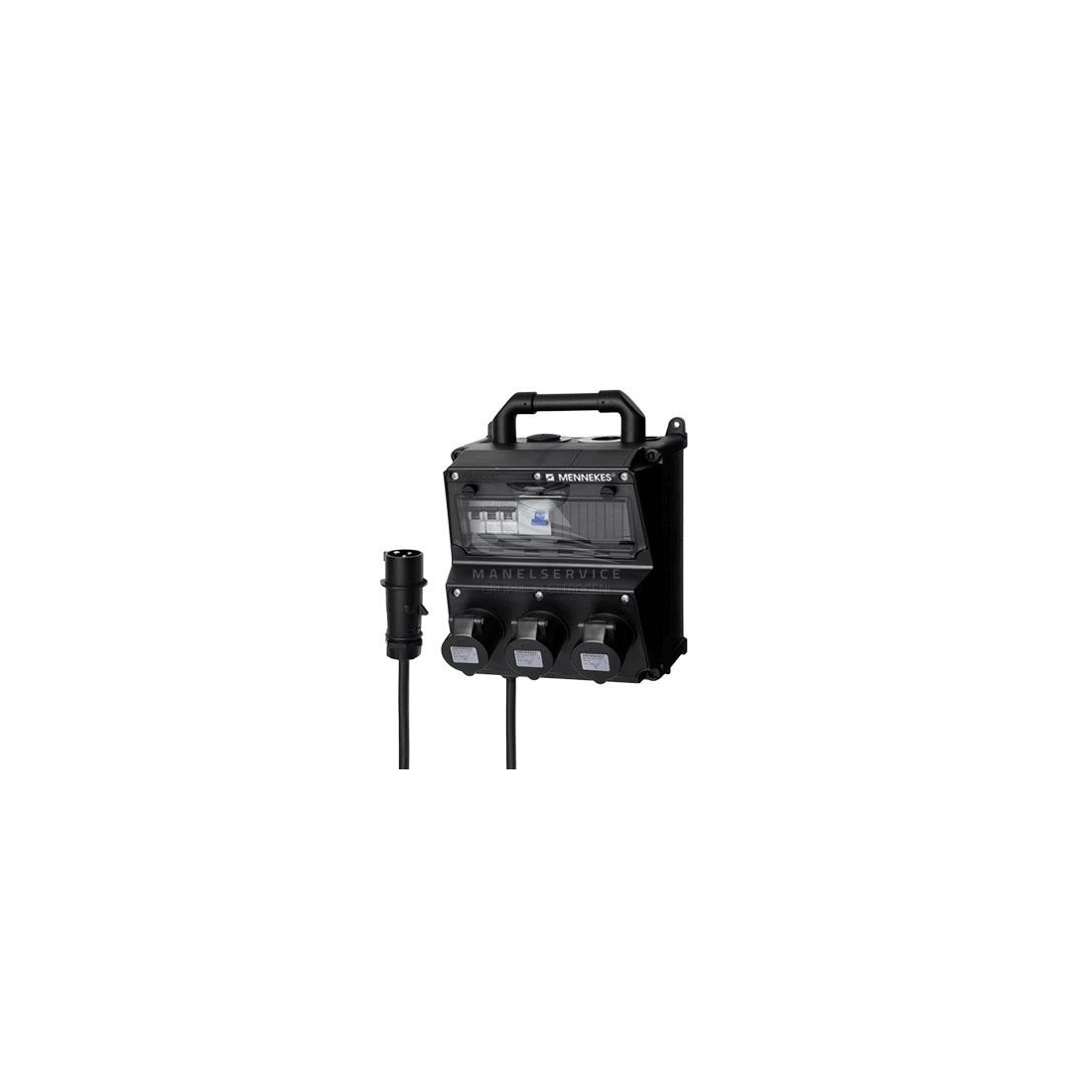

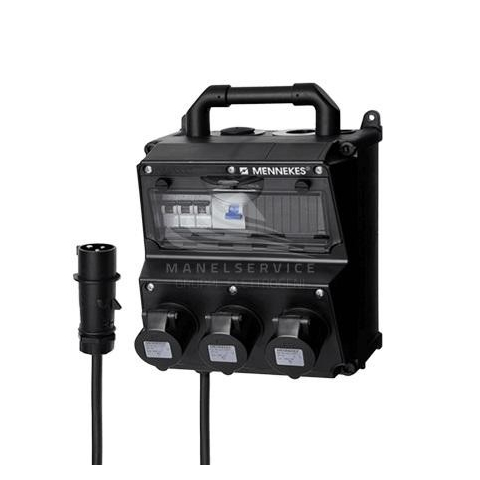

MENNEKES COMBINATION OF SOCKETS IP44 AMAXX 923187SW

Name: MENNEKES COMBINATION OF SOCKETS IP44 AMAXX 923187SW
Brand: MENNEKES
SKU: 923187SW
Price: 264 EUR
Availability: InStock

Reference 923187SW

N.3 CEE 16 A, 3 P, 230 V
Pre-fuse max.: 16 A
InA: 16 A
RDF: 1
Degree of protection: IP 44
Material: plastic, high resistance to chemical agents
Length: 175 mm
Width: 225 mm
Height: 260 mm
Weight: 3.24 Kg

Download Scheda tecnica 923187SW Download Manual 923187SW

Product Details
Description

Sockets configuration: 3 x 230V 16A 3P CEE
Protection degree: IP44
Material: Plastic, high resistance to chemical agents
Length (mm): 175
Width (mm): 225
Height (mm): 260
Product type: Socket box
Pre-fuse max. (A): 16
InA (A): 16
RDF: 1
Weight (Kg): 3.24

Brand

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

Not binding images and technical data.
