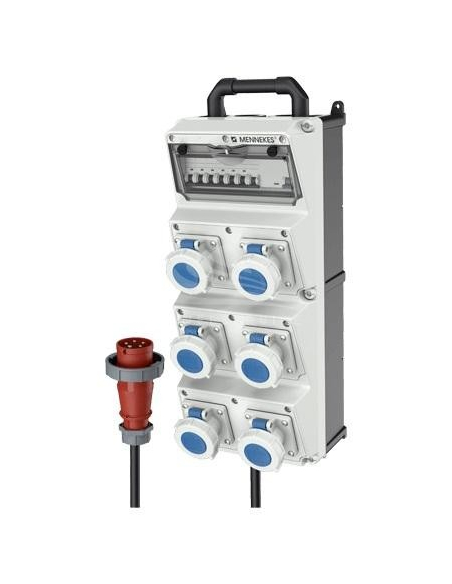

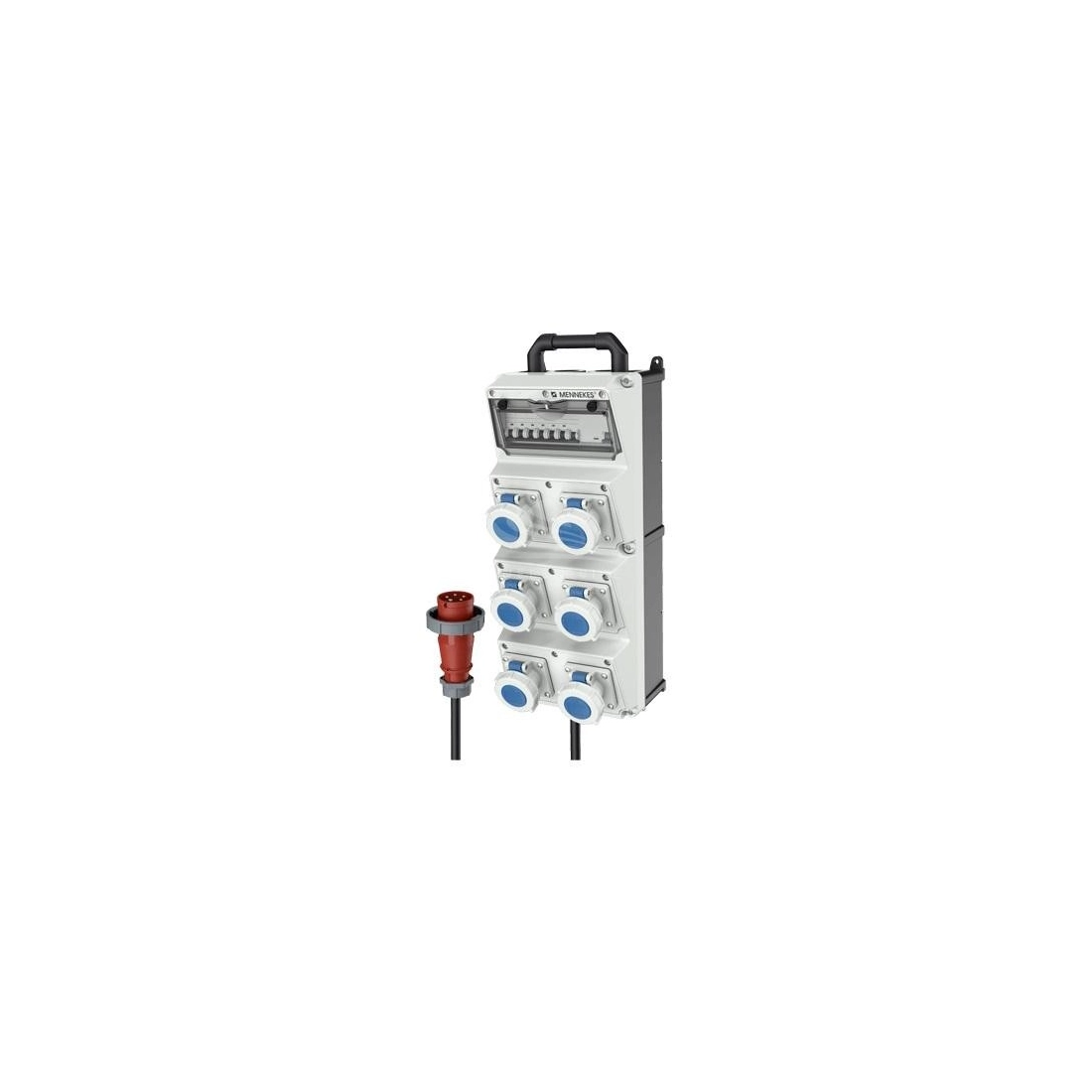

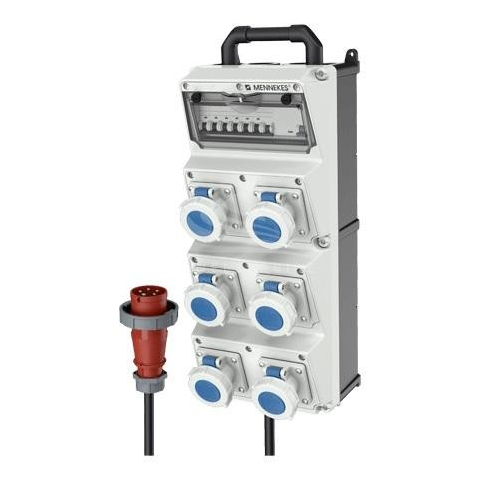

MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 941164

Name: MENNEKES COMBINATION OF SOCKETS IP67 AMAXX 941164
Brand: MENNEKES
SKU: 941164
Price: 472 EUR
Availability: InStock

Reference 941164

N.3 CEE 16 A, 3 P, 230 V
Fusing: N.1 RCD 40A, 4P, 0.03A / N.6 MCB's 16A, 1P+N, C
Pre-fuse max.: 32 A
InA: 32 A
RDF: 1
Connection / Feeder cable: 1.5 m H07RN-F5G4 with plug 32 A, 5P, 400 V
Degree of protection: IP 67
Material: plastic

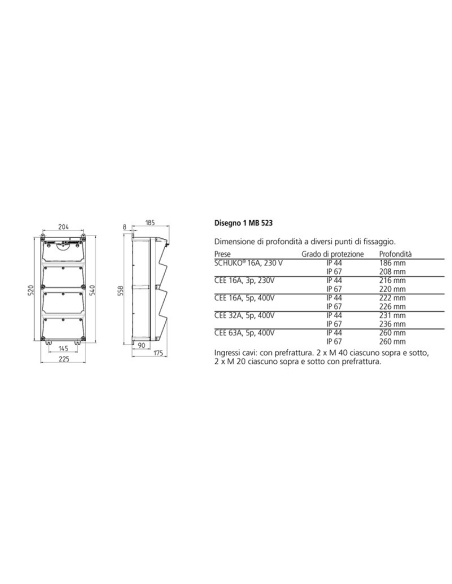

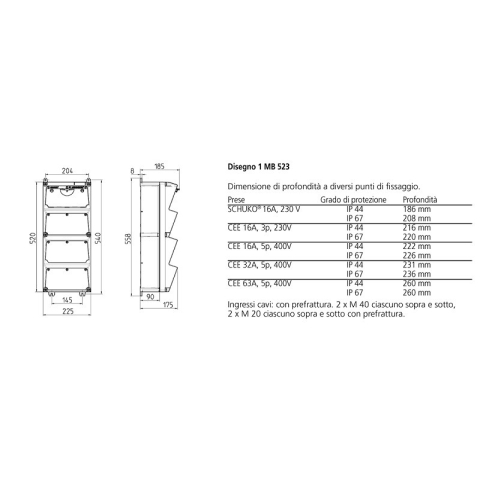

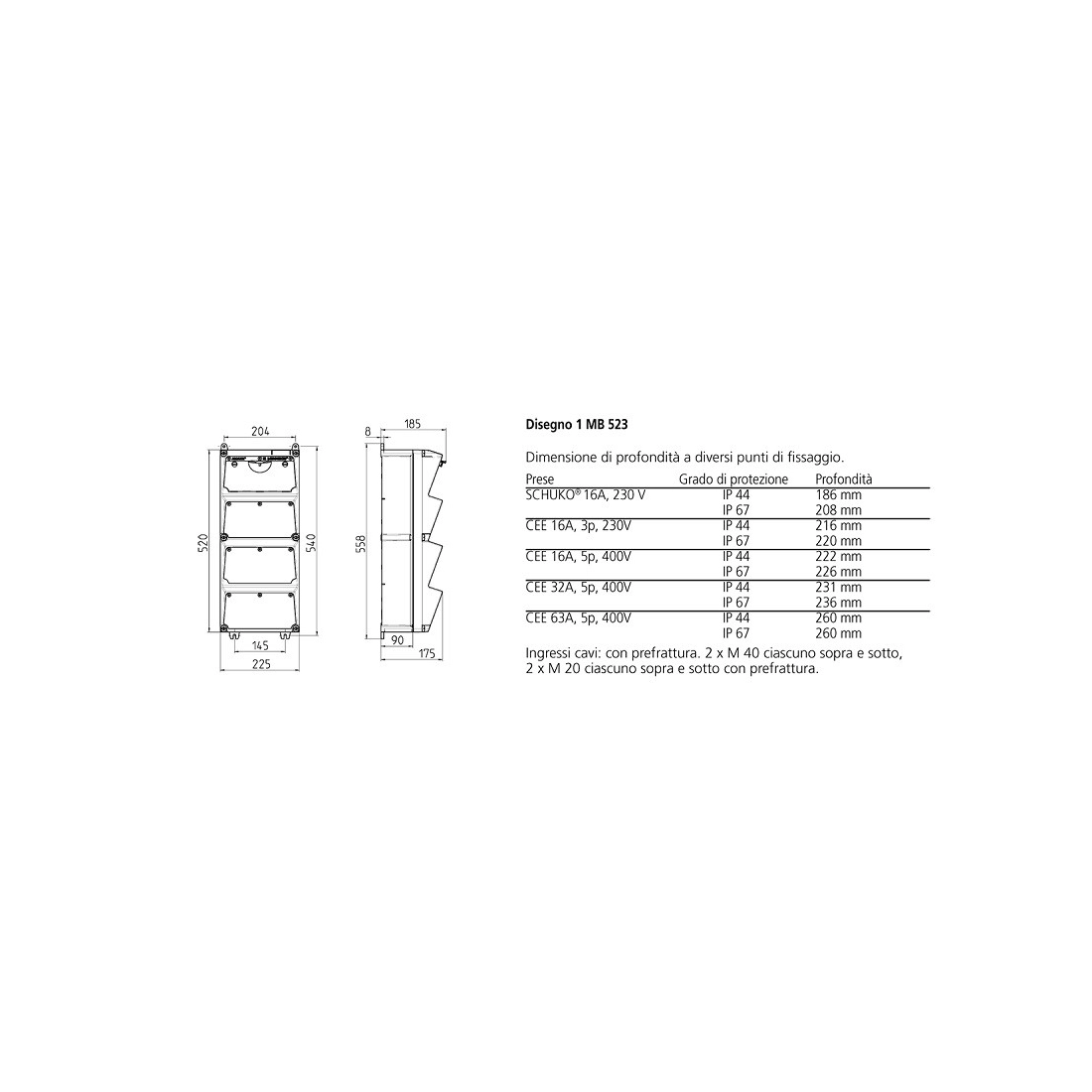

Length: 185 mm
Width: 225 mm
Height: 520 mm
Weight: 5.42 Kg

Download Scheda tecnica 941164 Download Manual 941164

Product Details
Description

Sockets configuration: 6 x 230V 16A 3P CEE
Protection degree: IP67
Material: Plastic
Length (mm): 185
Width (mm): 225
Height (mm): 520
Product type: Socket box
Fusing: 1 x RCD 40A, 4P, 0.03A - 6 x MCB's 16A, 1P+N, C
Pre-fuse max. (A): 32
InA (A): 32
RDF: 1
Connection / Feeder cable: 1.5 m H07RN-F5G4 with plug 32 A, 5P, 400 V
Weight (Kg): 5.42

Brand

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

Not binding images and technical data.
