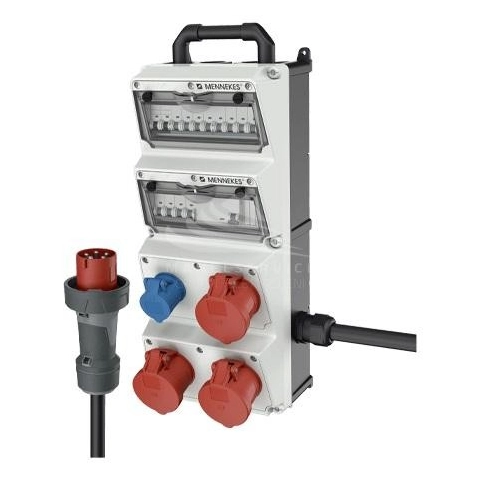

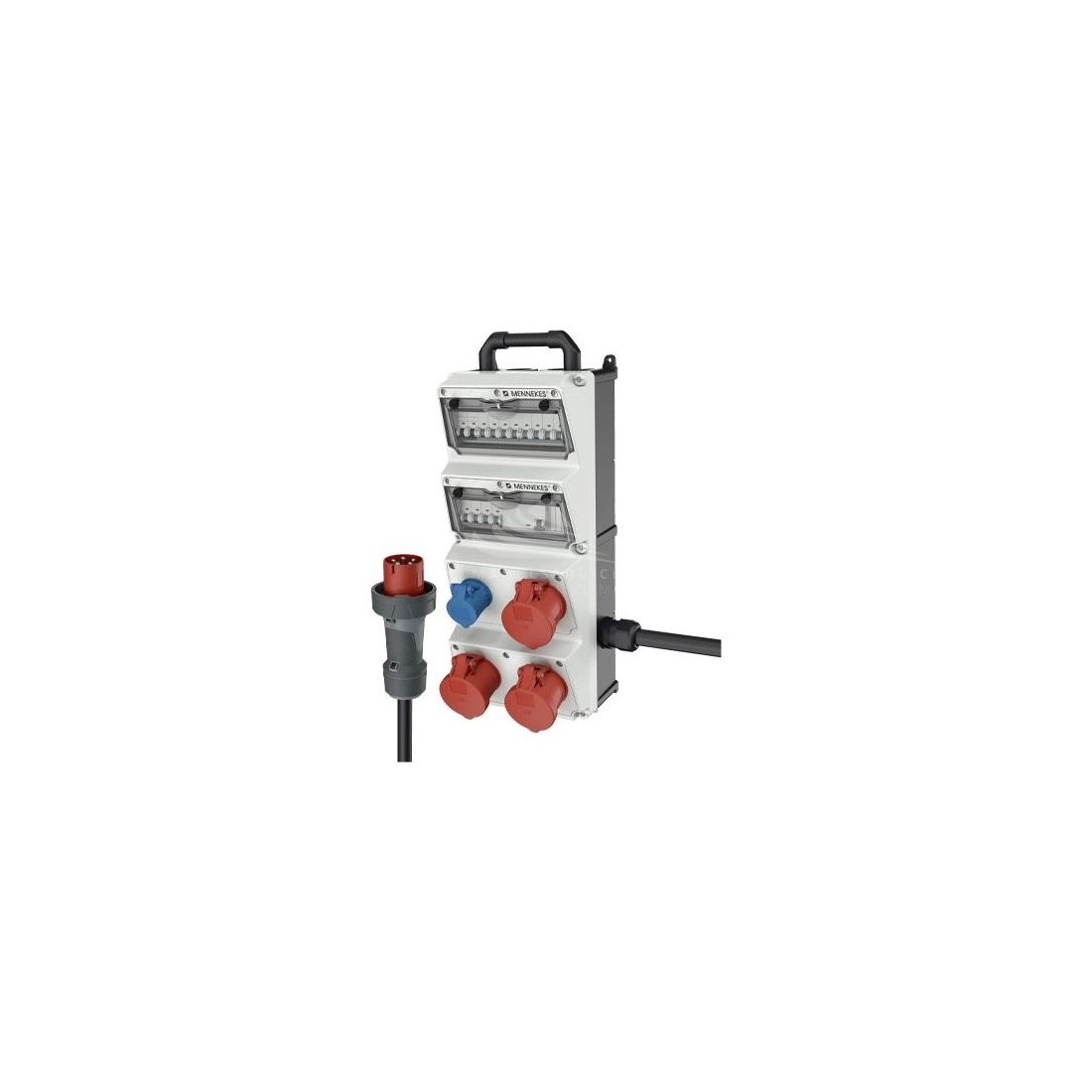

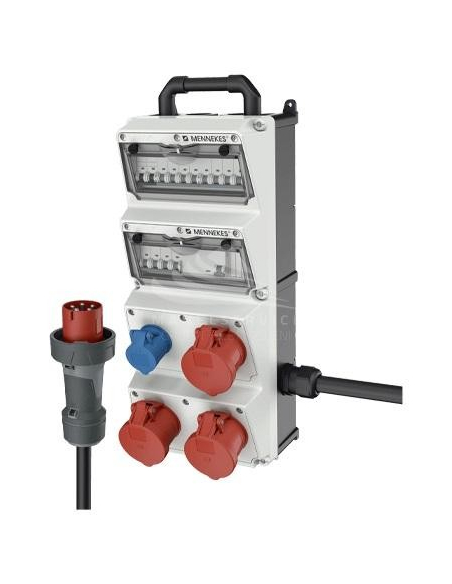

MENNEKES COMBINATION OF SOCKETS IP44 AMAXX 945489
945489
N.3 CEE 32 A, 5 P, 400 V
N.1 CEE 16 A, 3 P, 230 V
Fusing: N.1 RCD 63A, 4P, 0.03A / N.1 MCB 32A, 3P+N, C / N.1 MCB 16A, 1P+N, C
Pre-fuse max.: 63 A
InA: 63 A
RDF: 0.57
Connection / Feeder cable: 1.5 m H07RN-F5G10 with plug 63 A, 5P, 400 V
Degree of protection: IP 44
Material: plastic
Length: 185 mm
Width: 225 mm
Height: 520 mm
Weight: 10 Kg
- Sockets configuration
- 3 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE
- Protection degree
- IP44
- Material
- Plastic
- Length (mm)
- 185
- Width (mm)
- 225
- Height (mm)
- 520
- Product type
- Socket box
- Fusing
- 1 x RCD 63A, 4P, 0.03A - 1 x MCB 32A, 3P+N, C - 1 x MCB 16A, 1P+N, C
- Pre-fuse max. (A)
- 63
- InA (A)
- 63
- RDF
- 0.57
- Connection / Feeder cable
- 1.5 m H07RN-F5G10 with plug 63 A, 5P, 400 V
- Weight (Kg)
- 10
- Brand
-
With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.
Not binding images and technical data.
