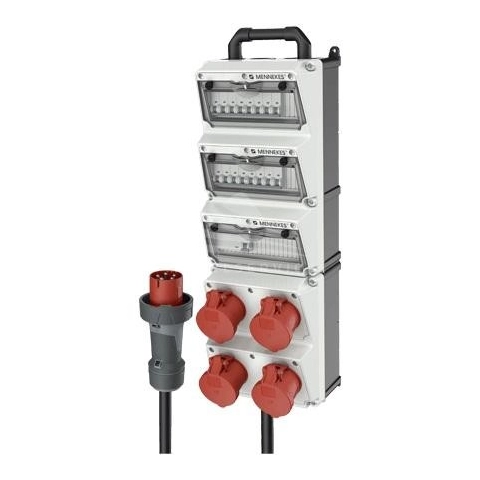

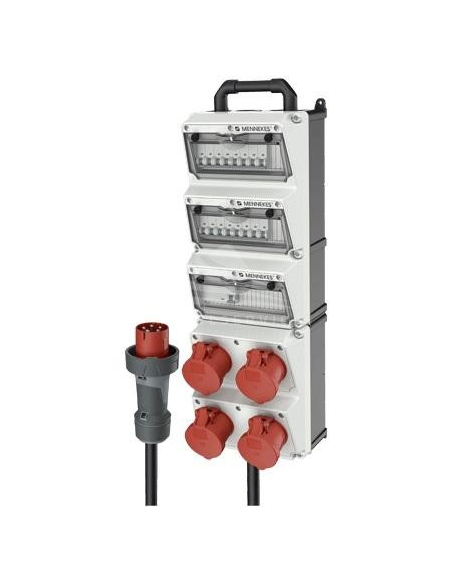

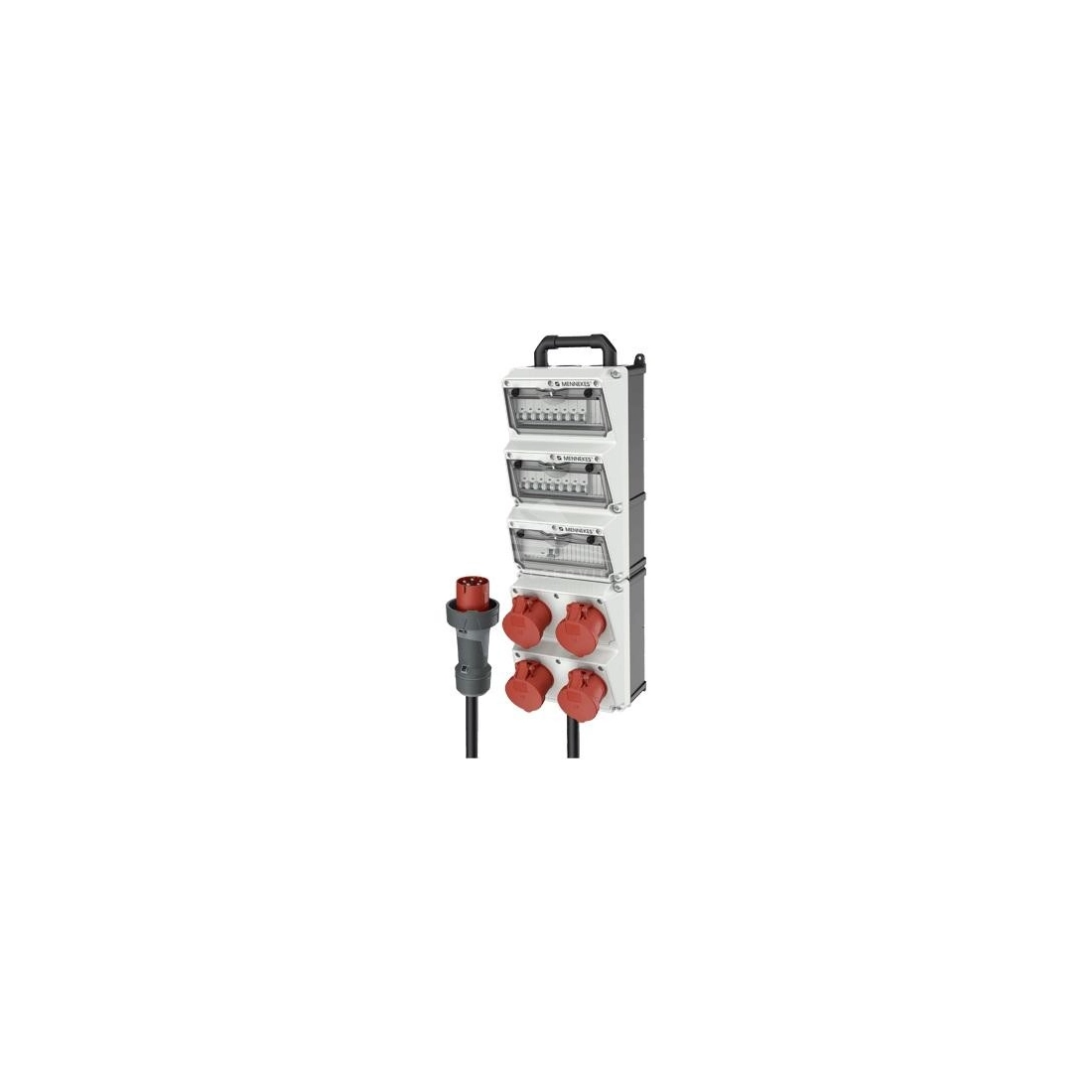

MENNEKES COMBINATION OF SOCKETS IP44 AMAXX 951045

Name: MENNEKES COMBINATION OF SOCKETS IP44 AMAXX 951045
Brand: MENNEKES
SKU: 951045
Price: 921 EUR
Availability: InStock

Reference 951045

N.4 CEE 32 A, 5 P, 400 V
Fusing: N.1 RCD 63A, 4P, 0.03A / N.4 MCB's 32A, 3P+N, C
Pre-fuse max.: 63 A
InA: 60 A
RDF: 0.47
Connection / Feeder cable: 4 m H07RN-F5G10 with plug 63 A, 5P, 400 V
Degree of protection: IP 44
Material: plastic

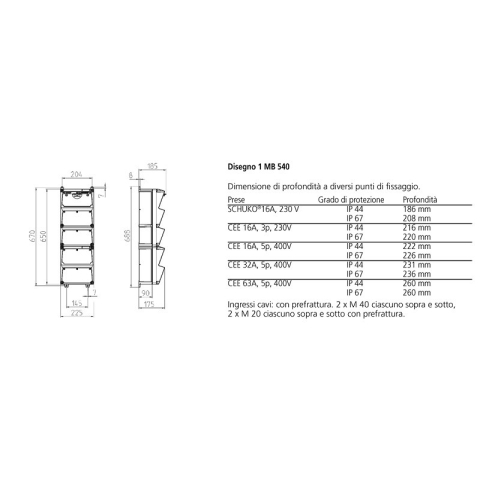

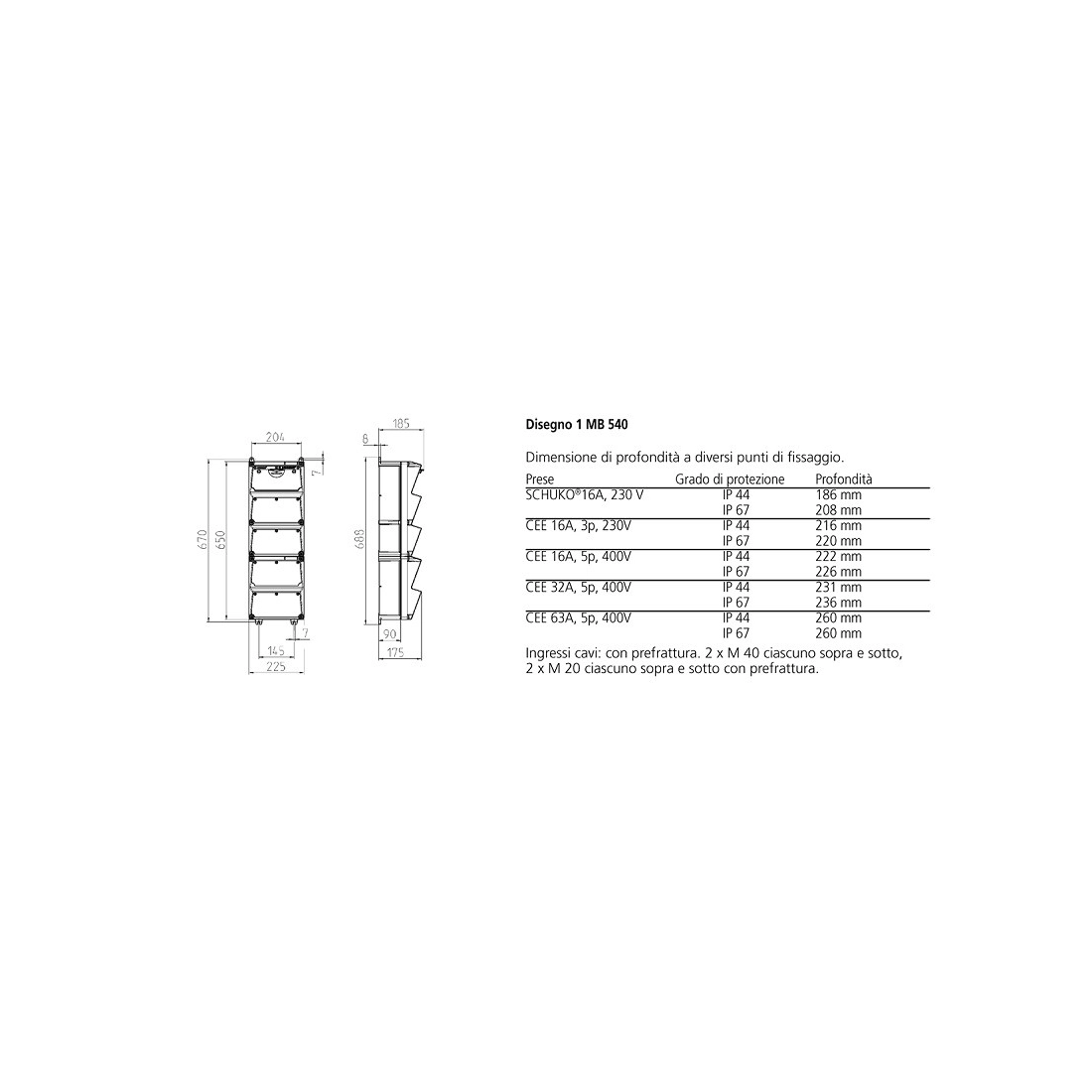

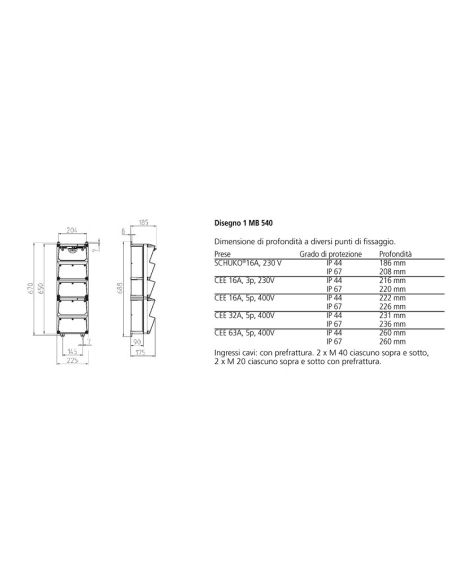

Length: 185 mm
Width: 225 mm
Height: 650 mm
Weight: 11 Kg

Download Manual 951045 Download Scheda tecnica 951045

Product Details
Description

Sockets configuration: 4 x 400V 32A 5P CEE
Protection degree: IP44
Material: Plastic
Length (mm): 185
Width (mm): 225
Height (mm): 650
Product type: Socket box
Fusing: 1 x RCD 63A, 4P, 0.03A - 4 x MCB's 32A, 3P+N, C
Pre-fuse max. (A): 63
InA (A): 60
RDF: 0.47
Connection / Feeder cable: 4 m H07RN-F5G10 with plug 63 A, 5P, 400 V
Weight (Kg): 11

Brand

With AMAXX® you combine cleverly and save valuable installation time. Only one supply line, fewer drill holes, fewer cable and pipe clamps and only one housing with external mounting that allows installation by one person. The hinged housing cover opening to the side as well as the pull-out top-hat rails and the large connection compartment simplify the connection. AMAXX® is pre-wired for connection and tested for electrical safety and quality according to IEC 61439.

Not binding images and technical data.
