LATHE OPTIMUM TU 2004V

Reference 0500P0310

Product type : Lathe
Tip height: 100 mm
Diam. turning on pallet: 200mm
Distance between points: 300 mm
Spindle speed, infinitely adjustable: 150 - 2500 rpm
Speed number: 2
Spindle cone: cm 3
Bar passage: diam. 21 cm
Pallet width: 100 mm
Upper slide stroke: 55 mm
Cross slide stroke: 75 mm
Tailstock cone: cm 2
Tailstock-tailstock stroke: 65 mm
Longitudinal feed: 0.1 to 0.2 mm/rev
Metric threading: from 0.25 to 3 mm/revolution
Thread inches: 44 - 8 threads/1''.
Length: 830 mm
Width: 425 mm
Height: 360 mm
Weight: 61 Kg.
Motor power: 600 W 230 V - 50 Hz

Product Details
Description

Phase: Single phase
Frequency (Hz): 50
Voltage (V): 230
Power (KW): 0.6
Length (mm): 830
Width (mm): 425
Height (mm): 360
Product type: Lathe
Weight (Kg): 61

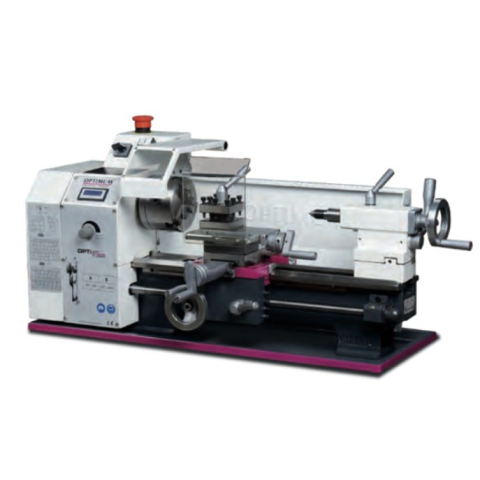

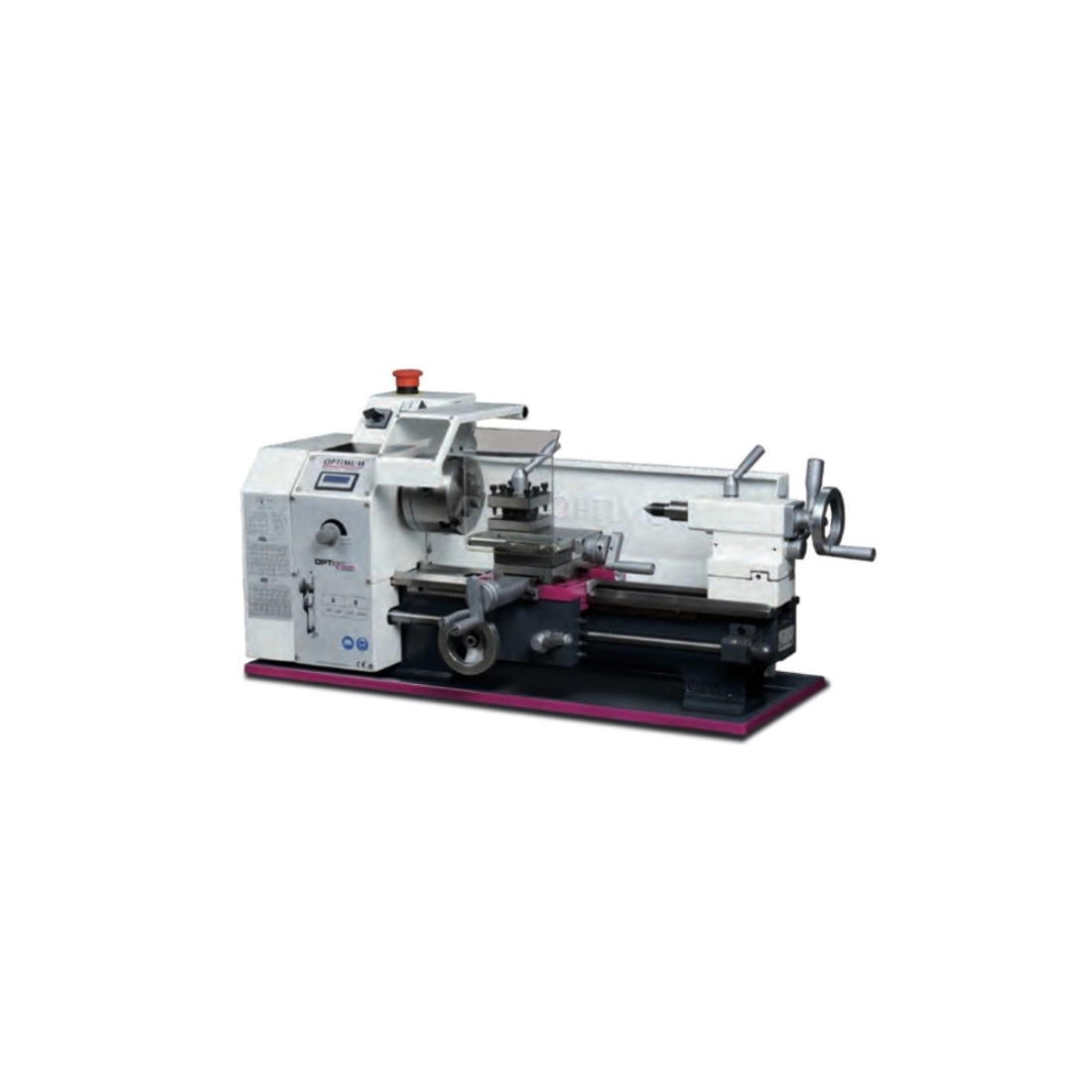

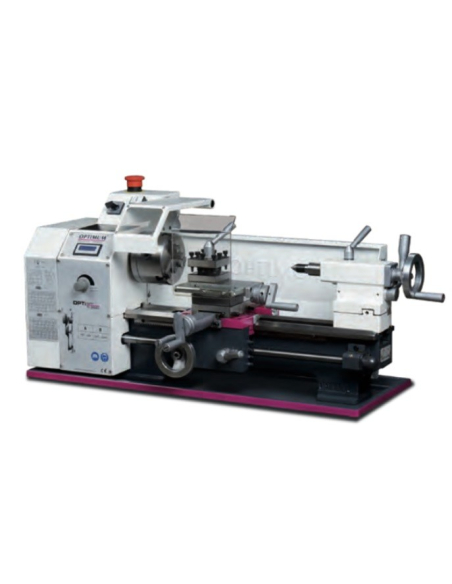

LATHE OPTIMUM TU 2004V

LATHE OPTIMUM TU 2004V with continuous speed adjustment and digital display.

TECHNICAL FEATURES OF THE OPTIMUM TU 2004V LATHE
Product type : Lathe
Tip height: 100 mm
Diam. turning on pallet: 200mm
Distance between points: 300 mm
Spindle speed, infinitely adjustable: 150 - 2500 rpm
Lathe speed number: 2
Spindle cone: cm 3
Bar passage: diam. 21 cm
Pallet width: 100 mm
Upper slide stroke: 55 mm
Cross slide stroke: 75 mm
Tailstock cone: cm 2
Tailstock-tailstock stroke: 65 mm
Longitudinal lathe feed: 0.1 to 0.2 mm/revolution
Metric threading: from 0.25 to 3 mm/revolution
Thread inches: 44 - 8 threads/1''.
Length: 830 mm
Width: 425 mm
Height: 360 mm
Weight: 61 Kg.
lathe motor power: 600 W 230 V - 50 Hz
