WOOD LATHE HOLZSTAR DB 1100

Reference 5921100

Product type : Wood lathe
Maximum turning diameter: 358 mm
Tip height: 179 mm
Tip distance: 1100 mm
Spindle taper: 33x3.5
Speed: 500-2000 rpm
Speed number: Variable, in 10 steps
Motor power 230V 50 Hz: 750 W
Clamp cone: 2
Length: 1620 mm
Width: 340 mm
Height: 430 mm
Weight: 92 Kg.

Product Details
Description

Phase: Single phase
Frequency (Hz): 50
Voltage (V): 230
Power (KW): 0.75
Fluid type: Wood
Length (mm): 1610
Width (mm): 340
Height (mm): 430
Product type: Lathe
Weight (Kg): 92

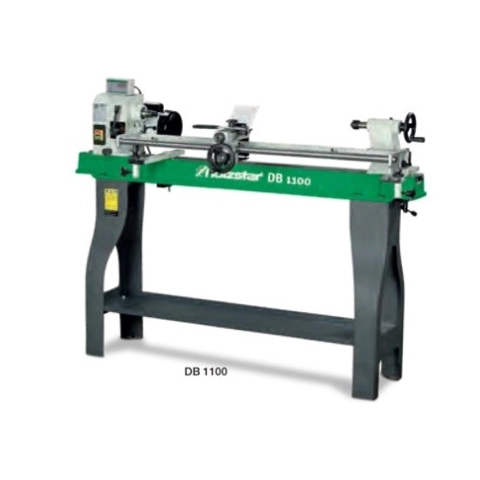

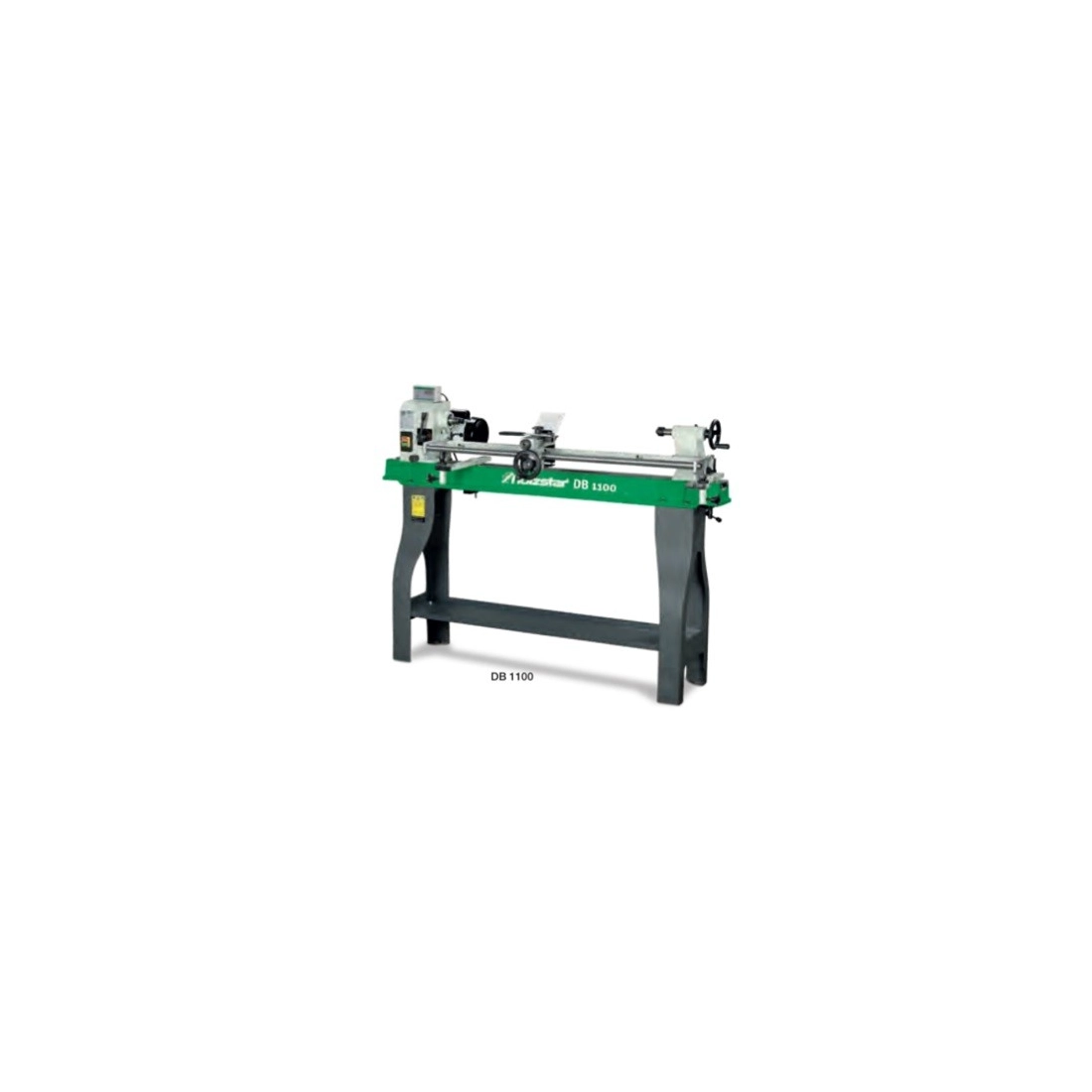

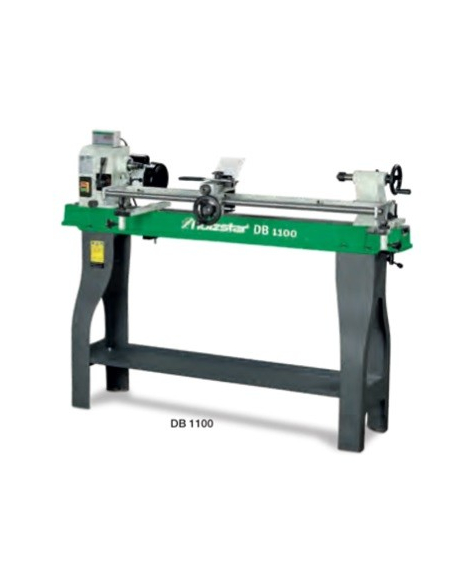

WOOD LATHE HOLZSTAR DB 1100

HOLZSTAR DB 1100 wood lathe with grey cast iron head and tailstock.

Standard equipment of the DB900 - DB1100 wood lathe
- Dish diameter 15 cm
- Tailstock
- Cast iron machine base
- 4 tine dragger

Features wood lathe DB900 - DB1100
- grey cast iron head and tailstock
- 50 mm tailstock stroke supplied as standard with rotating tailstock on this lathe
- The head of this wood lathe can be rotated 360° and locked at 45°, 90° and 180°.

TECHNICAL CHARACTERISTICS OF THE HOLZSTAR DB 1100 WOOD LATHE
Product type : Wood lathe
Maximum turning diameter: 358 mm
Tip height: 179 mm
Tip distance: 1100 mm
Spindle taper: 33x3.5
Speed: 500-2000 rpm
Speed number: Variable, in 10 steps
Motor power 230V 50 Hz: 750 W
Clamp cone: 2
Length: 1620 mm
Width: 340 mm
Height: 430 mm
Weight: 92 Kg.

images and technical data not binding
