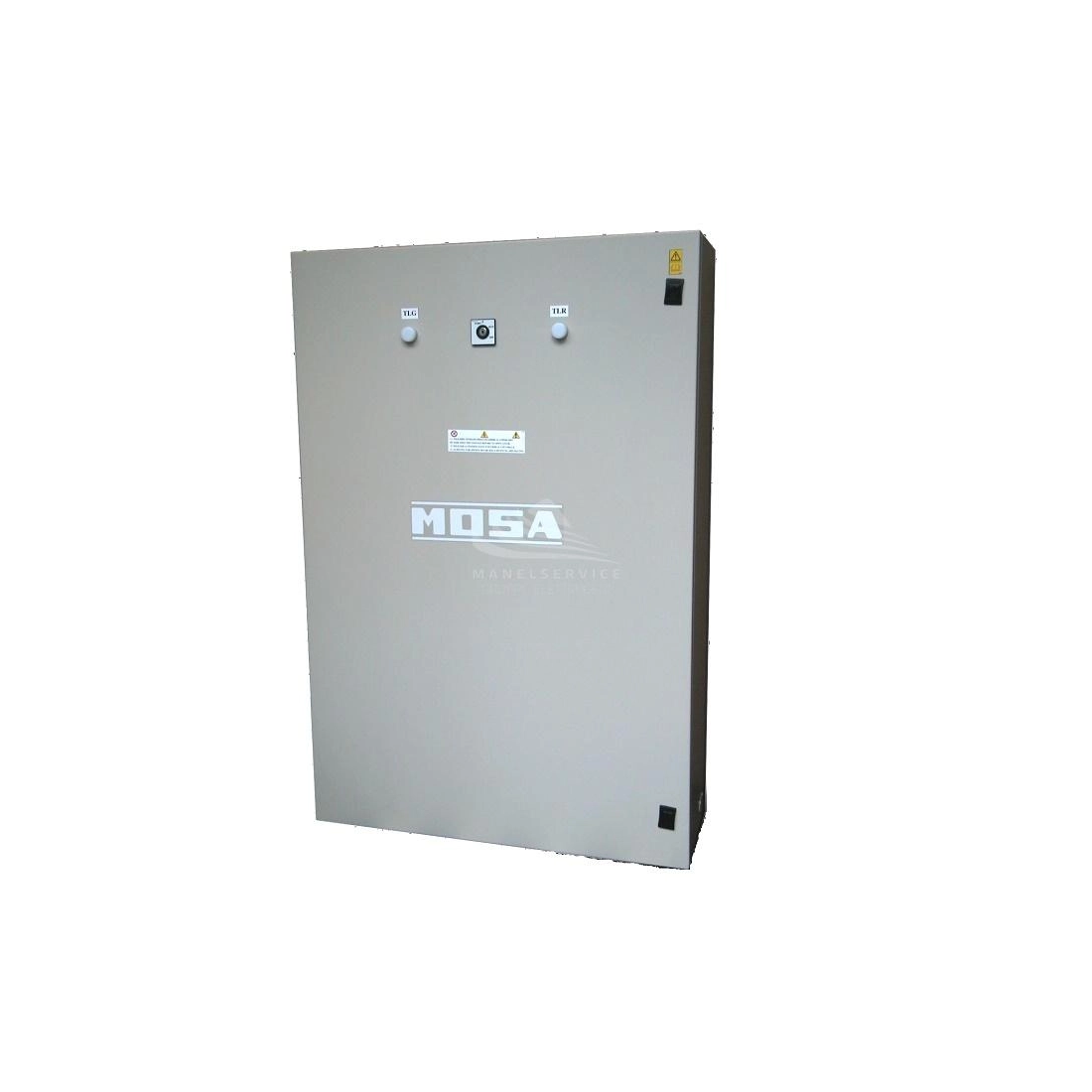

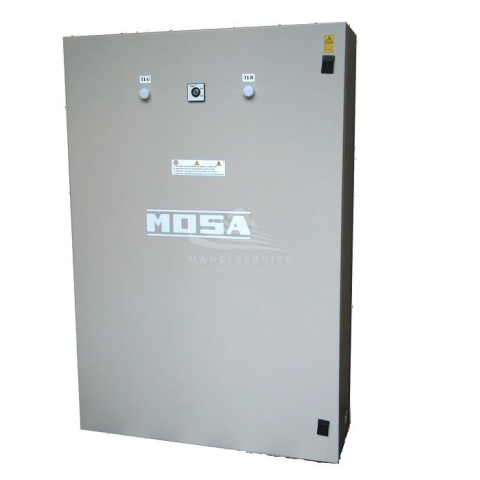

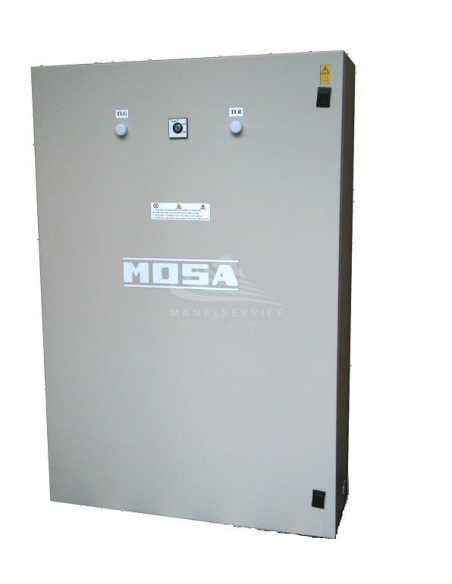

MOSA PAC 200-MTE REMOTE SWITCHING PANEL
MCJ0K00E10000
Maximum power 400 V three-phase: 554 KVA
Maximum power 230 V three-phase: 318 KVA
Rated thermal current Ith (<= 35°C): 800 A
Operating frequency: 50 or 60 Hz
Short-time current Icw (1 sec): 26.5 KA
Protection degree: IP54
Length: 1000 mm
Width: 600 mm
Height: 450 mm
Weight: 92 Kg
Panel fixing: Floor-mounted
- Brand
-
Features:
- Four-pole motorized switching
- Power connections with nickel-plated copper bars
- Ample space for connections
- Wall or floor mounting
- Manual mains or generator connection selector
- Complies with CE directives
Standard equipment
- IP55 epoxy powder coated metal case
- Interlocked four-pole motorized switching
- Protection fuses
- Auxiliary connection terminal block
- Manual mains or generator connection selector
- Mains or generator connection indicator lights
- Emergency manual connection handle
- Fixing brackets for wall-mounted panels
The image is purely indicative.
