CLIMMA SEA PUMP B-CM20/A FOR CHILLER
M67270U
Phase Type: Single-phase
Frequency: 50 Hz
Voltage: 230V
Nominal capacity Btu/h 72.000
Consumption 370W
Pump Type: Centrifugal Pump
Type of material Treated: Dirty water
Suction / delivery connections 1' F BSP
Flow rate L/m' - 60 GPM - 15
Head mt. 11 - ft 33
Weight Kg 9.5 - Lb 20.9
- Phase
- Single phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Protection degree
- IP54
- Pump type
- Centrifugal Pump
- Fluid type
- Dirty water
- Maximum output capacity (Lt/min)
- 60
- Input power (W)
- 370
- Inlet diameter thread type (mm/inches)
- 25 mm - 1"
- Outlet diameter thread type (mm/inches)
- 25 mm - 1"
- Total head (m)
- 11
- Dry weight (Kg)
- 9.5
CLIMMA SEA PUMP B-CM20/A FOR CHILLER

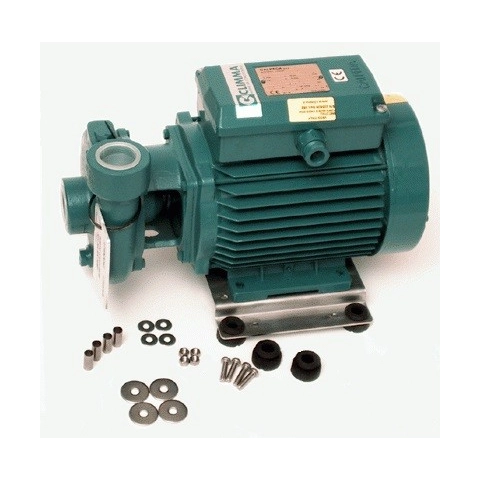

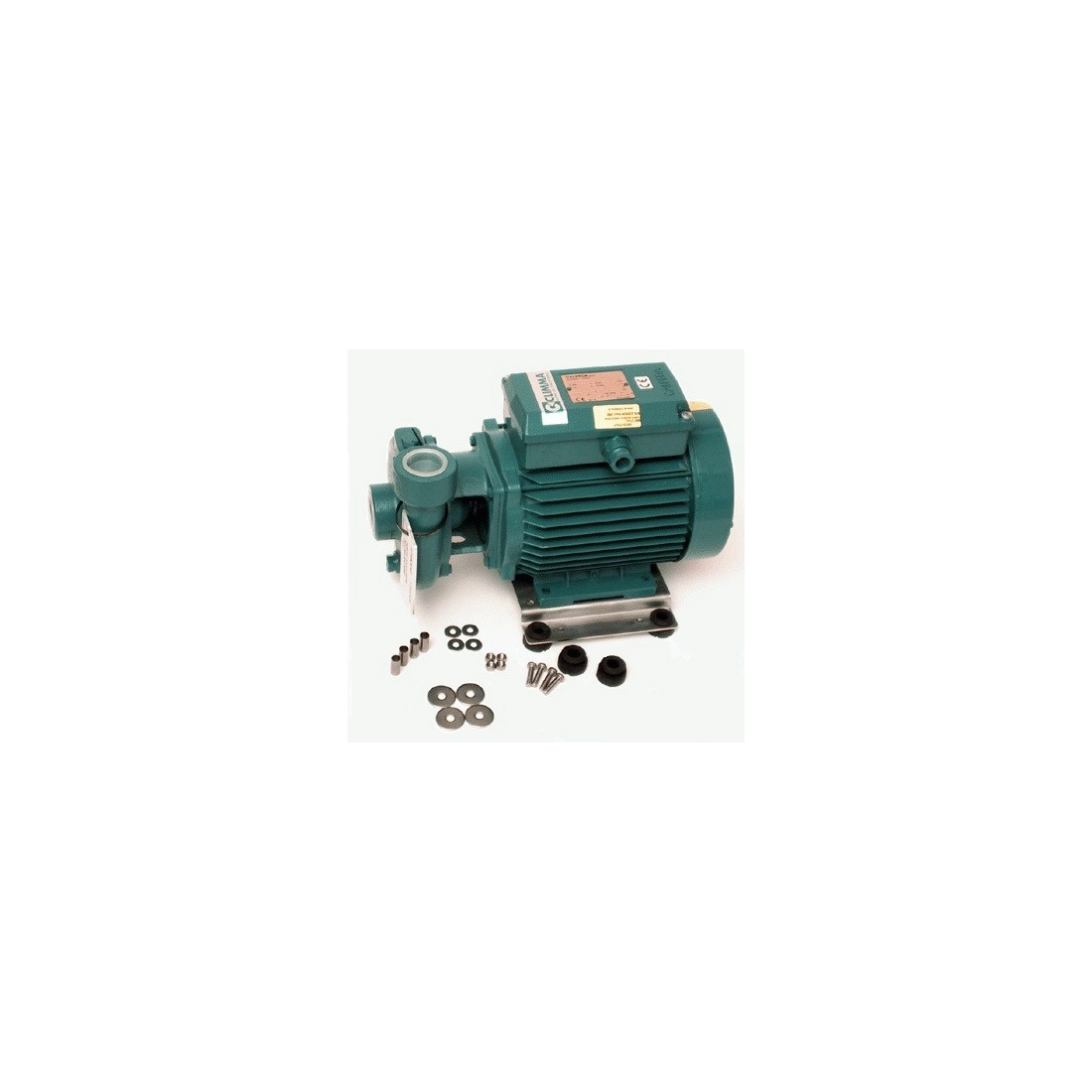

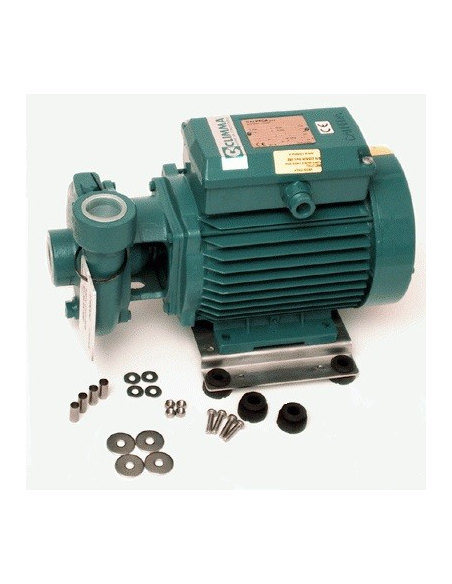

Centrifugal pump with great sturdiness and reliability. Pump body and impeller in bronze, 316 stainless steel shaft. Motor with special insulation. IP54. Suitable for pumping even moderately dirty water.
Nominal capacity Btu/h 72.000
Consumption 370W
Suction / delivery connections 1' F BSP
Flow rate L/m' - 60 GPM - 15
Head mt. 11 - ft 33
Weight Kg 9.5 - Lb 20.9
