ATE 28-1L/4

Phase Type: Three/Single Phase
Three-phase power (kVA): 30
Three-phase power (kW): 24
Single-phase power (kVA): 20
Single-phase power (kVA): 20
Compound
Frequency: 50 -60 Hz
Voltage: 230V - 400V

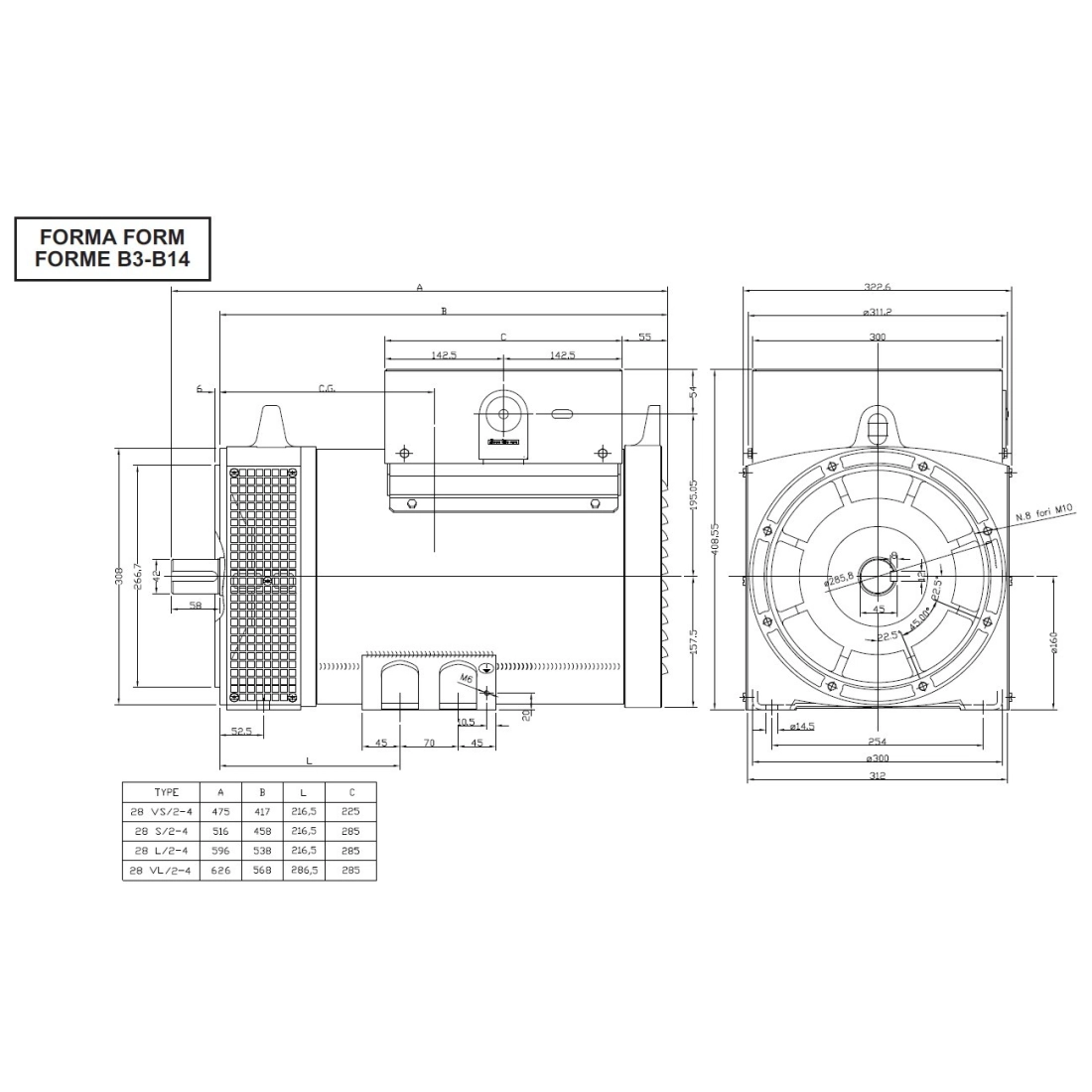

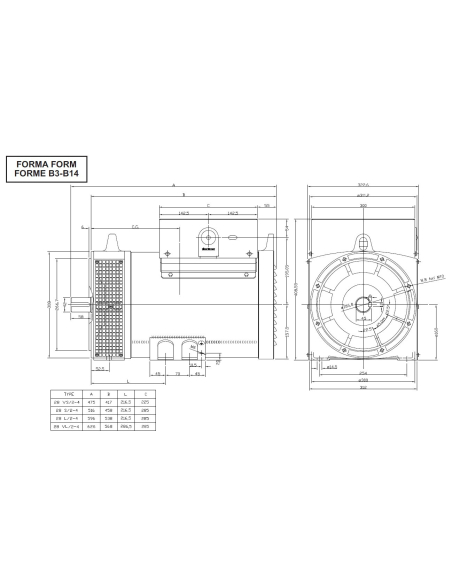

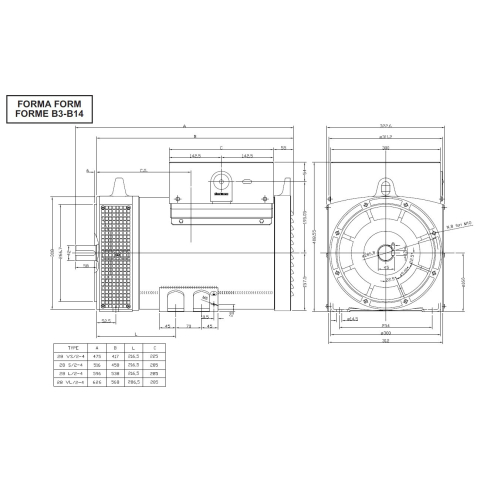

Maximum dimensions: 596x322x408.5h cm in B14 bearing form
Weight: 143 Kg.

Download Datasheet ATE 28-1L/4

Phase
Single phase / Three phase
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous, with brushes
Poles
4
Single-phase power (KW)
20
Single-phase power (KVA)
20
Three-phase power (KW)
24
Three-phase power (KVA)
30
Acoustic pressure
57 dB(A) at 7 m
Length (mm)
595
Width (mm)
320
Height (mm)
409
Brushes
Yes
PMG
No
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
144
Brand

ZANARDI ATE 28-1L/4 SELF-REGULATING ALTERNATOR 1500 RPM

THREE-PHASE ALTERNATORS WITH BRUSHES - COMPOUND REGULATION

The generators of this series are three-phase with brushes and are characterized by a combined regulation on three phases; they have a high starting capacity (motor start: 1 HP X KVA). They also have excellent performance with single-phase connection: with the delta connection it is possible to obtain 70% of the nominal three-phase load and 45% with the star connection with neutral. The stator or rotor are tilted to improve the waveform. The 2-pole rotors have a damping cage and all stator windings have a reduced pitch to reduce the harmonic content.
