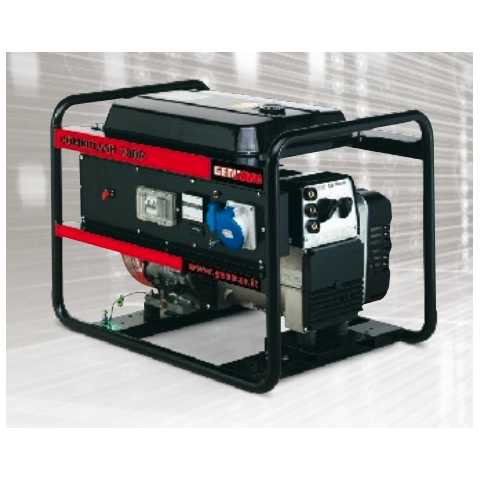

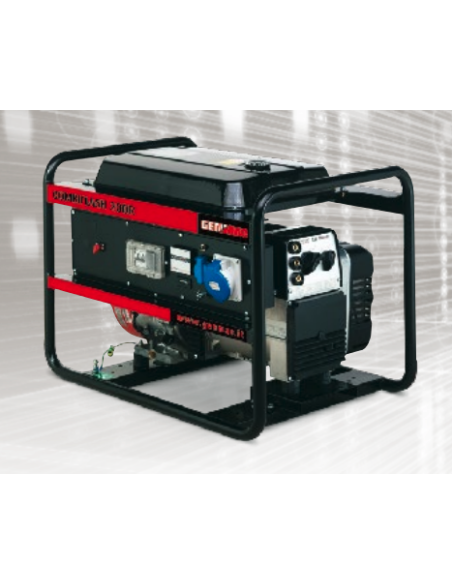

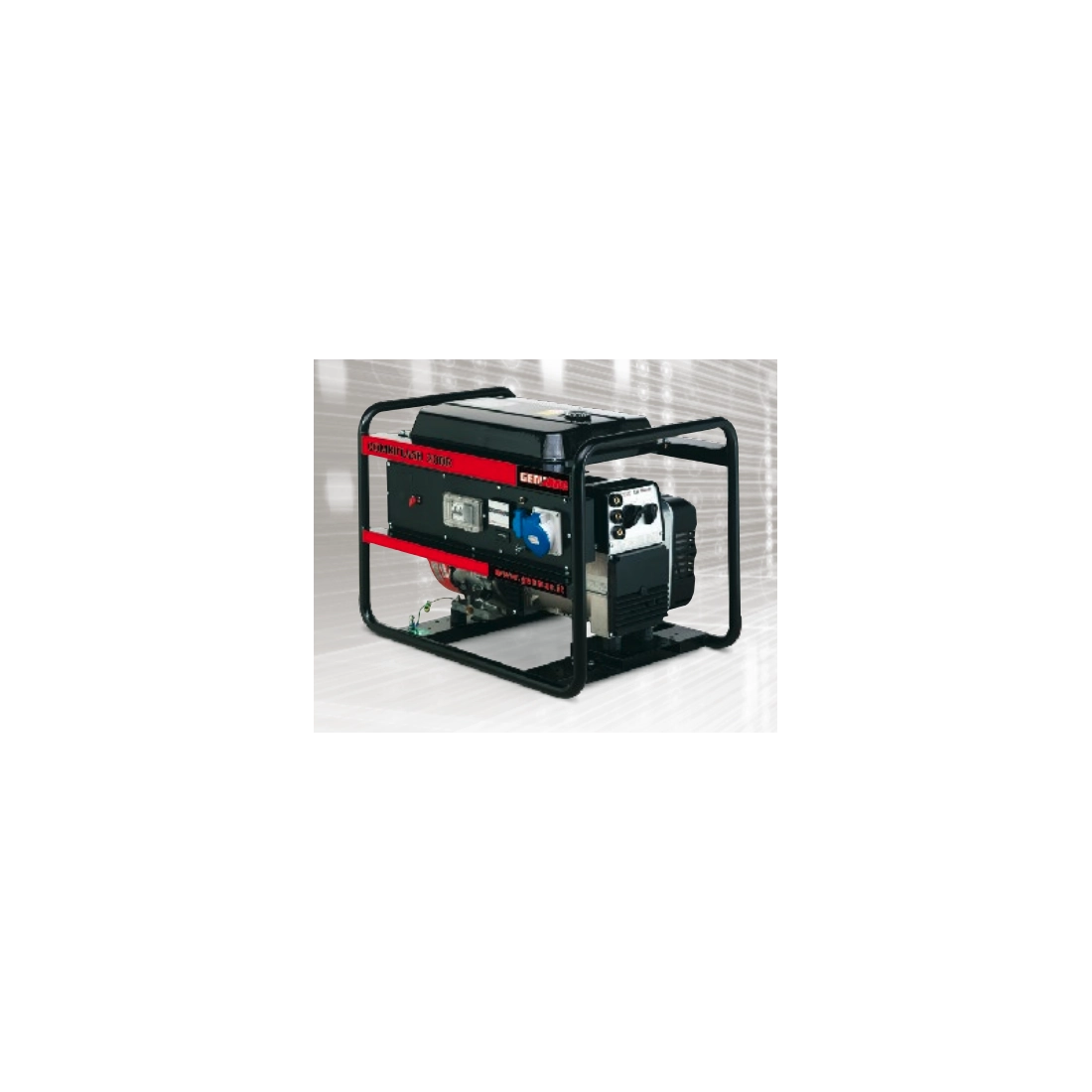

GENMAC Combiflash RG181KEO 6.1KVA Stationary Welder

GENMAC Combiflash RG181KEO ENGINE WELDER 6.1 KVA Stationary Use

GENMAC Combiflash RG181KEO ENGINE WELDER 6.1 kVA Stationary Use is equipped with a KD440 engine,
air-cooled, with engine speed at 3000 rpm and electric start. It runs on Diesel fuel, with a frequency of 50 Hz and voltage of 230 V.

The maximum three-phase power reaches 5.5 KW and 6.4 KVA, while the maximum current is 180 A.
It includes a welding function with current of 200 A at 35% / 180 A at 60%.

Equipped with a 19 L fuel tank, it offers an autonomy of 14 hours. It is silenced (Yes), but not super silenced (No), and complies with Stationary Use Emissions regulations. It is a single-phase type.

The dimensions are compact: length 810 mm, width 550 mm, height 680 mm, with a dry weight of 120 kg.

Technical Features:

Maximum three-phase power (KW): 5.5
Maximum three-phase power (KVA): 6.1
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Honda GX390
Engine revolutions (rpm): 3000
Starting: Electric
Cooling: Air
Welding current (A): 200 - 35% / 180 - 60%
Fuel tank capacity (L): 19
Autonomy (h): 14
Length (mm): 810
Width (mm): 550
Height (mm): 680
Dry weight (Kg): 120
Silenced: Yes
Super silenced: No
Maximum current (A): 180
Engine brand: KD440
Emissions regulation: Stationary use
Phase type: Single phase
