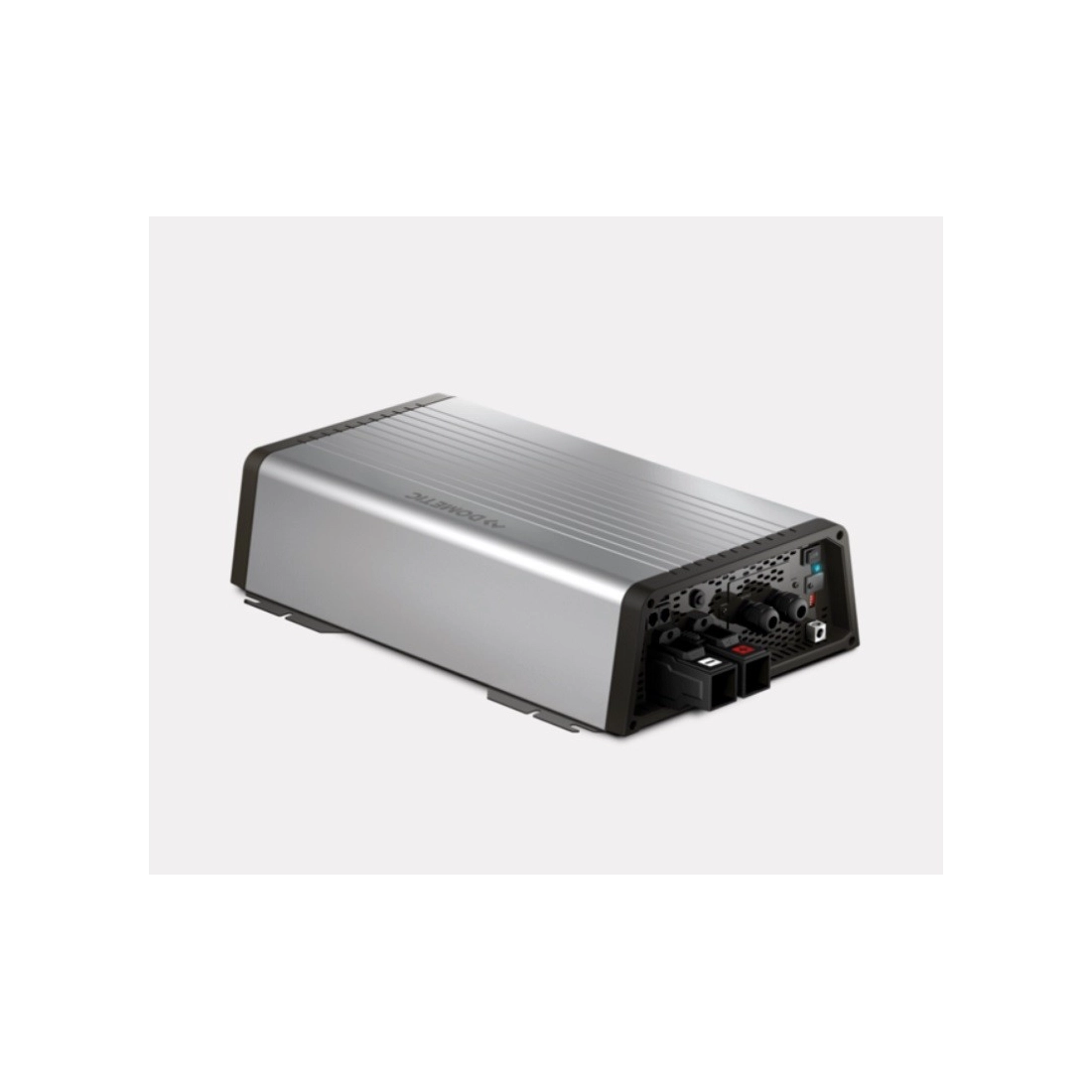

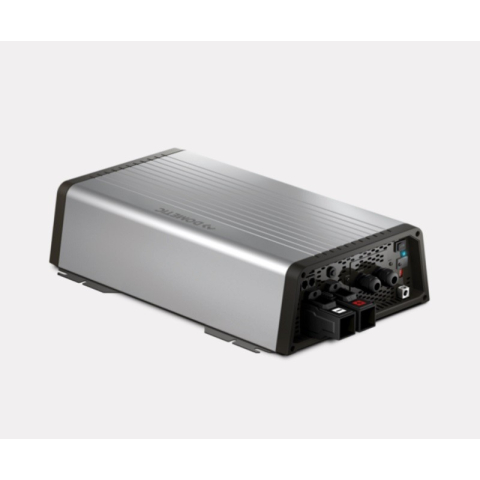

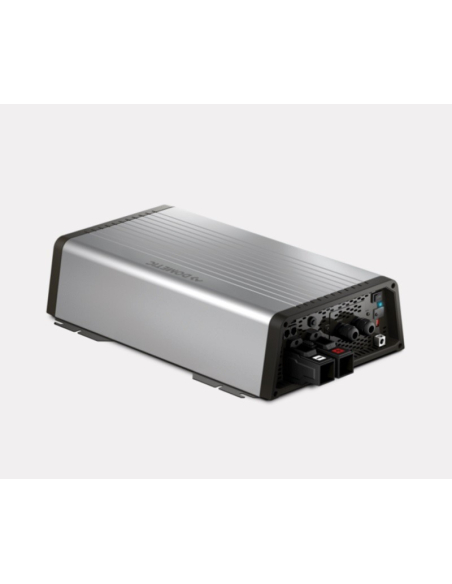

DOMETIC SinePower DSP3524T Inverter 24V 3500W

Reference 9600002558

Input Voltage: 24 (20 - 33 V)
Output voltage/wave: 230 / pure sine wave
Output frequency: 50 Hz
No-load consumption: 1.8 A
Stand-by consumption: 0.15 A
Continuous power: 3500 w 10 minutes of continuous power
Unlimited permanent power: 50% peak power
Peak power: 6000 w
Efficiency up to: 92 %
Width: 283 mm
Height: 128.4 mm
Depth: 496 mm
Weight: 10.9 Kg.
Integrated priority circuit with synchronization of the present voltage
Certifications: E (EMC/vehicle directives)
Protection class: Equivalent to IP 21

Product Details
Description

Frequency (Hz): 50
Protection degree: IP21
Output voltage (V): 230
Length (mm): 496
Width (mm): 283
Height (mm): 128
Dry weight (Kg): 11
Input voltage (V): 12
Kind of wave: Pure Sine
Continuous power (W): 3500

EAN13: 4015704263886

Brand

DOMETIC SINEPOWER DSP 3524T PURE SINE WAVE INVERTER, 3,500 W, 24 V

Designed to transform the 24 V battery voltage into pure 230 V AC, this comfort sinusoidal inverter ensures reliable operation of electrical devices up to 3,500 W with the vehicle battery. Highlights of this top-of-the-range product: Priority circuit on the mains current, energy-saving standby mode, elegant control panel for practical use and a perfect overview.

Pure sine wave output voltage 230 V AC, compatible with sensitive electronic devices
New smart standby saves power when the device is not in use
New user interface for easy operation and control
CI-Bus compatible, easy to insert into the vehicle grid
Integrated priority circuit with voltage synchronization
Wide range of DC input voltages, ideal for vehicles with EURO 6 standard emissions

Image and technical data are not binding.
