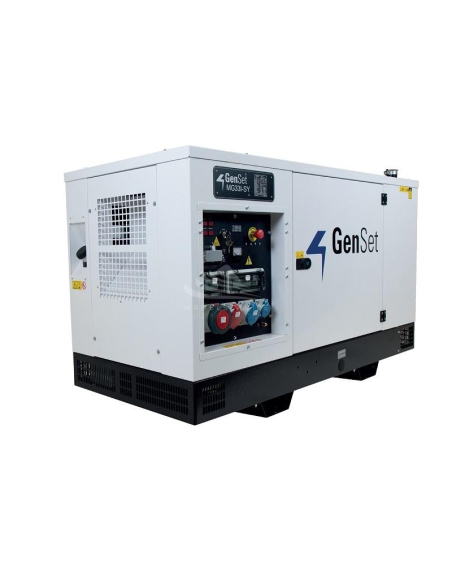

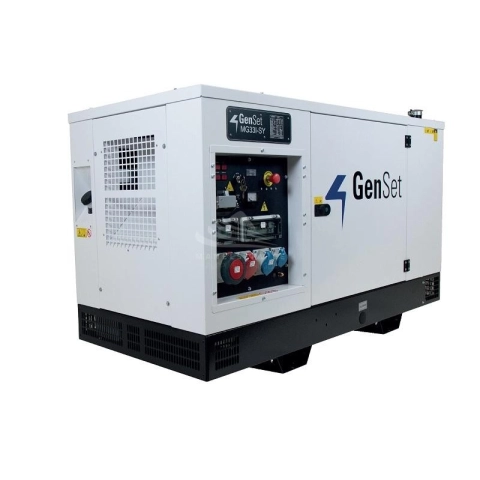

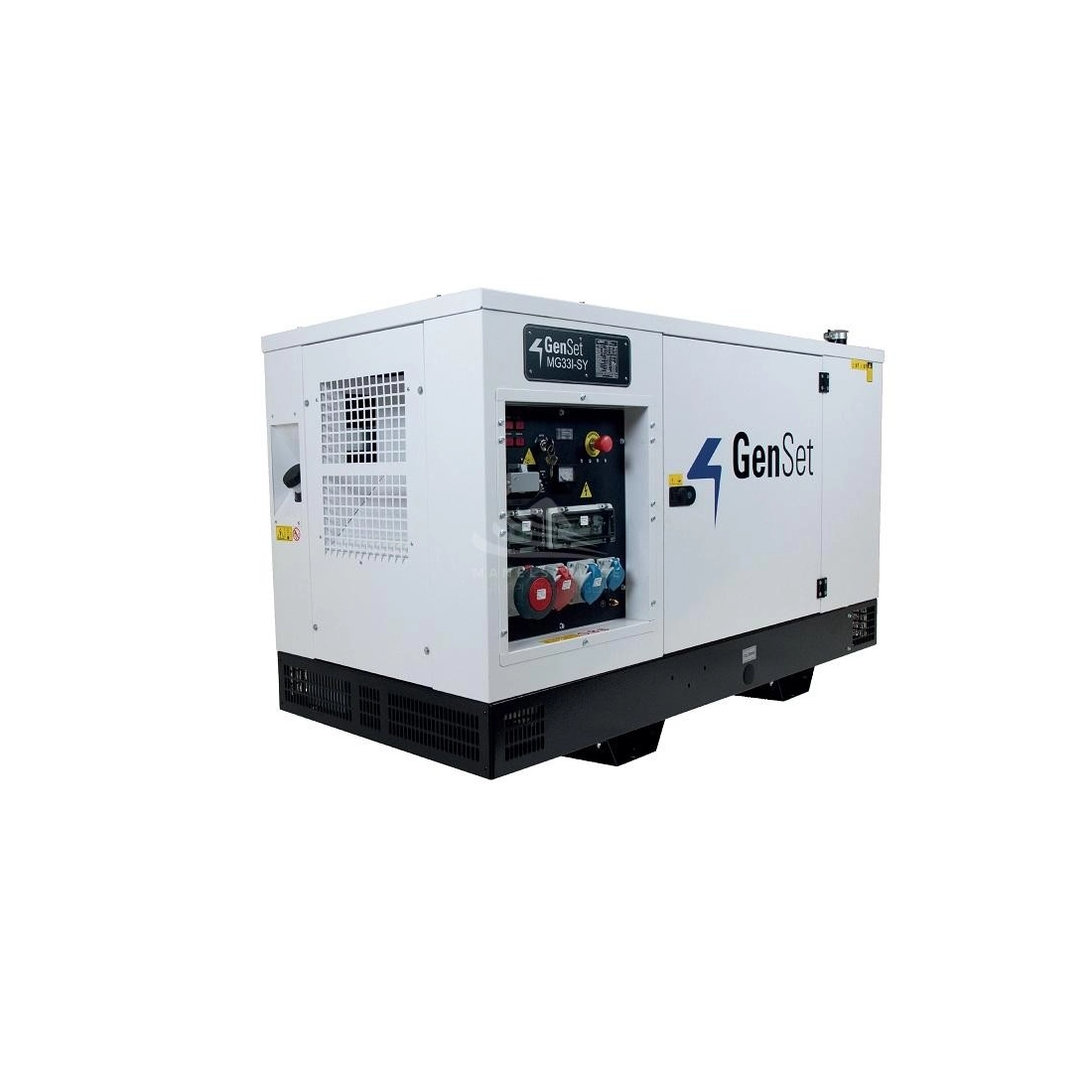

GENSET MG 33 I-SY - SINGLE-PHASE/THREE-PHASE GENERATOR 30 KVA AVR
MG 33 I-SY
Maximum power Three-phase: 30 KVA
Maximum power Three-phase: 24 KW
Power continuous use Three-phase: 27 KVA
Power continuous use Three-phase: 21.6 KW
Maximum power Single-phase: 10 KVA
Maximum power Single-phase: 8 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98
Emissions Regulations: STAGE 0
Starting: Electric
Consumption: 6.4 Lt/h
Length: 1900 mm
Width: 910 mm
Height: 1100 mm
Weight: 690 Kg
Super silenced
AVR
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 8
- Maximum power single phase (KVA)
- 10
- Maximum power three phase (KW)
- 24
- Continuous power three phase (KW)
- Maximum power three phase (KVA)
- 30
- Continuous power three phase (KVA)
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400

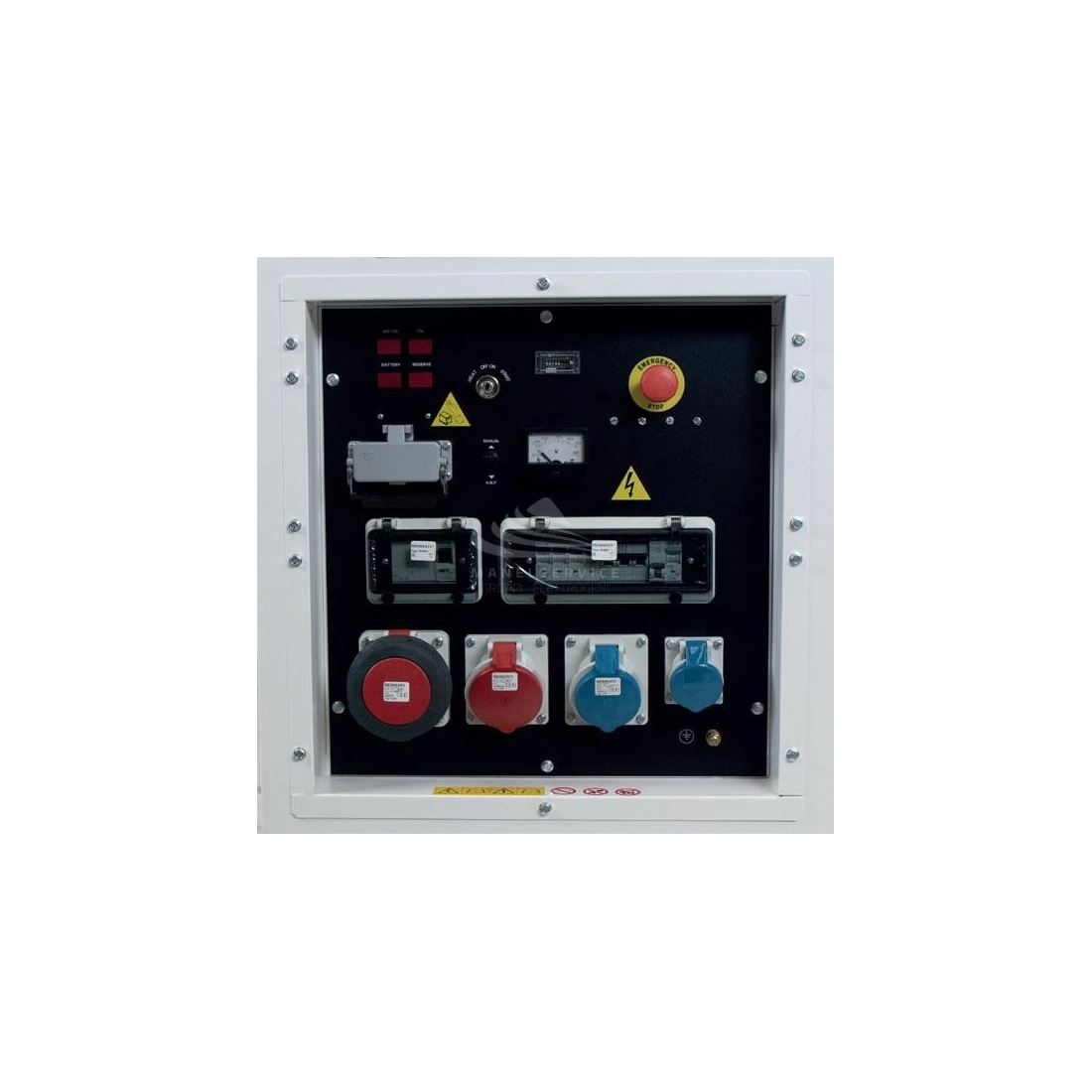

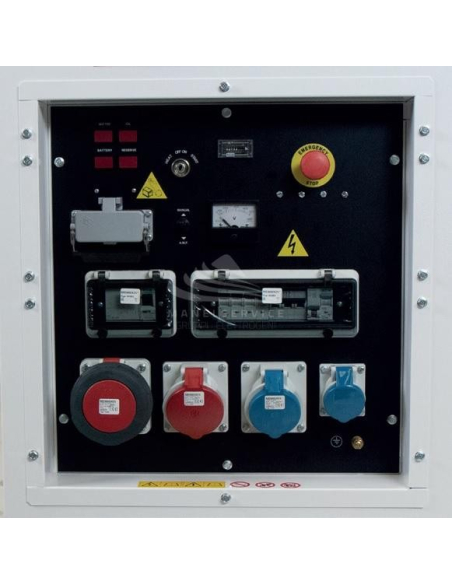

- Sockets configuration

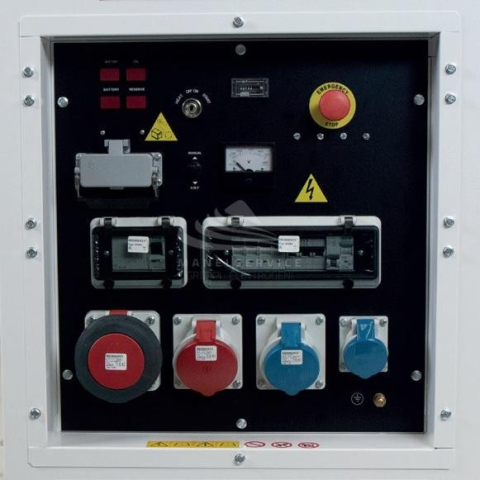

- 1 x 400V 63A CEE - 1 x 400V 32A CEE - 1 x 230V 32A CEE - 1 x 230V 16A CEE

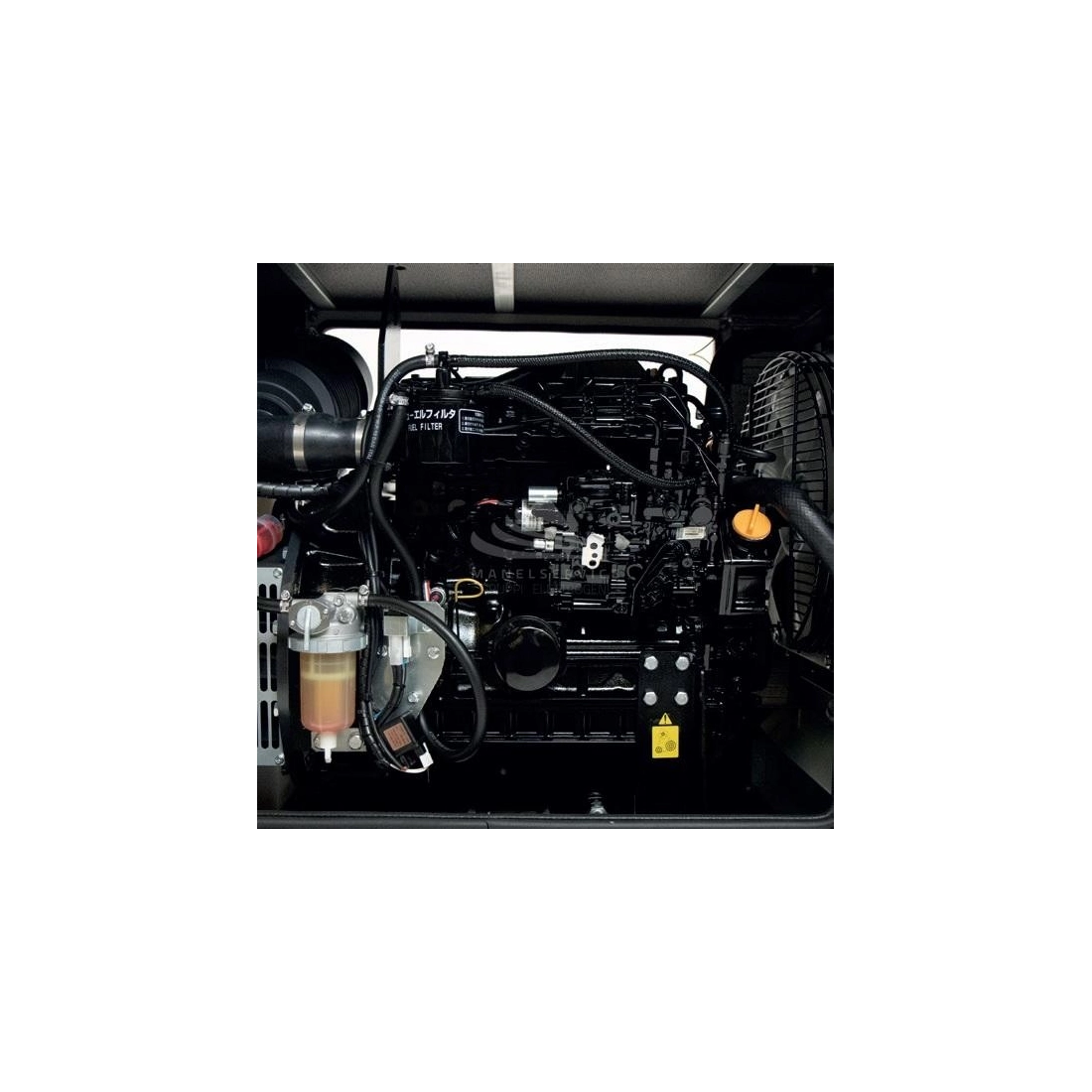

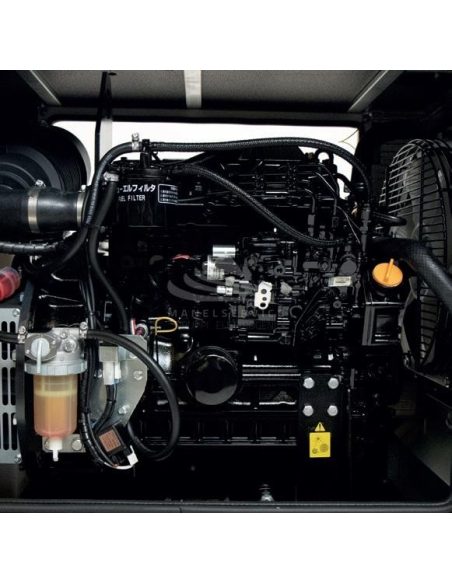

- Engine

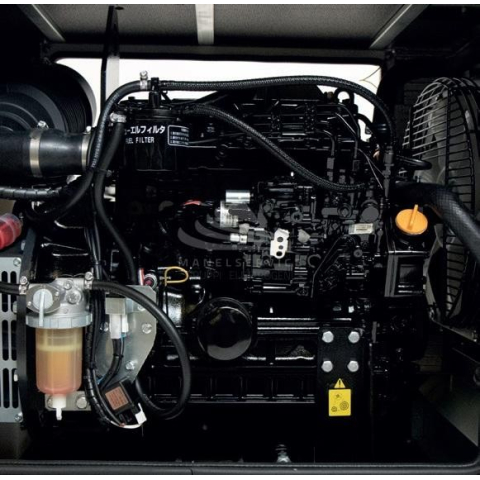

- Yanmar 4TNV98, 4 stroke
- Emissions Regulations
- Stationary Use
- Engine rpm (rpm)
- 1500
- Starting system
- Elettrico
- Engine capacity (cm³)
- 3319
- Number cylinders
- 4
- Cooling
- Water
- Alternator
- Sincrono
- Protection degree
- IP23
- Motor insulation class
- H

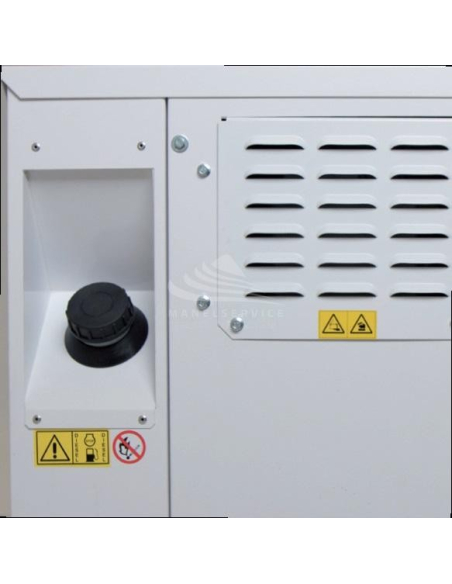

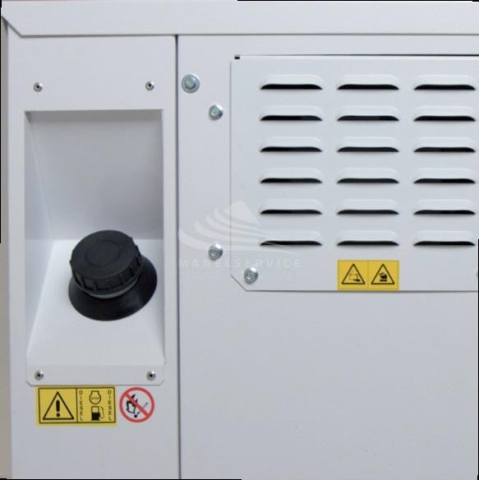

- Fuel tank capacity (L)
- 40
- Consumption (L/h)
- 6.4
- Running time (h)
- 6.25
- Acoustic power
- 96 dB(A)
- Acoustic pressure
- 71 dB(A) at 7 m
- Length (mm)
- Width (mm)
- 910
- Height (mm)
- 1100
- Dry weight (Kg)
- 690
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Generator
- ATS Switch device
- Optional ATS
- Voltage regulator
- AVR
- Engine manufacturer
- Yanmar
- Brand
-
GENSET MG 33 I-SY
The GENSET MG 33 I-SY is a 30 KVA single/three phase diesel generator set with electric start and AVR voltage regulator.
Thanks to its compact size and its very low weight, the GENSET MG 33 I-SY is a light and easy to transport generator.
The GENSET MG 33 I-SY also has a low fuel consumption: only 6.4 Lt/h at 75% of the load.
The GENSET MG 33 I-SY generator set, thanks to the high quality and efficiency of its components, is ideal for various types of work: from small hobby jobs to large construction sites.
Images and technical data are not binding.
