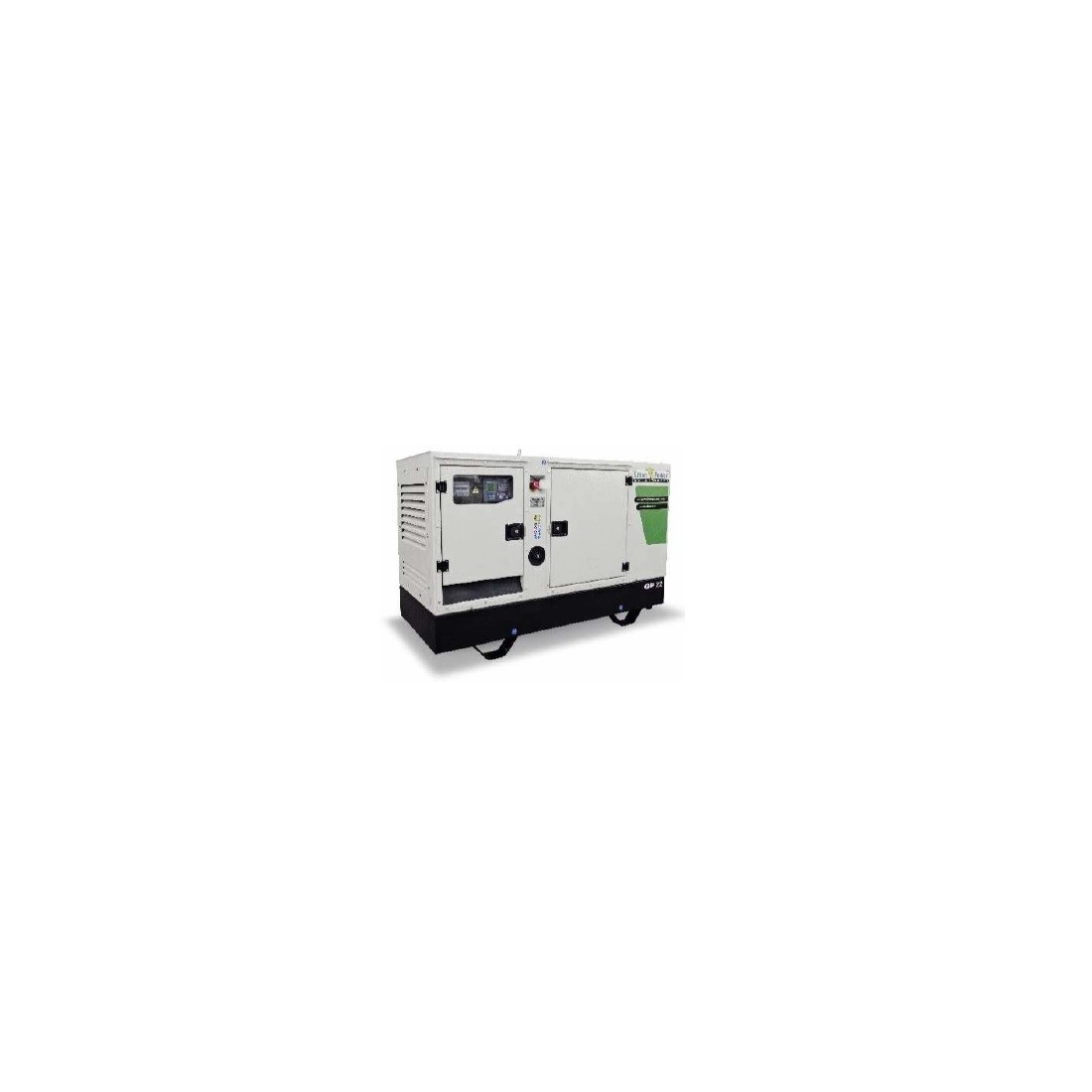

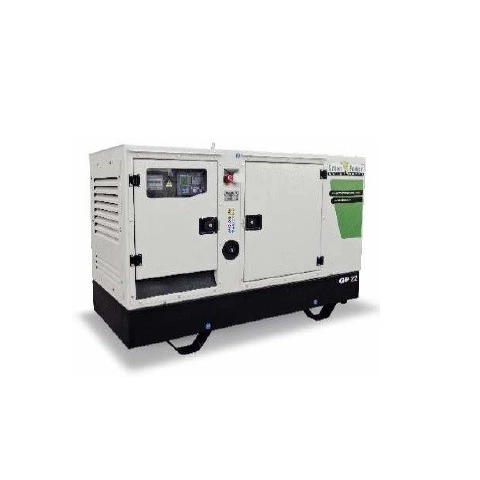

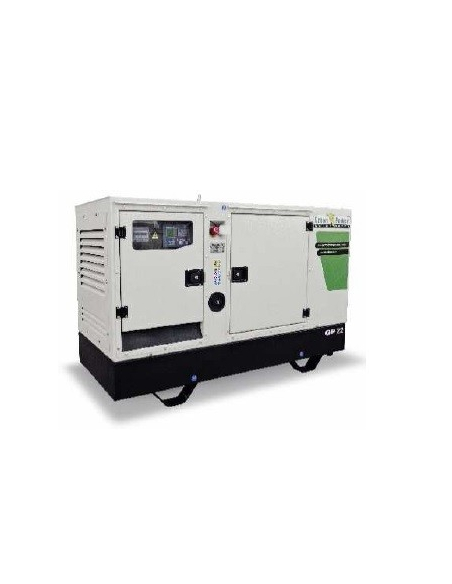

GREEN POWER GP33S B-N
GP 33 S B N A
Phase Type: Three-phase
Three-phase continuous power: 24 kW
Three-phase continuous power: 30 kVA
Maximum three-phase LTP power: 26.4 kW
Maximum three-phase LTP power: 33 kVA
Fuel: Diesel
Voltage: 230V/400V
Frequency: 50 Hz
Manufacturer & type: Baudouin 4M06G35/5
1500 rpm
Cubic Capacity: 2300 cc.
Alternator 4 poles
AVR
Noise level at 7 mt.: 70 dB(A)
Tank: 120 Lt.
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Dry weight: 940 Kg. approx.
- Phase
- Three phase
- Maximum power three phase (KW)
- 26.4
- Continuous power three phase (KW)
- 24
- Maximum power three phase (KVA)
- 33
- Continuous power three phase (KVA)
- 30
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine
- Baudouin 4M06G35/5
- Emissions Regulations
- Stationary Use
- Engine rpm (rpm)
- 1500
- Speed governor
- Electronic
- Starting system
- Electric 12 Vcc
- Engine capacity (cm³)
- 2300
- Number cylinders
- 4
- Cooling
- Water
- Alternator
- MECC ALTE ECP28-VL/4
- Poles
- 4
- Protection degree
- IP23
- Motor insulation class
- H
- Fuel tank capacity (L)
- 100
- Consumption (L/h)
- 5.61 at 75% of the load
- Running time (h)
- 17.9 at 75% of the load / 13.4 at 100% of the load
- Acoustic pressure
- 70 dB(A) at 7 m
- Length (mm)
- 2100
- Width (mm)
- 870
- Height (mm)
- 1165
- Dry weight (Kg)
- 940
- Silenced
- Yes
- Brushes
- No
- ATS Switch device
- Optional ATS
- Voltage regulator
- AVR
- Engine manufacturer
- BAUDOUIN
- Brand
-
