GENSET MG 66 S-I - SINGLE-PHASE/THREE-PHASE GENERATOR 66 KVA AVR

Name: GENSET MG 66 S-I - SINGLE-PHASE/THREE-PHASE GENERATOR 66 KVA AVR
Brand: GENSET
SKU: MG 66 S-I

Reference MG 66 S-I

OUT OF PRODUCTION

Maximum power Three-phase: 66 KVA
Maximum power Three-phase: 52.8 KW
Power continuous use Three-phase: 60 KVA
Power continuous use Three-phase: 48 KW
Maximum power Single-phase: 22 KVA
Maximum power Single-phase: 17.6 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Motor: FPT NEF 45 SM1A
Starting: Electric
Consumption: 10.2 Lt/h
Length: 2900 mm
Width: 1100 mm
Height: 1800 mm
Weight: 1400 Kg
Super silenced
AVR

Download Scheda tecnica MG 66 S-I Download Technical data MG 66 S-I

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 17.6
Maximum power single phase (KVA): 22
Maximum power three phase (KW): 60
Continuous power three phase (KW): 48
Maximum power three phase (KVA): 66
Continuous power three phase (KVA): 52.8
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box

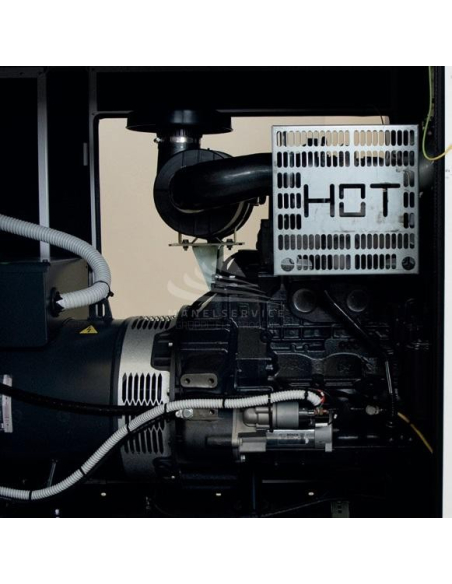

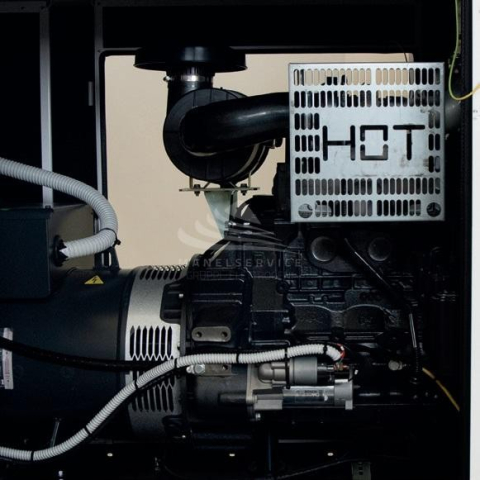

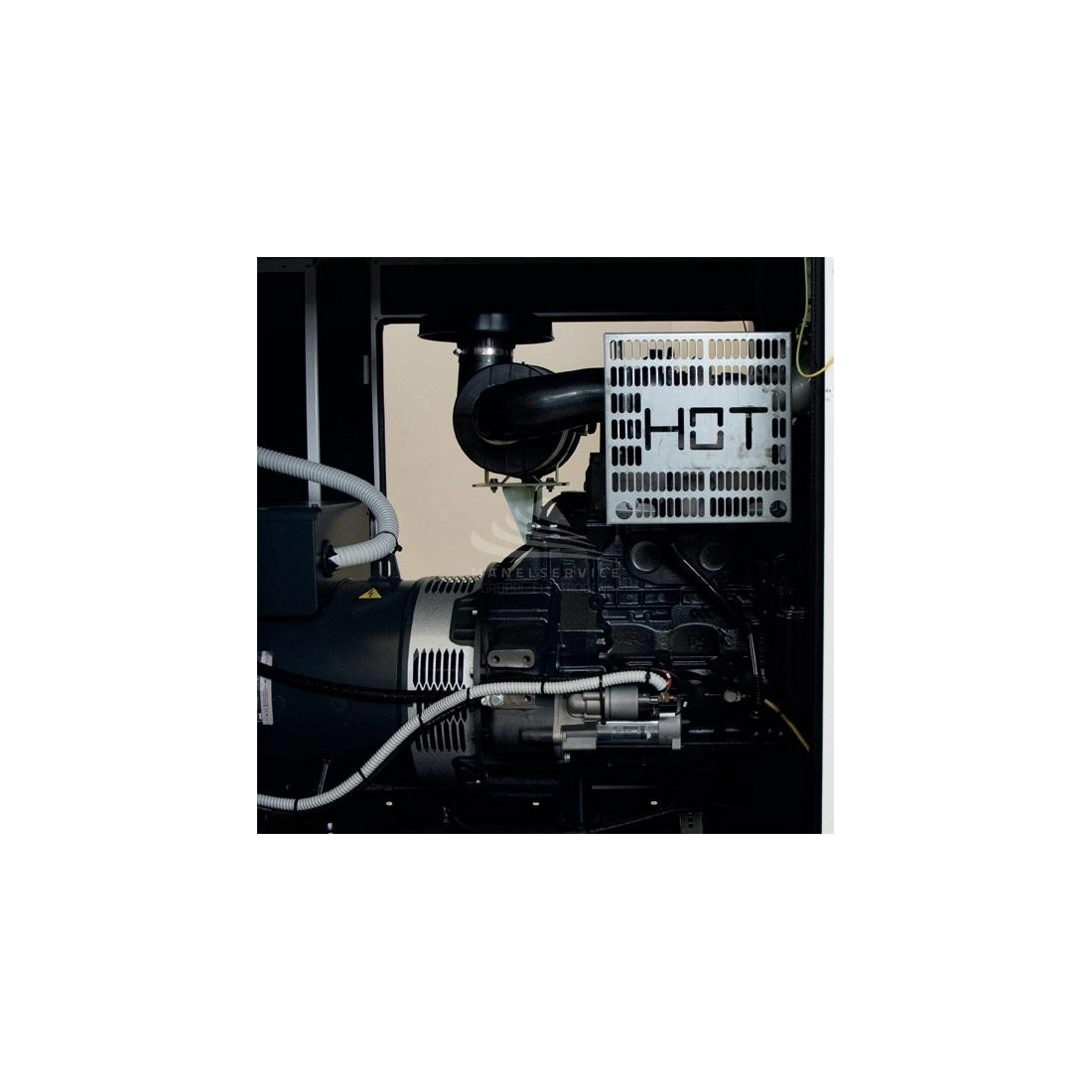

Engine: FPT (IVECO) NEF45SM1A turbo
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 4500
Number cylinders: 4
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 230
Consumption (L/h): 8.1
Running time (h): 22.5
Acoustic power: 95 dB(A)
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 2900
Width (mm): 1100
Height (mm): 1800
Dry weight (Kg): 1400
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: ATS Included
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Brand

GENSET MG 66 S-I

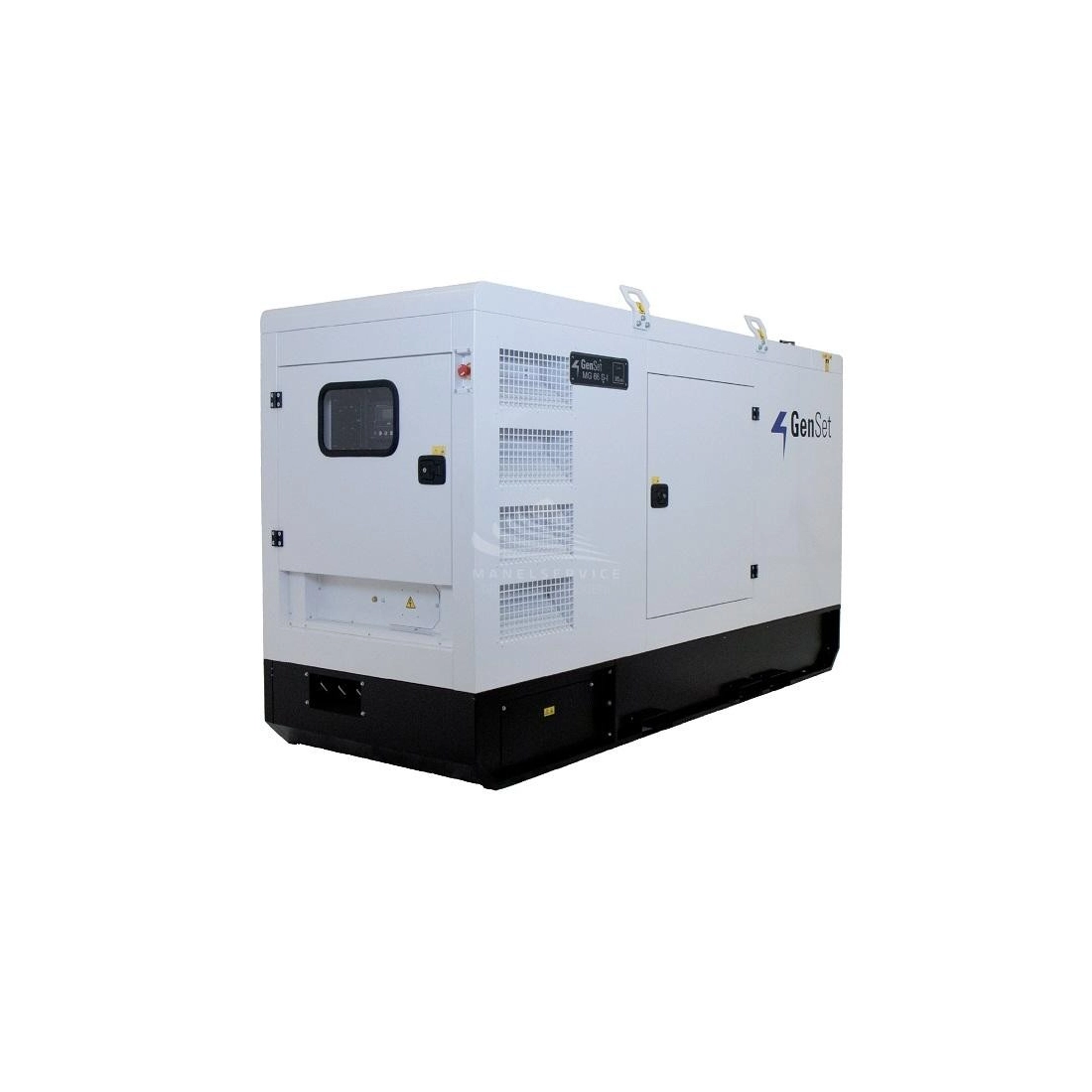

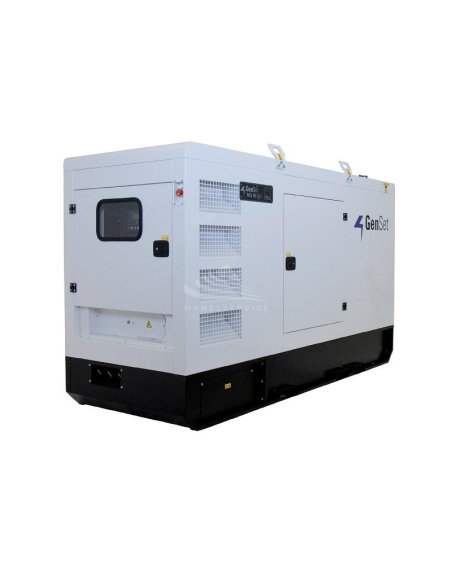

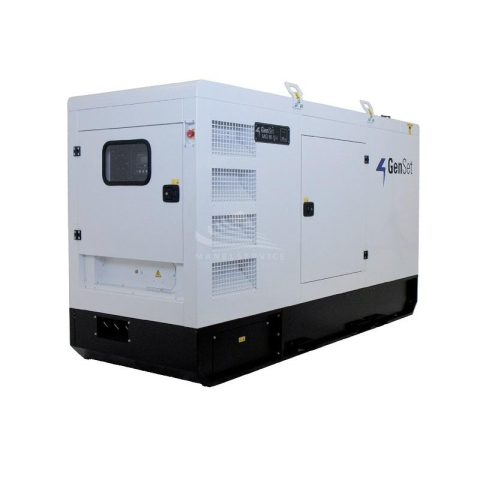

The GENSET MG 66 S-I is a 66 KVA single/three phase diesel generator set with electric start and AVR voltage regulator.
The GENSET MG 66 S-I also has a low fuel consumption: only 10.2 Lt/h at 75% of the load.
Thanks to the high quality and efficiency of its components, the GENSET MG 66 S-I generator set is ideal for various types of professional work such as on large construction sites.

Images and technical data are not binding.
