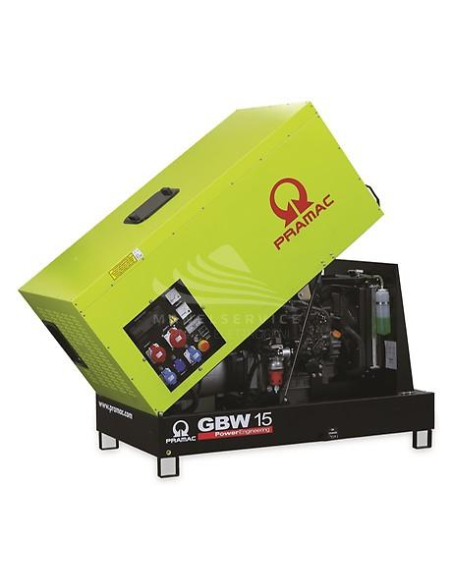

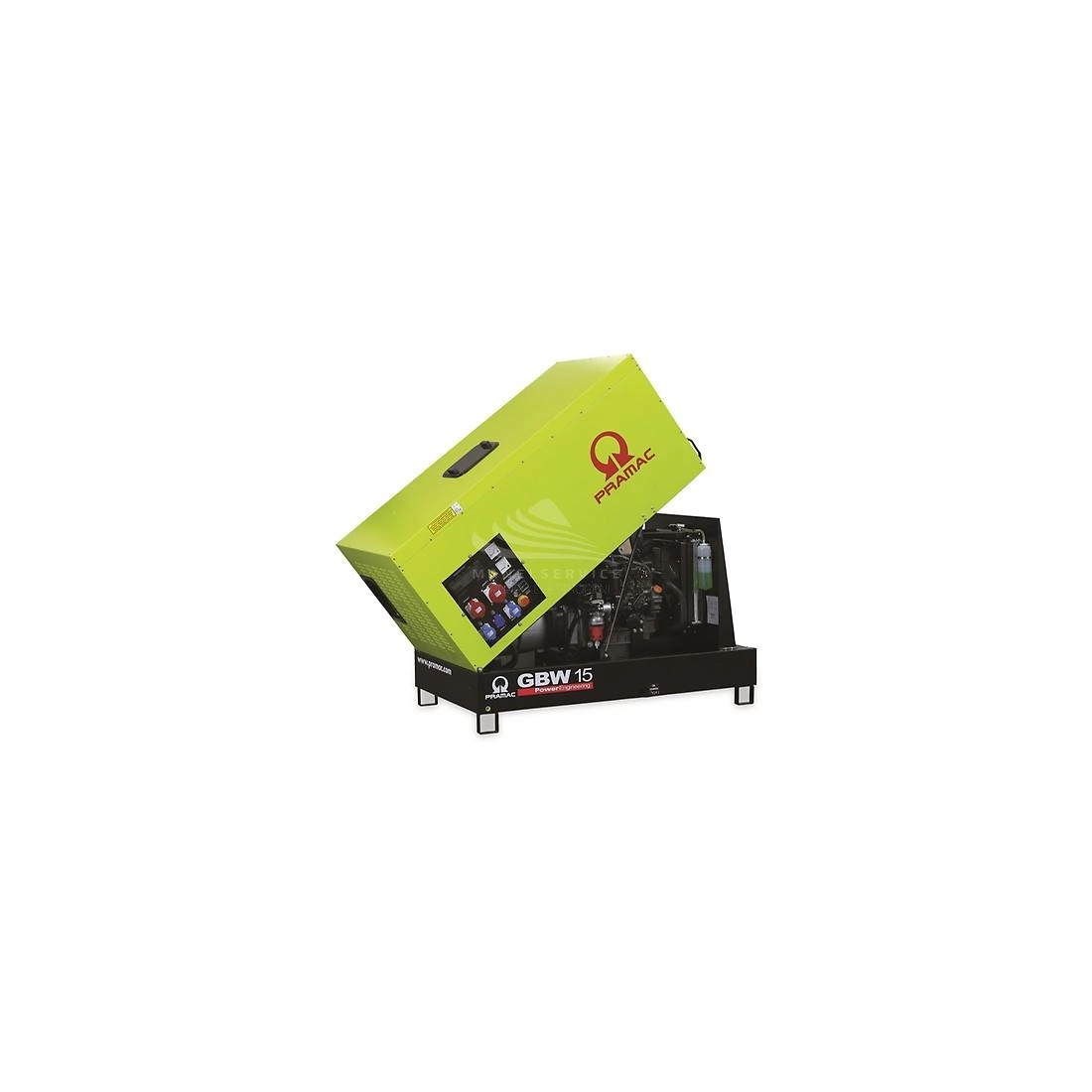

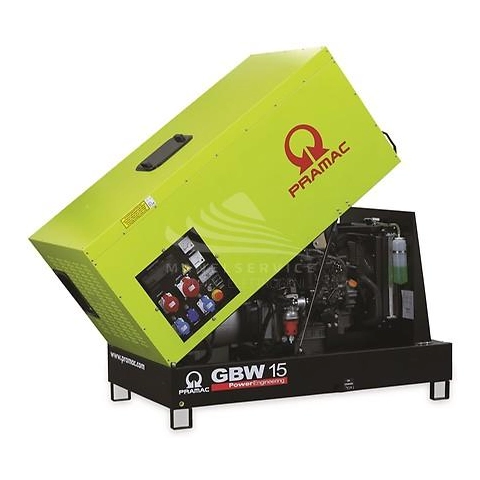

PRAMAC GBW15Y Generator Set Three-phase MCP 11.4KW Coffered with manual control panel
SB130TYAK00
Phase type: Single-phase / Three-phase
Maximum three-phase power: 13.5 KVA / 11.44 KW
Continuous use three-phase power: 12.6 KVA / 10.4 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Yanmar 3TNV88-BGPGE
Starting: Electric
Consumption: 3.8 Lt / h at 100% of the load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 430 Kg
Compound
- Phase
- Single phase / Three phase
- Maximum power three phase (KW)
- 10.8
- Continuous power three phase (KW)
- 10
- Maximum power three phase (KVA)
- 13.5
- Continuous power three phase (KVA)
- 12.6
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
- Engine
- Yanmar 3TNV88-BGPGE, naturally aspirated
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Speed governor
- Mechanical
- Starting system
- Elettrico
- Engine capacity (cm³)
- 1642
- Number cylinders
- 3
- Cylinders' position
- In line
- Oil capacity (L)
- 6.9
- Cooling
- Water
- Alternator
- Linz E1S13MD, with brushes
- Poles
- 4
- Fuel tank capacity (L)
- 51
- Consumption (L/h)
- 2.8 at 75% of the load / 3.8 at 100% of the load
- Running time (h)
- 18 at 75% of the load / 13.5 at 100% of the load
- Acoustic power
- 93 dB(A)
- Acoustic pressure
- 64 dB(A) at 7 m
- Length (mm)
- 1645
- Width (mm)
- 870
- Height (mm)
- 1072
- Dry weight (Kg)
- 430
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Generator
- ATS Switch device
- No ATS
- Voltage regulator
- Compound
- Engine manufacturer
- Yanmar
- Brand
-
PRAMAC GBW10P GENERATOR SET THREE-PHASE MCP 9.65KVA
The PRAMAC GBW10P single-phase/three-phase generator is equipped with a Perkins 403D-11G diesel engine, capable of delivering a power output of 9.65 KVA, complete with a Compound voltage regulator.

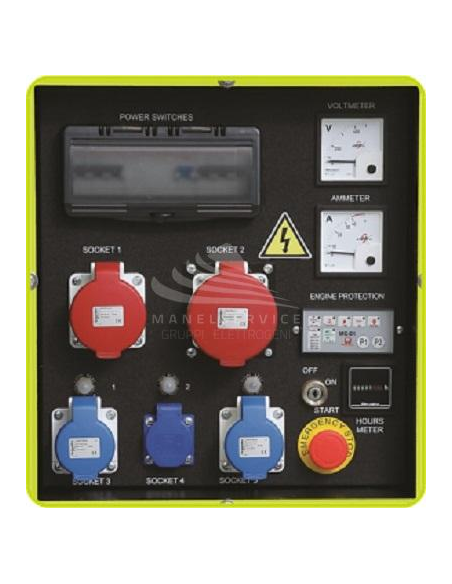

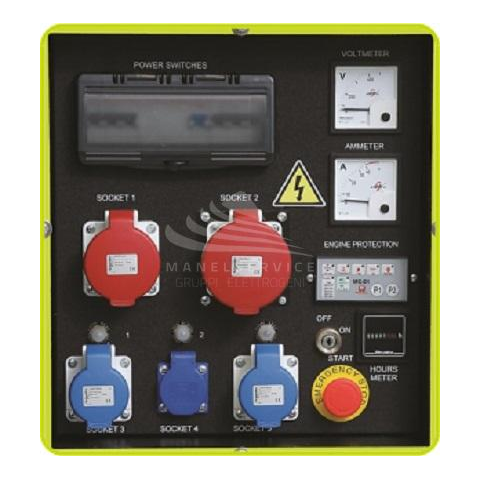

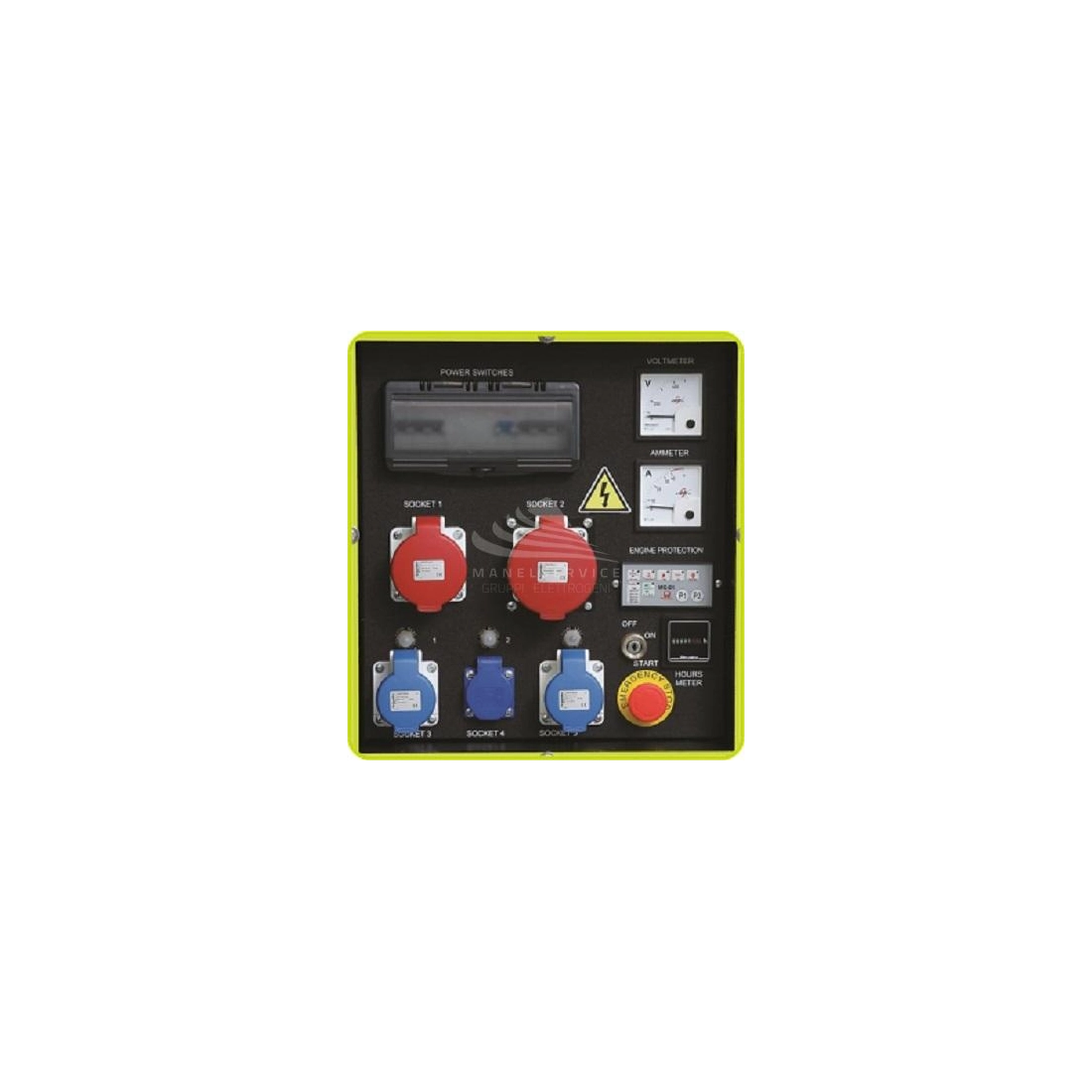

The PRAMAC GBW10P generator is fitted with an electric start and a manual control panel that allows you to view all electrical parameters of the engine and generator, monitor functions and operating status, manage the entire unit, and display any errors or alarms if they occur.
The PRAMAC GBW10P comes with a soundproof canopy, made of galvanized sheet metal, bent and electro-welded, with IP23 protection rating and side doors for both ordinary and extraordinary maintenance. The generator ensures efficient and quiet operation thanks to the Perkins 403D-11G diesel engine, which delivers a maximum power output of 9.65 KVA.
Technical specifications PRAMAC GBW10P MCP:
Phase type: Single-phase / Three-phase
Continuous power: 8.71 KVA / 6.97 KW
Maximum power: 9.65 KVA / 7.72 KW
Engine: Perkins 403D-11G
Engine speed: 1500 rpm
Emissions standard: Non-certified
Starting system: Electric
Fuel: Diesel
Available terminal voltage: 230 / 400 V
Frequency: 50 Hz
Voltage regulator: Compound
Tank capacity: 50 L
Fuel consumption at 75% load: 1.98 L/h
Autonomy at 75% load: 25.76 h
Noise level: 66 dB(A) @ 7 m
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Dry weight: 460 Kg
Sockets:
N.1 3P+N+T CEE 400V 32A
N.1 3P+N+T CEE 400V 16A
N.2 2P+T CEE 230V 16A
N.1 230V 16A SCHUKO
Are you looking for a generator similar to the PRAMAC GBW10P MCP but with different technical specifications?
CLICK HERE
to explore our dedicated section of PRAMAC generators or other specialized brands.
