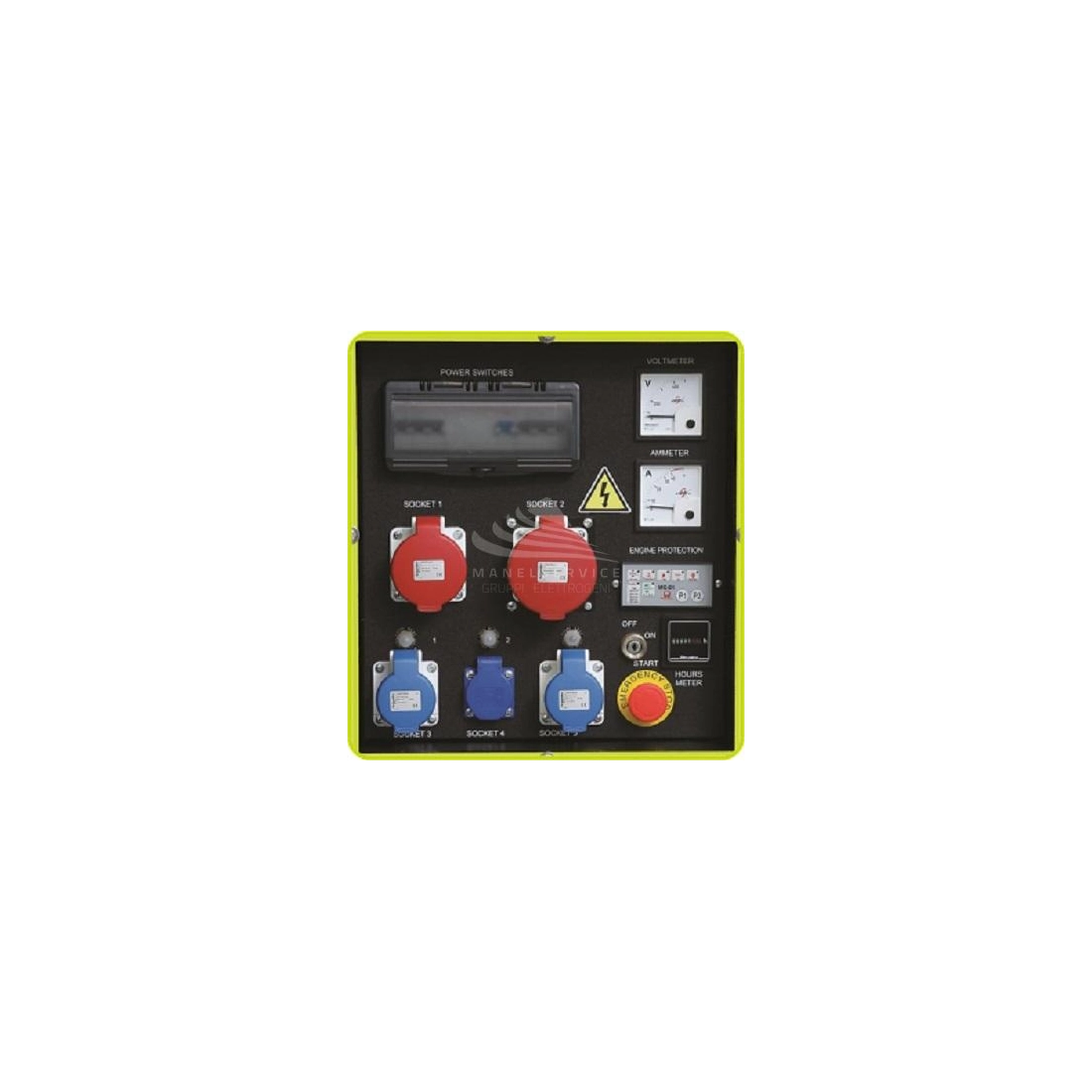

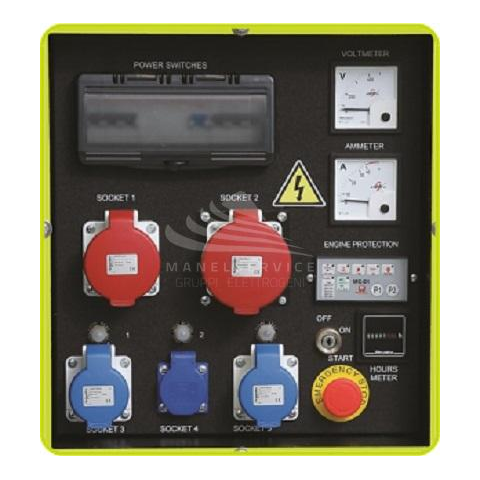

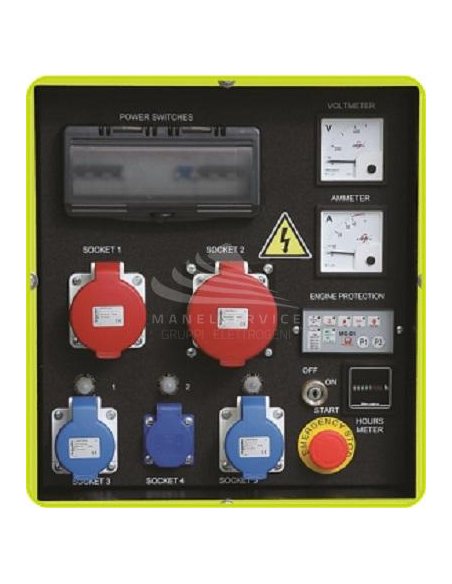

PRAMAC GBW22P Generator Set MCP Three-phase 17.4KW Enclosute with manual control panel
SB200TPAL00
Three-phase maximum power: 17.46 kW - 21.82 kVA
Three-phase continuous power: 15.82 kW - 19.72 kVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Perkins 404D-22G
Starting system: Electric
Fuel consumption: 5.3 L/h at 100% load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 565 kg
Compound
- Phase
- Three phase
- Maximum power three phase (KW)
- 17.46
- Continuous power three phase (KW)
- 15.42
- Maximum power three phase (KVA)
- 21.82
- Continuous power three phase (KVA)
- 19.78
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Sockets configuration
- 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
- Engine
- PERKINS 404D-22G, naturally aspirated
- Emissions Regulations
- NON EMISSIONATO
- Speed governor
- Mechanical
- Starting system
- Elettrico
- Engine capacity (cm³)
- 2216
- Number cylinders
- 4
- Cylinders' position
- In line
- Oil capacity (L)
- 10.6
- Cooling
- Water
- Alternator
- Linz E1S13MF, with brushes
- Poles
- 4
- Fuel tank capacity (L)
- 51
- Consumption (L/h)
- 4 at 75% of the load / 5.3 at 100% of the load
- Running time (h)
- 12.8 at 75% of the load / 9.7 at 100% of the load
- Acoustic power
- 95 dB(A)
- Acoustic pressure
- 66 dB(A) at 7 m
- Length (mm)
- 1645
- Width (mm)
- 870
- Height (mm)
- 1072
- Dry weight (Kg)
- 565
- Silenced
- Yes
- Super silenced
- Yes
- Product type
- Generator
- ATS Switch device
- No ATS
- Voltage regulator
- Compound
- Engine manufacturer
- Perkins
- Brand
-

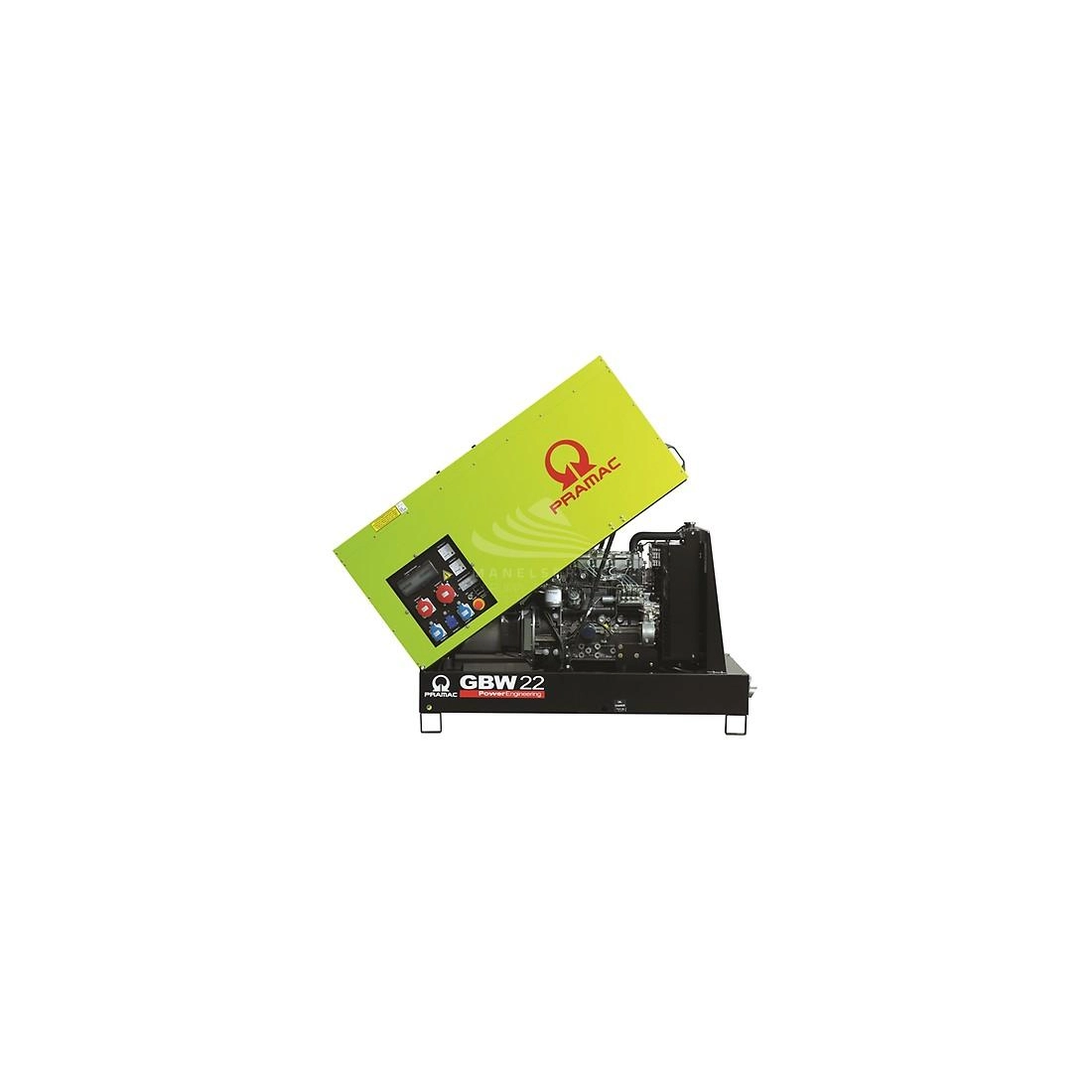

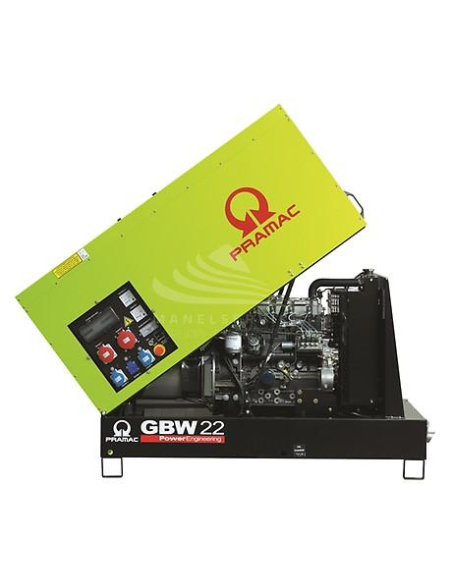

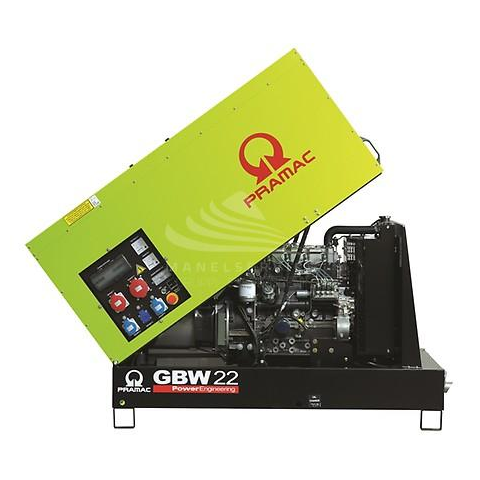

PRAMAC GBW22P GENERATOR SET THREE-PHASE MCP 17.4KW
The PRAMAC GBW22P three-phase generator delivers 17.4 kW and is powered by a diesel engine running at 1500 rpm. The PRAMAC GBW22P generator is equipped with an electric start system. Its alternator comes with brushes and a compound voltage regulator. The Perkins diesel engine makes the GBW22P generator highly reliable, as it has been designed and built using top-quality materials.
Thanks to its soundproof canopy, this generator is extremely silent. In addition, it is easy to transport, install, and position thanks to its compact size. This model is ideal for emergency backup, construction sites, mobile workshops, and industrial applications. The PRAMAC GBW22P three-phase generator is suitable for outdoor use on job sites or for small professional outdoor tasks.
Technical specifications of the PRAMAC GBW22P MCP Three-phase generator:
Three-phase maximum power: 17.46 kW - 21.82 kVA
Three-phase continuous power: 15.82 kW - 19.72 kVA
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Perkins 404D-22G
Starting system: Electric
Fuel consumption: 5.3 L/h at 100% load
Length: 1645 mm
Width: 870 mm
Height: 1072 mm
Weight: 565 kg
Compound
Outlets:
No.1 3P+N+T CEE 400V 32A
No.1 3P+N+T CEE 400V 16A
No.2 2P+T CEE 230V 16A
No.1 230V 16A SCHUKO
The PRAMAC GBW22P power generator is a professional diesel unit developed by Pramac, designed with the features and equipment required to provide a top-class product. With its low noise level, the PRAMAC GBW22P generator is the ideal solution for use in residential areas or during off-working hours.
The GBW22P generator is equipped with a reliable diesel engine, premium-quality components, and complete instrumentation.
If you are looking for a generator like the PRAMAC GBW22P three-phase power unit, we recommend browsing our catalog of land-based generators to find the model that best suits your needs.
