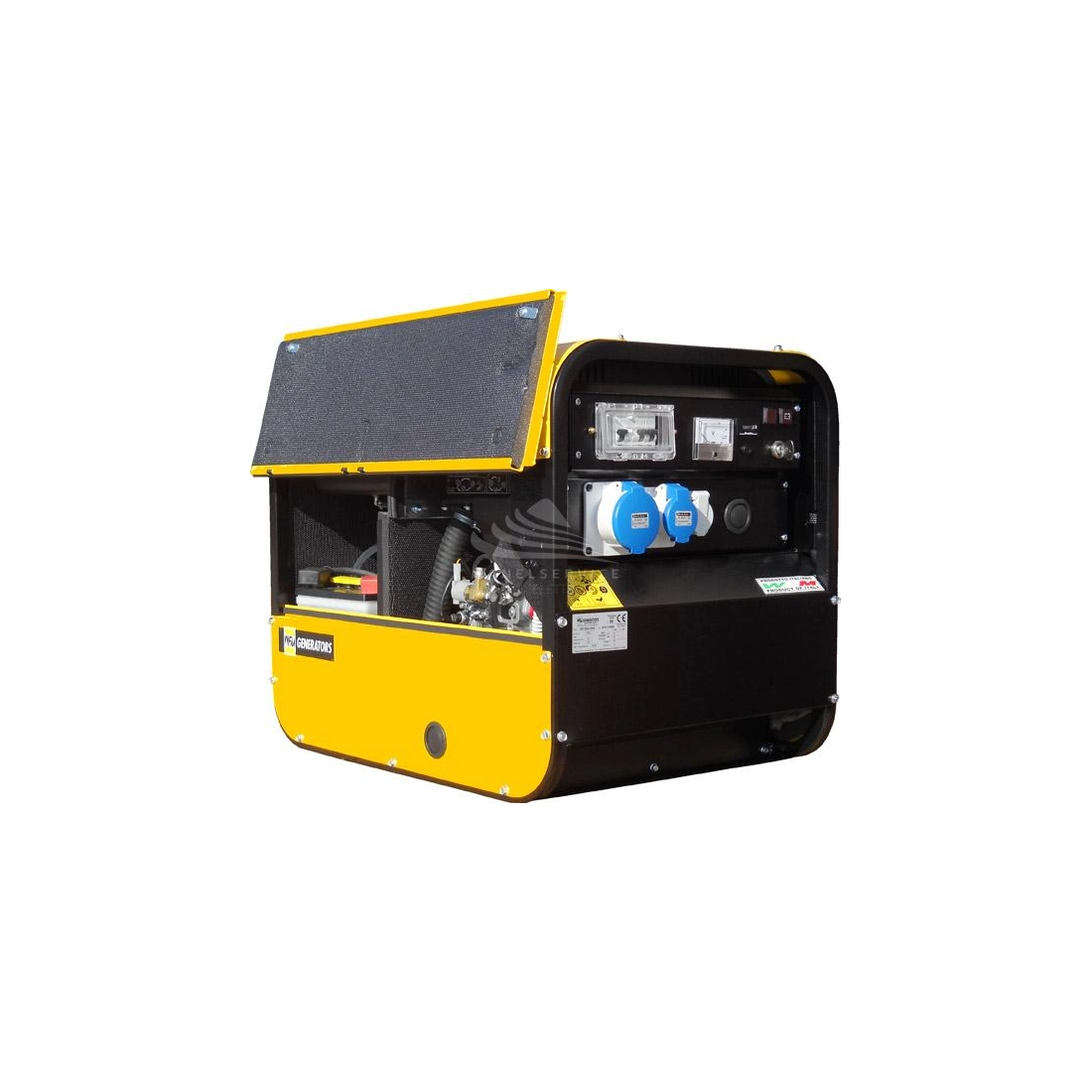

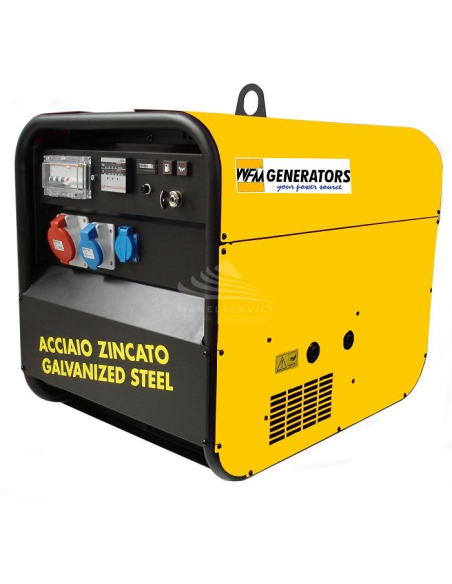

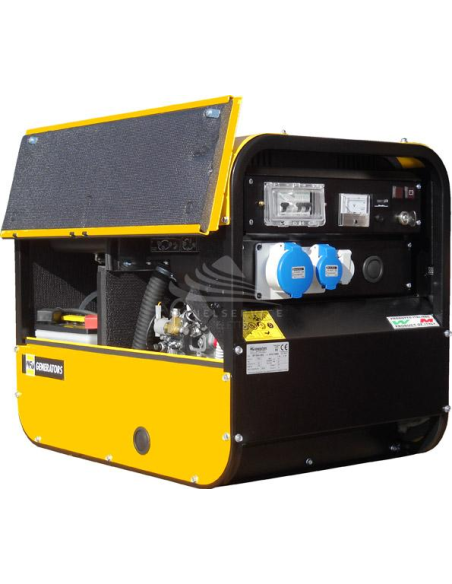

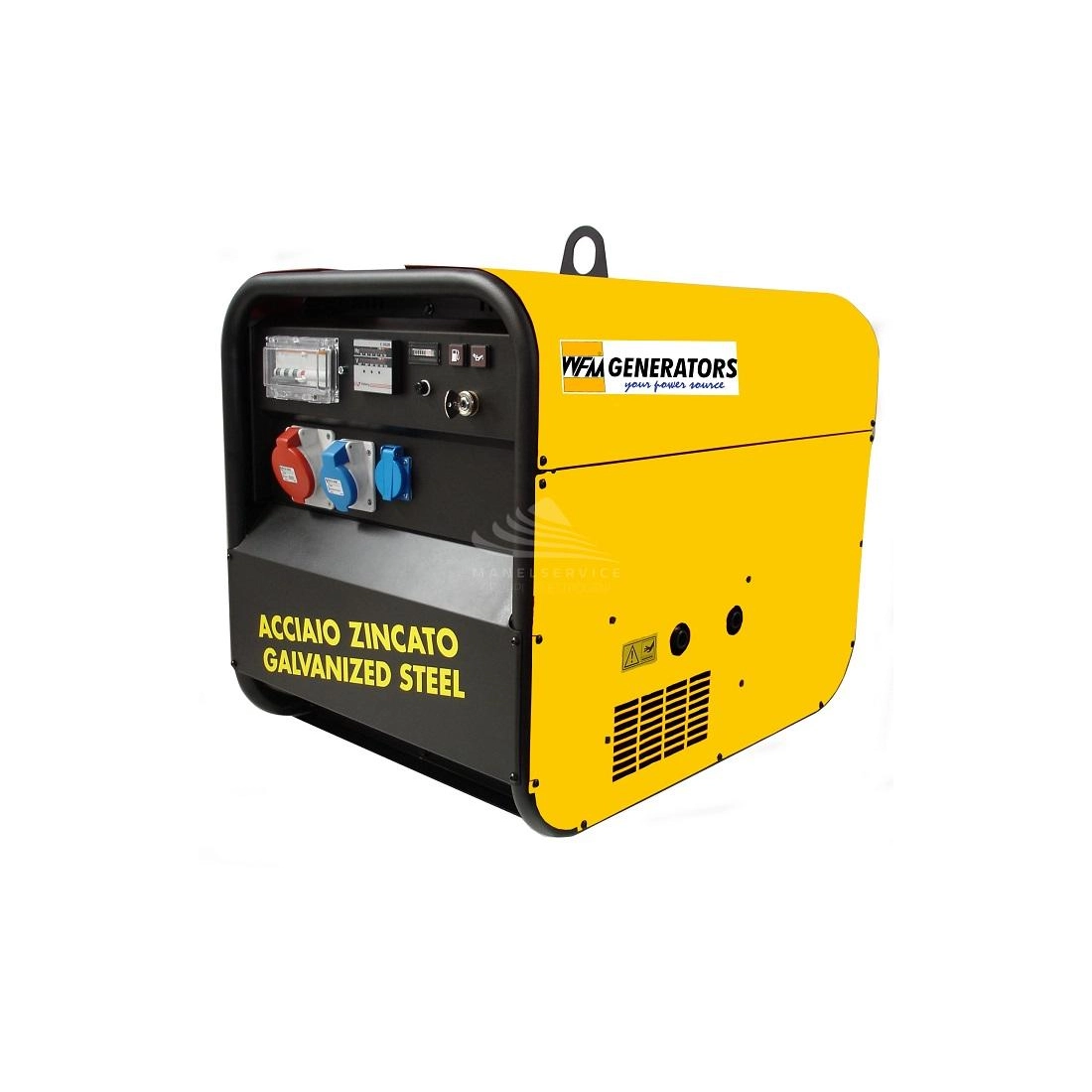

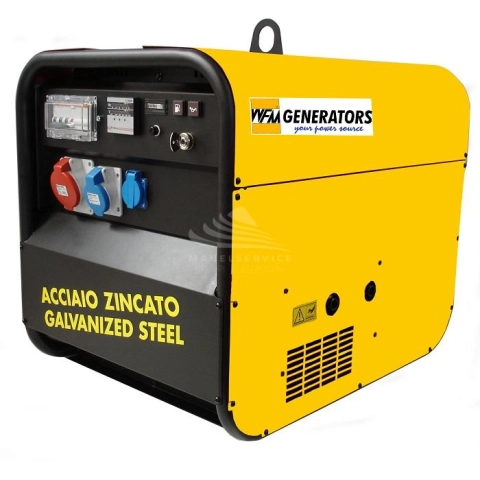

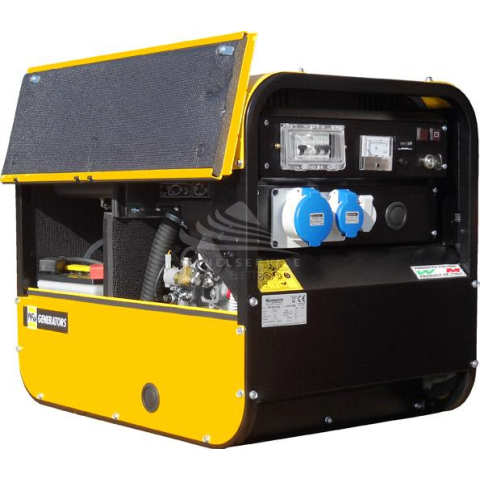

WFM SP7500-TDSE Generator Set 6.4KVA AVR
Maximum power Single-phase: 3 KW
Maximum single-phase power: 3.8 KVA
Maximum three-phase power: 5.1 KW
Maximum three-phase power: 6.4 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Lombardini 15LD440
Starting: Electric
Consumption: 2 Lt at 100% load
Length: 750 mm
Width: 560 mm
Height: 620 mm
Weight: 170 Kg
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 3
- Maximum power single phase (KVA)
- 3.8
- Maximum power three phase (KW)
- 5.1
- Maximum power three phase (KVA)
- 6.4
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400

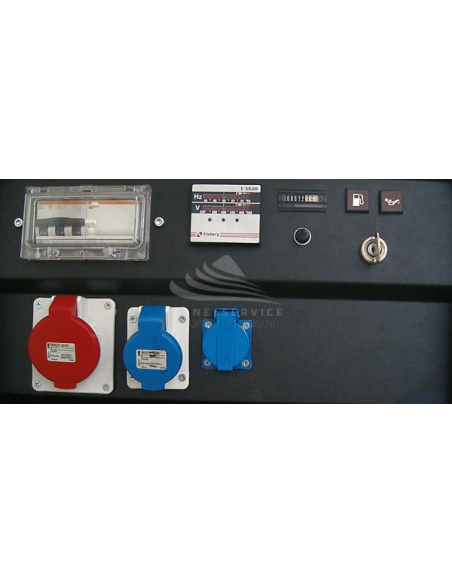

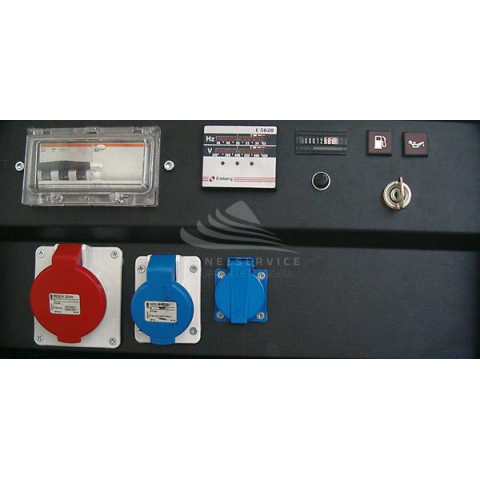

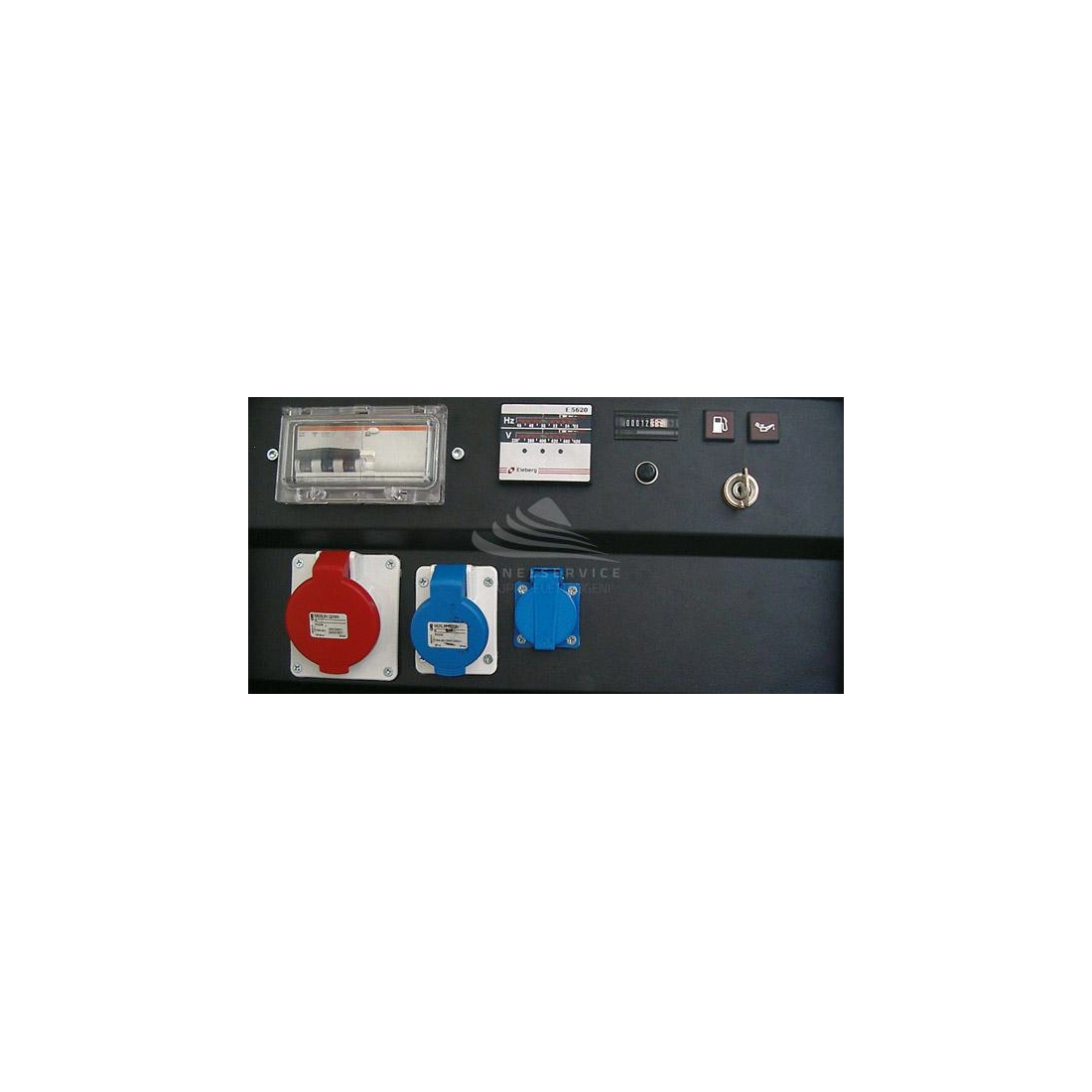

- Sockets configuration
- 1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE - 1 x 230V 16A 3P SCHUKO
- Engine
- LOMBARDINI 15LD440
- Engine rpm (rpm)
- 3000
- Starting system
- Elettrico
- Engine capacity (cm³)
- 436
- Number cylinders
- 1
- Oil capacity (L)
- 2
- Cooling
- Air
- Fuel tank capacity (L)
- 20
- Consumption (L/h)
- 2 at 100% of the load
- Running time (h)
- 10 at 100% of the load
- Acoustic power
- 96 dB(A)
- Acoustic pressure
- 71 dB(A) at 7 m
- Length (mm)
- 750
- Width (mm)
- 560
- Height (mm)
- 620
- Dry weight (Kg)
- 170
- Silenced
- Yes
- Super silenced
- No
- ATS Switch device
- Optional ATS
- Voltage regulator
- AVR
- Engine manufacturer
- LOMBARDINI
WFM SP7500-TDSE Generator Set 6.4KVA AVR
WFM SP7500-TDSE AVR GENERATOR: The power you need, wherever you need it
The WFM SP7500-TDSE GENERATOR AVR is a powerful and versatile generator set, ideal for powering your electronic equipment in any situation.
Thanks to its AVR (Automatic Voltage Regulator) technology, this generator guarantees a stable and precise voltage,
protecting your devices from power surges that could cause damage.
Strong points:
AVR technology: AVR voltage stabilisation protects your electronic equipment, even the most sensitive, from current surges.
Versatility: Suitable for both domestic and professional use, ideal for powering inverter welders, power tools, computers, TVs, and more.
Power: With a maximum power output of 6.4 KVA, it can also power several devices simultaneously.
Reliability: Lombardini diesel engine, a guarantee of quality and durability.
Ease of use: Electric start with battery, ready to use at any time.
Safety: Low oil level protection and muffler for safe and silent operation.
Transportability: Compact size and low weight for easy transport.
Technical specifications WFM SP7500-TDSE AVR GENERATOR
Maximum power Single-phase: 3 KW
Maximum single-phase power: 3.8 KVA
Maximum three-phase power: 5.1 KW
Maximum three-phase power: 6.4 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Lombardini 15LD440
Starting: Electric
Consumption: 2 Lt at 100% load
Length: 750 mm
Width: 560 mm
Height: 620 mm
Weight: 170 Kg
if you are looking for a product with similar characteristics CLICK HERE.
Images are purely indicative.
