Minimum dimensions (L x W x H): 1656 x 1264 x 2433 mm
Maximum dimensions (L x W x H): 2756 x 2193 x 7200 mm
Dry weight: 705 kg
Mast lifting: Manual
Mast rotation: 340°
Floodlights: 4 x 320W LED
Luminous flux: 211200 Lm
Illuminated area (1 lux min): 8500 m²
Engine: Kubota Z482
Engine cooling: Liquid
Cylinders (qty): 2
Engine speed: 1500 rpm
Alternator: 3.5kVA 230V 50Hz
Power outlet (16A): 1
Power plug (16A): Optional
Average sound pressure level: 60 dB(A) @ 7m
Tank capacity (gross/net): 200/180I
Autonomy: 225 h
Liquid containment (110%): yes
Wind resistance: 80 km/h

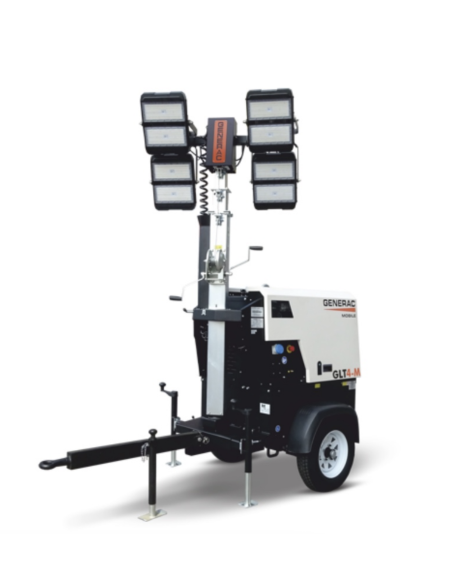

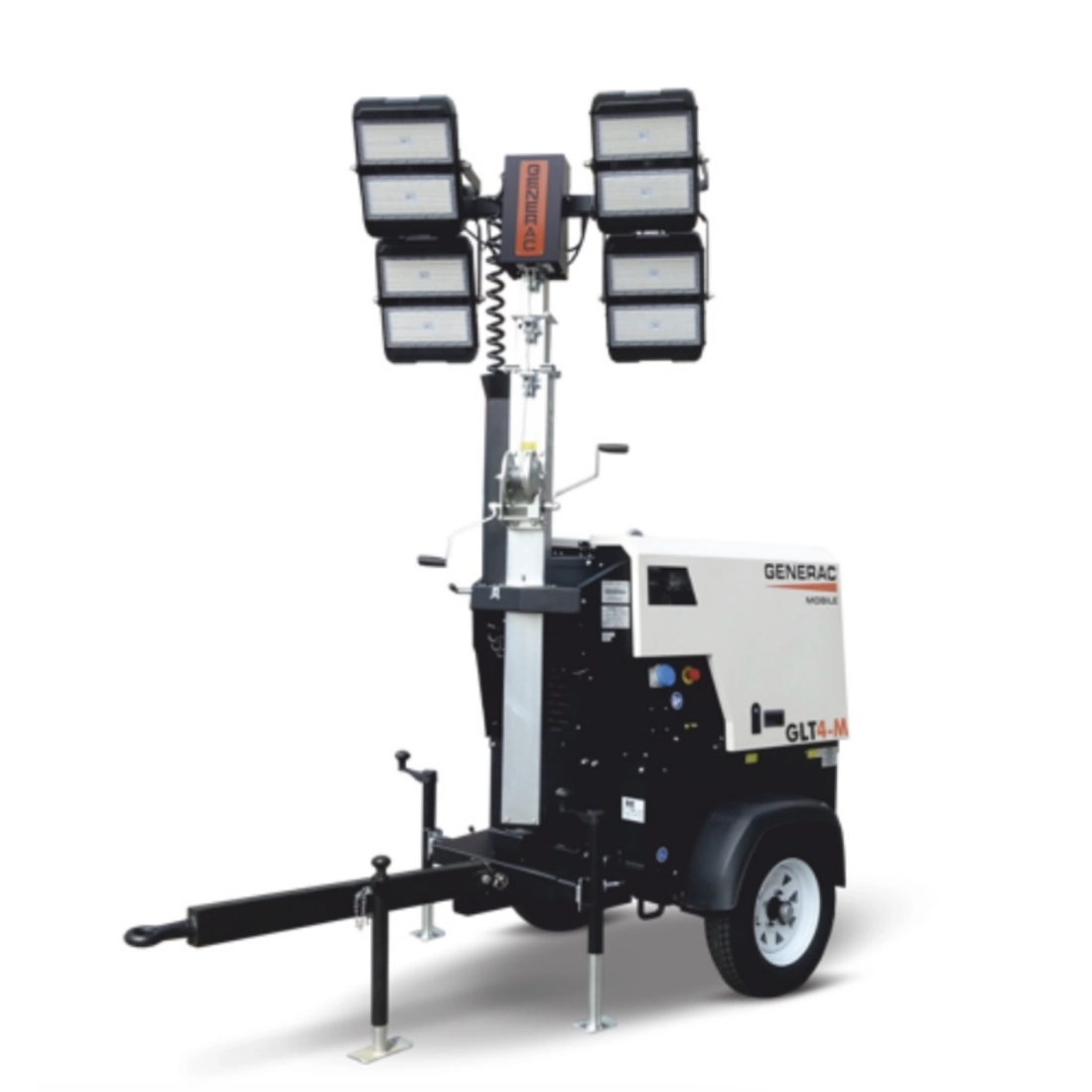

GENERAC GLT4-M K2 LIGHT TOWER 4x320W LED is a highly efficient and compact mobile lighting solution,
designed to meet lighting needs in various contexts, from construction sites to outdoor events.
Key Features:
Powerful and Low Consumption Lighting:
Equipped with 4 x 320W LED projectors (G5 model), offering a luminous flux of 211,200 Lm and an illuminated area of 8,500 m² (1 lux min).
LEDs have a long lifespan, with over 50,000 working hours.
Compact and Functional Design:
Minimum dimensions of 1656 x 1264 x 2433 mm, ideal for transport and storage.
"Gull-wing" doors for easy access to internal components.
Simplified control panel with DSE 3110 digital controller (optional DSE L401MKII).
Efficiency and Sustainability:
Kubota Z482 2-cylinder, liquid-cooled engine, reducing fuel consumption and CO2 emissions.
Large fuel tank (200/180 liters) for 225 hours of autonomy.
Liquid containment (110%) to prevent spills.
Mobility and Robustness:
Site trailer with damped axle and folding drawbar.
Wind resistance up to 80 km/h.
Manual mast lifting and 340° rotation.
Dry weight of 705 kg.
Additional Features:
16A power outlet and optional power plug.
Twilight sensor and timer (with DSE L401MKII controller).
Average sound pressure level 60 dB(A) @ 7m.
Alternator 3.5kVA 230V 50Hz.
Technical Specifications:
Minimum dimensions (L x W x H): 1656 x 1264 x 2433 mm
Maximum dimensions (Lx W x H): 2756 x 2193 x 7200 mm
Dry weight: 705 kg
Mast lifting: Manual
Mast rotation: 340°
Projectors: 4 x 320W LED
Luminous flux: 211200 Lm
Illuminated area (1 lux min): 8500 m²
Engine: Kubota Z482
Engine cooling: Liquid
Cylinders (qty): 2
Engine speed: 1500 rpm
Alternator: 3.5kVA 230V 50Hz
Power outlet (16A): 1
Power plug (16A): Optional
Average sound pressure level: 60 dB(A) @ 7m
Tank capacity (gross/net): 200/180I
Autonomy: 225 h
Liquid containment (110%): yes
Wind resistance: 80 km/h
Are you looking for a lighting tower with different technical characteristics? HERE you can find the entire range of GENERAC lighting towers or other specialized brands.
Non-binding images and technical data.
