MOSA TF IM5.5 Y L-4x150 LED Lighting Tower 4.2 kVA Genset

Name: MOSA TF IM5.5 Y L-4x150 LED Lighting Tower 4.2 kVA Genset
Brand: MOSA
SKU: C08P30E0
Price: 5207 EUR
Availability: InStock

Reference C08P30E0

Maximum Height (mt.): 5.5
Lifting System: Manual

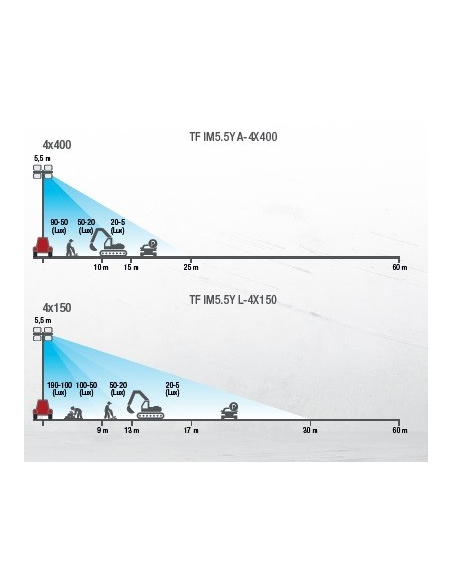

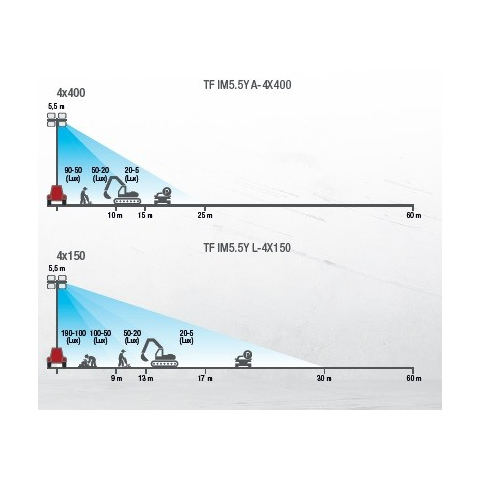

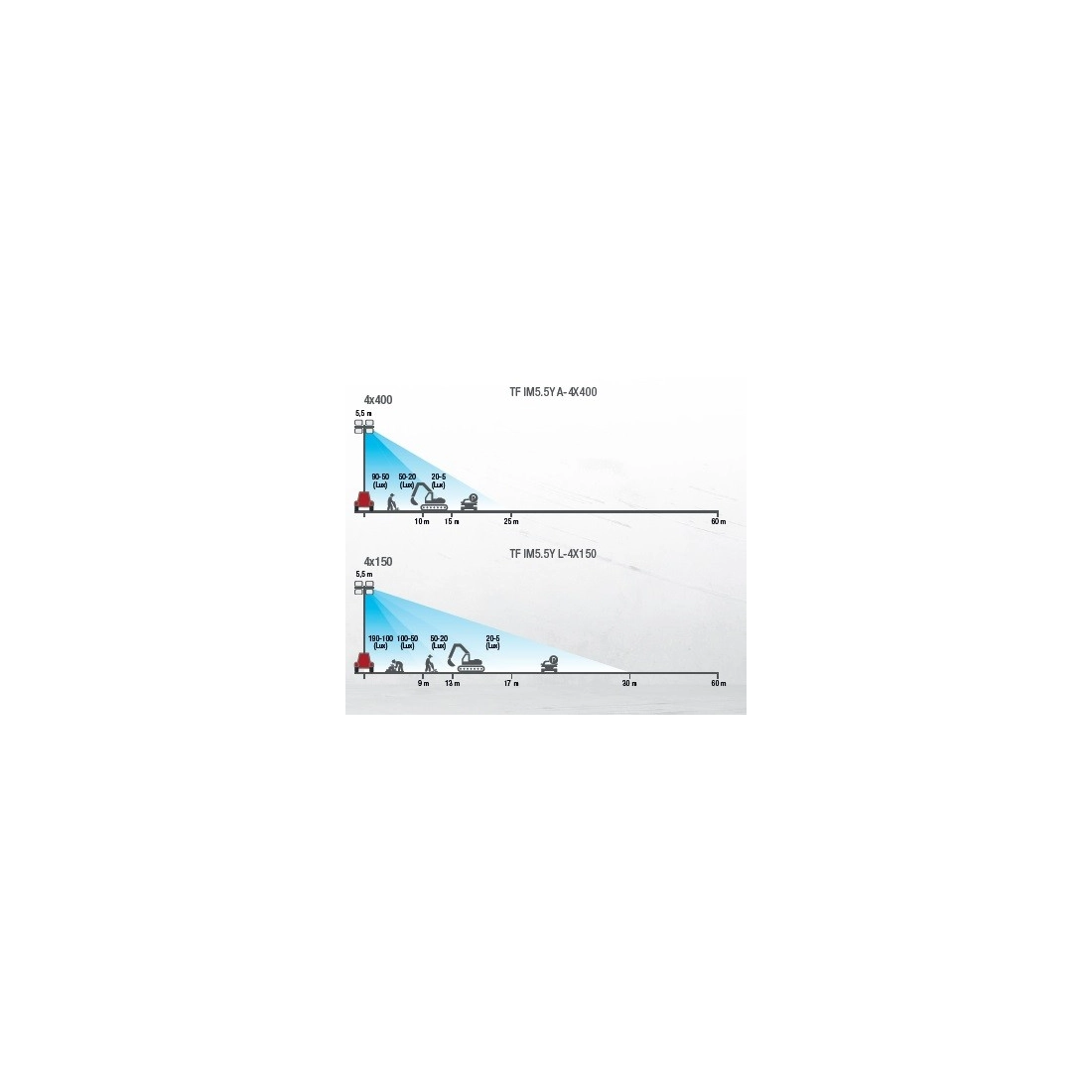

Illuminated Area: 1800 m²
Floodlihts: LED
Projectors: 4 x 150 W
Transportability: Wheels and Handles
Dry Weight (Kg): 335
Min. Dimensions (mm): 1125 x 1256 x 2236
Max. Dimensions (mm): 1853 x 1380 x 5500
Wind Stability (Km/h): 80
Mast rotation: ----
Stabilizers: 2
Operating Time (h): 44
Single Phase Max. Output (kVA): 5.5
Engine: Yanmar L70
Fuel: Diesel
r.p.m.: 3000
Tank Capacity (l): 23
Consumption (l/h): 0.53

Download Scheda tecnica TF IM5.5YJ-4X400 Download Technical data TF IM5.5YJ-4X400 Download Technische daten TFIM5.5YJ-4X400 Download Donnees tech TFIM5.5YJ-4X400 Download Manuale TFIM5.5YJ-4X400 Download Manual TFIM5.5YJ-4X400 Download Manuel TF IM5.5 Y Download Bedienungs TF IM5.5 Y

Product Details
Description

Phase: Single phase
Maximum power single phase (KVA): 4.5
Continuous power single phase (KVA): 4.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A 2P+T CEE - 1 x 115V 16A 2P+T CEE
Engine: Yanmar L70N, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 320
Number cylinders: 1
Cooling: Air
Inyección: Direct
Alternator: Synchronous, brushless
Poles: 2
Maximum height (m): 5
Type of lamps: LED
Lamps: 4 x 150 W
Telescopic pole: Galvanized
Illuminated area (m²): 1800
Total lumens (Lm): 64800
Lifting System: Manual lifting system
Open size (mm): 1853 x 1380 x 5500
Lenght closed (mm): 1125
Width closed (mm): 1256
Height closed (mm): 2246
Transportability: Wheels and handles
Stability to wind (Km/h): 80 Km/h
Fuel tank capacity (L): 23
Consumption (L/h): 0.54
Running time (h): 43
Acoustic power: 93 dB(A)
Acoustic pressure: 68 dB(A) at 7 m
Dry weight (Kg): 335
Silenced: Yes
Super silenced: Yes
Brushes: No

Brand

New compact and easy-to-handle lighting tower with an integrated power generator.

- MAXIMUM HEIGHT 5.5 M
- MANUAL LIFTING
- 4.2 kVA SUPER-SILENCED GENERATOR
- AVAILABLE BULBS: 2x300 W LED or 4x400 W METAL HALIDES
- OPERATING TIME 44 HOURS (LED)

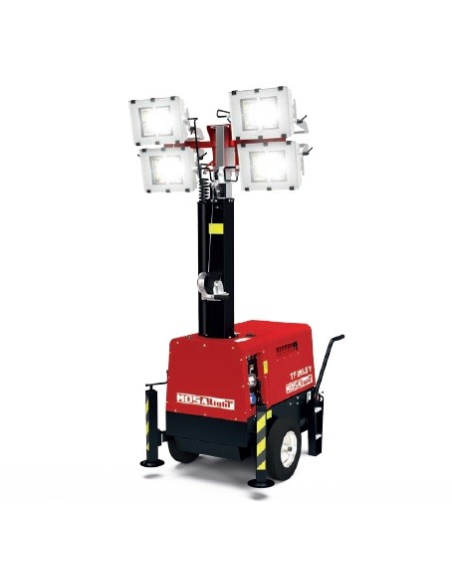

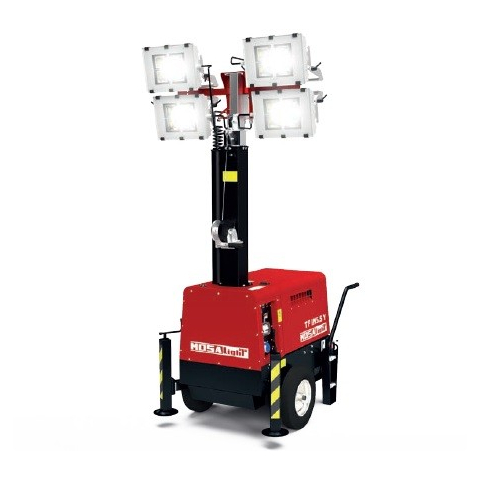

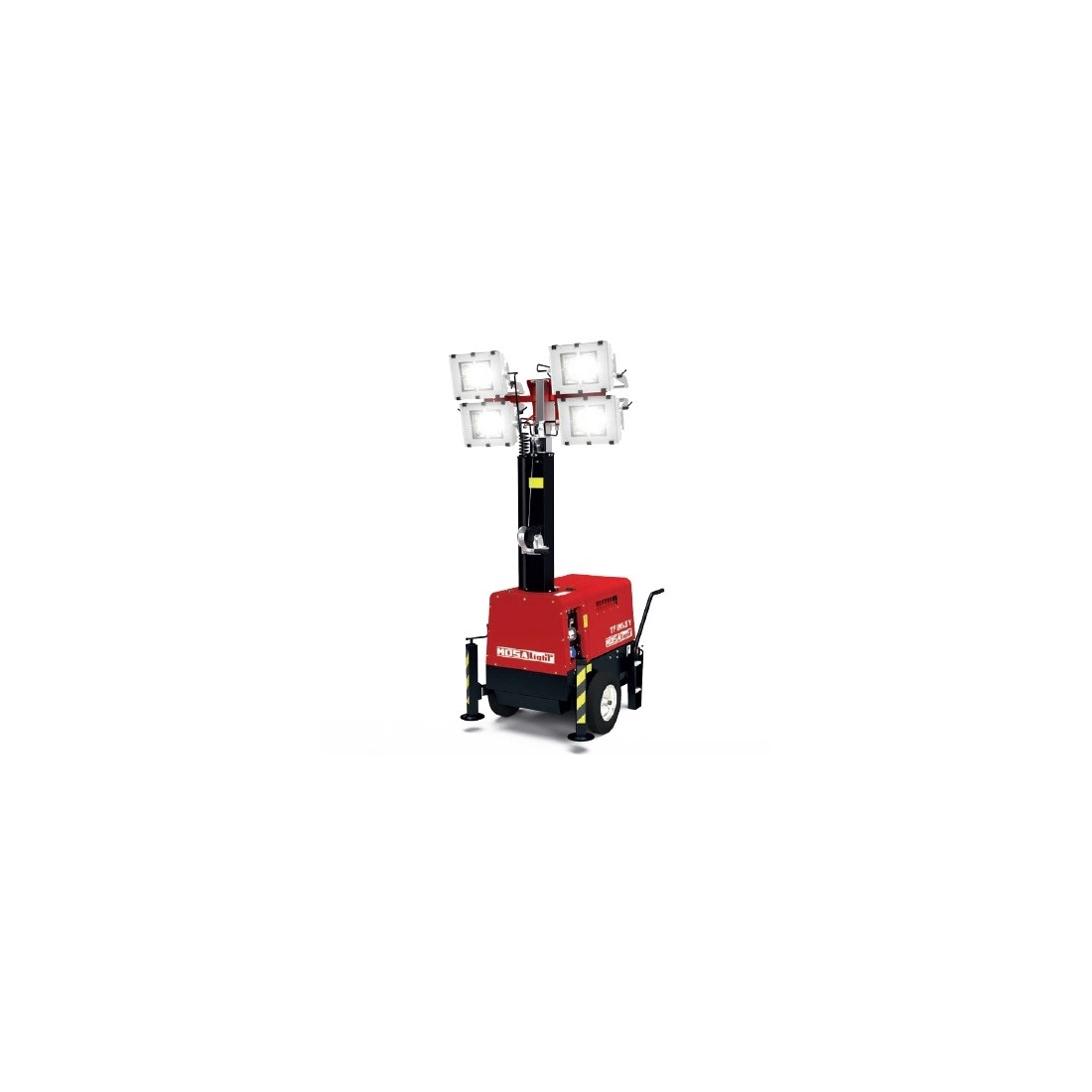

The new TF IM 5.5 Y is a compact and easy-to-carry lighting tower that can effectively illuminate areas up to 1,800 sq m with a reduced environmental impact.

TF IM 5.5 Y is fitted with a 5.5 metre telescopic, with manual lifting and two high efficiency 300 Watt LED lights (or four traditional 400 Watt metal halide lights) and a Yanmar single-cylinder engine.

Thanks to its contained weight and set-up on a manual trailer, it can be easily controlled by a single operator.

Sectors of use: rental, events, roadworks and construction sites.

The photoes are for illustrative purpose only.
